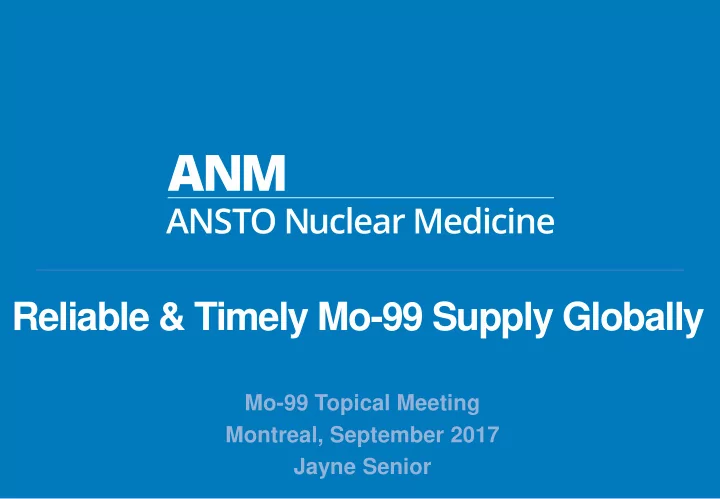

Reliable & Timely Mo-99 Supply Globally Mo-99 Topical Meeting Montreal, September 2017 Jayne Senior Agenda 1. ANM Project Background 2. ANM Design & Capacity 3. ANM Construction & Commissioning Status ANM Project Background ANSTO
SLIDE 2
SLIDE 3
ANM Project Background
SLIDE 4
ANSTO Nuclear Medicine – ANM
SLIDE 5
ANSTO Nuclear Medicine
Operated as a subsidiary of ANSTO One product- Mo-99 Scalable domestic and worldwide supply Full lifecycle consideration
SLIDE 6
Mo-99 Facility
ANM
Synroc Waste Plant
SyMo TWO PARTS
ANSTO Nuclear Medicine Project
SLIDE 7
Synroc Waste Plant “SyMo” Mo-99 Plant “ANM” OPAL
Lucas Heights Location
SLIDE 8
ANM Design & Capacity
SLIDE 9
Mo-99 Plant
ANM
Synroc Waste Plant
SyMo
TWO PARTS
3,500 6 day Ci per week LEU fuel & LEU targets Base Digestion process Proven, reliable technology Low emissions (Xe-133) Integrated preparation and testing labs Hot Isostatic Press technology 320 cans produced per year Integrated with Mo-99 facility Treats Intermediate Level Liquid Waste Waste volume reduction by 90% Immobilised waste form
ANSTO Nuclear Medicine Project
SLIDE 10
Integrated Mo-99 Production Cycle
OPAL Irradiation Plate Transport Plate Target Generator Production Chemical Separation ANM
SLIDE 11
ANM Mo-99 production process
Plates Dissolution Filtering and separation Purification Conditioning Mo-99 Patient Waste streams
SLIDE 12
World best safety features
New production efficiencies throughout State of art hot cell design Separate hot cells for each process step Radiation shielding In-cell equipment back-up Best practice hot cell transfer system Extensive emission control systems
SLIDE 13
ANM – Capacity and Flexibility
10 20 30 40 50 60 70 80 90
weekend rest of week
World Demand Profile 9000 6-Day Ci
% Demand
10 20 30 40 50 60 70 80 90
weekend rest of week
ANM Supply Profile 3500 6-Day Ci
% Supply
SLIDE 14
Capacity Increase Timing
Projection of 6-Day Ci Production/Week
2016 2017 2018
500 1000 1500 2000 2500 3000 3500 4000 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2
Current Facility 4 Runs x 8 Plates Current Facility 5 Runs x 12 Plates ANM 10 Runs x 12 Plates
SLIDE 15
Construction & Comissioning Status
SLIDE 16
16
Before
SLIDE 17
After……
SLIDE 18
Front Entrance
SLIDE 19
Ramp to Front Entrance
SLIDE 20
Side Access
SLIDE 21
Production Cell Face
SLIDE 22
Hydrogen Cell face
SLIDE 23
Dissolution Cell Control Panel
SLIDE 24
Waste Handling Cells
SLIDE 25
Rear of Hot Cells
SLIDE 26
Rear of Hot Cells
SLIDE 27
Basement Gas Tanks
SLIDE 28
Basement Iodine Filters
SLIDE 29
Plant Room
SLIDE 30
QC Intermediate Sample Test Lab
SLIDE 31
QC Intermediate Sample Test Lab
SLIDE 32
Process Preparation Room
SLIDE 33
Mo-99 Facility Milestones
Operation licence submission to ARPANSA Public consultation Construction complete
Commissioning
underway Active commissioning and operation
APRIL 2017 JUNE 2017 JULY 2017 November 2017 Subject to ARPANSA licence
COMMISSIONING
ACTIVE
COMMISSIONING
SLIDE 34
ANM Commissioning Milestones
Design Qualification (DQ) TGA / ARPANSA Licences Instrumentation Qualification (IQ)
Low & High Activity Runs Finish 18 November
Product Qualification (PQ)
Facility Services Complete In Cell Process Equipment Finish 26 October
Operational Qualification (OQ)
Audits End October/ Early November Facility Services Complete In Cell Process Equipment Commenced Complete
Product Validation
Supply Customer Validation Samples Start 20 November
SLIDE 35
Current Operations and ANM Transition
2 4 6 8 10
5 4 3 2 1
1 2 3 4 5 6 7 8 9 10 0 + (5) 2 + (4) 4 + (3) 6 + (2) 8 + (1) 10 + (0)
Planned Scale up of ANM + Reduction in Current Operations
Number of runs per week in ANM + (Number of runs per week in B54) Current Facility Full Capacity (Now) Current Facility Shut-Down (Q3 2018)
