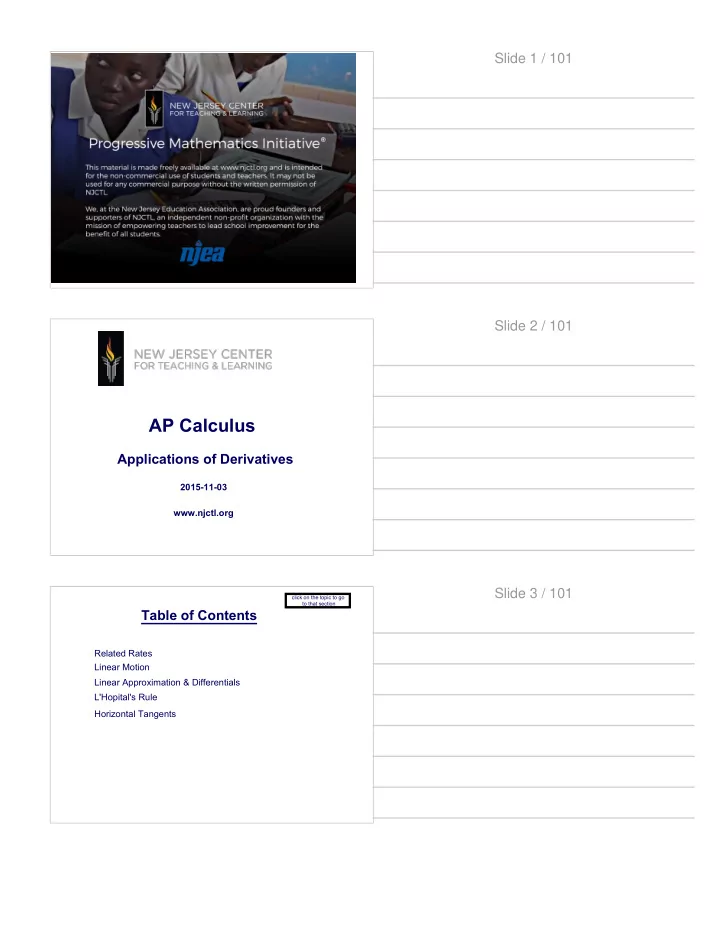

Slide 1 / 101

AP Calculus

Applications of Derivatives

2015-11-03 www.njctl.org

Slide 2 / 101 Table of Contents

Related Rates Linear Motion Linear Approximation & Differentials

click on the topic to go to that section

L'Hopital's Rule Horizontal Tangents

Slide 3 / 101

Related Rates

Return to Table of Contents

Slide 4 / 101

Related Rates is the application of implicit differentiation (which we learned in the previous unit) to real life situations. In simplest terms, related rates are problems in which you need to figure out how fast one variable is changing when given the rate of change of another variable at a specific point in time. For example, if a spherical balloon is being filled with air at a rate of 20 ft3/min, how fast is the radius changing when the radius is 2 feet?

Related Rates Slide 5 / 101

Before we attempt a Related Rates example, let's practice a few implicit differentiation examples first. Differentiate each equation with respect to time, t.

Recall: Implicit Differentiation Slide 6 / 101

1) Draw a picture. Label the picture with numbers if constant or variables if changing. 2) Identify which rate of change is given and which rate of change you are being asked to find. 3) Find a formula/equation that relates the variables whose rate of change you seek with one or more variables whose rate of change you know. 4) Implicitly differentiate with respect to time, t. 5) Plug in values you know. 6) Solve for rate of change you are being asked for. 7) Answer the question. Try to write your answer in a sentence to eliminate confusion.

Helpful Steps for Solving Related Rates Problems Slide 7 / 101

Step 3 requires you to think of an equation to relate variables. Some questions on the AP Exam will provide the equation for you, but if not, think of: –trigonometry –similar triangles –Pythagorean theorem –common Geometry equations

Step 3 Slide 8 / 101

Let's take a look back at this example... If a spherical balloon is being filled with air at a rate of 20 ft3/min, how fast is the radius changing when the radius is 2 feet?

1) Draw and label a picture. 2) Identify the rates of change you know and seek. 3) Find a formula/equation. 4) Implicitly differentiate with respect to time, t. 5) Plug in values you know. 6) Solve for rate of change you are being asked for. 7) Answer the question.

Example Slide 9 / 101

In the last question we answered the following: The radius is increasing at a rate of when the radius is 2 feet.

Why is it important to write a sentence for an answer?

On the AP Exam, Related Rates questions are graded very critically. Graders will not award points without proper vocabulary usage (i.e. increasing or decreasing rate of change), appropriate units, and the actual correct answer. Take time when formulating your answer to make sure it makes logical sense and includes all needed information.

Slide 10 / 101 Hands-On Related Rates Lab (OPTIONAL)

Click here to go to the lab titled "Related Rates"

Slide 11 / 101 Hands-On Related Rates (OPTIONAL)

Items needed: · 2 students · 1 long rope/cord/string (at least 15 feet for best display) · masking tape Set up masking tape in a right angle classroom with enough room for each student to walk along the tape line. STEP #1

Slide 12 / 101

A B Student A begins at the end of one piece of tape, and Student B begins in the corner. Each student holds one end of the rope until it is taught.

Hands-On Related Rates (OPTIONAL)

STEP #2

Slide 13 / 101

B A It is imperative that student B walks at a CONSTANT and slow pace forward while student A simple walks at whatever pace needed to keep the rope taught. The class should watch Student A's rate of change

• ver the course of his/her path. It may take

several attempts to observe the result.

Hands-On Related Rates (OPTIONAL)

STEP #3

Slide 14 / 101

A balloon is rising straight up from a level ground and tracked by a range finder 500 feet from lift off point. At the moment the range finder's elevation reads the angle is increasing at a rate of 0.14 radians/

• minute. How fast is the balloon rising at that moment?

Example Slide 15 / 101

A bag is tied to the top of a 5m ladder resting against a vertical wall. Supposed the ladder begins sliding down the wall in such a way that the foot of the ladder is moving away from the wall at a constant rate of 2m/s. How fast is the bag descending at the instant the foot of the ladder is 4m from the wall?

Example Slide 16 / 101

Water is pouring into an inverted conical tank at 2 cubic meters per

• minute. The tank is a right circular cone with height 16 meters and

base radius of 4 meters. How fast is the water level rising when the water in the tank is 5 meters deep? CHALLENGE!

Example Slide 17 / 101

1 A B C D E A person 6 feet tall is walking away from a streetlight 20 feet high at the rate of 7 ft/sec. At what rate is the length

• f the person's shadow increasing?

The shadow is increasing at a rate of 3 ft/sec. The shadow is increasing at a rate of 3/7 ft/sec. The shadow is increasing at a rate of 7/3 ft/sec. The shadow is increasing at a rate of 14 ft/sec. The shadow is increasing at a rate of 7 ft/sec.

Slide 18 / 101

2 A B C D E Water leaking onto a floor forms a circular pool. The radius of the pool increases at a rate of 4 cm/min. How fast is the area of the pool increasing when the radius is 5 cm?

The area of the circle is increasing at a rate of cm2/min when the radius is 5cm. The area of the circle is increasing at a rate of cm2/min when the radius is 5cm. The area of the circle is increasing at a rate of cm2/min when the radius is 5cm. The area of the circle is increasing at a rate of cm2/min when the radius is 5cm. The area of the circle is increasing at a rate of cm2/min when the radius is 5cm.

Slide 19 / 101 Slide 20 / 101

4 A trough of water is 8 meters long and its ends are in the shape of isosceles triangles whose width is 5 meters and height is 2 meters. If water is being pumped in at a constant rate of 6 m3/sec. At what rate is the height of the water changing when the water has a height of 120 cm? A B C D E

The height of the water is increasing at a rate of 0.25 m/sec when the water is 120cm high. The height of the water is increasing at a rate of 40 m/sec when the water is 120cm high. The height of the water is increasing at a rate of 6 m/sec when the water is 120cm high. The height of the water is increasing at a rate of 0.3 m/sec when the water is 120cm high. The height of the water is increasing at a rate of 20 m/sec when the water is 120cm high.

Slide 21 / 101

5 The sides of the rectangle pictured increase in such a way that and . At the instant where x=4 and y=3, what is the value of A B C D E

z y x

Slide 22 / 101

6 If the base, b, of a triangle is increasing at a rate of 3 inches per minute while it's height, h, is decreasing at a rate of 3 inches per minute, which of the following must be true about the area, A, of the triangle? A B C D E A is always increasing. A is always decreasing. A is decreasing only when b < h. A is decreasing only when b > h. A remains constant.

Slide 23 / 101

7 The minute hand of a certain clock is 4 in. long. Starting from the moment that the hand is pointing straight up, how fast is the area of the sector that is swept out by the hand increasing at any instant during the next revolution

• f the hand? Note: Area of a sector

Slide 24 / 101

Linear Motion

Return to Table of Contents

Slide 25 / 101

Another useful application of derivatives is to describe the linear motion of an object in two dimensions, either left and right, or up and down. This is a concept where calculus is extremely applicable. We will revisit this topic again in the next unit involving graphing, and again in the unit about integrals!

Linear Motion Slide 26 / 101

A remarkable relationship exists among the position of an object, the velocity of an object and the acceleration of an object. First... let's review what each of these words mean. Position Velocity Acceleration

Position, Velocity & Acceleration Slide 27 / 101

Are Velocity and Speed the Same Thing?

Although you may hear velocity and speed interchanged often in common conversation, they are, in fact, 2 distinct quantities. Sometimes they are equivalent to each other, but this depends on the direction of the object. Velocity is a vector quantity meaning it has both magnitude and direction. For example, if the velocity of an object is -3 feet per second, then that object is moving backwards or to the left (direction) at a rate of 3 feet per second (magnitude).

Slide 28 / 101

Similarly, there is a difference between distance and position. Distance is how far something has traveled in total; distance is a quantity. Whereas position is the location of an object compared to a reference point; position is a distance with a direction.

Distance vs. Position Slide 29 / 101

is the notation for our position function is the notation for our velocity function is the notation for our acceleration function

Typical Notation for Linear Motion Problems Slide 30 / 101

Consider driving your car along the highway. The time it takes you to travel from mile marker 27 to mile marker 105 is an hour and a half. How fast were you driving?

Example Slide 31 / 101

We know that the average velocity can be found by dividing the distance traveled by the time; however, how can we find the instantaneous velocity (how fast you are traveling at a specific moment in time)? Because we are interested in the instantaneous rate of change of a position, we are able to take the derivative of the position function and find the instantaneous velocity. Note: This requires a position function to be given.

Average Velocity vs. Instantaneous Velocity Slide 32 / 101 Slide 33 / 101

A race car is driven down a straight road such that after seconds it is feet from its origin. a) Find the instantaneous velocity after 8 seconds. b) What is the car's acceleration?

Example Slide 34 / 101

A spring is pulled to 6 inches below its resting state and bounces up and

• down. Its position is modeled by .

a) Find its velocity and acceleration at time t. b) Find the spring's velocity and acceleration after seconds.

Example Slide 35 / 101

A dynamite blast shoots a rock straight up into the air. Its height at any given time is feet after t seconds. a) How high does the rock travel? b) What is the velocity and speed of the rock when it is 256 feet above ground? c) What is the acceleration at any time, t? d) When does the rock hit the ground?

Example Slide 36 / 101

One More Reminder!

What is the difference between:

Average Velocity Instantaneous Velocity

Slide 37 / 101

8 A B C D E A particle moves along the x-axis so that at any time t>0 seconds its velocity is given by m/s. What is the acceleration of the particle at time ?

Slide 38 / 101 Slide 39 / 101

10 A B C D E The position of a particle moving along a straight line at any time t is given by . What is the acceleration of the particle when t=4?

Slide 40 / 101

11 A B C D E A mouse runs through a straight pipe such that his position at any time is inches. Find the average velocity during the first 5 seconds.

Slide 41 / 101

12 A B C D E An object moves along the x-axis so that at time t>0 its position is given by meters. Find the speed of the object at t=3 seconds.

Slide 42 / 101

13 A rock thrown vertically upward from the surface of the moon at a velocity of 24m/s reaches a height of meters in t seconds. Find the rock's acceleration as a function of time.

Slide 43 / 101

14 A rock thrown vertically upward from the surface of the moon at a velocity of 24m/s reaches a height of meters in t seconds. Find the rock's average velocity during the first 3 sec.

Slide 44 / 101

15 A rock thrown vertically upward from the surface of the moon at a velocity of 24m/s reaches a height of meters in t seconds. Find the rock's instantaneous velocity at t=3 sec.

Slide 45 / 101

Linear Approximation & Differentials

Return to Table of Contents

Slide 46 / 101

In the last unit we explored what it meant for a differentiable function to be "locally linear". Also in the previous unit, we discussed how to find the equation of a tangent line to a function. In this section, we will expand on those ideas and how they become useful in a topic called Linear Approximation.

Linear Approximation Slide 47 / 101 Slide 48 / 101

Observe the black tangent line to the function at x=9. If we write the equation of the tangent line at x=9, we can then use this line and substitute 8.9 into our equation to find an approximation for f(8.9). Again, it won't be exact, but will be much closer than just saying 3.

Linear Approximation Slide 49 / 101 Slide 50 / 101

Practice: Use linear approximation to approximate the value of f(8.9).

Example Slide 51 / 101

Is our approximation greater than or less than the actual value of f(8.9)? Why or why not?

Example, Continued Slide 52 / 101 Slide 53 / 101

Given , approximate .

Example Slide 54 / 101

16 Given Approximate

Slide 55 / 101

Recall 17 For the previous question, is the approximation of greater than or less than the actual value? You may look at a graph of the function to decide. A Greater than B Less than

Slide 56 / 101 Slide 57 / 101

Slide 58 / 101

20 Find the approximate value of using linear approximation.

Slide 59 / 101

21 Given and approximate the value

• f

Slide 60 / 101

Slide 61 / 101 Differentials

So far we have been discussing and , but sometimes in calculus we are interested in only . We call this the differential. The process is fairly simple given we already know how to find . This is called differential form.

Slide 62 / 101

Let's try an example: Find the differential .

Differentials Slide 63 / 101

Slide 64 / 101

Note the difference between and . If we calculate both, we can then compare the values to calculate the percentage change or approximation error.

vs. Slide 65 / 101

The radius of a circle increases from 10 cm to 10.1 cm. Use to estimate the increase in the circle's Area, . Compare this estimate with the true change, , and find the approximation error.

Example Slide 66 / 101

23 Find the differential if

Slide 67 / 101

24 Find the differential if

Slide 68 / 101 Slide 69 / 101

26 A B C D E F Find and evaluate for the given values of and .

Slide 70 / 101 Slide 71 / 101 Slide 72 / 101

Slide 73 / 101

L'Hopital's Rule

Return to Table of Contents

Slide 74 / 101

One additional application of derivatives actually applies to solving limit questions!

L'Hopital's Rule Slide 75 / 101

Cool Fact!

In the 17th and 18th centuries, the name was commonly spelled "L'Hospital", however, French spellings have been altered and the silent 's' has been dropped.

L'Hopital's Rule

(pronounced "Lho-pee-talls") Guillaume de L'Hopital was a french mathematicion from the 17th

• century. He is known most commonly for his work calculating limits

involving indeterminate forms and . L'Hopital was the first to publish this notion, but gives credit to the Bernoulli brothers for their work in this area.

Slide 76 / 101 Slide 77 / 101

L'Hopital discovered an alternative way of dealing with these limits!

L'HOPITAL'S RULE

Suppose you have one of the following cases:

• r

Then,

Slide 78 / 101

What does this mean? · You now have an alternative method for calculating these indeterminate limits. Why didn't you learn this method earlier? · You didn't know how to find a derivative yet!

L'Hopital's Rule Slide 79 / 101

Let's try L'Hopital's Rule on our previous example:

Example Slide 80 / 101

Evaluate the following limit:

Example Slide 81 / 101

Evaluate the following limit:

Note: L'Hopital's Rule can be applied more than one time, if needed.

Example Slide 82 / 101 Important Fact to Remember:

ONLY use L'Hopital's Rule on quotients that result in an indeterminate form upon substitution. Using the rule on other limits may, and often will, result in incorrect answers.

Slide 83 / 101

30 A B C D E Evaluate the following limit:

Slide 84 / 101

31 A B C D E Evaluate the following limit:

Slide 85 / 101

32 A B C D E Evaluate the following limit:

Slide 86 / 101

33 A B C D E Evaluate the following limit: Hint: Sometimes it is helpful to rewrite before applying L'Hopital's Rule.

Slide 87 / 101

34 A B C D E Evaluate the following limit:

Slide 88 / 101

Horizontal Tangents

Return to Table of Contents

Slide 89 / 101

Recall what it means to be tangent to a function. We could draw an infinite amount of tangent lines below; however, looking at the ones given what observations can you make about the black tangent lines?

Tangent Lines Slide 90 / 101

Do you think there is a way to find out where the horizontal tangents are

• ccurring aside from just estimating?

Horizontal Tangents Slide 91 / 101

Let's try an example... At what x-value(s) does the following function have a horizontal tangent line?

Example Slide 92 / 101

At what point(s) does the following function have a horizontal tangent line? ***Note the alternative wording. Pay attention on the AP Exam! Some questions will only ask for the x-value, but if you are asked at what point(s) the function has horizontal tangent lines, you need both the x- and y- coordinates.

Example Slide 93 / 101

At what x-value(s) does the following function have a horizontal tangent line?

Example Slide 94 / 101 Slide 95 / 101 Slide 96 / 101

37 At what point(s) does the following function have a horizontal tangent line?

Slide 97 / 101 Slide 98 / 101 Slide 99 / 101

40 At what point(s) does the following function have a horizontal tangent line?

Slide 100 / 101 Slide 101 / 101
