ReferItGame: Referring to Objects in Photographs of Natural Scenes - - PowerPoint PPT Presentation

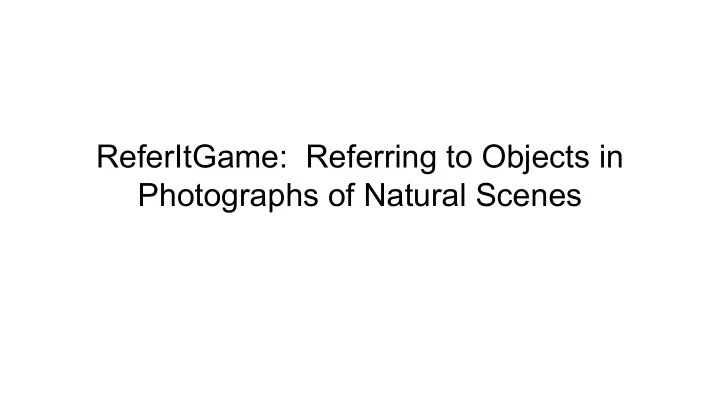

ReferItGame: Referring to Objects in Photographs of Natural Scenes

Motivation

• First large-scale referring expression dataset
• Reference expressions are the natural way people talk

– Of psychological interest in the ‘70s; Grice, Rosch, Winograd

• Application to human-computer interaction, robots
• Introduce

– A large-scale dataset of referring expressions – A benchmark model for generating referral expressions

Motivation

• Natural referring expressions are free-form

– ‘smiling boy’; only subject – ‘man on left’; subject and preposition

• Other work requires expression as (subj, prep, obj)

– ‘cat on the chair’

Dataset

• Build on SAIAPR TC-12 dataset with 238 object categories
• Visual features include segmentations with

– absolute properties: area, boundary, width, height… – relative properties: adjacent, disjoint, beside, X-aligned, above…

Dataset

• Player 1 writes an expression referencing the segmented
• bject
• Player 2 clicks on where that object should be

– This verifies the expression is reasonable

Dataset

• Collected through Turkers and volunteers

– ~130,000 expressions – ~100,000 distinct objects – ~20,000 photographs

• www.referitgame.com is down unfortunately

Dataset

• Parse expressions into 7-tuple set of attributes, R

– entry-level category; ‘bird’ – color; ‘blue’ – size; ‘tiny’ – absolute location; ‘top of the image’ – relative location relation; ‘the car to the left of the tree’ – relative location object; ‘the car to the left of the tree’ – generic; ‘wooden’, ‘round’

• The big old white cabin beside the tree

– R = {cabin, white, big, Ø, beside, tree, old}

• StanfordCoreNLP parser and attribute template

Dataset

• Psychology analysis

– ‘woman’ often replaced with ‘person’

Dataset

• Attribute use

– Roughly half of parsed descriptions are just category

Model

• Optimize R over P and S using ILP

– R is 7-tuple set of attributes – P is visual features of object being referred to – S is visual features of the scene

• Different hand-engineered distributions for different attributes
• Unary priors between attribute and object
• Pairwise priors between pairs of attributes

Evaluation

• Three test sets of 500 images each

– A contains interesting objects – B contains most frequently occurring interesting objects – C contains interesting objects when multiple are present

• Baseline model

– Incorporates only the priors, so no S or attributes

• Humans ~72% accuracy

Critique

• How important is the scene for the attributes?

– S is only used for relative location {relation, object} attributes – Absolute location is most commonly used attribute – Over half of parsed descriptions only include object category

• Why don’t the authors include more information on the

visual features?

– Which visual features are most important?

• Better metric than precision and recall?

– Just ask AMT workers if description is reasonable?

Critique

• Why don’t the authors analyze training referral

expressions more?

– Paid Turk workers per every 10 images – Some human expressions are just the object

Future Work

• Scale up the dataset and train end-to-end with the best

neural networks

• Identify referred object instead of generating expression

– Done in upcoming MAttNet paper

• Make the images and expressions more challenging
