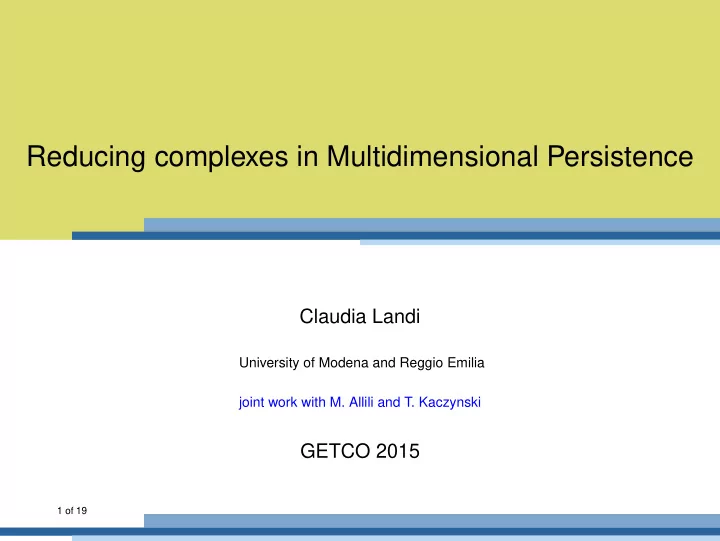

Reducing complexes in Multidimensional Persistence

Claudia Landi

University of Modena and Reggio Emilia joint work with M. Allili and T. Kaczynski

GETCO 2015

1 of 19

Figs/BU-logo-purple-lowres

Motivation

• The most common algorithm used for computing 1-D persistent

homology has complexity O(n3) [Zomorodian-Carlsson 2005]

2 of 19

Figs/BU-logo-purple-lowres

Motivation

• The most common algorithm used for computing 1-D persistent

homology has complexity O(n3) [Zomorodian-Carlsson 2005]

• Computation of multi-D persistent homology has exponential

complexity and polynomial complexity for one-critical filtrations [Carlsson et al 2010]

2 of 19

Figs/BU-logo-purple-lowres

Motivation

• The most common algorithm used for computing 1-D persistent

homology has complexity O(n3) [Zomorodian-Carlsson 2005]

• Computation of multi-D persistent homology has exponential

complexity and polynomial complexity for one-critical filtrations [Carlsson et al 2010]

• We know of no way to improve the worst case complexity of the
• problem. For massive datasets, this can be a severe limitation.

2 of 19

Figs/BU-logo-purple-lowres

Motivation

• The most common algorithm used for computing 1-D persistent

homology has complexity O(n3) [Zomorodian-Carlsson 2005]

• Computation of multi-D persistent homology has exponential

complexity and polynomial complexity for one-critical filtrations [Carlsson et al 2010]

• We know of no way to improve the worst case complexity of the
• problem. For massive datasets, this can be a severe limitation.
• An alternative strategy:
• reduce the initial complex using geometric and combinatorial methods

before computing persistence

• use reductions that preserve persistent homology groups

2 of 19

Figs/BU-logo-purple-lowres

Motivation

• The most common algorithm used for computing 1-D persistent

homology has complexity O(n3) [Zomorodian-Carlsson 2005]

• Computation of multi-D persistent homology has exponential

complexity and polynomial complexity for one-critical filtrations [Carlsson et al 2010]

• We know of no way to improve the worst case complexity of the
• problem. For massive datasets, this can be a severe limitation.
• An alternative strategy:
• reduce the initial complex using geometric and combinatorial methods

before computing persistence

• use reductions that preserve persistent homology groups
• Case of 1D persistence in homology degree 0: [Frosini-Pittore 1999]

2 of 19

Figs/BU-logo-purple-lowres

Motivation

• The most common algorithm used for computing 1-D persistent

homology has complexity O(n3) [Zomorodian-Carlsson 2005]

• Computation of multi-D persistent homology has exponential

complexity and polynomial complexity for one-critical filtrations [Carlsson et al 2010]

• We know of no way to improve the worst case complexity of the
• problem. For massive datasets, this can be a severe limitation.
• An alternative strategy:
• reduce the initial complex using geometric and combinatorial methods

before computing persistence

• use reductions that preserve persistent homology groups
• Case of 1D persistence in homology degree 0: [Frosini-Pittore 1999]
• Case of multiD persistence in homology degree 0: [Cerri et al 2006]:

2 of 19

Figs/BU-logo-purple-lowres

Motivation

• The most common algorithm used for computing 1-D persistent

homology has complexity O(n3) [Zomorodian-Carlsson 2005]

• Computation of multi-D persistent homology has exponential

complexity and polynomial complexity for one-critical filtrations [Carlsson et al 2010]

• We know of no way to improve the worst case complexity of the
• problem. For massive datasets, this can be a severe limitation.
• An alternative strategy:
• reduce the initial complex using geometric and combinatorial methods

before computing persistence

• use reductions that preserve persistent homology groups
• Case of 1D persistence in homology degree 0: [Frosini-Pittore 1999]
• Case of multiD persistence in homology degree 0: [Cerri et al 2006]:
• Case of 1D persistence in any degree: [Nanda-Mischaikow 2013]

2 of 19

Figs/BU-logo-purple-lowres

Motivation

• The most common algorithm used for computing 1-D persistent

homology has complexity O(n3) [Zomorodian-Carlsson 2005]

• Computation of multi-D persistent homology has exponential

complexity and polynomial complexity for one-critical filtrations [Carlsson et al 2010]

• We know of no way to improve the worst case complexity of the
• problem. For massive datasets, this can be a severe limitation.
• An alternative strategy:
• reduce the initial complex using geometric and combinatorial methods

before computing persistence

• use reductions that preserve persistent homology groups
• Case of 1D persistence in homology degree 0: [Frosini-Pittore 1999]
• Case of multiD persistence in homology degree 0: [Cerri et al 2006]:
• Case of 1D persistence in any degree: [Nanda-Mischaikow 2013]
• This talk: apply this strategy for multiD persistence in any degree

2 of 19

Figs/BU-logo-purple-lowres

Outline

Introduction S-Complexes Multidimensional Persistent Homology

3 of 19

Figs/BU-logo-purple-lowres

Outline

Introduction S-Complexes Multidimensional Persistent Homology Partial Matching & Reductions in the framework of persistence

3 of 19

Figs/BU-logo-purple-lowres

Outline

Introduction S-Complexes Multidimensional Persistent Homology Partial Matching & Reductions in the framework of persistence A matching algorithm for multidimensional persistence

3 of 19

Figs/BU-logo-purple-lowres

Outline

Introduction S-Complexes Multidimensional Persistent Homology Partial Matching & Reductions in the framework of persistence A matching algorithm for multidimensional persistence Conclusion

3 of 19

Figs/BU-logo-purple-lowres

S-Complexes

• 1. Let S be a finite set with a gradation Sq such that Sq = ∅ for q < 0.

For every element σ ∈ S there exists a unique number q such that σ ∈ Sq. This number is called the dimension of σ and denoted dim σ.

4 of 19

Figs/BU-logo-purple-lowres

S-Complexes

• 1. Let S be a finite set with a gradation Sq such that Sq = ∅ for q < 0.

For every element σ ∈ S there exists a unique number q such that σ ∈ Sq. This number is called the dimension of σ and denoted dim σ.

• 2. Let κ : S × S → R, R a PID, be a function such that, if κ(σ, τ) = 0,

then dim σ = dim τ + 1. κ is called the coincidence index.

4 of 19

Figs/BU-logo-purple-lowres

S-Complexes

• 1. Let S be a finite set with a gradation Sq such that Sq = ∅ for q < 0.

For every element σ ∈ S there exists a unique number q such that σ ∈ Sq. This number is called the dimension of σ and denoted dim σ.

• 2. Let κ : S × S → R, R a PID, be a function such that, if κ(σ, τ) = 0,

then dim σ = dim τ + 1. κ is called the coincidence index.

• 3. Cq(S) := R(Sq), the free module over R generated by Sq.

4 of 19

Figs/BU-logo-purple-lowres

S-Complexes

• 1. Let S be a finite set with a gradation Sq such that Sq = ∅ for q < 0.

For every element σ ∈ S there exists a unique number q such that σ ∈ Sq. This number is called the dimension of σ and denoted dim σ.

• 2. Let κ : S × S → R, R a PID, be a function such that, if κ(σ, τ) = 0,

then dim σ = dim τ + 1. κ is called the coincidence index.

• 3. Cq(S) := R(Sq), the free module over R generated by Sq.
• 4. We say that (S, κ) is an S-complex if (C∗(S), ∂κ

∗ ) with

∂κ

q : Cq(S) → Cq−1(S) defined on generators σ ∈ S by

∂κ(σ) :=

• τ∈S

κ(σ, τ)τ is a free chain complex with base S.

4 of 19

Figs/BU-logo-purple-lowres

S-Complexes

• 1. Let S be a finite set with a gradation Sq such that Sq = ∅ for q < 0.

For every element σ ∈ S there exists a unique number q such that σ ∈ Sq. This number is called the dimension of σ and denoted dim σ.

• 2. Let κ : S × S → R, R a PID, be a function such that, if κ(σ, τ) = 0,

then dim σ = dim τ + 1. κ is called the coincidence index.

• 3. Cq(S) := R(Sq), the free module over R generated by Sq.
• 4. We say that (S, κ) is an S-complex if (C∗(S), ∂κ

∗ ) with

∂κ

q : Cq(S) → Cq−1(S) defined on generators σ ∈ S by

∂κ(σ) :=

• τ∈S

κ(σ, τ)τ is a free chain complex with base S.

• 5. By the homology of an S-complex (S, κ) we mean the homology of

the chain complex (C∗(S), ∂κ

∗ ), and we denote it by H∗(S, κ) or simply

by H∗(S).

4 of 19

Figs/BU-logo-purple-lowres

Examples of S-Complexes

Main examples of S-complexes:

• simplicial complexes:

5 of 19

Figs/BU-logo-purple-lowres

Examples of S-Complexes

Main examples of S-complexes:

• simplicial complexes:
• 1. assume an ordering of S0 is given and every simplex σ in S is coded as

[v0, v1, . . . vq], where the vertices v0, v1, . . . vq are listed according to the prescribed ordering of S0.

5 of 19

Figs/BU-logo-purple-lowres

Examples of S-Complexes

Main examples of S-complexes:

• simplicial complexes:
• 1. assume an ordering of S0 is given and every simplex σ in S is coded as

[v0, v1, . . . vq], where the vertices v0, v1, . . . vq are listed according to the prescribed ordering of S0.

• 2. define

κ(σ, τ) :=    (−1)i if σ = [v0, v1, . . . , vq] and τ = [v0, v1, . . . , vi−1, vi+1, . . . , vq]

• therwise.

5 of 19

Figs/BU-logo-purple-lowres

Examples of S-Complexes

Main examples of S-complexes:

• simplicial complexes:
• 1. assume an ordering of S0 is given and every simplex σ in S is coded as

[v0, v1, . . . vq], where the vertices v0, v1, . . . vq are listed according to the prescribed ordering of S0.

• 2. define

κ(σ, τ) :=    (−1)i if σ = [v0, v1, . . . , vq] and τ = [v0, v1, . . . , vi−1, vi+1, . . . , vq]

• therwise.
• 3. obtain an S-complex whose chain complex is the classical simplicial chain

complex used in simplicial homology

5 of 19

Figs/BU-logo-purple-lowres

Examples of S-Complexes

Main examples of S-complexes:

• simplicial complexes:
• 1. assume an ordering of S0 is given and every simplex σ in S is coded as

[v0, v1, . . . vq], where the vertices v0, v1, . . . vq are listed according to the prescribed ordering of S0.

• 2. define

κ(σ, τ) :=    (−1)i if σ = [v0, v1, . . . , vq] and τ = [v0, v1, . . . , vi−1, vi+1, . . . , vq]

• therwise.
• 3. obtain an S-complex whose chain complex is the classical simplicial chain

complex used in simplicial homology

• cubical complexes

5 of 19

Figs/BU-logo-purple-lowres

Examples of S-Complexes

Main examples of S-complexes:

• simplicial complexes:
• 1. assume an ordering of S0 is given and every simplex σ in S is coded as

[v0, v1, . . . vq], where the vertices v0, v1, . . . vq are listed according to the prescribed ordering of S0.

• 2. define

κ(σ, τ) :=    (−1)i if σ = [v0, v1, . . . , vq] and τ = [v0, v1, . . . , vi−1, vi+1, . . . , vq]

• therwise.
• 3. obtain an S-complex whose chain complex is the classical simplicial chain

complex used in simplicial homology

• cubical complexes
• cell complexes

5 of 19

Figs/BU-logo-purple-lowres

Multi-filtration of an S-complex

• In Rk consider the partial order a = (ai) b = (bi) if and only if

ai ≤ bi for all i = 1, 2, . . . , k;

6 of 19

Figs/BU-logo-purple-lowres

Multi-filtration of an S-complex

• In Rk consider the partial order a = (ai) b = (bi) if and only if

ai ≤ bi for all i = 1, 2, . . . , k;

• A k-filtration of S is a family F = {Sa}a∈Rk of subsets of S with the

following properties:

• F is nested with respect to inclusions:

Sa ⊆ Sb, for every a b

• F is non-increasing on faces:

if σ ∈ Sa and τ is a face of σ then τ ∈ Sa

6 of 19

Figs/BU-logo-purple-lowres

Multi-filtration of an S-complex

• In Rk consider the partial order a = (ai) b = (bi) if and only if

ai ≤ bi for all i = 1, 2, . . . , k;

• A k-filtration of S is a family F = {Sa}a∈Rk of subsets of S with the

following properties:

• F is nested with respect to inclusions:

Sa ⊆ Sb, for every a b

• F is non-increasing on faces:

if σ ∈ Sa and τ is a face of σ then τ ∈ Sa

• Given a function f : S0 → Rk, the sublevel set filtration is defined by

Sa = {σ = [v0, v1, . . . , vq] ∈ S | f(vi) a, i = 0, . . . , q}.

6 of 19

Figs/BU-logo-purple-lowres

Multidimensional Persistent Homology

Persistence analyzes the homological changes of the filtration as a varies:

7 of 19

Figs/BU-logo-purple-lowres

Multidimensional Persistent Homology

Persistence analyzes the homological changes of the filtration as a varies:

• for a b, consider the homomorphism

H∗(j(a,b)) : H∗(Sa) → H∗(Sb). induced by the inclusion map j(a,b) : Sa ֒ → Sb.

7 of 19

Figs/BU-logo-purple-lowres

Multidimensional Persistent Homology

Persistence analyzes the homological changes of the filtration as a varies:

• for a b, consider the homomorphism

H∗(j(a,b)) : H∗(Sa) → H∗(Sb). induced by the inclusion map j(a,b) : Sa ֒ → Sb.

• The i-th persistent homology group of the filtration at (a, b) is image
• f the map Hi(j(a,b)):

Ha,b

i

(S) := im Hi(j(a,b))

7 of 19

Figs/BU-logo-purple-lowres

Partial matchings

Given an S-complex (S, κ), a partial matching on (S, κ) is a quadruplet (A, B, C, m ) where

• A, B, C is a partition of S, and
• m : A → B is a map such that, for each τ ∈ A, κ(m (τ), τ) is invertible.

In particular, m (τ) is a primary coface of τ.

8 of 19

Figs/BU-logo-purple-lowres

Partial matchings

Given an S-complex (S, κ), a partial matching on (S, κ) is a quadruplet (A, B, C, m ) where

• A, B, C is a partition of S, and
• m : A → B is a map such that, for each τ ∈ A, κ(m (τ), τ) is invertible.

In particular, m (τ) is a primary coface of τ. (A, B, C, m ) is conveniently represented by arrows:

• For all pairs (m (τ), τ), draw an arrow from τ to m (τ)

8 of 19

Figs/BU-logo-purple-lowres

Partial matchings

Given an S-complex (S, κ), a partial matching on (S, κ) is a quadruplet (A, B, C, m ) where

• A, B, C is a partition of S, and
• m : A → B is a map such that, for each τ ∈ A, κ(m (τ), τ) is invertible.

In particular, m (τ) is a primary coface of τ. (A, B, C, m ) is conveniently represented by arrows:

• For all pairs (m (τ), τ), draw an arrow from τ to m (τ)
• A partial matching is called acyclic if there is no non-trivial sequence
• f simplices

σ0

m

− → τ0

>

− → σ1

m

− → τ1

>

− → . . .

>

− → σn

m

− → τn

>

− → σ0

8 of 19

Figs/BU-logo-purple-lowres

Reductions

Let (A, B, C, m ) be a partial matching (not necessarily acyclic) on (S, κ). A single pair (m (σ), σ) can be removed so to obtain again an S-complex:

• For σ ∈ A, define (S, κ) where S = S \ {m (σ), σ}, and κ : S × S → R,

κ(η, ξ) = κ(η, ξ) − κ(η, σ)κ(m (σ), ξ) κ(m (σ), σ) .

• (S, κ) is an S-complex.

9 of 19

Figs/BU-logo-purple-lowres

Reductions

Let (A, B, C, m ) be a partial matching (not necessarily acyclic) on (S, κ). A single pair (m (σ), σ) can be removed so to obtain again an S-complex:

• For σ ∈ A, define (S, κ) where S = S \ {m (σ), σ}, and κ : S × S → R,

κ(η, ξ) = κ(η, ξ) − κ(η, σ)κ(m (σ), ξ) κ(m (σ), σ) .

• (S, κ) is an S-complex.

Proposition

If (A, B, C, m ) is acyclic then, for any τ ∈ A \ {σ}, κ(m (τ), τ) is invertible. Furthermore, κ(m (τ), τ) = κ(m (τ), τ).

9 of 19

Figs/BU-logo-purple-lowres

Reductions

Let (A, B, C, m ) be a partial matching (not necessarily acyclic) on (S, κ). A single pair (m (σ), σ) can be removed so to obtain again an S-complex:

• For σ ∈ A, define (S, κ) where S = S \ {m (σ), σ}, and κ : S × S → R,

κ(η, ξ) = κ(η, ξ) − κ(η, σ)κ(m (σ), ξ) κ(m (σ), σ) .

• (S, κ) is an S-complex.

Proposition

If (A, B, C, m ) is acyclic then, for any τ ∈ A \ {σ}, κ(m (τ), τ) is invertible. Furthermore, κ(m (τ), τ) = κ(m (τ), τ).

Theorem

Fixed σ ∈ A, define A = A \ {σ}, B = B \ {m (σ)}, m = m |A, and C = C. If (A, B, C, m ) is an acyclic partial matching, then (A, B, C, m ) is an acyclic partial matching too.

9 of 19

Figs/BU-logo-purple-lowres

Reductions preserve homology [KMS 1998]

• Define π : C∗(S) → C∗(S) and ι : C∗(S) → C∗(S) on generators by

setting π(τ) =    if τ = m (σ) −

ξ∈S κ(m (σ),ξ) κ(m (σ),σ)ξ

if τ = σ τ

• therwise

and ι(τ) = τ − κ(τ, σ) κ(m (σ), σ)m (σ).

10 of 19

Figs/BU-logo-purple-lowres

Reductions preserve homology [KMS 1998]

• Define π : C∗(S) → C∗(S) and ι : C∗(S) → C∗(S) on generators by

setting π(τ) =    if τ = m (σ) −

ξ∈S κ(m (σ),ξ) κ(m (σ),σ)ξ

if τ = σ τ

• therwise

and ι(τ) = τ − κ(τ, σ) κ(m (σ), σ)m (σ).

• π and ι are chain equivalences with the chain homotopy

D∗ : C∗(S) → C∗+1(S) given on generators τ ∈ Sq, q ∈ Z, by Dq(τ) =

• 1

κ(m (σ),σ)m (σ)

if τ = σ

• therwise

10 of 19

Figs/BU-logo-purple-lowres

Filtration-preserving matching

A partial matching (A, B, C, m ) on a filtered S-complex is said to preserve the filtration when, for every a ∈ Rk, If σ ∈ Sa then m (σ) ∈ Sa.

11 of 19

Figs/BU-logo-purple-lowres

Filtration-preserving matching

A partial matching (A, B, C, m ) on a filtered S-complex is said to preserve the filtration when, for every a ∈ Rk, If σ ∈ Sa then m (σ) ∈ Sa. A filtration-preserving partial matching on S naturally induces a filtration

• n S: for each τ ∈ S,

τ ∈ Sa ⇐ ⇒ τ ∈ Sa.

11 of 19

Figs/BU-logo-purple-lowres

Filtration-preserving matching

A partial matching (A, B, C, m ) on a filtered S-complex is said to preserve the filtration when, for every a ∈ Rk, If σ ∈ Sa then m (σ) ∈ Sa. A filtration-preserving partial matching on S naturally induces a filtration

• n S: for each τ ∈ S,

τ ∈ Sa ⇐ ⇒ τ ∈ Sa.

Proposition

Let (S, κ) be obtained from (S, κ) by reduction of the pair (m (σ), σ). Then, for each q ∈ Z, π(Cq(Sa)) ⊆ Cq(Sa), ι(Cq(Sa)) ⊆ Cq(Sa), Dq(Cq(Sa)) ⊆ Cq+1(Sa)

11 of 19

Figs/BU-logo-purple-lowres

Reductions preserve persistent homology

Proposition

The maps π|C∗(Sa) : C∗(Sa) → C∗(Sa) and ι|C∗(Sa) : C∗(Sa) → C∗(Sa) defined by restriction are chain homotopy equivalences. Moreover, the diagram H∗(Sa)

H∗(j(a,b))

− → H∗(Sb)   ∼

=

  ∼

=

H∗(Sa)

H∗(j(a,b))

− → H∗(Sb) commutes.

12 of 19

Figs/BU-logo-purple-lowres

Reductions preserve persistent homology

Proposition

The maps π|C∗(Sa) : C∗(Sa) → C∗(Sa) and ι|C∗(Sa) : C∗(Sa) → C∗(Sa) defined by restriction are chain homotopy equivalences. Moreover, the diagram H∗(Sa)

H∗(j(a,b))

− → H∗(Sb)   ∼

=

  ∼

=

H∗(Sa)

H∗(j(a,b))

− → H∗(Sb) commutes.

Theorem

For every a b ∈ Rk, Ha,b

∗ (S) is isomorphic to Ha,b ∗ (S).

12 of 19

Figs/BU-logo-purple-lowres

The matching algorithm: introduction

• We start from the matching algorithm of [King-Knudson-Mramor

2005] for homology

• input: a simplicial complex and an R-valued function on its vertices
• output: an acyclic partial matching
• recursive
• vertex-based and lower-link-based
• cancels pairs of critical cells to achieve optimality

13 of 19

Figs/BU-logo-purple-lowres

The matching algorithm: introduction

• We start from the matching algorithm of [King-Knudson-Mramor

2005] for homology

• input: a simplicial complex and an R-valued function on its vertices
• output: an acyclic partial matching
• recursive
• vertex-based and lower-link-based
• cancels pairs of critical cells to achieve optimality
• and extend it for multidimensional persistent homology
• input: a simplicial complex, an Rk-valued function and an ordering on its

vertices

• output: a filtration-preserving acyclic partial matching
• recursive
• vertex-based and lower-link-based
• without cancellation

13 of 19

Figs/BU-logo-purple-lowres

Indexing map for vertices

Lemma

There exists an injective function I : S0 → N such that, for each v, w ∈ S0 with v = w, f(v) f(w) implies I(v) < I(w).

14 of 19

Figs/BU-logo-purple-lowres

Indexing map for vertices

Lemma

There exists an injective function I : S0 → N such that, for each v, w ∈ S0 with v = w, f(v) f(w) implies I(v) < I(w). Construction of I:

14 of 19

Figs/BU-logo-purple-lowres

Indexing map for vertices

Lemma

There exists an injective function I : S0 → N such that, for each v, w ∈ S0 with v = w, f(v) f(w) implies I(v) < I(w). Construction of I:

• f : S0 → Rk induces a partial order on the vertices

14 of 19

Figs/BU-logo-purple-lowres

Indexing map for vertices

Lemma

There exists an injective function I : S0 → N such that, for each v, w ∈ S0 with v = w, f(v) f(w) implies I(v) < I(w). Construction of I:

• f : S0 → Rk induces a partial order on the vertices
• represent it by a Directed Acyclic Graph

14 of 19

Figs/BU-logo-purple-lowres

Indexing map for vertices

Lemma

There exists an injective function I : S0 → N such that, for each v, w ∈ S0 with v = w, f(v) f(w) implies I(v) < I(w). Construction of I:

• f : S0 → Rk induces a partial order on the vertices
• represent it by a Directed Acyclic Graph
• apply the topological sorting algorithm

14 of 19

Figs/BU-logo-purple-lowres

Indexing map for vertices

Lemma

There exists an injective function I : S0 → N such that, for each v, w ∈ S0 with v = w, f(v) f(w) implies I(v) < I(w). Construction of I:

• f : S0 → Rk induces a partial order on the vertices
• represent it by a Directed Acyclic Graph
• apply the topological sorting algorithm
• this algorithm has linear complexity

14 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B.

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

Let S′(v) = {τ ∈ S | v ∗ τ ∈ S ∧ ∀ vertex w ∈ τ, f(w) f(v)}.

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

Let S′(v) = {τ ∈ S | v ∗ τ ∈ S ∧ ∀ vertex w ∈ τ, f(w) f(v)}. If S′(v) is empty, then add v to C. Else

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

Let S′(v) = {τ ∈ S | v ∗ τ ∈ S ∧ ∀ vertex w ∈ τ, f(w) f(v)}. If S′(v) is empty, then add v to C. Else

add v to A.

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

Let S′(v) = {τ ∈ S | v ∗ τ ∈ S ∧ ∀ vertex w ∈ τ, f(w) f(v)}. If S′(v) is empty, then add v to C. Else

add v to A. let f ′ : S′

0(v) → Rk and I′ : S′ 0(v) → N be the restrictions of f and I.

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

Let S′(v) = {τ ∈ S | v ∗ τ ∈ S ∧ ∀ vertex w ∈ τ, f(w) f(v)}. If S′(v) is empty, then add v to C. Else

add v to A. let f ′ : S′

0(v) → Rk and I′ : S′ 0(v) → N be the restrictions of f and I.

Call Partition (recursively): (A′, B′, C′, m ′) = Partition(S′(v), f ′, I′).

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

Let S′(v) = {τ ∈ S | v ∗ τ ∈ S ∧ ∀ vertex w ∈ τ, f(w) f(v)}. If S′(v) is empty, then add v to C. Else

add v to A. let f ′ : S′

0(v) → Rk and I′ : S′ 0(v) → N be the restrictions of f and I.

Call Partition (recursively): (A′, B′, C′, m ′) = Partition(S′(v), f ′, I′). Set D′ = {w ∈ C′

0 | f(w) is minimal in C′ 0 w.r.t. }.

Set w0 as the vertex with smallest index I′ in D′. Add [v, w0] to B and define m (v) = [v, w0]. For each σ ∈ C′ \ {w0}, add v ∗ σ to C. For each σ ∈ A′, add v ∗ σ to A, v ∗ m ′(σ) to B, and set m (v ∗ σ) = v ∗ m ′(σ).

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

Let S′(v) = {τ ∈ S | v ∗ τ ∈ S ∧ ∀ vertex w ∈ τ, f(w) f(v)}. If S′(v) is empty, then add v to C. Else

add v to A. let f ′ : S′

0(v) → Rk and I′ : S′ 0(v) → N be the restrictions of f and I.

Call Partition (recursively): (A′, B′, C′, m ′) = Partition(S′(v), f ′, I′). Set D′ = {w ∈ C′

0 | f(w) is minimal in C′ 0 w.r.t. }.

Set w0 as the vertex with smallest index I′ in D′. Add [v, w0] to B and define m (v) = [v, w0]. For each σ ∈ C′ \ {w0}, add v ∗ σ to C. For each σ ∈ A′, add v ∗ σ to A, v ∗ m ′(σ) to B, and set m (v ∗ σ) = v ∗ m ′(σ).

• 3. For each σ ∈ S \ (A ∪ B ∪ C), add σ to C.

15 of 19

Figs/BU-logo-purple-lowres

The matching algorithm for multiD persistence

Input: A finite simplicial complex S with a function f : S0 → Rk and an indexing I : S0 → N on its vertices. Output: Three lists A, B, C of simplices of S, and a function m : A → B. function Partition (complex S, function f, indexing map I)

• 1. Initially, set A, B, C = ∅.
• 2. For each v ∈ S0,

Let S′(v) = {τ ∈ S | v ∗ τ ∈ S ∧ ∀ vertex w ∈ τ, f(w) f(v)}. If S′(v) is empty, then add v to C. Else

add v to A. let f ′ : S′

0(v) → Rk and I′ : S′ 0(v) → N be the restrictions of f and I.

Call Partition (recursively): (A′, B′, C′, m ′) = Partition(S′(v), f ′, I′). Set D′ = {w ∈ C′

0 | f(w) is minimal in C′ 0 w.r.t. }.

Set w0 as the vertex with smallest index I′ in D′. Add [v, w0] to B and define m (v) = [v, w0]. For each σ ∈ C′ \ {w0}, add v ∗ σ to C. For each σ ∈ A′, add v ∗ σ to A, v ∗ m ′(σ) to B, and set m (v ∗ σ) = v ∗ m ′(σ).

• 3. For each σ ∈ S \ (A ∪ B ∪ C), add σ to C.
• 4. return A, B, C, m .

15 of 19

Figs/BU-logo-purple-lowres

Correctness, reduction, and complexity

Theorem

The matching algorithm produces a partial matching (A, B, C, m ) that is

• acyclic. Moreover, if σ ∈ Sa then m (σ) ∈ Sa.

16 of 19

Figs/BU-logo-purple-lowres

Correctness, reduction, and complexity

Theorem

The matching algorithm produces a partial matching (A, B, C, m ) that is

• acyclic. Moreover, if σ ∈ Sa then m (σ) ∈ Sa.

Corollary

For every a b ∈ Rk, Ha,b

∗ (S) is isomorphic to Ha,b ∗ (C).

16 of 19

Figs/BU-logo-purple-lowres

Correctness, reduction, and complexity

Theorem

The matching algorithm produces a partial matching (A, B, C, m ) that is

• acyclic. Moreover, if σ ∈ Sa then m (σ) ∈ Sa.

Corollary

For every a b ∈ Rk, Ha,b

∗ (S) is isomorphic to Ha,b ∗ (C).

Theorem

The algorithm produces (A, B, C, m ) in less than 2γd(d + 1)!N steps, where d : dimension of S N : cardinality of S0 γ : upper bound on the number of cofaces of any simplex in S

16 of 19

Figs/BU-logo-purple-lowres

Numerical tests

• Considered four simplicial complexes.
• Each complex was filtered by the R2-valued function defined on

vertices by f(v) = (|x|, |y|).

• Present the results in a table where
• row 1 shows the number of vertices, edges, faces, and the total number of

cells of each considered mesh S,

• while row 2 shows the same quantities referred to the cell complex C
• btained by using our matching algorithm to reduce S.
• Finally, row 3 shows the ratio between the second and the first rows,

expressing them in percentage points. In other words, the lower are those ratios, the higher is the reduction rate.

17 of 19

Figs/BU-logo-purple-lowres

Numerical tests

tie space_shuttle x_wing space_station #S0 #C0 % 2014 228 11.3 2376 121 5.1 3099 175 5.6 5749 1879 32.7 #S1 #C1 % 5944 3343 56.2 6330 3699 58.4 9190 3605 39.2 15949 11158 70.0 #S2 #C2 % 3827 3012 78.7 3952 3576 90.5 6076 3415 56.2 10237 9316 91.0 #S #C % 11785 6583 55.9 12658 7396 58.4 18365 7195 39.2 31935 22353 70.0

18 of 19

Figs/BU-logo-purple-lowres

Conclusions

• The reduction algorithm has linear complexity vs polynomial

complexity of persistence computation

• May be a convenient pre-processing technique
• Full paper available at arXiv:1310.8089v2
• On-going research focuses on improving the results obtained so far:
• using a simplex-based and lower-star-based algorithm inspired from

[Robins et al. 2010]

19 of 19

Figs/BU-logo-purple-lowres

Conclusions

• The reduction algorithm has linear complexity vs polynomial

complexity of persistence computation

• May be a convenient pre-processing technique
• Full paper available at arXiv:1310.8089v2
• On-going research focuses on improving the results obtained so far:
• using a simplex-based and lower-star-based algorithm inspired from

[Robins et al. 2010]

Thank you for your attention!

19 of 19
