Gravel Augmentation Update Recreation and Park Commission Lilly Allen 5/25/16 Overview Why Gravel Projects? Past Projects 2016 Project Questions? If interested & time allows: Underlying Science Beyond 2016

slide-1
SLIDE 1

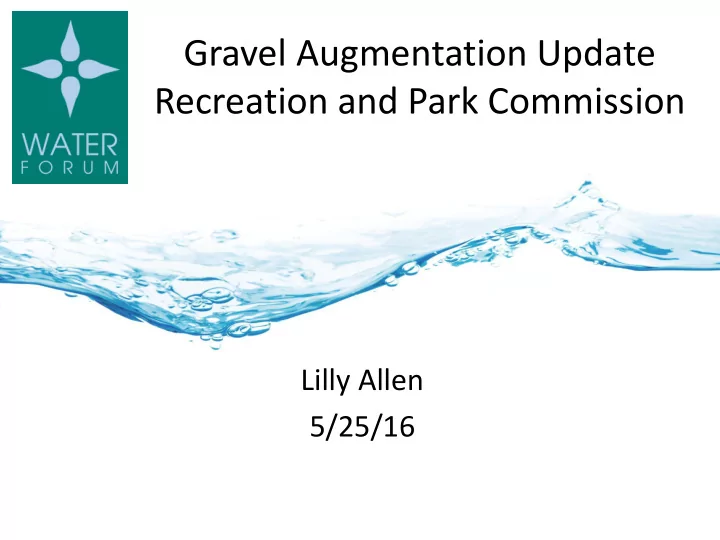

Gravel Augmentation Update Recreation and Park Commission

Lilly Allen 5/25/16

slide-2
SLIDE 2

Overview

  • Why Gravel Projects?
  • Past Projects
  • 2016 Project
  • Questions?
  • If interested & time allows:

– Underlying Science – Beyond 2016

slide-3
SLIDE 3

Declining Fish Habitat

Central Valley dams have drastically reduced habitat.

slide-4
SLIDE 4
slide-5
SLIDE 5

Overview

  • Why Gravel Projects?
  • Past Projects
  • 2016 Project
  • Questions?
  • If interested & time allows:

– Underlying Science – Beyond 2016

slide-6
SLIDE 6

7 Sites ranging from 0.7 – 5 acres

2011 2008 2012 2013 2010 2009

River Bend Lower Sailor Bar Upper Sunrise Upper Sunrise Side Channel Nimbus Basin

2014

Upper Sailor Bar Downstream Upper Sailor Bar Upstream

slide-7
SLIDE 7

Nimbus Basin

2014

slide-8
SLIDE 8

Lower American Gravel Augmentation and Side Channel Creation

2014 Site – Nimbus Basin

Before

slide-9
SLIDE 9

Lower American Gravel Augmentation and Side Channel Creation

2014 Site – Nimbus Basin

After

slide-10
SLIDE 10

Nimbus Basin

Before After

slide-11
SLIDE 11

Overview

  • Why Gravel Projects?
  • Past Projects & Results
  • 2016 Project
  • Questions?
  • If interested & time allows:

– Underlying Science – Beyond 2016

slide-12
SLIDE 12

2016

Sacramento Bar

slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15

Current Condition

slide-16
SLIDE 16

18.6 acres

Proposed Changes

slide-17
SLIDE 17

Public Outreach: Mailers & Signs

slide-18
SLIDE 18

Disturbance

slide-19
SLIDE 19

Woody Material Placement

slide-20
SLIDE 20
slide-21
SLIDE 21
slide-22
SLIDE 22

Questions?

slide-23
SLIDE 23

Overview

  • Why Gravel Projects?
  • Past Projects & Results
  • 2016 Project
  • Questions?
  • If interested & time allows:

– Underlying Science – Beyond 2016

slide-24
SLIDE 24

American River Specific Habitat Suitability Criteria

  • 2. Depth
  • 1. Velocity
  • 3. Gravel Size
slide-25
SLIDE 25

2010 Site – Upper Sunrise

slide-26
SLIDE 26

A New (additional) Design Criterion

  • 1. Depth
  • 4. Hyporheic Flow

(Froude Number)

slide-27
SLIDE 27

gD V Fr / 

Fr = Froude Number V = Water Velocity g = Gravity D = Hydraulic Depth

New Horizons in Design

Calculating hyporheic flow using Froude numbers Gravity

  • Inertia =

Helps indicate boundary between turbulent and laminar flow conditions

We can use this to better predict where salmon will spawn

slide-28
SLIDE 28

<3 juvenile fish per 25 m2 >82 juvenile salmon per 25 m2

Density = 0.10 per m2 Density = 3.25 per m2

Before After 1m

1m

slide-29
SLIDE 29

Overview

  • Why Gravel Projects?
  • Past Projects & Results
  • 2016 Project
  • Questions?
  • If interested & time allows:

– Underlying Science – Beyond 2016

slide-30
SLIDE 30

3) Embryo and Alevin Incubation 4) Juvenile Rearing 5) Juvenile Emigration 1) Adult Immigration and holding 2) Adult Spawning

What do they need? General salmon life cycle

slide-31
SLIDE 31

Juvenile Rearing

Complex side channel habitat

slide-32
SLIDE 32
slide-33
SLIDE 33

Questions?
