Recent Advances in Causality Checking Florian Leitner-Fischer University of Konstanz Department of Computer and Information Science Chair for Software Engineering software software engineering engineering Joint work

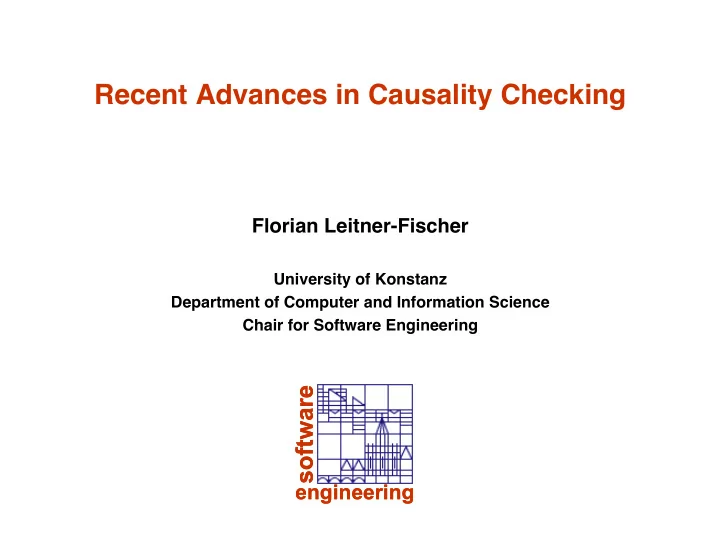

SLIDE 1 software engineering software engineering Recent Advances in Causality Checking

Florian Leitner-Fischer
University of Konstanz

Department of Computer and Information Science Chair for Software Engineering

SLIDE 2 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Joint work with 2 Stefan Leue Chair for Software Engineering Department of Computer and Information Science University of Konstanz Germany

SLIDE 3 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Analysis of Complex Systems ♦ A Railroad Crossing 3 Train Car Gate

SLIDE 4 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Model Checking

M |= S

model of the software (transition system,  Kripke structure) model checking   algorithm 

requirement specification

(assertions, temporal  logic, automata) Train Approaching On Crossing Left Crossing Gate Open Closed Car Approaching On Crossing Left Crossing there is never a train in the crossing at the same time when there is a car in the   crossing ϕ = = ☐¬(Tc ÆCc) state space search (depth-first or breadth-first search) 4

SLIDE 5 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Model Checking ♦ Model Checking Result 8 the path into a property violating state – called an error path or counterexample 5 Ca Ta Cc Gc Tc

SLIDE 6 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering ♦ Railroad Crossing Example: 8 11 error-paths (only considering shortest paths) Interpreting Counterexamples 6 [Ta, Gf, Tc, Ca, Cc] [Ca, Ta, Gf, Tc, Cc] [Ta, Gf, Ca, Cc, Tc] [Ta, Ca, Gf, Cc, Tc] [Ca, Ta, Gf, Cc, Tc] [Ta, Ca, Cc, Gf, Tc] [Ca, Ta, Cc, Gf, Tc] [Ca, Cc, Ta, Gf, Tc] [Ta, Ca, Cc, Gc, Tc] [Ca, Ta, Cc, Gc, Tc] [Ca, Cc, Ta, Gc, Tc] ...

all lead into a property violating state

(accident)

for debugging
what is the cause?
manual analysis
tedious
error prone
essentially impossible
ur goal:
algorithmic causality

computation

SLIDE 7 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering ♦ Models of Causality ♦ Causality Computation ♦ Probability Computation for Causal Events ♦ Evaluation ♦ Conclusion 7

SLIDE 8 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering ♦ Models of Causality ♦ Causality Computation ♦ Probability Computation for Causal Events ♦ Evaluation ♦ Conclusion 8

SLIDE 9 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Causality ♦ (Naive) Lewis Counterfactual Reasoning c is causal for e (effect / hazard) if, had c not happened, then e would not have happened either 8 logical foundation of some software debugging techniques, e.g., – delta debugging – nearest neighbor techniques 8 best suited for single cause failures 9

SLIDE 10 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Halpern / Pearl Structural Equation Model (SEM) ♦ Key Ideas 8 events are represented by boolean variables – specified using structural equations 8 computes minimal boolean disjunction and conjunction of causal events 8 causal dependency of events represented by causal networks 8 reference 10

SLIDE 11 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Halpern / Pearl Structural Equation Model (SEM) ♦ Actual Causality Conditions 8 AC1: ensures that there exists a world where the boolean combination of causal events c and the effect e occur 8 AC2: 1. if at least one of the causal events does not happen, the effect e does not happen 2. if the causal events occur, the occurrence of other events can not prevent the effect 8 AC3: no subset of the causal events satisfies AC1 and AC2 (minimality) 11

SLIDE 12 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering ♦ Models of Causality ♦ Causality Computation ♦ Probability Computation for Causal Events ♦ Evaluation ♦ Conclusion 12

SLIDE 13 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Causality Computation ♦ Main Goal:   Computation of Causal Events for a Property Violation 8 Consider event order as causal factor 8 Make Structural Equation Model applicable to transition systems 13 Florian Leitner-Fischer and Stefan Leue: Probabilistic Fault Tree Synthesis using Causality Computation, accepted for publication in International Journal of Critical Computer-Based Systems, 2013.

SLIDE 14 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Event Order Logic ♦ Boolean Event Occurrence Conditions 8 a Æ b, a Ç b, ¬ a ♦ Event Ordering Conditions 8 a b – a and b occur, and a occurs before b ♦ Interval Operators 8 a b – a occurs until eventually b will hold in every state 8 a b – a always holds until eventually b occurs 8 a b c – in the interval delimited by a and c, b always holds ♦ Model-theoretic Semantics 8 Event Order Logic is an LTL 14

SLIDE 15 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Event Order Logic ♦ Representation of Traces ♦ Representation of Ordering Constraints 15

SLIDE 16 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Causality Computation ♦ Probabilistic Causality Computation 8 Probabilistic counterexample and good paths are computed 8 Causality computation performed as post-processing step 8 Benefit – Probability for combination of events causing a hazard 8 Disadvantage – Probability computation for each bad trace necessary ♦ Causality Checking 8 Integrated into the state space search algorithms used for model checking 8 Benefit – Enables on-the-fly causality computation 8 Disadvantage – No probabilities available 16

SLIDE 17 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Algorithmics ♦ Sub-Executions 8 reduce checks for AC1-AC3 and OC1 to sub-execution tests – ordered and unordered sub-execution operators 8 proofs in the paper ♦ Implementation Variants 8 Off-line Enumeration – enumerate traces – store counterexamples and good traces – perform sub-trace computations 8 On-the-fly – use DFS / BFS on the state space i store paths in an adequate data structure as you obtain them * subset graph 17 Florian Leitner-Fischer and Stefan Leue: Causality Checking for Complex System Models, In Proceedings of 14th International Conference on Verification, Model Checking, and Abstract Interpretation (VMCAI2013), LNCS, Volume 7737, Springer Verlag, 2013.

SLIDE 18 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Result of Causality Checking ♦ Railroad Crossing 8 represented as Dynamic Fault Tree 18 crash

SLIDE 19 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering ♦ Models of Causality ♦ Causality Computation ♦ Probability Computation for Causal Events ♦ Evaluation ♦ Conclusion 19

SLIDE 20 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Causality Classes ♦ Disjuncts of the EOL formula represent „causality classes“ 8 Causality Classes: Represent a class of execution paths where the same events in the same order cause an effect or hazard 20 Ta, Ca, Gf, Cc, Tc Ca, Ta, Gf, Cc, Tc … Ta, Ca, Gc, Gc, Tc Ca, Ta, Cc, Gc, Tc … Causality  Class 1 Causality  Class 2

SLIDE 21 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Probability Computation for Causality Classes ♦ Key Idea: 1. Compute causal events using causality checking 2. Compute probabilities of the paths represented by a causality class 8 Causality classes are represented by alternating automata 8 Alternating automata are translated to PRISM Causality Class Modules 8 PRISM Causality Class Modules are synchronized with the PRISM model 21 Florian Leitner-Fischer and Stefan Leue: On the Synergy of Probabilistic Causality Computation and Causality Checking, In Proceedings of International SPIN Symposium on Model Checking 

f Software, Stony Brook, NY, USA, 2013 (to appear).
EOL Formula

Causality Classes Alternating Automata PRISM Causality Class Module

SLIDE 22 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering ♦ Models of Causality ♦ Causality Computation ♦ Probability Computation for Causal Events ♦ Evaluation ♦ Conclusion 22

SLIDE 23 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Experimental Evaluation ♦ Combined Approach: 8 Causality Checking + Probability Computation for Causality Classes ♦ Combined Apporach outperforms Probabilistic Causality Computation 23

SLIDE 24 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering ♦ Models of Causality ♦ Causality Computation ♦ Probability Computation for Causal Events ♦ Evaluation ♦ Conclusion 24

SLIDE 25 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering Conclusion ♦ Causality Checking 8 technique complementing model checking – aim: algorithmic support for the debugging of models 8 defined / adopted causality model 8 proposed implementation 8 probability computation for causality classes 8 applicable to non-trivial case studies ♦ Future Work 8 causality checking at the limits of scalability – dealing with incomplete information 8 causality checking in a symbolic environment 8 specific adaptions to functional safety analysis – minimal cut sets – root, common and cascading causes 25

SLIDE 26 www.se.uni-konstanz.de Chair for Software Engineering – F. Leitner-Fischer software engineering 26

?
