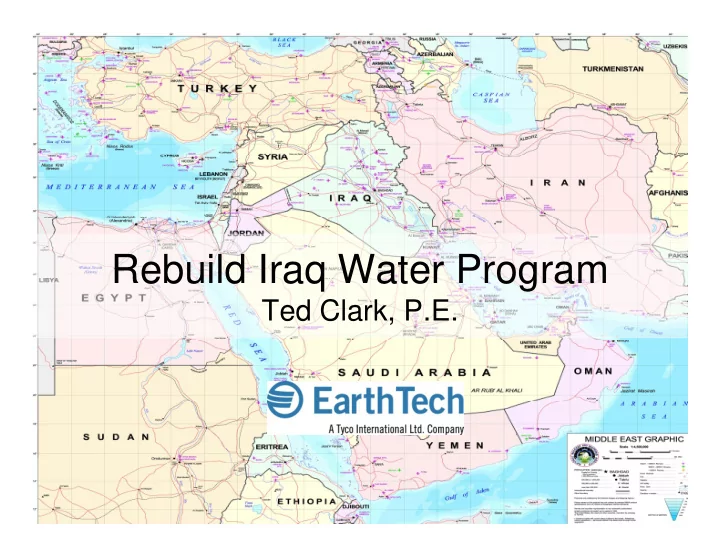

Rebuild Iraq Water Program

Ted Clark, P.E.

slide-2
SLIDE 2

The Program

  • Under jurisdiction of the

Coalition Provisional Authority

  • Managed by US Army Corps of

Engineers

  • Limited to Coalition Partners
  • 6 Program Sectors
  • $18 Billion Appropriation
  • Design/Build Contracts
slide-3
SLIDE 3

Program Sectors

  • Public Works Water
  • Electricity
  • Oil
  • Transportation
  • Buildings
  • Security/Justice Safety
slide-4
SLIDE 4

Our Team

  • Fluor/AMEC LLC
  • Earth Tech (major

subcontractor)

  • 18 Minor Subcontractors
slide-5
SLIDE 5

Middle East

slide-6
SLIDE 6
slide-7
SLIDE 7

Water Program (to date)

  • Water Treatment Plant (7)
  • Wastewater Treatment Plant (1)
  • Landfills (2)
  • Utility Systems (5)
slide-8
SLIDE 8

Landfill WTP WWTP

slide-9
SLIDE 9

Water Treatment Plants

  • Major Water Plants

– Erbil – 6,000 CM/HR (38.5 MGD) – Nasiriyah – 10,000 CM/HR (63 MGD) – Balad Rooz – 1,000 CM/HR (6.3 MGD) – Dokan - 6,000 CM/HR (38.5 MGD) – Diwaniah – 4,000 CM/HR (25 MGD) – Najaf – 2,000 CM/HR (12.7 MGD)

  • Large Transmission Pipelines
slide-10
SLIDE 10

Design Considerations

  • Raw Water Quality
  • Conventional Treatment

Processes

  • Low Automation
  • WHO Water Quality Standards
slide-11
SLIDE 11

Unique Iraq Challenges

  • Limited Raw Water Quality Data
slide-12
SLIDE 12

Diwaniah Water Quality Data

Date Source ntu C PH F.C Cl Alkalinity Acidity Hardness Ca Mg T.D.S T.S.S

1/2/04 Potable 1.5 12 7.13 1124 113 106 none 433 72 61.7 1041 91 Raw 30 12 7.34 1127 119 117 none 451 79 61.9 1066 89 1/2/04 Potable 2.5 13 7.5 1182 146 151 none 472 85 63.3 1130 92 Raw 30 13 7.82 1185 151 158 none 497 90 66.4 1270 95 2/1/05 Potable 2 15 7.49 1265 122 119 none 462 80 63.9 1035 94 Raw 19 15 7.74 1266 131 127 none 483 88 64.2 1057 92 2/1/05 Potable 0.9 14 7.41 1243 161 132 none 480 94 60 1112 122 Raw 20 14 7.89 1249 173 140 none 497 97 62.1 1143 156

slide-13
SLIDE 13

Unique Iraq Challenges

  • Limited Raw Water Quality
  • Limited Survey and

Geotechnical Data

slide-14
SLIDE 14
slide-15
SLIDE 15

Unique Iraq Challenges

  • Limited Raw Water Quality
  • Limited Survey and

Geotechnical Data

  • Available Low Cost Work Force
slide-16
SLIDE 16

Iraqis show up for work

slide-17
SLIDE 17

Unique Iraq Challenges

  • Limited Raw Water Quality
  • Limited Survey and

Geotechnical Data

  • Available Low Cost Work Force
  • Freight/Travel
slide-18
SLIDE 18
slide-19
SLIDE 19

Unique Iraq Challenges

  • Limited Raw Water Quality
  • Limited Survey and

Geotechnical Data

  • Available Low Cost Work Force
  • Freight/Travel
  • Language Barrier
slide-20
SLIDE 20
slide-21
SLIDE 21

Unique Iraq Challenges

  • Limited Raw Water Quality
  • Limited Survey and

Geotechnical Data

  • Available Low Cost Work Force
  • Freight/Travel
  • Language Barrier
  • Politics
slide-22
SLIDE 22

Unique Iraq Challenges

SECURITY

slide-23
SLIDE 23

Living and Working in Iraq

slide-24
SLIDE 24

Working in Iraq

slide-25
SLIDE 25

Construction Photo 1

slide-26
SLIDE 26

Construction Photo 2

slide-27
SLIDE 27

Construction Photo 3

slide-28
SLIDE 28

Construction Photo 4

slide-29
SLIDE 29

Construction Photo 5

slide-30
SLIDE 30

Construction Photo 6

slide-31
SLIDE 31

Construction Photo 7

slide-32
SLIDE 32

Construction Photo 8

slide-33
SLIDE 33

Construction Photo 9

slide-34
SLIDE 34

Construction Photo 10

slide-35
SLIDE 35

Construction Photo 11

slide-36
SLIDE 36

Construction Photo 12

slide-37
SLIDE 37

Construction Photo 13

slide-38
SLIDE 38

Living in Iraq

slide-39
SLIDE 39

The compound

slide-40
SLIDE 40

4-star hotel (living quarters)

slide-41
SLIDE 41

All the comforts of home

slide-42
SLIDE 42
slide-43
SLIDE 43

Fair and Balanced !

slide-44
SLIDE 44

Baghdad

slide-45
SLIDE 45

Green Zone

slide-46
SLIDE 46

The Green Zone Cafe

slide-47
SLIDE 47

Welcome to Baghdad Airport

slide-48
SLIDE 48

Passenger Terminal

slide-49
SLIDE 49

Waiting for your flight

slide-50
SLIDE 50

IFRAZ WATER TREATMENT FACILITY GRAND OPENING

slide-51
SLIDE 51
slide-52
SLIDE 52

NASIRIYAH WATER TREATMENT FACILITY

slide-53
