MC for high-dimensional statistics 1 Random projections, reweighting and half-sampling for high-dimensional statistical inference Art B. Owen Stanford University based on joint works with: Dean Eckles Facebook Inc. Sarah Emerson Oregon

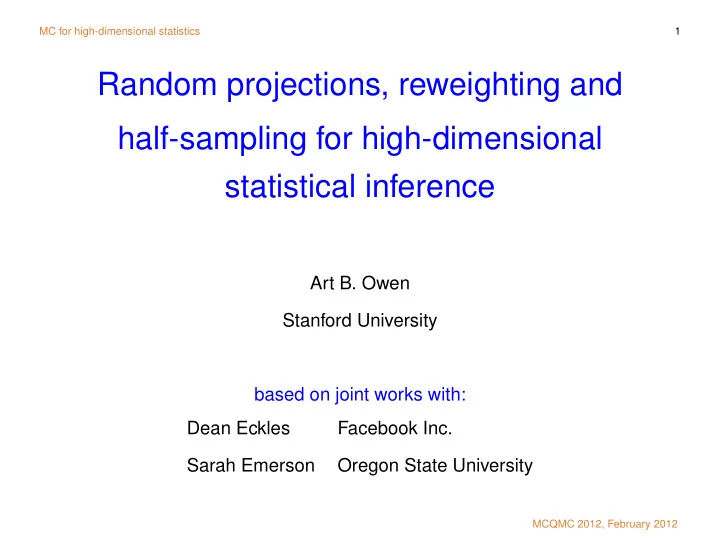

MC for high-dimensional statistics 1
Art B. Owen Stanford University based on joint works with: Dean Eckles Facebook Inc. Sarah Emerson Oregon State University
MCQMC 2012, February 2012
MC for high-dimensional statistics 2
These are the slides I presented on February 15 at MCQMC 2012 in Sydney Australia. I have corrected some typos and extended the presentation of the challenging integral over the Stiefel manifold. A few of these slides were skipped over in order to allow time for questions. This talk covers two projects. The bootstrap work with Dean Eckles has now been accepted by the Annals of Applied statistics. The projection work with Sarah Emerson is still in progress.
MCQMC 2012, February 2012
MC for high-dimensional statistics 3
1) Markov chain Monte Carlo 2) Bootstrap resampling The above are mainstays. We also use: 1) Random permutations 2) Random projections 3) Sample splitting
Probability/Statistics and Monte Carlo are closely intertwined.
MCQMC 2012, February 2012
MC for high-dimensional statistics 4
This talk will show some uses of MC uses in statistics.
MCQMC 2012, February 2012
MC for high-dimensional statistics 5
X ∼ F
random vector X has distribution F
Xi
iid
∼ F Xi are statistically Independent and Identically Distributed (IID) from F Nd(µ, Σ)
The Gaussian distribution with mean µ ∈ Rd and variance covariance matrix Σ ∈ Rd×d
X ∼ N(µ, Σ), means
Pr(X ∈ A) =
f(x) dx
where
f(x) = exp
2(x − µ)TΣ−1(x − µ)
p-values
Observe T = t and compute p = Pr(T t). If p < 0.01 then the observed value t happens 1% or less of the time. Evidence against the hypothesized distribution of T .
MCQMC 2012, February 2012
MC for high-dimensional statistics 6
We have
X1, . . . , Xnx
iid
∼ F in Rd Y 1, . . . , Y ny
iid
∼ G in Rd
is F = G? We might assume F = N(µ1, Σ) and G = N(µ2, Σ). Then we test µ1 = µ2. This is an old problem.
Revived interest, d ≫ nx + ny
DNA microarrays expression levels of d ≈ 30,000 genes
nx, ny tens or hundreds
Genome wide association studies
d ≈ 2,000,000 markers
with nx, ny thousands or more Also: fMRI, finance
MCQMC 2012, February 2012
MC for high-dimensional statistics 7
−3 −2 −1 1 2 −2 −1 1 2 X1 X2
Black points normally distributed Red points shifted Northwest wrt black
X1 not significantly different, p = 0.47 X2 not significantly different, p = 0.09 X1 + X2 not significantly different, p = 0.60 X1 − X2 very significantly different, p = 1.7 × 10−4
So: how to find the interesting projection?
MCQMC 2012, February 2012
MC for high-dimensional statistics 8
Find θ ∈ Rd with θTθ = 1 to maximize the apparent separation between
and
Answer depends on ¯ X = 1 nx
nx
Xi Sx =
nx
(Xi − ¯ X)(Xi − ¯ X)T ¯ Y = 1 ny
ny
Y i Sy =
ny
(Y i − ¯ Y )(Y i − ¯ Y )T Algebraicly we get T 2= nxny nx + ny ( ¯ X − ¯ Y )TS−1( ¯ X − ¯ Y )
where
S = Sx + Sy nx + ny − 2
Hotelling (1931) Get T 2 = 18.58. Also Pr(T 2 18.58) = 2.6 × 10−4 (p value)
MCQMC 2012, February 2012
MC for high-dimensional statistics 9
When d ≫ nx + ny the covariance matrix S is not invertible. Can’t use
T 2= nxny nx + ny ( ¯ X − ¯ Y )TS−1( ¯ X − ¯ Y ) Geometrically
Some projection θ ∈ Rd has
θTXi = constant for i = 1, . . . , nx and θTY i = different constant.
IE: we will get perfect separation, even if F = G. A classic remedy by Dempster (1958) takes
T 2
Dempster =
nxny nx + ny ¯ X − ¯ Y 2
tr(S)
= nxny nx + ny d
j=1( ¯
Xj − ¯ Yj)2 d
j=1 Sjj
but this makes no use of correlations Recent improvements by: Bai, Saradanasa, Hall, Fan, Chen, Srivastava also don’t use correlations
MCQMC 2012, February 2012
MC for high-dimensional statistics 10
Lopes, Jacob, Wainwright (2011) Choose random Θ ∈ Rd×k with ΘTΘ = Ik. Put
Xi = ΘTXi and Y i = ΘTY i
Then use
Θ =
nxny nx + ny ( ¯ X − ¯ Y )TΘ(ΘTSΘ)−1ΘT( ¯ X − ¯ Y )
Exists if k < nx + ny − 2
That is
project data into a random k dimensional subspace test means of projected data this retains some of the correlations
MCQMC 2012, February 2012
MC for high-dimensional statistics 11
From Rd to R: normalize a Gaussian vector
θ = Z Z, Z ∼ N(0, Ik) To project from Rd to Rk Z = Z11 Z12 · · · Z1k Z21 Z22 · · · Z2k
. . . . . . ... . . .
Zd1 Zd2 · · · Zdk ∈ Rd×k Zij
iid
∼ N(0, 1) Gram-Schmidt yields Z = QR
deliver
Θ = Q ∈ Rd×k
project
Any QR decomposition with positive Rii will do.
MCQMC 2012, February 2012
MC for high-dimensional statistics 12
They make just one random projection of the data They find that k ≈ (nx + ny − 2)/2 performs well
Why just one?
If your one projection is ’unlucky’ then you might miss the pattern. But with just one projection the distribution of
T 2 is known. Multiple projections ¯ T 2 = 1 M
M
i
T 2
i
based on Θi ∈ Rd×k Get some kind of ’average’ luck. But distribution of ¯
T 2 not known.
MCQMC 2012, February 2012
MC for high-dimensional statistics 13
Work with S. Emerson: average over M independent random Θi ∈ Rd×k
¯ T 2 = 1 M
M
i ,
where
i =
nxny nx + ny ( ¯ X − ¯ Y )TΘi(ΘT
i SΘi)−1ΘT i ( ¯
X − ¯ Y ) Easily 1) E( ¯ T 2) = E( T 2
i )
2) Var( ¯ T 2) < Var( T 2
i ),
unless both are infinite! (averaging reduces variance)
Less easily 1) Finite variance requires k nx + ny − 6 2) Finite mean requires k nx + ny − 4
Unfortunately: the distribution of ¯
T 2 is not known.
MCQMC 2012, February 2012
MC for high-dimensional statistics 14
Simulate 2000 data sets
Xi
iid
∼ N(0, Σ), Y i
iid
∼ N(δ, Σ), δ ∈ Rd
Of these: 1000 null cases
δ = 0
1000 non-null cases
δ > 0
Rank 2000 ¯
T 2 scores
See if nulls get smaller ¯
T 2 values. The ROC∗ curve
Shown later, shows how well the test separates the two cases
∗Receiver Operating Characteristic (don’t ask)
MCQMC 2012, February 2012
MC for high-dimensional statistics 15
Xi, Y i ∈ R200 nx = ny = 50
Pick δ = 3 uniform on 200 dimensional sphere Pick Σ = Id × 50/
√ d Why these
Uniform δ means that the group separation is unrelated to the covariance structure.
WLOG, under uniformity Σ = diag(λ1, . . . , λd) λ1 λ2 · · · λd Interesting cases are equal λj and rapidly decreasing λj
MCQMC 2012, February 2012
MC for high-dimensional statistics 16
M=1 Null Alt M=32 Null Alt
Simulated T squared nx = ny = 50, d = 200, k = 49,
Null: δ = 0 Alt: δ = 3
MCQMC 2012, February 2012
MC for high-dimensional statistics 17
20 40 60 80 100 20 40 60 80 100 False positives True positives
ROC curves: M=1,2,4,8,16,32
Larger M has greater area under the curve: M AUC 1 71.9 2 80.6 4 87.1 8 91.4 16 94.3 32 95.7
MCQMC 2012, February 2012
MC for high-dimensional statistics 18
Lopes et al. prefer k ≈ (nx + ny − 2)/2 That is not always optimal. But may be a good default. For the previous scenario: small k do relatively poorly.
32 k 56 all gave AUC ≈ 0.95 with M = 32
MCQMC 2012, February 2012
MC for high-dimensional statistics 19
The usual p-value is Pr( ¯
T 2 t2) where t2 is the observed value on our data.
We have no good approximation for this. Even the moments of ¯
T 2 involve difficult integrals over Θ ∈ Vd,k, the Stiefel manifold, e.g.
Θ(ΘTSΘ)−1ΘT dU(Θ) = (2π)−dk/2
Non-negative diagonal S ∈ Rd×d with nx + ny − 2 positive entries
U(Θ) is the uniform (Haar) measure.
Above is the first moment. Closed forms for first and second moments could lead to useful test statistics.
MCQMC 2012, February 2012
MC for high-dimensional statistics 20
There are
nx+ny
nx
(X1, . . . , Xnx, Y 1, . . . , Y ny) to the first sample (the X’s). The re-allocated data: (X∗
1, . . . , X∗ nx, Y ∗ 1, . . . , Y ∗ ny)
have statistic ¯
T ∗2. Then p = #{ ¯ T 2,∗ | ¯ T 2,∗ ¯ T 2} nx+ny
nx
Use a Monte Carlo sample of random permutations. Justified in text by Lehmann & Romano (2005), “Testing Statistical Hypotheses” Combination test might be a better name
MCQMC 2012, February 2012
MC for high-dimensional statistics 21
If d > nx + ny − 2, then T 2 is not defined Dempster (almost) used coordinate projections Lopes et al. use one random projection from d to k dimensions We find benefits from multiple projections But have to use permutation tests for significance Monte Carlo enters to compute the test statistic and then to judge its significance
MCQMC 2012, February 2012
MC for high-dimensional statistics 22
Solution
We will get a Monte Carlo method which mildly overestimates the sampling uncertainty.
But first
it is necessary to describe the bootstrap, as well as multi-way data.
MCQMC 2012, February 2012
MC for high-dimensional statistics 23
Data are X1, . . . , Xn
iid
∼ F
We compute
T = T(X1, . . . , Xn)
What is sampling uncertainty in
T , e.g. Var( T) = Var( T | F)? Combine two ideas
Monte Carlo Sample from F to estimate Var(
T | F) (but we don’t know F ).
Plug in Use Var(
T | F), as if F = F , the empirical distribution∗.
From Efron (1979).
∃ extensive variations on the idea.
∗Empirical distribution
n
n
i=1 δXi puts probability 1/n on each sample observation.
δx is a ‘point mass’ at x
To sample X ∼
F , pick one of the original data points
MCQMC 2012, February 2012
MC for high-dimensional statistics 24
Given X1, . . . , Xn
iid
∼ F Resample the data B times
For b = 1, . . . , B For i = 1, . . . , n
i∗ ∼ U{1, . . . , n} X∗
i = Xi∗
T ∗
b = T(X∗ 1, . . . , X∗ n)
Compute summary ¯ T ∗ = 1 B
B
T ∗
b
T) = 1 B − 1
B
(T ∗
b − ¯
T ∗)2
MCQMC 2012, February 2012
MC for high-dimensional statistics 25
1) How could that ever work? 2) How could that ever fail? The bootstrap works by a continuity argument
Plug-in: Under conditions,
Var( T | F) is continuous in F , and F → F .
So Var(
T | F) → Var( T | F)
Monte Carlo: As B → ∞,
Var( T | F) → Var( T | F) Fails when
Continuity conditions fail or when
F does not mimick F well enough
MCQMC 2012, February 2012
MC for high-dimensional statistics 26
The base case is for
T(X1, . . . , Xn) = ¯ X ≡ 1 n
n
Xi
We have non-bootstrap methods for
Var( ¯ X) ( ! )
Correctness for the mean extends to more complicated statistics via Taylor approximations
Why we like it
No need to assume the Gaussian or any other distributional form It is explainable to scientific colleagues
MCQMC 2012, February 2012
MC for high-dimensional statistics 27
The Bayesian bootstrap, Rubin (1981)
n
i=1 Wi δXi
n
i=1 Wi
Wi
iid
∼ Exp(1)
That is: place an independent random weight on each observation. If T(X1, . . . , Xn) is the sample mean, then under bootstrapping
T ∗ = n
i=1 Wi Xi
n
i=1 Wi
is a random ratio.
MCQMC 2012, February 2012
MC for high-dimensional statistics 28
We need E(Wi) = 1 and Var(Wi) = 1 Then the Bayesian bootstrap is comparable to ordinary bootstrap Can also use Poi(1) weights (Poisson distribution) Used in machine learning Oza (2001) Half sampling:
Wi =
with probability 1/2
2
with probability 1/2
MCQMC 2012, February 2012
MC for high-dimensional statistics 29
That was the bootstrap We’ll bootstrap 2-way data
MCQMC 2012, February 2012
MC for high-dimensional statistics 30
Patient Height Weight Age
· · ·
Blood pressure . . .
42
1.7 72 32
· · ·
141
43
2.1 97 42
· · ·
109 . . . A usual data matrix has Xi in row i. Data within a row are dependent, e.g. height and weight of same person are correlated as are blood pressure and age Data in two different rows are independent. patient 42 and patient 43
MCQMC 2012, February 2012
MC for high-dimensional statistics 31
patients
×
medical interns
→
blood pressure measurements genes
×
environments
→
crop yields students
×
exam questions
→
points
Features
Measurements on the same patient are correlated Measurements by the same interns are also correlated (hopefully that effect is smaller) Neither rows nor columns are IID
MCQMC 2012, February 2012
MC for high-dimensional statistics 32
Rating Viewer 1 Viewer 2 Viewer 3
· · ·
Viewer C Movie 1 4 4 1
· · ·
4 Movie 2 5 5 NA
· · ·
NA Movie 3 3 3 NA
· · ·
2 . . . . . . . . . . . . ... . . . Movie R NA 5 3
· · ·
4 Ratings on same movie are correlated as are ratings by same person Danny Deckchair (2003) Most common rating was 4 stars
MCQMC 2012, February 2012
MC for high-dimensional statistics 33
17,770 movies, 480,189 customers, 100,000,000+ ratings,
Sample uncertainty
Ratings made on Tuesday came out a little lower than Sunday ratings. Is it real or a sampling artifact?
Further problems 1) Missing data make the matrix very imbalanced 2) Unequal variances, e.g. some customers just give 1s or 5s
MCQMC 2012, February 2012
MC for high-dimensional statistics 34
Alice (shares a URL) “Hey, check out http://www.mcqmc2012.unsw.edu.au/” Bob (comments on it) “Thanks for sharing that, I learned a lot.” Data url = http://www.mcqmc2012.unsw.edu.au/
sharer = Alice commenter = Bob log length X = log(41) . = 3.71 Data size 18,134,419 comments
by 8,078,531 commenters
This is 3 way data: url × sharer × commenter
Of interest:
users’ sharing and commenting behaviour, e.g. who makes longer comments, U.S. or U.K. users? Probably greater interest for ad clicks, linking and liking activity
MCQMC 2012, February 2012
MC for high-dimensional statistics 35
Xij = µ + ai + bj + εij i = 1, . . . , R j = 1, . . . , C ai ∼ N(0, σ2
A)
e.g. patients
bj ∼ N(0, σ2
B)
e.g. interns
εij ∼ N(0, σ2
E)
simplest model for two-way data
Used in agriculture Studied for decades
ˆ µ is ¯ X••
No bootstrap exists for V (ˆ
µ)
None can exist · · ·
· · · McCullagh (2000) We can’t even bootstrap a balanced ¯
X !
He rules out resampling, permuting or any “monoid” operations on rows and columns.
MCQMC 2012, February 2012
MC for high-dimensional statistics 36
prime reference: “Variance Components” by Searle, Casella, McCulloch (1992)
⇒ invert large matrices
MCQMC 2012, February 2012
MC for high-dimensional statistics 37
For
ˆ µ = ¯ X•• = 1 R 1 C
R
C
Xij
Naive Resample from N = RC values Product Resample R rows and resample C columns (indep)
VRE(ˆ µ) = σ2
A
R + σ2
B
C + σ2
E
RC
true var
ERE( VNaiv(ˆ µ)) . =
A + σ2 B + σ2 E
1 RC
way too small
ERE( VProd(ˆ µ)) . = σ2
A
R + σ2
B
C + 3σ2
E
RC
not so bad Naive resampling seriously flawed, product resampling is close
MCQMC 2012, February 2012
MC for high-dimensional statistics 38
Index j takes values ij = 1, 2, 3, . . . Observation i has multi-index i = (i1, . . . , ir) ∈ {1, 2, . . . }r Random Xi ∈ Rd with Zi =
1 Xi known Xi missing. Sample size 0 < N ≡
Zi < ∞ Sample mean ¯ X =
We want to estimate Var( ¯
X)
treating Zi as fixed
MCQMC 2012, February 2012
MC for high-dimensional statistics 39
¯ X∗ =
where
Wi =
r
Wj,ij E(Wj,ij) = 1 Var(Wj,ij) = 1 From replications ¯
X∗1, . . . , ¯ X∗B
X) = 1 B − 1
B
(X∗b − ¯ X∗)2.
It is operationally much easier to have independent Wj,ij (as in the Bayesian bootstrap). Data for URLs might be scattered over several continents. Then keeping
i Wj,ij = N is awkward.
MCQMC 2012, February 2012
MC for high-dimensional statistics 40
We study
Var( ¯ X) under this model: Xi = µ +
u=∅
εiu,u
If u = (j1, . . . , jk) then iu = (ij1, . . . , ijk)
Moments E(εiu,u) = 0 Var(εiu,u) = σ2
u
Cov(εiu,u, εi′
u′,u′) = 0
if u = u′
iu = i′
u′
σ2
u can be allowed to depend on iu
MCQMC 2012, February 2012
MC for high-dimensional statistics 41
VarRE(ˆ µ) = 1 N 2
ZiZi′Cov(εi,u, εi′,u′) = 1 N 2
ZiZi′1iu=i′u
u
= 1 N
νuσ2
u,
for gain coefficients, νu = 1 N
ZiNi,u,
where
Ni,u =
Zi′1iu=i′u.
MCQMC 2012, February 2012
MC for high-dimensional statistics 42
VRE(ˆ µ) ≡ 1 N
νuσ2
u
. = 1 N
movies + 646 σ2 viewers + σ2 interaction
For Facebook νsh . = 17.71, νcom . = 7.71, ν url . = 26,854.92 ! νsh,com . = 5.92, νsh,url . = 12.91, νcom,url . = 5.19,
and
νsh,com,url . = 4.88.
νurl 26,000
MCQMC 2012, February 2012
MC for high-dimensional statistics 43
For gain coefficients νu
VarRE( ¯ X) = 1 N
u=∅
νuσ2
u
Similarly for γu (defined later):
ERE( VarProd( ¯ X∗)) . = 1 N
u=∅
γuσ2
u
And:
ERE( VarNaiv( ¯ X∗)) . = 1 N
u=∅
σ2
u
Typically
1 ≪ νu ≪ N
for
u = {1, . . . , r} = ⇒ Naive bootstrap unreliable We want γu = νu. We’ll get γu νu.
MCQMC 2012, February 2012
MC for high-dimensional statistics 44
O (2007) Independent bootstrap of rows and columns Still get ERE(
VProd(ˆ µ)) . = VRE(ˆ µ),
i.e. Still get ≈ 1 × the main effect contribution
≈ 3 × the interaction contribution
Sunday vs. Tuesday edge of 0.02 stars is real (about 8 standard errors)
New here 1) Arbitrary order r 2 2) Independent product weights (vs resampling)
MCQMC 2012, February 2012
MC for high-dimensional statistics 45
ˆ µ∗ =
≡ T ∗ N ∗
(ratio estimator)
VProd(ˆ µ∗) ≈ VProd(ˆ µ∗) ≡ 1 N 2 EProd
µN ∗)2 Main result ERE( VProd(ˆ µ∗)) = 1 N
γuσ2
u
where γu ≈ νu if
|u| = 1,
(i.e. cardinality 1)
MCQMC 2012, February 2012
MC for high-dimensional statistics 46
# index pairs i, i′ that match in set u:
ZiZi′1iu=i′
u
# index pairs i, i′ that match in precisely k places # index triples i, i′, i′′ where i matches i′ in set u and matches i′′ in precisely k places
MCQMC 2012, February 2012
MC for high-dimensional statistics 47
(level dup)
ǫ =
greatest item popularity
N
(variable dup)
η = max
∅uv
νv νu Examples ǫ η
Netflix
232,944 100,480,507
. = 0.00232
1 646
. = 0.00155
Miss Congeniality
νinteraction/νmovies
686,990 18,134,419
. = 0.0379
4.88 5.19
. = 0.94
a popular URL
νsh,com,url/νcom,url η is not small for the Facebook data
bootstrap variances will be somewhat more conservative
MCQMC 2012, February 2012
MC for high-dimensional statistics 48
Theorem 1. In the homogeneous random effects model, the product weight bootstrap with
V (Wj,ij) = τ 2 = 1, satisfies γu = νu[2|u| − 1 + Θuǫ] +
2|v|νv,
where |Θu| 2r+1 − 2.
For small ǫ and r (i.e. 2rǫ ≪ 1) γu ≈ (2|u| − 1)νu +
2|v|νv If also η ≪ 1 γu ≈ (2|u| − 1)νu
MCQMC 2012, February 2012
MC for high-dimensional statistics 49
For r = 2 γ{j} = ν{j}(1 + Θjǫ) + 2 j = 1, 2 γ{1,2} = ν{1,2}(3 + Θ{1,2}ǫ),
where
|Θu| 6. For r = 3 γ{1} ≈ ν{1} + 4ν{1,2} + 4ν{1,3} + 8 γ{1,2} ≈ 3ν{1,2} + 8 γ{1,2,3} ≈ 7. If 0 < m minu σ2
u maxu σ2 u M < ∞ then
ERE( VProd(ˆ µ∗)) VRE(ˆ µ) = 1 + O(η + ǫ).
MCQMC 2012, February 2012
MC for high-dimensional statistics 50
For each commenter, url and sharer, we obtain:
X = log(#char in comment) as well as,
country c ∈ {US, UK} of commenter, and mode m ∈ {web, mobile} of commenter. Now let
ˆ µcm =
We see small differences
US UK web 3.62 3.55 mobile 3.50 3.57
but they’re larger than sample fluctuations
MCQMC 2012, February 2012
MC for high-dimensional statistics 51
Mean log characters for US minus mean log characters for UK Empirical CDF
0.0 0.2 0.4 0.6 0.8 1.0 −0.10 −0.08 −0.06 −0.04
Mobile
0.05 0.06 0.07 0.08 0.09 0.10
Web commenter commenter, sharer commenter, sharer, URL
ECDF over 50 bootstraps of ˆ
µUSm − ˆ µUKm
Reweighting one, two, or three ways
MCQMC 2012, February 2012
MC for high-dimensional statistics 52
Mean log characters for US minus mean log characters for UK
commenter commenter, sharer commenter, sharer, URL −0.10 −0.08 −0.06 −0.04
Mobile
0.05 0.06 0.07 0.08 0.09 0.10
Web
Central 95% confidence intervals from 50 bootstraps of ˆ
µUSm − ˆ µUKm
Reweighting one, two, or three ways
MCQMC 2012, February 2012
MC for high-dimensional statistics 53
Crossed random effects data require special care No correct bootstrap exists Product sampling is at least conservative, mildly over-estimating the variance It works also with unequal variances
what remains to do
better seeding extensions to more complicated analyses
MCQMC 2012, February 2012
MC for high-dimensional statistics 54
Statistics and machine learning are still finding new ways to consume Monte Carlo ideas In addition to MCMC there are:
MCQMC 2012, February 2012
MC for high-dimensional statistics 55
MCQMC 2012, February 2012
MC for high-dimensional statistics 56
The ≈ 100,000,000 movie ratings we see are only 1% of R × C. Those we see are probably biased towards higher values. How do we adjust? Ans: we can’t, because nobody knows the bias function. It would not be reasonable to expect a bootstrap method to fix missing data bias. For instance how could one sampling method fix both positive bias and negative bias? Given an adjustment algorithm (based on assumptions or knowledge from outside the given data) we might be able to bootstrap its predictions.
MCQMC 2012, February 2012
