International Conference on Physical Protection of Nuclear Material and Nuclear Facilities Radwaste online monitoring: opportunities from new technologies P. Finocchiaro, P. Checchia, M. Ripani INFN Laboratori Nazionali del Sud, Catania, Italy

slide-1
SLIDE 1

1

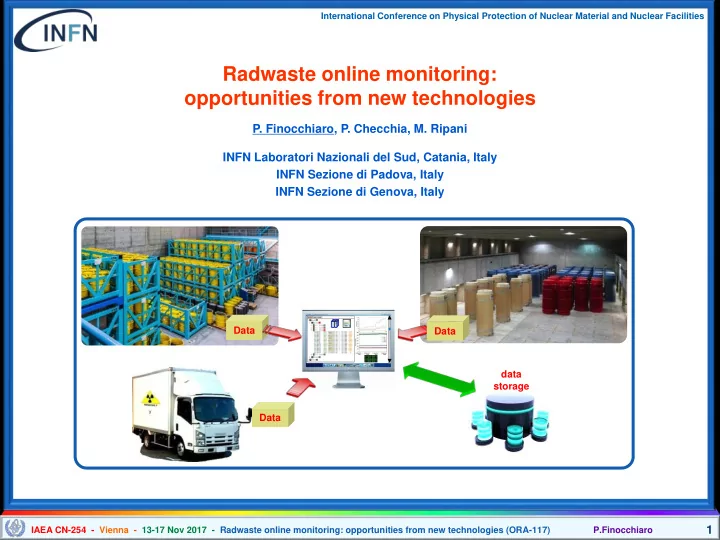

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

Radwaste online monitoring:

  • pportunities from new technologies
  • P. Finocchiaro, P. Checchia, M. Ripani

INFN Laboratori Nazionali del Sud, Catania, Italy INFN Sezione di Padova, Italy INFN Sezione di Genova, Italy

Data data storage Data Data

slide-2
SLIDE 2

2

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

INFN

National Institute of Nuclear Physics

Medicine Cultural heritage Computer science Electronics ENERGY: strategic project Theoretical / experimental nuclear and subnuclear physics

University Industry

≈ 30 Sections + 4 National Laboratories

slide-3
SLIDE 3

3

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

what why how

www.energy.gov/EM 2

R16:C4 R15:C5 68660

protection of nuclear material and nuclear facilities

slide-4
SLIDE 4

4

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

what

slide-5
SLIDE 5

5

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

storage

what

handling transport inspection check

security & safety issues: maintaining the continuity of knowledge (e.g. legacy waste) checking package integrity

slide-6
SLIDE 6

6

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

why

slide-7
SLIDE 7

7

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

why monitoring? why new tools?

nuclear material lasting hundreds of thousands years  geological repository

but... predisposal & preclosure?

handling, transportation, interim, legacy waste...  inspecting? monitoring?

conventional methods new technologies?

need to prevent, detect and respond to theft, sabotage, unauthorized access and illegal transfer

  • r other malicious acts
slide-8
SLIDE 8

8

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

To have a complete and detailed record of the history of each cask What would be the goal?

individual and continuous online monitoring of casks

to improve safety, security, transparency why monitoring?

slide-9
SLIDE 9

9

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

www.energy.gov/EM 22

Drum 68660

R16:C4 R17:C5 R15:C5 68660 R16:C4 R15:C5 68660 68660

WIPP Waste Isolation Pilot Plant 14-Feb-2014 New Mexico Could individual online monitoring have prevented

  • r limited the accident?

Why monitoring?

slide-10
SLIDE 10

10

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

Why (online) monitoring?

slide-11
SLIDE 11

11

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

how

slide-12
SLIDE 12

12

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

low-cost thermal neutron counter low-cost linear gamma ray counter miniature low-cost gamma ray spectrometer / dosimeter

how

Muon Scattering Tomography system

slide-13
SLIDE 13

13

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

nuclear material

data acquisition and control

counters counters counters

  • local wireless and LAN
  • global WAN

LAN wireless

local Data Base control authorities

  • rganizations

IAEA remote Data Base

how in place in place transport

slide-14
SLIDE 14

14

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

low voltage (30V) high gain

radiation hard flexible robust reliabile easily handled low cost

SiPM

1 mm 1÷2m long

low-cost linear gamma ray counter how

developed with the support of Ansaldo Nucleare

slide-15
SLIDE 15

15

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

low-cost linear gamma ray counter how

tested in collaboration with SOGIN

slide-16
SLIDE 16

16

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

miniature low-cost gamma ray spectrometer / dosimeter how

developed by Wisnam under INFN license

slide-17
SLIDE 17

17

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

how

compact, robust, manageable good detection efficiency (5 ÷ 10%)

  • ptimum gamma discrimination (<10-8)

low-cost thermal neutron counter solid state (Silicon + 6LiF) low voltage (25 V) low cost technology, cheaper than 3He SiLiF

3He tube

partly supported by JRC Ispra

slide-18
SLIDE 18

18

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

how

Muon Scattering Tomography system provides the 3D density distribution can detect missing fuel rods inspection of legacy unknown radwaste

presented at the Consultancy Meeting on Recent Developments in Muon Radiography 25-29 September 2017, IAEA, Vienna

non-invasive inspection technique

slide-19
SLIDE 19

19

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

neutrons and gamma rays convey information from the inside an unexpected change in counting rate is an indication

  • f anomaly

radiological characterization storage & monitoring via a sensor network = fingerprinting

how

radiation fingerprint, similar to CRC Control Code for computer data muon tomography transport

slide-20
SLIDE 20

20

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

Disposal

nuclear fuel reactor temporary storage wet storage dry storage treatment partitioning (& transmutation) deep geological disposal intermediate depth disposal direct disposal

Processing Temporary Storage Nuclear Power Plant Interim Storage

recycled nuclear fuel

Spent Fuel Management Cycle

transport monitoring in place monitoring

slide-21
SLIDE 21

21

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

new technologies provide viable solutions for full continuity of knowledge

Conclusion

and help preventing and detecting theft, sabotage, unauthorized access and illegal transfer

  • r other malicious acts
slide-22
SLIDE 22

22

IAEA CN-254 - Vienna - 13-17 Nov 2017 - Radwaste online monitoring: opportunities from new technologies (ORA-117) P.Finocchiaro International Conference on Physical Protection of Nuclear Material and Nuclear Facilities

FINOCCHIARO@LNS.INFN.IT

Th Than ank k yo you

Catania and the Etna volcano
