R CP Measurements of Identified and Unidentified Charged Particles at High p T in Au+Au Collisions at s NN = 7.7 62.4 GeV in STAR Evan Sangaline for the STAR Collaboration UC Davis August 16th, 2012 Outline Introduction and

slide-1
SLIDE 1

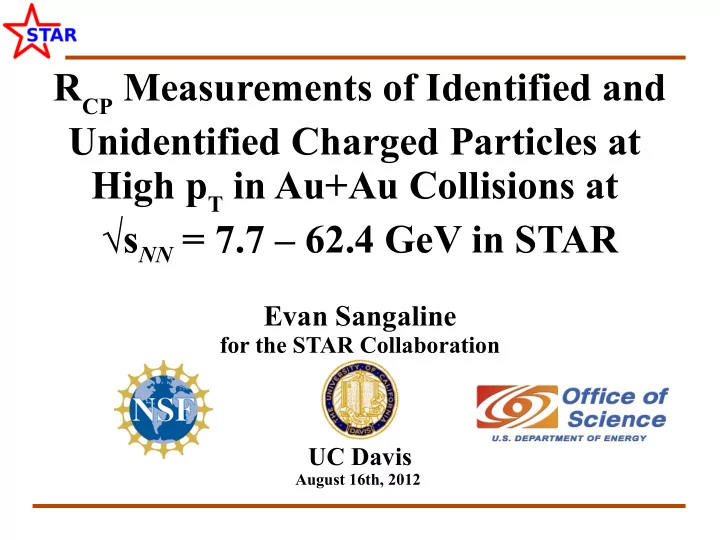

RCP Measurements of Identified and Unidentified Charged Particles at High pT in Au+Au Collisions at √sNN = 7.7 – 62.4 GeV in STAR

Evan Sangaline

for the STAR Collaboration

UC Davis

August 16th, 2012

slide-2
SLIDE 2

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

2

Outline

➢ Introduction and Motivation ➢ STAR Detector and Data Analysis ➢ Results and Discussion ➢ Conclusions

slide-3
SLIDE 3

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

3

Introduction

➢ The RHIC Beam Energy Scan (BES)

arXiv:1007.2613

Main Goals:

  • I. Critical Point
  • II. Phase Transition

III.Turn Off of QGP Signatures

To look for... √sNN (GeV) MB Events (106)

7.7 4.3 11.5 11.7 19.6 35.8 27 70.4 39 130.4 62.4 67.3

slide-4
SLIDE 4

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

4

Nuclear Modification Factors

Central AA collisions scaled by peripheral: Central AA collisions scaled by pp: Central AA collisions scaled by pA:

slide-5
SLIDE 5

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

5

Motivation

➢ Previous RCP Measurements at RHIC

PhysRevLett.91.172302

➢Clear suppression

  • f high pT particles

➢Consistent with

partonic energy loss models

➢Key signature of a

dense colored medium

slide-6
SLIDE 6

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

6

Motivation

arXiv:1012.1004v1

➢ RAA Measurements at LHC

➢Increased suppression

at higher collision energies

➢Suppression extends to

higher transverse momentum

slide-7
SLIDE 7

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

7

Motivation

➢ RCP Measurements at SPS

PhysRevC.77.034906

➢Attempted to measure

RCP at √sNN = 17.3 GeV

➢Statistics too limited to

make a firm statement about the extent of suppression

slide-8
SLIDE 8

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

8

The STAR Detector

✔2π azimuthal acceptance ✔|η| < 1 acceptance ✔Time of Flight measurement ✔dE/dx measurement

TOF TPC

slide-9
SLIDE 9

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

9

Particle Identification

Particle identification is performed using simultaneous TOF (m2) and TPC (dE/dx) fits

π K p π K p

1.9 GeV < pT < 2.1 GeV

slide-10
SLIDE 10

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

10

Charged Particle Spectra

➢ Spectra for identified

charged particles is extracted at each collision energy

➢ Efficiency and energy

loss corrections are applied

STAR Preliminary STAR Preliminary

slide-11
SLIDE 11

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

11

Positive Charge RCP

STAR Preliminary 0-5% / 60-80%

slide-12
SLIDE 12

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

12

Negative Charge RCP

STAR Preliminary 0-5% / 60-80%

slide-13
SLIDE 13

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

13

RAA and RAA/pA

p+W reference

  • Phys. Rev. D 19, 764–778 (1979)

➢ Cronin

enhancement stronger at high pT

➢ Impact on RCP

and RAA would be a reduction

  • f apparent

suppression

STAR Preliminary 0-5%

RAA/pA is meant to be qualitative, the Cronin effect scales in a more complicated way.

slide-14
SLIDE 14

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

14

Unidentified RCP

High pT suppression turns off at lower collision energies.

STAR Preliminary QM 2012 Poster by Stephen Horvat

slide-15
SLIDE 15

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

15

Hijing Simulation

Hijing qualitatively describes trend between energies without jet quenching enabled.

STAR Preliminary

slide-16
SLIDE 16

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

16

Discussion

➢ Suppression turns off at

lower collision energies

➢ Possible disappearance of

QGP?

➢ Cronin effect ➢ Relative contributions of soft

physics and hard scattering

STAR Preliminary

➢Model comparisons are necessary

slide-17
SLIDE 17

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

17

Conclusions

➢ RCP, RAA, and RAA/pA have been measured over a

range of energies

➢ Smooth transition in behavior between energies ➢ Clear turn off of suppression (RCP < 1) has been

  • bserved at 27 GeV and below

➢ RCP has varying sensitivity to jet quenching at different

collision energies

➢ Further studies are ongoing to disentangle effects

slide-18
SLIDE 18

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

18

Backup Slides

slide-19
SLIDE 19

QM 2012 Evan Sangaline for the STAR Collaboration (UCD)

19

Momentum Resolution

➢ Impact was evaluated using MC events

generated from spectra fits to the data The effect is negligible compared to

  • ther

systematics at all energies in the pT region we analyze.

Most realistic
