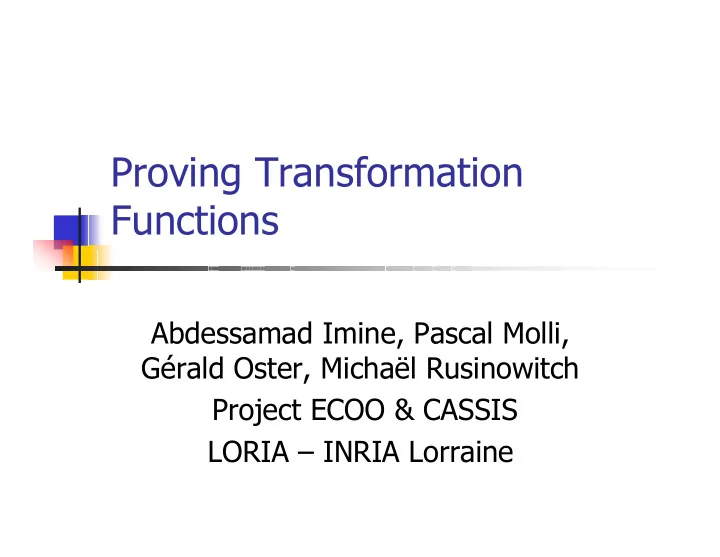

Proving Transformation Functions

Abdessamad Imine, Pascal Molli, Gérald Oster, Michaël Rusinowitch Project ECOO & CASSIS LORIA – INRIA Lorraine

Context

RT Groupware Algorithm requires

properties on Transformation Functions:

) , ( ) , (

2 1 2 1 2 1

• p
• p

T

• p
• p
• p

T

• p
• ≡

)) , ( ( )) , ( (

2 1 2 , 3 1 2 1 , 3

• p
• p

T

• p
• p

T

• p
• p

T

• p
• p

T

• =

C1: C2:

Problem

Proving C1 and C2 is not obvious For a String Object (insert, delete):

For C2: 123 cases

For a (simple) XML object (6op)

For C2: 6*6*6 =216 base cases + all

combination of preconditions…

How to develop SAFE transformation

function for complex objects ??

Approach : Automatic proof…

Use an Automatic Theorem Prover to

prove C1, C2 on transformation functions… (SPIKE in our case)

Allow to handle more complex typed

• bjects

Discover quickly erroneous executions…

Our XML Object…

CN(int n, String tn) : int nn DN(int n) : void CA(int n, String a) DA(int n String a) CHA(int n, String a, String v);

Example of use… (CRC Card)

Root : 1 Class : 2 Responsability : 3 Collaboration : 4

Description: Model in MVC Description: Contain data to be displayed Description: Controller, Views

CN(1,"Class")->2 CA(2,"Description") CHA(2,"Description","Model in MVC") CN(2,"Responsibility")->3 CA(3,"Description") CHA(3,"Description","Contain data to be displayed") CN(2,"Collaborations")->4 CA(4,"Description") CHA(3,"Description","Controller, Views")

Example of SPIKE Feedback

T(CHA(n1,a1,v1),CHA(n2,a2,v2)):- if n1=n2 ^ a1=a2 ^ v1=v2 return noop if n1=n2 ^ a1=a2 ^ v1<>v2 return CHA(n1,a1,max(v1,v2)) else return CHA(n1,a1,v1)

C2 violated…

Problematic scenario:

CHA(n,a,v3) CHA(n,a,v2) CHA(n,a,v1) S3 S2 S1

With max(v1,v2)=max(v2,v3)…

Corrected transformation functions…

T(CHA(n1,a1,v1),CHA(n2,a2,v2)):- if n1=n2 ^ a1=a2 return CHA(n1,a1,max(v1,v2)) else return CHA(n1,a1,v1)

• k for C2…

Another example…

T(CA(n1,a1),DA(n2,a2)) :- return CA(n1,a1) T(CA(n1,a1),CHA(n2,a2,v2)) :- if n1=n2 ^ a1=a2 return noop else return CA(n1,a1) T(DA(n1,a1),CA(n2,a2)) :- if n1=n2 ^ a1=a2 return noop else return DA(n1,a1) T(DA(n1,a1),CHA(n2,a2,v2)) :- return DA(n1,a1) T(CHA(n1,a1,v1),CA(n2,a2)):- return CHA(n1,a1,v1) T(CHA(n1,a1,v1),DA(n2,a2)):- if n1=n2 ^ a1=a2 return noop else return CHA(n1,a1,v1)

C2 violated !

DA(n,a) CHA(n,a,v) CA(n,a) S3 S2 S1

n and a are linked variables…

Correcting transformation functions…

T(CA(n1,a1),DA(n2,a2)) : if n1=n2 ^ a1=a2 return noop else return CA(n1,a1) T(DA(n1,a1),CA(n2,a2)) :- return DA(n1,a1)

T(CA(n1,a1),DA(n2,a2)) :- return CA(n1,a1) T(DA(n1,a1),CA(n2,a2)) :- if n1=n2 ^ a1=a2 return noop else return DA(n1,a1)

New… Old…

Writing SPIKE specifications…

C1 based on equivalence

Requires to specify state, more difficult…

C2 based on syntactic equality

Only needs definition of operations !!

C2 very easy to prove, C1 requires

more work…

Proving C2...

SPIKE Formalism… Our definition Childof(n1,n2)=true -> T(CN(n1,tn1),DN(n2)) = Nop Childof(n1,n2)=false -> T(CN(n1,tn1),DN(n2)) = CN(n1,tn1) T(CN(n1,tn1),DN(n2)):- if (n1 childof n2) return noop else return CN(n1,tn1) T(CN(n1,tn1),CN(n2,tn2))=CN(n1,tn1) T(CN(n1,tn1),CN(n2,tn2)):- return CN(n1,tn1)

Proving C2…

specification : convergence use : nats ; sorts: Op Tag Node Att SetAtt Val State; constructors : CN__: Node Tag -> Op; DN_: Node -> Op; CA__: Node Att -> Op; DA__: Node Att -> Op; CHA___: Node Att Val -> Op; Nop : -> Op; defined functions : Childof__: Node Node -> Bool;

Proving C2… (end…)

conjectures: %C2 T(T(i,k),T(j,k)) = T(T(i,j),T(k,j));

Proving C1

Requires to specify unordered Trees… A little more technical…

axioms: Eqn(n1,n2)=true => Del(Create(St,n1),n2)=Del(St,n2); Eqn(n1,n2)=false, Childof(n1,n2)=true => Del(Create(St,n1),n2)=Del(St,n2); Eqn(n1,n2)=false, Childof(n1,n2)=false => Del(Create(St,n1),n2)=Create(Del(St,n2),n1); …

User desktop

The switching mode part

User and project names

XML Tree Reception queue Log of operations

User : Seb User : Pol

Commit Broadcast

Then, when Pol wants to publish his card, he has to Commit his work. At that moment, the local operations are broadcasted to the other sites.

Update Integration

Update

Same state

Seb and Pol work in parallel in Multi-Synchronous mode.

User Pol want to switch to synchronous mode

Pol switch to synchronous mode

Broadcast

Seb switch to synchronous mode

Integration

Integration Broadcast

Both workspaces are merged

Seb Pol

Color Color

Synchronous mode Synchronous mode

Conclusion – Perspectives…

Allow to develop safe transformation

Functions…

For more complex typed object… Find quickly bad scenario… Writing specifications not very hard… Plan to build an IDE for developping

transformation functions…
