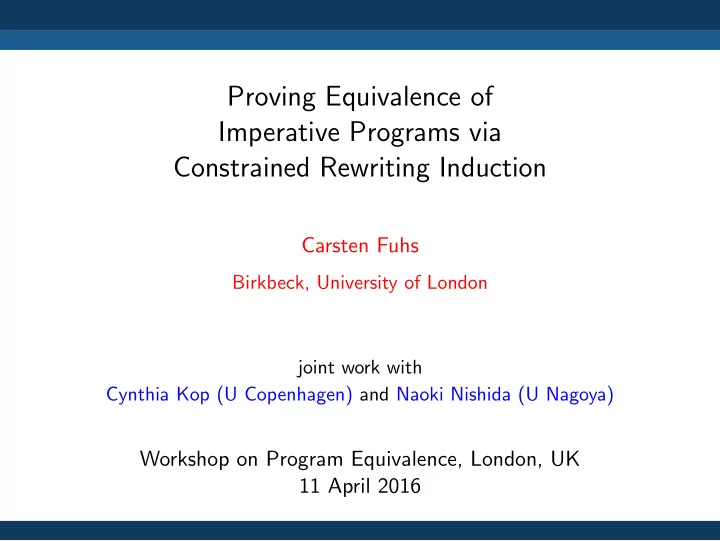

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs Birkbeck, University of London joint work with Cynthia Kop (U Copenhagen) and Naoki Nishida (U Nagoya) Workshop on Program Equivalence, London, UK 11

SLIDE 1

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction

Carsten Fuhs

Birkbeck, University of London joint work with Cynthia Kop (U Copenhagen) and Naoki Nishida (U Nagoya)

Workshop on Program Equivalence, London, UK 11 April 2016

SLIDE 2

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Overview

1 Motivation 2 Constrained Term Rewriting 3 Transforming C Programs 4 Rewriting Induction 5 Lemma Generation 6 Conclusions

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 2 / 48

SLIDE 3

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Overview

1 Motivation 2 Constrained Term Rewriting 3 Transforming C Programs 4 Rewriting Induction 5 Lemma Generation 6 Conclusions

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 3 / 48

SLIDE 4

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Marking Student Programs

C Programming Course in Nagoya

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 4 / 48

SLIDE 5

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Marking Student Programs

C Programming Course in Nagoya

±70 students every year (of whom 60 active)
3 programming exercises every week
=

⇒ 180+ exercises to grade every week for a full semester

student programs can be horrible

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 4 / 48

SLIDE 6

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Example Assignment

Exercise: write a function that calculates Σn

k=1k.

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 5 / 48

SLIDE 7

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Example Homework Solutions

int sum(int x) { int i = 0, z = 0; for (i = 0; i <= x; i++) z += i; return z; }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 6 / 48

SLIDE 8

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Example Homework Solutions

int sum( int n ){ if(n < 0){ return 0; } int cnt; int data = 0; for(cnt = 0;cnt <= n;cnt++){ data = data + cnt; } return data; }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 7 / 48

SLIDE 9

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Example Homework Solutions

int sum(int n) { if ( n<=0 ) { return 0; } else { return (n*(n+1)/2); } }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 8 / 48

SLIDE 10

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Example Homework Solutions

int sum(int x) { int i, j, z; z = 0; for (i = 0; i <= x; i++) for (j = 0; j < i; j++) z++; return z; }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 9 / 48

SLIDE 11

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Solutions

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 10 / 48

SLIDE 12

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Solutions

hire some teaching assistants!

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 10 / 48

SLIDE 13

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Solutions

hire some teaching assistants!
automate the marking

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 10 / 48

SLIDE 14

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Solutions

hire some teaching assistants!
automate the marking

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 10 / 48

SLIDE 15

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Automated Program Testing

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 11 / 48

SLIDE 16

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Automated Program Testing

run automatic tests

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 11 / 48

SLIDE 17

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Automated Program Testing

run automatic tests
prove that programs are correct!

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 11 / 48

SLIDE 18

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Automated Program Testing

run automatic tests
prove that programs are correct!

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 11 / 48

SLIDE 19

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Automated Program Testing

run automatic tests
prove that programs are correct!
we love to play with term rewriting

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 11 / 48

SLIDE 20

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Automated Program Testing

run automatic tests
prove that programs are correct!
we love to play with term rewriting
⇒ convert C programs to term rewriting systems!

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 11 / 48

SLIDE 21

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Solving the Problem

Automated Program Testing

run automatic tests
prove that programs are correct!
we love to play with term rewriting
⇒ convert C programs to term rewriting systems!
⇒ reason about those TRSs instead!

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 11 / 48

SLIDE 22

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Overview

1 Motivation 2 Constrained Term Rewriting 3 Transforming C Programs 4 Rewriting Induction 5 Lemma Generation 6 Conclusions

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 12 / 48

SLIDE 23

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Term Rewriting?

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 13 / 48

SLIDE 24

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Term Rewriting?

Syntactic approach for reasoning in equational first-order logic

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 13 / 48

SLIDE 25

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Term Rewriting?

Syntactic approach for reasoning in equational first-order logic Core functional programming language without many restrictions (and features) of “real” FP:

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 13 / 48

SLIDE 26

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Term Rewriting?

Syntactic approach for reasoning in equational first-order logic Core functional programming language without many restrictions (and features) of “real” FP:

first-order (usually)
no fixed evaluation strategy
no fixed order of rules to apply (Haskell: top to bottom)
untyped
no pre-defined data structures (integers, arrays, . . .)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 13 / 48

SLIDE 27

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Summing up Natural Numbers

Numbers: 0, s(0), s(s(0)), . . .

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 14 / 48

SLIDE 28

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Summing up Natural Numbers

Numbers: 0, s(0), s(s(0)), . . . Rules: sum(0) → sum(s(x)) → plus(s(x), sum(x)) plus(0, y) → y plus(s(x), y) → s(plus(x, y))

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 14 / 48

SLIDE 29

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Summing up Natural Numbers

Numbers: 0, s(0), s(s(0)), . . . Rules: sum(0) → sum(s(x)) → plus(s(x), sum(x)) plus(0, y) → y plus(s(x), y) → s(plus(x, y)) Then e.g. we can compute 1 + 1 = 2 as plus(s(0), s(0)) →R s(plus(0, s(0))) →R s(s(0))

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 14 / 48

SLIDE 30

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Summing up Natural Numbers

Numbers: 0, s(0), s(s(0)), . . . Rules: sum(0) → sum(s(x)) → plus(s(x), sum(x)) plus(0, y) → y plus(s(x), y) → s(plus(x, y)) Then e.g. we can compute 1 + 1 = 2 as plus(s(0), s(0)) →R s(plus(0, s(0))) →R s(s(0)) Integer arithmetic possible with more complex recursive rules.

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 14 / 48

SLIDE 31

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Summing up Natural Numbers

Numbers: 0, s(0), s(s(0)), . . . Rules: sum(0) → sum(s(x)) → plus(s(x), sum(x)) plus(0, y) → y plus(s(x), y) → s(plus(x, y)) Then e.g. we can compute 1 + 1 = 2 as plus(s(0), s(0)) →R s(plus(0, s(0))) →R s(s(0)) Integer arithmetic possible with more complex recursive rules. But: Want to do program analysis. Really throw away domain knowledge about built-in data structures?!

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 14 / 48

SLIDE 32

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Constrained Term Rewriting?

Term rewriting “with batteries included”

first-order
no fixed evaluation strategy
no fixed order of rules to apply

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 15 / 48

SLIDE 33

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Constrained Term Rewriting?

Term rewriting “with batteries included”

first-order
no fixed evaluation strategy
no fixed order of rules to apply
typed

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 15 / 48

SLIDE 34

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Constrained Term Rewriting?

Term rewriting “with batteries included”

first-order
no fixed evaluation strategy
no fixed order of rules to apply
typed
with pre-defined data structures (integers, arrays, bitvectors, ...),

usually from SMT-LIB theories (SMT: SAT Modulo Theories)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 15 / 48

SLIDE 35

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Constrained Term Rewriting?

Term rewriting “with batteries included”

first-order
no fixed evaluation strategy
no fixed order of rules to apply
typed
with pre-defined data structures (integers, arrays, bitvectors, ...),

usually from SMT-LIB theories (SMT: SAT Modulo Theories)

rewrite rules with SMT constraints

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 15 / 48

SLIDE 36

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

What’s Constrained Term Rewriting?

Term rewriting “with batteries included”

first-order
no fixed evaluation strategy
no fixed order of rules to apply
typed
with pre-defined data structures (integers, arrays, bitvectors, ...),

usually from SMT-LIB theories (SMT: SAT Modulo Theories)

rewrite rules with SMT constraints

⇒ Term rewriting + SMT solving for automated reasoning

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 15 / 48

SLIDE 37

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 38

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0] sum(2)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 39

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0] sum(2) → 2 + sum(2 − 1)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 40

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0] sum(2) → 2 + sum(2 − 1) → 2 + sum(1)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 41

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0] sum(2) → 2 + sum(2 − 1) → 2 + sum(1) → 2 + (1 + sum(1 − 1))

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 42

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0] sum(2) → 2 + sum(2 − 1) → 2 + sum(1) → 2 + (1 + sum(1 − 1)) → 2 + (1 + sum(0))

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 43

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0] sum(2) → 2 + sum(2 − 1) → 2 + sum(1) → 2 + (1 + sum(1 − 1)) → 2 + (1 + sum(0)) → 2 + (1 + 0)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 44

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0] sum(2) → 2 + sum(2 − 1) → 2 + sum(1) → 2 + (1 + sum(1 − 1)) → 2 + (1 + sum(0)) → 2 + (1 + 0) → 2 + 1

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 45

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0] sum(2) → 2 + sum(2 − 1) → 2 + sum(1) → 2 + (1 + sum(1 − 1)) → 2 + (1 + sum(0)) → 2 + (1 + 0) → 2 + 1 → 3

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 16 / 48

SLIDE 46

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Integer Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0]

Fterms = {sum} ∪ {n | n ∈ Z}
Ftheory =

{+, −, ≥, >, ∧, true, false} ∪ {n | n ∈ Z}

Values: true, false, 0, 1, 2, 3, . . . , −1, −2, . . .
Interpretation: addition, minus, etc.

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 17 / 48

SLIDE 47

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Bitvector Summation

sum(x) → [x ≤ 0] sum(x) → x + sum(x − 1) [x > 0]

Fterms = {sum} ∪ {n | n ∈ Z ∧ 0 ≤ n < 256}
Ftheory =

{+, −, ≥, >, ∧, true, false} ∪ {n | n ∈ Z ∧ 0 ≤ n < 256}

Values: true, false, 0, 1, 2, 3, . . . , 255
Interpretation: addition, minus, etc. modulo 256

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 18 / 48

SLIDE 48

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Examples

Array Summation

sum(a, x) → [x < 0] sum(a, x) → select(a, x) + sum(a, x − 1) [x ≥ 0]

Fterms = {sum} ∪ {n : int | n ∈ Z} ∪ {a : iarr | n ∈ Z∗}
Ftheory =

{+, −, ≥, >, ∧, select, true, false} ∪ {n | n ∈ Z} ∪ {a : iarr | a ∈ Z∗}

Values:

true, false, 0, 1, −1, 2, −2, . . . , (), (0), (1), . . . , (0, 0), . . .

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 19 / 48

SLIDE 49

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Summary

Logically Constrained Term Rewriting Systems [Kop and Nishida, 2013]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 20 / 48

SLIDE 50

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Summary

Logically Constrained Term Rewriting Systems [Kop and Nishida, 2013]

work much like normal term rewrite systems

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 20 / 48

SLIDE 51

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Summary

Logically Constrained Term Rewriting Systems [Kop and Nishida, 2013]

work much like normal term rewrite systems
can handle integers, arrays, bitvectors, ...

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 20 / 48

SLIDE 52

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Summary

Logically Constrained Term Rewriting Systems [Kop and Nishida, 2013]

work much like normal term rewrite systems
can handle integers, arrays, bitvectors, ...
are flexible enough to faithfully model (many) real-world

programs

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 20 / 48

SLIDE 53

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Overview

1 Motivation 2 Constrained Term Rewriting 3 Transforming C Programs 4 Rewriting Induction 5 Lemma Generation 6 Conclusions

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 21 / 48

SLIDE 54

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Simple Integer Functions

Factorial

int fact(int x) { int z = 1; for (int i = 1; i <= x; i++) z *= i; return z; }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 22 / 48

SLIDE 55

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Simple Integer Functions

Factorial

int fact(int x) { int z = 1; for (int i = 1; i <= x; i++) z *= i; return z; } fact(x) → u1(x) u1(x) → u2(x, 1, 1) u2(x, z, i) → u3(x, z, i) [i ≤ x] u2(x, z, i) → u4(x, z, i) [¬(i ≤ x)] u3(x, z, i) → u2(x, z ∗ i, i + 1) u4(x, z, i) → z

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 22 / 48

SLIDE 56

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Simple Integer Functions

Factorial

int fact(int x) { int z = 1; for (int i = 1; i <= x; i++) z *= i; return z; } fact(x) → u2(x, 1, 1) u2(x, z, i) → u2(x, z ∗ i, i + 1) [i ≤ x] u2(x, z, i) → z [¬(i ≤ x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 22 / 48

SLIDE 57

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Simple Integer Functions

Factorial

int fact(int x) { int z = 1; for (int i = 1; i <= x; i++) z *= i; return z; } fact(x) → u2(x, 1, 1) u2(x, z, i) → u2(x, z ∗ i, i + 1) [i ≤ x] u2(x, z, i) → return(z) [¬(i ≤ x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 22 / 48

SLIDE 58

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Error Checking

Division by Zero

boolean divides(int x, int y) { return x % y == 0; }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 23 / 48

SLIDE 59

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Error Checking

Division by Zero

boolean divides(int x, int y) { return x % y == 0; } divides(x, y) → return(x mod y = 0)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 23 / 48

SLIDE 60

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Error Checking

Division by Zero

boolean divides(int x, int y) { return x % y == 0; } divides(x, y) → return(x mod y = 0) [y = 0] divides(x, y) → error [y = 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 23 / 48

SLIDE 61

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Error Checking

Division by Zero

boolean divides(int x, int y) { return x % y == 0; } divides(x, y) → return(x mod y = 0) [y = 0] divides(x, y) → error [y = 0] (defining x mod 0 = 0)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 23 / 48

SLIDE 62

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Error Checking

Integer Overflow

int fact(int x) { int z = 1; for (int i = 1; i <= x; i++) z *= i; return z; } fact(x) → u2(x, 1, 1) u2(x, z, i) → u2(x, z ∗ i, i + 1)[i ≤ x] u2(x, z, i) → return(z) [¬(i ≤ x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 24 / 48

SLIDE 63

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Error Checking

Integer Overflow

int fact(int x) { int z = 1; for (int i = 1; i <= x; i++) z *= i; return z; } fact(x) → u2(x, 1, 1) u2(x, z, i) → u2(x, z ∗ i, i + 1)[i ≤ x ∧ z ∗ i < 256 ∧ i + 1 < 256] u2(x, z, i) → error [i ≤ x ∧ (z ∗ i ≥ 256 ∨ i + 1 ≥ 256)] u2(x, z, i) → return(z) [¬(i ≤ x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 24 / 48

SLIDE 64

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Further Extensions

Further Extensions

Can also handle

Recursion
Global variables
Mutable arrays (with built-in size function)

→ can represent memory safety violation

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 25 / 48

SLIDE 65

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Overview

1 Motivation 2 Constrained Term Rewriting 3 Transforming C Programs 4 Rewriting Induction 5 Lemma Generation 6 Conclusions

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 26 / 48

SLIDE 66

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

What is Equivalence for LCTRSs?

Teacher’s code: sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 27 / 48

SLIDE 67

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

What is Equivalence for LCTRSs?

Teacher’s code: sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] Student’s code: sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 27 / 48

SLIDE 68

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

What is Equivalence for LCTRSs?

Teacher’s code: sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] Student’s code: sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)] Query: sum1(x) ↔∗ sum2(x) for all x?

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 27 / 48

SLIDE 69

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

Rewriting Induction

Given:

set E of equations s1 ≈ t1 [ϕ1], . . . , sn ≈ tn [ϕn]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 28 / 48

SLIDE 70

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

Rewriting Induction

Given:

set E of equations s1 ≈ t1 [ϕ1], . . . , sn ≈ tn [ϕn]
set of rewrite rules R

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 28 / 48

SLIDE 71

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

Rewriting Induction

Given:

set E of equations s1 ≈ t1 [ϕ1], . . . , sn ≈ tn [ϕn]
set of rewrite rules R

Want to prove: for all constructor ground substitutions γ1, . . . , γn compatible with ϕ1, . . . , ϕn: each siγi ↔∗

R tiγi.

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 28 / 48

SLIDE 72

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

Rewriting Induction

Given:

set E of equations s1 ≈ t1 [ϕ1], . . . , sn ≈ tn [ϕn]
set of rewrite rules R

Want to prove: for all constructor ground substitutions γ1, . . . , γn compatible with ϕ1, . . . , ϕn: each siγi ↔∗

R tiγi.

Requirements:

termination of →R (to perform induction)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 28 / 48

SLIDE 73

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

Rewriting Induction

Given:

set E of equations s1 ≈ t1 [ϕ1], . . . , sn ≈ tn [ϕn]
set of rewrite rules R

Want to prove: for all constructor ground substitutions γ1, . . . , γn compatible with ϕ1, . . . , ϕn: each siγi ↔∗

R tiγi.

Requirements:

termination of →R (to perform induction)
sufficient completeness of →R: evaluation “cannot get stuck”

(for case analysis over variables by constructor terms)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 28 / 48

SLIDE 74

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Goal

Rewriting Induction

Given:

set E of equations s1 ≈ t1 [ϕ1], . . . , sn ≈ tn [ϕn]
set of rewrite rules R

Want to prove: for all constructor ground substitutions γ1, . . . , γn compatible with ϕ1, . . . , ϕn: each siγi ↔∗

R tiγi.

Requirements:

termination of →R (to perform induction)
sufficient completeness of →R: evaluation “cannot get stuck”

(for case analysis over variables by constructor terms)

if we want siγi ↔∗ tiγi for all results: confluence of →R

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 28 / 48

SLIDE 75

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Approach

Rewriting Induction

Three sets:

E (equations, “the queries”)
R (rules, “the program”)
H (rules, “induction hypotheses”)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 29 / 48

SLIDE 76

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Approach

Rewriting Induction

Three sets:

E (equations, “the queries”)
R (rules, “the program”)
H (rules, “induction hypotheses”)

Initially: E given, R given, H empty

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 29 / 48

SLIDE 77

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Approach

Rewriting Induction

Three sets:

E (equations, “the queries”)
R (rules, “the program”)
H (rules, “induction hypotheses”)

Initially: E given, R given, H empty Proof steps: pairs (E, H) ⊢ (E′, H′) by several inference rules for ⊢

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 29 / 48

SLIDE 78

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Approach

Rewriting Induction

Three sets:

E (equations, “the queries”)
R (rules, “the program”)
H (rules, “induction hypotheses”)

Initially: E given, R given, H empty Proof steps: pairs (E, H) ⊢ (E′, H′) by several inference rules for ⊢ Invariant: →R∪H terminating

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 29 / 48

SLIDE 79

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Approach

Rewriting Induction

Three sets:

E (equations, “the queries”)
R (rules, “the program”)
H (rules, “induction hypotheses”)

Initially: E given, R given, H empty Proof steps: pairs (E, H) ⊢ (E′, H′) by several inference rules for ⊢ Invariant: →R∪H terminating Goal: find derivation (E, ∅) ⊢∗ (∅, H) Then also ↔∗

E ⊆ ↔∗ R∪H ⊆ ↔∗ R on ground terms:

Equations E are inductive theorems for R

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 29 / 48

SLIDE 80

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Simplification: definition

(E ⊎ {s ≃ t [ϕ]}, H) (E ∪ {s′ ≈ t [ψ]}, H)

if s ≃ t [ϕ] →R∪H s′ ≈ t [ψ] Idea: Use the program or an induction hypothesis to simplify the query.

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 30 / 48

SLIDE 81

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Simplification: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y, z) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1] }, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 31 / 48

SLIDE 82

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Simplification: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y, z) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1] }, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 31 / 48

SLIDE 83

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Simplification: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y + 1, z + y) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1] }, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 31 / 48

SLIDE 84

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Simplification: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y + 1, z + y) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1] }, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 31 / 48

SLIDE 85

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Simplification: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y′, z + y) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1]}, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 31 / 48

SLIDE 86

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Simplification: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y′, z + y) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1]}, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 31 / 48

SLIDE 87

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Simplification: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y′, z′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 31 / 48

SLIDE 88

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: definition

(E ⊎ {s ≃ t [ϕ]}, H) (E ∪ Expd(s, t, ϕ, p), H ∪ {s → t [ϕ]})

if for every γ compatible with ϕ, s|p reduces and R ∪ H ∪ {s → t [ϕ]} is terminating

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 32 / 48

SLIDE 89

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: definition

(E ⊎ {s ≃ t [ϕ]}, H) (E ∪ Expd(s, t, ϕ, p), H ∪ {s → t [ϕ]})

if for every γ compatible with ϕ, s|p reduces and R ∪ H ∪ {s → t [ϕ]} is terminating Expd(C[l′]p, t, ϕ, p) contains equations C[rγ]p ≃ tγ [ϕγ ∧ ψγ] for all l → r [ψ] in R where l and l′ unify with most general unifier γ

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 32 / 48

SLIDE 90

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: definition

(E ⊎ {s ≃ t [ϕ]}, H) (E ∪ Expd(s, t, ϕ, p), H ∪ {s → t [ϕ]})

if for every γ compatible with ϕ, s|p reduces and R ∪ H ∪ {s → t [ϕ]} is terminating Expd(C[l′]p, t, ϕ, p) contains equations C[rγ]p ≃ tγ [ϕγ ∧ ψγ] for all l → r [ψ] in R where l and l′ unify with most general unifier γ Idea: Exhaustive case analysis, generate induction hypothesis. (Closely related: narrowing.)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 32 / 48

SLIDE 91

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y′, z′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 92

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ⊎ {u(x, y′, z′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 93

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′ + 1, z′ + y′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x]} ∪ {z′ ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 94

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′ + 1, z′ + y′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x]} ∪ {z′ ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 95

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′ + 1, z′ + y′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x]} ∪ {z′ ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 96

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′ + 1, z′ + y′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x]} ∪ {z′ ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 97

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′ + 1, z′ + y′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 98

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′ + 1, z′ + y′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 99

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 100

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 101

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 102

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 103

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 104

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 105

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}) [y := y′, y′ := y′′, z := z′, z′ := z′′]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 106

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}) [y := y′, y′ := y′′, z := z′, z′ := z′′]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 107

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}) [y := y′, y′ := y′′, z := z′, z′ := z′′]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 108

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}) [y := y′, y′ := y′′, z := z′, z′ := z′′]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 109

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {u(x, y′′, z′′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}) [y := y′, y′ := y′′, z := z′, z′ := z′′]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 110

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Expansion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {x + u(x′, y′, z′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 33 / 48

SLIDE 111

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Deletion: definition

(E ⊎ {s ≃ t [ϕ]}, H) (E, H)

if s ≡ t or ϕ is unsatisfiable Idea: Delete trivial inductive theorems.

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 34 / 48

SLIDE 112

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Deletion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {x + u(x′, y′, z′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 35 / 48

SLIDE 113

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Deletion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {x + u(x′, y′, z′) ≈ x + u(x′, y′, z′) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ y′ ≤ x ∧ y′′ = y′ + 1 ∧ z′′ = z′ + y′]} ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 35 / 48

SLIDE 114

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Deletion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 35 / 48

SLIDE 115

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

EQ-Deletion: definition

(E ⊎ {C[s1, . . . , sn] ≈ C[t1, . . . , tn] [ϕ]}, H) (E ∪ {C[ s] ≈ C[ t] [ϕ ∧ ¬ n

i=1(si = ti)]}, H)

if s1, . . . , sn, t1, . . . , tn all logical terms Idea: If all arguments to the same context become equal, we’re done.

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 36 / 48

SLIDE 116

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

EQ-Deletion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 37 / 48

SLIDE 117

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

EQ-Deletion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x) ∧ ¬(z′ = x + z)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 37 / 48

SLIDE 118

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

EQ-Deletion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E ∪ {z′ ≈ x + z [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y ∧ ¬(y′ ≤ x) ∧ ¬(z′ = x + z)]} , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 37 / 48

SLIDE 119

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

EQ-Deletion: example

R =            sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)]            (E , H ∪ {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]})

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 37 / 48

SLIDE 120

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Postulate: definition

(E, H) (E ⊎ {s ≃ t [ϕ]}, H)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 38 / 48

SLIDE 121

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Postulate: example

R: sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)] Goal: ( {sum1(x) ≈ sum2(x) [⊤]}, ∅ )

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 39 / 48

SLIDE 122

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Postulate: example

R: sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)] Goal: ( {sum1(x) ≈ sum2(x) [⊤], u(x, y, z) ≈ x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]}, ∅ )

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 39 / 48

SLIDE 123

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Induction Rules

Postulate: example

R: sum1(x) → [x ≤ 0] sum1(x) → x + sum1(x − 1) [x > 0] sum2(x) → u(x, 0, 0) u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] u(x, i, z) → z [¬(i ≤ x)] Goal: ( {sum1(x) ≈ sum2(x) [⊤]}, {u(x, y′, z′) → x + u(x′, y, z) [x ≥ y ∧ x = x′ + 1 ∧ y′ = y + 1 ∧ z′ = z + y]} )

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 39 / 48

SLIDE 124

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Overview

1 Motivation 2 Constrained Term Rewriting 3 Transforming C Programs 4 Rewriting Induction 5 Lemma Generation 6 Conclusions

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 40 / 48

SLIDE 125

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] Goals: sum1(x) ≈ sum2(x) [⊤]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 126

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] Goals: sum1(x) ≈ u(x, 0, 0) [⊤]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 127

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] Goals: x + sum1(x − 1) ≈ u(x, 0, 0) [x > 0] 0 ≈ u(x, 0, 0) [x ≤ 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 128

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] Goals: x + sum1(x − 1) ≈ u(x, 0, 0) [x > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 129

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] Goals: x + sum1(x − 1) ≈ u(x, 0 + 1, 0 + 0) [x > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 130

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] Goals: x + sum1(x′) ≈ u(x, 1, 0) [x > 0 ∧ x′ = x − 1]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 131

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] Goals: x + u(x′, 0, 0) ≈ u(x, 1, 0) [x > 0 ∧ x′ = x − 1]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 132

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] H2 u(x, 1, 0) → x + u(x′, 0, 0) [x > 0 ∧ x′ = x − 1] Goals: x + u(x′, 0, 0) ≈ u(x, 1 + 1, 0 + 1) [x > 0 ∧ x′ = x − 1 ∧ x′ > 0] x + u(x′, 0, 0) ≈ 0 [x > 0 ∧ x′ = x − 1 ∧ x′ ≤ 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 133

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] H2 u(x, 1, 0) → x + u(x′, 0, 0) [x > 0 ∧ x′ = x − 1] Goals: x + u(x′, 0, 0) ≈ u(x, 1 + 1, 0 + 1) [x > 0 ∧ x′ = x − 1 ∧ x′ > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 134

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] H2 u(x, 1, 0) → x + u(x′, 0, 0) [x > 0 ∧ x′ = x − 1] Goals: x+u(x′, 0+1, 0+0) ≈ u(x, 1+1, 0+1) [x > 0∧x′ = x−1∧x′ > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 135

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] H2 u(x, 1, 0) → x + u(x′, 0, 0) [x > 0 ∧ x′ = x − 1] Goals: x + u(x′, 1, 0) ≈ u(x, 2, 1) [x > 0 ∧ x′ = x − 1 ∧ x′ > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 41 / 48

SLIDE 136

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] H2 u(x, 1, 0) → x + u(x′, 0, 0) [x > 0 ∧ x′ = x − 1] H3 u(x, 2, 1) → x + u(x′, 1, 0) [x ≥ 1 ∧ x′ = x − 1]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 42 / 48

SLIDE 137

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] H2 u(x, 1, 0) → x + u(x′, 0, 0) [x > 0 ∧ x′ = x − 1] H3 u(x, 2, 1) → x + u(x′, 1, 0) [x ≥ 1 ∧ x′ = x − 1] H4 u(x, 3, 3) → x + u(x′, 2, 1) [x ≥ 2 ∧ x′ = x − 1]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 42 / 48

SLIDE 138

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Divergence

What Typically Happens

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, 0, 0) [⊤] H2 u(x, 1, 0) → x + u(x′, 0, 0) [x > 0 ∧ x′ = x − 1] H3 u(x, 2, 1) → x + u(x′, 1, 0) [x ≥ 1 ∧ x′ = x − 1] H4 u(x, 3, 3) → x + u(x′, 2, 1) [x ≥ 2 ∧ x′ = x − 1] H5 u(x, 4, 6) → x + u(x′, 3, 3) [x ≥ 3 ∧ x′ = x − 1]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 42 / 48

SLIDE 139

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → [x ≤ 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, 0, 0) 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 140

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 141

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] Goals: sum1(x) ≈ sum2(x) [⊤]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 142

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] Goals: sum1(x) ≈ u(x, c1, c2) [c1 = 0 ∧ c2 = 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 143

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] Goals: x + sum1(x − 1) ≈ u(x, c1, c2) [c1 = 0 ∧ c2 = 0 ∧ x > 0] c0 ≈ u(x, c1, c2) [c1 = 0 ∧ c2 = 0 ∧ x ≤ 0 ∧ c0 = 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 144

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] Goals: x + sum1(x − 1) ≈ u(x, c1, c2) [c1 = 0 ∧ c2 = 0 ∧ x > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 145

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] Goals: x + sum1(x − 1) ≈ u(x, c1 + 1, c2 + c1) [c1 = 0 ∧ c2 = 0 ∧ x > 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 146

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] Goals: x + sum1(x′) ≈ u(x, i, z) [c1 = 0 ∧ c2 = 0 ∧ x > 0 ∧ x′ = x − 1 ∧ i = c1 + 1 ∧ z = c1 + c2]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 147

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] Goals: x + u(x′, c1, c2) ≈ u(x, i, z) [c1 = 0 ∧ c2 = 0 ∧ x > 0 ∧ x′ = x − 1 ∧ i = c1 + 1 ∧ z = c1 + c2]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 148

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] Goals: x + u(x′, c1, c2) ≈ u(x, i, z) [c1 = 0 ∧ c2 = 0 ∧ x > 0 ∧ x′ = x − 1 ∧ i = c1 + 1 ∧ z = c1 + c2] Generalisation: Drop initialisations

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 149

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Generalisation Method

Use Different Notation!

1. sum1(x) → c0 [x ≤ 0 ∧ c0 = 0] 2. sum1(x) → x + sum1(x − 1) [x > 0] 3. sum2(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] 4. u(x, i, z) → u(x, i + 1, z + i) [i ≤ x] 5. u(x, i, z) → z [¬(i ≤ x)] H1 sum1(x) → u(x, c1, c2) [c1 = 0 ∧ c2 = 0] Goals: x + u(x′, c1, c2) ≈ u(x, i, z) [ x > 0 ∧ x′ = x − 1 ∧ i = c1 + 1 ∧ z = c1 + c2] Generalisation: Drop initialisations

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 43 / 48

SLIDE 150

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions

Overview

1 Motivation 2 Constrained Term Rewriting 3 Transforming C Programs 4 Rewriting Induction 5 Lemma Generation 6 Conclusions

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 44 / 48

SLIDE 151

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions What was already there?

Shoulders of Giants

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 45 / 48

SLIDE 152

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions What was already there?

Shoulders of Giants

various kinds of constrained rewriting

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 45 / 48

SLIDE 153

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions What was already there?

Shoulders of Giants

various kinds of constrained rewriting

(But: most were fundamentally limited to the integers)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 45 / 48

SLIDE 154

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions What was already there?

Shoulders of Giants

various kinds of constrained rewriting

(But: most were fundamentally limited to the integers)

long history of unconstrained rewriting induction, e.g.

[Reddy 1990]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 45 / 48

SLIDE 155

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions What was already there?

Shoulders of Giants

various kinds of constrained rewriting

(But: most were fundamentally limited to the integers)

long history of unconstrained rewriting induction, e.g.

[Reddy 1990] (But: lemma generation methods do not obviously extend)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 45 / 48

SLIDE 156

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions What was already there?

Shoulders of Giants

various kinds of constrained rewriting

(But: most were fundamentally limited to the integers)

long history of unconstrained rewriting induction, e.g.

[Reddy 1990] (But: lemma generation methods do not obviously extend)

rewriting induction for a form of constrained rewriting

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 45 / 48

SLIDE 157

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions What was already there?

Shoulders of Giants

various kinds of constrained rewriting

(But: most were fundamentally limited to the integers)

long history of unconstrained rewriting induction, e.g.

[Reddy 1990] (But: lemma generation methods do not obviously extend)

rewriting induction for a form of constrained rewriting

(But: only very complex and relatively weak lemma generation)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 45 / 48

SLIDE 158

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Implementation and Experiments

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 46 / 48

SLIDE 159

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Implementation and Experiments

C2LCTRS: automatic tool to translate C programs to LCTRSs

http://www.trs.cm.is.nagoya-u.ac.jp/c2lctrs/

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 46 / 48

SLIDE 160

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Implementation and Experiments

C2LCTRS: automatic tool to translate C programs to LCTRSs

http://www.trs.cm.is.nagoya-u.ac.jp/c2lctrs/

Ctrl: automatic tool to prove equivalence of LCTRS functions

http://cl-informatik.uibk.ac.at/software/ctrl/

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 46 / 48

SLIDE 161

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Implementation and Experiments

C2LCTRS: automatic tool to translate C programs to LCTRSs

http://www.trs.cm.is.nagoya-u.ac.jp/c2lctrs/

Ctrl: automatic tool to prove equivalence of LCTRS functions

http://cl-informatik.uibk.ac.at/software/ctrl/ function YES NO MAYBE time sum 9 4 2.4 fib 4 6 3 6.6 sumfrom 3 1 2 1.9 strlen 1 5 7.2 strcpy 3 3 11.5 arrsum 1 4.2 fact 1 2.4 total 22 7 17 5.9 Experiments with student code

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 46 / 48

SLIDE 162

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Implementation and Experiments

C2LCTRS: automatic tool to translate C programs to LCTRSs

http://www.trs.cm.is.nagoya-u.ac.jp/c2lctrs/

Ctrl: automatic tool to prove equivalence of LCTRS functions

http://cl-informatik.uibk.ac.at/software/ctrl/ function YES NO MAYBE time sum 9 4 2.2 fib 10 1 2 5.9 sumfrom 3 3 2.3 strlen 2 4 6.0 strcpy 5 1 14.1 arrsum 1 4.2 fact 1 2.5 total 31 1 14 5.9 Experiments with student code and adapted teacher code

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 47 / 48

SLIDE 163

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Conclusion

Logically Constrained Term Rewrite Systems

for automated reasoning and program analysis

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 48 / 48

SLIDE 164

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Conclusion

Logically Constrained Term Rewrite Systems

for automated reasoning and program analysis

Frontend from C fragment on integers, arrays, ... to LCTRSs

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 48 / 48

SLIDE 165

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Conclusion

Logically Constrained Term Rewrite Systems

for automated reasoning and program analysis

Frontend from C fragment on integers, arrays, ... to LCTRSs
Constrained rewriting induction to prove equivalence of

functions defined by LCTRSs

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 48 / 48

SLIDE 166

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Conclusion

Logically Constrained Term Rewrite Systems

for automated reasoning and program analysis

Frontend from C fragment on integers, arrays, ... to LCTRSs
Constrained rewriting induction to prove equivalence of

functions defined by LCTRSs

Lemma generation technique suited to problems from

imperative programs

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 48 / 48

SLIDE 167

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Conclusion

Logically Constrained Term Rewrite Systems

for automated reasoning and program analysis

Frontend from C fragment on integers, arrays, ... to LCTRSs
Constrained rewriting induction to prove equivalence of

functions defined by LCTRSs

Lemma generation technique suited to problems from

imperative programs

Conference paper at APLAS 2014

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 48 / 48

SLIDE 168

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Contributions

Conclusion

Logically Constrained Term Rewrite Systems

for automated reasoning and program analysis

Frontend from C fragment on integers, arrays, ... to LCTRSs
Constrained rewriting induction to prove equivalence of

functions defined by LCTRSs

Lemma generation technique suited to problems from

imperative programs

Conference paper at APLAS 2014
Full version: http://arxiv.org/abs/1409.0166

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 48 / 48

SLIDE 169

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Bonus Slides

Bonus Slides

More on the step from C to constrained rewriting

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 49 / 48

SLIDE 170

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Function Calls

Recursion

int fact(int x) { if (x > 0) return x * fact(x-1); else return 1; }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 50 / 48

SLIDE 171

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Function Calls

Recursion

int fact(int x) { if (x > 0) return x * fact(x-1); else return 1; } fact(x) → x ∗ fact(x − 1) [x > 0] fact(x) → 1 [¬(x > 0)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 50 / 48

SLIDE 172

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Function Calls

Recursion

int fact(int x) { if (x > 0) return x * fact(x-1); else return 1; } fact(x) → x ∗ fact(x − 1) [x > 0] fact(x) → return(1) [¬(x > 0)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 50 / 48

SLIDE 173

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Function Calls

Recursion

int fact(int x) { if (x > 0) return x * fact(x-1); else return 1; } fact(x) → helper(x, fact(x − 1)) [x > 0] fact(x) → return(1) [¬(x > 0)] helper(x, return(y)) → x ∗ y

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 50 / 48

SLIDE 174

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Function Calls

Recursion with Errors

int fact(int x) { if (x > 0) return x * fact(x-1); else return 1; } fact(x) → helper(x, fact(x − 1)) [x > 0] fact(x) → return(1) [¬(x > 0)] helper(x, return(y)) → x ∗ y [x ∗ y < 256] helper(x, return(y)) → error [x ∗ y ≥ 256]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 51 / 48

SLIDE 175

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Function Calls

Recursion with Errors

int fact(int x) { if (x > 0) return x * fact(x-1); else return 1; } fact(x) → helper(x, fact(x − 1)) [x > 0] fact(x) → return(1) [¬(x > 0)] helper(x, return(y)) → x ∗ y [x ∗ y < 256] helper(x, return(y)) → error [x ∗ y ≥ 256] helper(x, error) → error

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 51 / 48

SLIDE 176

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Side Effects

Global Variables

int best; int up(int x) { if (x > best) { best = x; return 1; } return 0; }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 52 / 48

SLIDE 177

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Side Effects

Global Variables

int best; int up(int x) { if (x > best) { best = x; return 1; } return 0; } up(b, x) → return(x, 1) [x > b] up(b, x) → return(b, 0) [¬(x > b)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 52 / 48

SLIDE 178

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Side Effects

Global Variables with Function Calls

int best; int up(int x) { void main() { if (x > best) { while(1) { best = x; int k = input(); return 1; up(k); } if (!k) break; return 0; } } }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 53 / 48

SLIDE 179

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Side Effects

Global Variables with Function Calls

int best; int up(int x) { void main() { if (x > best) { while(1) { best = x; int k = input(); return 1; up(k); } if (!k) break; return 0; } } } up(b, x) → returnup(x, 1) [x > b] up(b, x) → returnup(b, 0) [¬(x > b)] main(b) → u1(b, inp) u1(b, k) → u2(k, up(b, k)) u2(k, returnup(b′, i)) → returnmain(b′) [¬(k = 0)] u2(k, returnup(b′, i)) → u1(b′, inp) [k = 0]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 53 / 48

SLIDE 180

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Side Effects

Statically Allocated Arrays

void strcpy(char goal[], char original[]) { int i = 0; for (; original[i]; i++) goal[i] = original[i]; goal[i] = 0; }

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 54 / 48

SLIDE 181

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Side Effects

Statically Allocated Arrays

void strcpy(char goal[], char original[]) { int i = 0; for (; original[i]; i++) goal[i] = original[i]; goal[i] = 0; } strcpy(x, y) → v(x, y, 0) v(x, y, i) → w(x, y, i) [select(y, i) = 0] v(x, y, i) → v(store(x, i, select(y, i)), y, i + 1) [select(y, i) = 0] w(x, y, i) → return(store(x, i, 0))

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 54 / 48

SLIDE 182

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Side Effects

Statically Allocated Arrays

void strcpy(char goal[], char original[]) { int i = 0; for (; original[i]; i++) goal[i] = original[i]; goal[i] = 0; } strcpy(x, y) → v(x, y, 0) v(x, y, i) → w(x, y, i) [0 ≤ i < size(y) ∧ select(y, i) = 0] v(x, y, i) → v(store(x, i, select(y, i)), y, i + 1) [0 ≤ i < size(x) ∧ i < size(y) ∧ select(y, i) = 0] w(x, y, i) → return(store(x, i, 0)) [0 ≤ i < size(x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 54 / 48

SLIDE 183

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Side Effects

Statically Allocated Arrays

void strcpy(char goal[], char original[]) { int i = 0; for (; original[i]; i++) goal[i] = original[i]; goal[i] = 0; } strcpy(x, y) → v(x, y, 0) v(x, y, i) → w(x, y, i) [0 ≤ i < size(y) ∧ select(y, i) = 0] v(x, y, i) → v(store(x, i, select(y, i)), y, i + 1) [0 ≤ i < size(x) ∧ i < size(y) ∧ select(y, i) = 0] w(x, y, i) → return(store(x, i, 0)) [0 ≤ i < size(x)] v(x, y, i) → error [i < 0 ∨ i ≥ size(y) ∨ (select(y, i) = 0 ∧ i ≥ size(x))] w(x, y, i) → error [i < 0 ∨ i ≥ size(x)]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 54 / 48

SLIDE 184

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 185

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 186

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 187

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 188

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 189

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 190

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 191

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 192

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

int k = a[3];

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 193

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

int k = a[3];

⇒ u2(mem, pair(x, y)) → u3(mem, pair(x, y), select(select(mem, x), y + 3))

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 194

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

int k = a[3];

⇒ u2(mem, pair(x, y)) → u3(mem, pair(x, y), select(select(mem, x), y + 3)) [0 ≤ y + 3 < size(select(mem, x))]

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 195

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

int k = a[3];

⇒ u2(mem, pair(x, y)) → u3(mem, pair(x, y), select(select(mem, x), y + 3)) [0 ≤ y + 3 < size(select(mem, x))] (Note: select(mem, a) returns () if a is out of bound.)

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 196

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

int k = a[3];

⇒ u2(mem, pair(x, y)) → u3(mem, pair(x, y), select(select(mem, x), y + 3)) [0 ≤ y + 3 < size(select(mem, x))] (Note: select(mem, a) returns () if a is out of bound.)

int *b = a + 1;

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48

SLIDE 197

Motivation Constrained Term Rewriting Transforming C Programs Rewriting Induction Lemma Generation Conclusions Dynamic Pointers

Dynamically Allocated Arrays

model memory as a sequence of integer sequences
a dynamic array is a pair (index, offset)
int *a = new int[10];

⇒ u1(mem) → u2(add(mem, x), pair(size(mem), 0)) [size(x) = 10]

int k = a[3];

⇒ u2(mem, pair(x, y)) → u3(mem, pair(x, y), select(select(mem, x), y + 3)) [0 ≤ y + 3 < size(select(mem, x))] (Note: select(mem, a) returns () if a is out of bound.)

int *b = a + 1;

⇒ u3(mem, pair(x, y), k) → u4(mem, pair(x, y), k, pair(x, y + 1))

Proving Equivalence of Imperative Programs via Constrained Rewriting Induction Carsten Fuhs 55 / 48
