Provider Backbone Transport Networking Host-to-host connections through SURFnet6 Drs. R. van der Pol ing. G.A. van Malenstein Research Project 2 A. Toonk, MSc ing. C. Steenbeek Contents Background Problem Description Research

slide-1
SLIDE 1

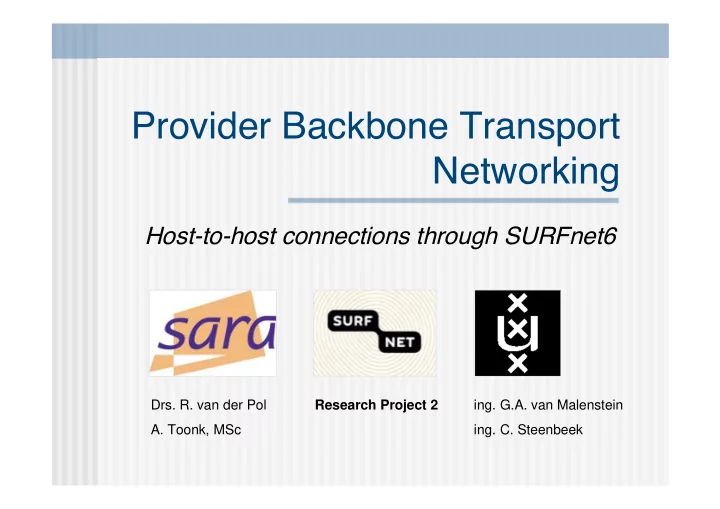

Provider Backbone Transport Networking

Host-to-host connections through SURFnet6

  • ing. G.A. van Malenstein
  • ing. C. Steenbeek
  • Drs. R. van der Pol
  • A. Toonk, MSc

Research Project 2

slide-2
SLIDE 2

July 6, 2007 PBT Networking 2/16

Contents

Background Problem Description Research Question PBT Theoretical PBT Practical PBT and SURFnet6 Conclusion

slide-3
SLIDE 3

July 6, 2007 PBT Networking 3/16

Background

SURFnet6

Hybrid

  • IP: packet-switched
  • Lightpaths: circuit-switched (with Quality of Service)

Ethernet

Packet-switched (LAN) Carrier ethernet (MAN)

New ethernet extensions

Provider Backbone Bridges (PBB) Provider Backbone Transport (PBT)

slide-4
SLIDE 4

July 6, 2007 PBT Networking 4/16

Research Question

“In which way(s) are SURFnet's customers able to setup an end-to-end connection through SURFnet6 and their

  • wn internal ethernet network, with use of the new

ethernet extensions Provider Backbone Bridges (PBB) and Provider Backbone Transport (PBT)?”

slide-5
SLIDE 5

July 6, 2007 PBT Networking 5/16

Research Methods

IEEE Standard Documents

802.1AB, 802.1ag, 802.1ah, 802.1Qay

Presentation SURFnet6 Interview

  • Ir. G.W.J. Jacobs, Nortel Networks

Online articles

slide-6
SLIDE 6

July 6, 2007 PBT Networking 6/16

PBT Environment

slide-7
SLIDE 7

July 6, 2007 PBT Networking 7/16

Provider Backbone Bridges

slide-8
SLIDE 8

July 6, 2007 PBT Networking 8/16

Provider Backbone Transport

No flooding of unknowns, broadcast and multicast No STP No MAC-learning Separated by VLAN Control Plane

Fail-over in 50 ms Fills forwarding tables

Primary and Backup tunnel Layer 2: Packet-switched Circuit-switched

slide-9
SLIDE 9

July 6, 2007 PBT Networking 9/16

PBT Practical

Customers only SURFnet6 More solutions of implementing PBT

can be found in our report

slide-10
SLIDE 10

July 6, 2007 PBT Networking 10/16

PBT Practical - Customers only

slide-11
SLIDE 11

July 6, 2007 PBT Networking 11/16

Practical to SURFnet6

3 Domains Unknown provider network (De)Encapsulation at Edge Bridges Introduces single points of failure

slide-12
SLIDE 12

July 6, 2007 PBT Networking 12/16

PBT and SURFnet6 (1/2)

slide-13
SLIDE 13

July 6, 2007 PBT Networking 13/16

PBT and SURFnet6 (2/2)

3 Control planes Implementation

Enabling PBT on at least two bridges

per customer network

Placing at least two PBT Bridges (Edge Bridges)

per customer network

slide-14
SLIDE 14

July 6, 2007 PBT Networking 14/16

Conclusion

Protocols are described in our report

Many articles about PBT online, often first

drafts or management summary

SURFnets customers can implement PBT

By enabling PBT on at least two bridges, or by placing at least two Edge Bridges

slide-15
SLIDE 15

July 6, 2007 PBT Networking 15/16

Future Work

Three control planes to one, with

Soapstone Networks PNC

Single PBT domain (PBEB -> PBCB)

Expansion of PBT in campus networks Differences PBT and T-MPLS Research by SURFnet on exact

implementation steps

slide-16
SLIDE 16

July 6, 2007 PBT Networking 16/16

The End

Any questions?
