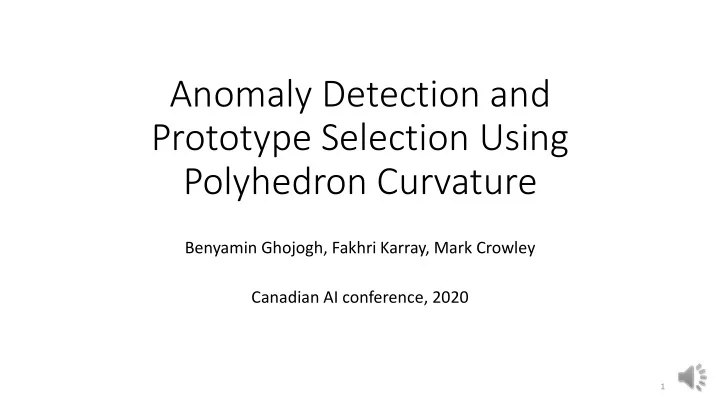

Anomaly Detection and Prototype Selection Using Polyhedron Curvature

Benyamin Ghojogh, Fakhri Karray, Mark Crowley Canadian AI conference, 2020

1

Anomaly Detection

• finding outliers or anomalies which differ significantly from the

normal data points

• fraud detection, intrusion detection, medical diagnosis, and damage

detection

• Some methods:
• Local Outlier Factor (LOF)
• One-class SVM
• Elliptic Envelope (EE)
• Isolation forest

2

Prototype Selection

• also referred to as instance ranking and numerosity reduction
• Two versions:
• Ranking based
• Retaining based
• Some methods:
• Edited Nearest Neighbor (ENN)
• Decremental Reduction Optimization Procedure 3 (DROP3)
• Stratified Ordered Selection (SOS)
• Shell Extraction (SE)
• Principal Sample Analysis (PSA)
• Instance Ranking by Matrix Decomposition (IRMD)

3

Polyhedron Curvature

• Polytope: a geometrical object in R^d whose faces are planar
• Special cases:
• Polygon: polytope in R^2
• Polyhedron: polytope in R^3
• Consider a polygon where τj and µj are the interior

and exterior angles at the j-th vertex

• we have τj +µj = π

4

Polyhedron Curvature

• Thomas Harriot’s theorem proposed in 1603:
• if this geodesic on the unit sphere is a triangle,

its area is µ1 +µ2 +µ3 −π = 2π −(τ1 +τ2 +τ3)

• generalization of this theorem from a geodesic

triangular polygon (3-gon) to an k-gon is µ1 + · · · + µk − kπ + 2π = 2π − σ𝑏=1

𝑙

τa

• Descartes’s angular defect: 2π − σ𝑏=1

𝑙

τa

5

Polyhedron Curvature

• Descartes’s angular defect: D(x) = 2π − σ𝑏=1

𝑙

τa

• total defect of a polyhedron with v vertices, e edges, and f faces is:

D := σ𝑏=1

𝑙

D(xi) = 2π(v − e + f).

• Term v − e + f is Euler-Poincare characteristic of

the polyhedron

• The smaller τ angles result in sharper corner of

the polyhedron

• So, we can consider the angular defect as

the curvature of the vertex

6

Curvature Anomaly Detection (CAD)

• Every data point is considered to be the vertex of a hypothetical

polyhedron

• For every point, we find its k-Nearest Neighbors (k-NN)
• The k neighbors of the point (vertex) form the k faces of a

polyhedron meeting at that vertex.

• The more curvature that point (vertex) has,

the more anomalous it is, i.e., far away (different) from its neighbors

• So, anomaly score s_A is proportional to the curvature.

7

Curvature Anomaly Detection (CAD)

• Descartes’s angular defect: 2π − σ𝑏=1

𝑙

τa . Hence, curvature is proportional to minus the summation of angles

• S_A(xi) ∝ 1/τa ∝ cos(τa)
• S_A(xi) := σ𝑏=1

𝑙

cos(τa) = σ𝑏=1

𝑙

(x’_a x’_a+1) / (||x’_a||_2 ||x’_a+1||2)

• x’_a := x_a − x_i
• Relaxation:

Relaxation is valid

8

Curvature Anomaly Detection (CAD)

• Finding anomalies (training data):
• Scree plot
• K-means with two clusters: Cluster with larger mean is anomaly
• Finding anomalies (out-of-sample):
• k-NN for the out-of-sample point where the neighbors are from the training

points

• Calculate anomaly score
• Compare with the means of clusters

9

Kernel Curvature Anomaly Detection (K-CAD)

• Pattern of normal and anomalous data might not be linear.
• Done in feature space: (1) finding k-NN, (2) calculating the anomaly

score

• Kernel: k(x1, x2) := φ(x1)^T φ(x2)
• Euclidean distance in the feature space:
• Normalize the kernel:

10

Kernel Curvature Anomaly Detection (K-CAD)

• Score:
• anomaly score in K-CAD is ranked inversely for some kernels such as

Radial Basis Function (RBF), Laplacian, and polynomial (different degrees)

• Reason: future work
• Multiply the scores by −1 or take the K-means cluster with smaller mean as

the anomaly cluster

11

Anomaly Landscape

• anomaly landscape: the landscape in the input space whose value at

every point in the space is the anomaly score computed by CAD or K- CAD.

• two types of anomaly landscape:
• all the training data points are used for k-NN
• or merely the non-anomaly training points are used for k-NN

12

Anomaly Paths

• anomaly path: the path that an anomalous point has traversed from

its not-known-yet normal version to become anomalous. Conversely, it is the path that an anomalous point should traverse to become normal

• anomaly path can be used to make a normal sample anomalous or

vice-versa

13

Inverse Curvature Anomaly Detection (iCAD)

• Score:
• Two versions:
• Rank based: ranking the points with the ranking score
• Retaining based: apply K-means clustering, with two clusters, to the ranking

scores and take the points of the cluster with larger mean

14

Kernel Inverse Curvature Anomaly Detection (K-iCAD)

• Scores:
• iCAD and K-iCAD are task agnostic:
• Classification: apply the method for every class
• Regression and clustering: the method is applied on the entire data.

15

Experiments: anomaly landscape

16

Experiments: anomaly paths

17

An application in image denoising

18

Experiments: anomaly detection

19

In most cases, K-CAD has better performance than CAD In many cases, we are better than the baseline methods We are also very fast

Experiments: Effect of k

20

Almost robust to change of k

Experiments: prototype selection on synthetic data

21

Prototype selection

22

Outperform many of the baseline methods:

• in both accuracy

and time

• In both ranking

and retaining based approaches

Future Direction

• Try the idea of curvature for manifold embedding to propose a

curvature preserving embedding method.

23
