Prototype-Prototype LunDMX Meeting 17 June 2020 Ruth Pttgen What it should look like (minus the first layer) absorber 25mm x 697mm x 697mm 20mm scintillator, 2m long, 8x50mm in the front, 12x50mm in the back 2mm air gap around absorber

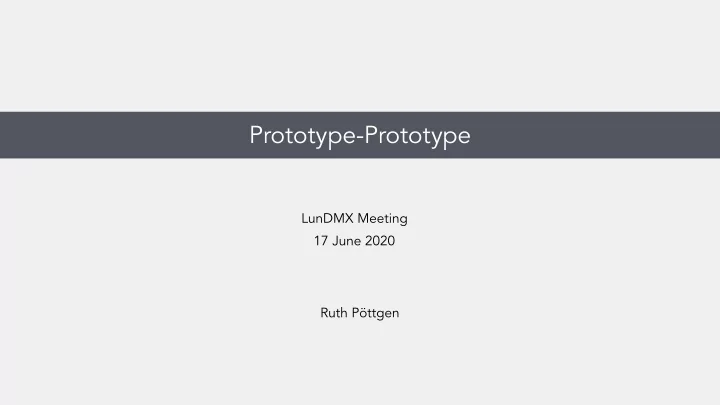

Prototype-Prototype LunDMX Meeting 17 June 2020 Ruth Pöttgen
What it should look like (minus the first layer) absorber 25mm x 697mm x 697mm 20mm scintillator, 2m long, 8x50mm in the front, 12x50mm in the back 2mm air gap around absorber —> put this into a gdml file, following hcal.gdml L DM X LDMX HCal 17 June 2020 � 2
What we currently have side view exploded view Note: bars not put in geometry individually! L DM X LDMX HCal 17 June 2020 � 3
First Simulation Using v1.5 of ldmx-sw 500 MeV electrons fired from z=-1m 500 events also ran reco, but that will need more work… L DM X LDMX HCal 17 June 2020 � 4
Sim Hits — x, y L DM X LDMX HCal 17 June 2020 � 5
Sim Hits — z should do generate a few more events, but looks like there are 19 layers L DM X LDMX HCal 17 June 2020 � 6
Sim Hits — Energy L DM X LDMX HCal 17 June 2020 � 7
Reco Hits mostly noise L DM X LDMX HCal 17 June 2020 � 8
Reco Hits not sure what is happening here L DM X LDMX HCal 17 June 2020 � 9
Reco Hits removing noise hits — still weird L DM X LDMX HCal 17 June 2020 � 10
Reco Hits x-y position of non-noise hits L DM X LDMX HCal 17 June 2020 � 11
Sim Hits x-y position of hits L DM X LDMX HCal 17 June 2020 � 12
