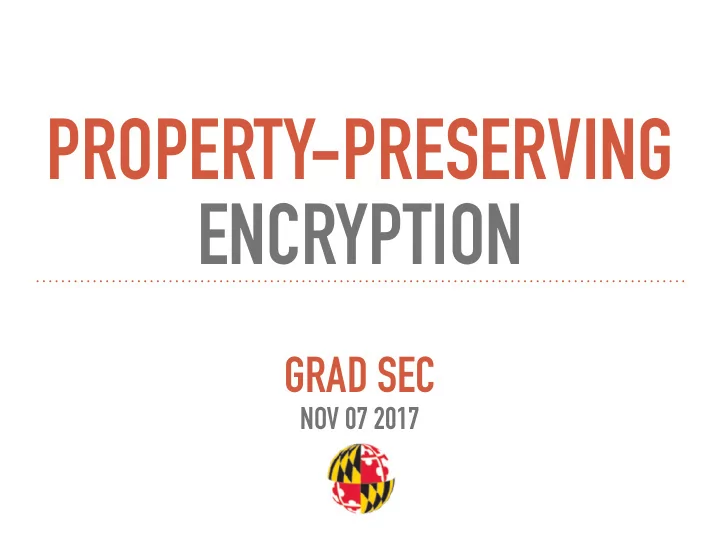

SLIDE 1
PROPERTY-PRESERVING ENCRYPTION
GRAD SEC
NOV 07 2017
PROPERTY-PRESERVING ENCRYPTION GRAD SEC NOV 07 2017 TODAYS - - PowerPoint PPT Presentation
PROPERTY-PRESERVING ENCRYPTION GRAD SEC NOV 07 2017 TODAYS - - PowerPoint PPT Presentation
PROPERTY-PRESERVING ENCRYPTION GRAD SEC NOV 07 2017 TODAYS PAPERS CRYPTDB BUILDING BLOCKS RND AES+CBC+random IV DET AES+CBC+fixed IV OPE x < y OPE K (x) < OPE K (y) HOM HOM K (x) * HOM K (y) = HOM K (x+y) Fully
SLIDE 2
SLIDE 3
CRYPTDB BUILDING BLOCKS
RND DET OPE HOM SEARCH
AES+CBC+random IV AES+CBC+fixed IV x < y ⟹ OPEK(x) < OPEK(y) Fully homomorphic: F(EK(x)) = EK(F(x)) HOMK(x) * HOMK(y) = HOMK(x+y) …
SLIDE 4
ORDER PRESERVING ENCRYPTION
SLIDE 5
SEARCHABLE ENCRYPTION
Alice is tall and Alice is small
SLIDE 6
SEARCHABLE ENCRYPTION
Alice is tall and Alice is small
REMOVE REPETITIONS
Alice is tall and small
SLIDE 7
SEARCHABLE ENCRYPTION
Alice is tall and Alice is small
REMOVE REPETITIONS
Alice is tall and small
PERMUTE POSITIONS
Alice is tall and small
SLIDE 8
SEARCHABLE ENCRYPTION
Alice is tall and Alice is small
REMOVE REPETITIONS
Alice is tall and small
PERMUTE POSITIONS
Alice is tall and small
PAD AND ENCRYPT [46]
SLIDE 9
SEARCHABLE ENCRYPTION
PROBLEM
W1, …, WN Store these (encrypted) on an untrusted server Search for Wi
SLIDE 10
SEARCHABLE ENCRYPTION
PROBLEM
W1, …, WN Store these (encrypted) on an untrusted server Search for Wi
SCHEME 0
Stream cipher PRNG: generates S1, …, SN Cannot guess without knowing the original seed
Store: Wi ⊕ Si Lookup: Send each Si and W? Send seed and W?
SLIDE 11
SEARCHABLE ENCRYPTION
PROBLEM
W1, …, WN Store these (encrypted) on an untrusted server Search for Wi
SCHEME 0
Stream cipher PRNG: generates S1, …, SN Cannot guess without knowing the original seed
Store: Wi ⊕ Si Lookup: Send each Si and W? Send seed and W?
SCHEME 1
PRF Fk
Store: Wi ⊕Si, Fki(Si)〉 Lookup: Send W, ki’s
Si Fki(Si) Wi
Server checks: Fki([Ci⊕W]n-m) = [Ci⊕W]m
First n-m bits Last m bits
⊕
Ci
SLIDE 12
SEARCHABLE ENCRYPTION
SCHEME 2
Don’t reveal keys Make the keys functions of the words themselves ki = fk’(Wi) never reveal k’ Si F (Si) Wi
⊕
Ci
fk’(Wi)
Store as before Lookup: Send W, fk’(Wi) Server checks as before
SLIDE 13
SEARCHABLE ENCRYPTION
SCHEME 2
Don’t reveal keys Make the keys functions of the words themselves ki = fk’(Wi) never reveal k’ Si F (Si) Wi
⊕
Ci
fk’(Wi)
Store as before Lookup: Send W, fk’(Wi) Server checks as before
SCHEME 3
Don’t reveal word Si Ek’’(Wi)
⊕
Ci Basic idea: encrypt the word first (Ek’’(Wi) instead of Wi) Problem 1: Randomized encryption would require sending all IVs ⟹Use deterministic encryption F (Si)
fk’(E(Wi))
SLIDE 14
SEARCHABLE ENCRYPTION
Problem 2: How do you decrypt? Need the last m bits of Ek’’(Wi)
SCHEME 3
Don’t reveal word Si Ek’’(Wi)
⊕
Ci Basic idea: encrypt the word first (Ek’’(Wi) instead of Wi) Problem 1: Randomized encryption would require sending all IVs ⟹Use deterministic encryption F (Si)
fk’(E(Wi))
SLIDE 15
SEARCHABLE ENCRYPTION
Problem 2: How do you decrypt? Need the last m bits of Ek’’(Wi)
SCHEME 4
Split the ciphertext Si Ek’’(Wi) F (Si)
fk’(Li)
Li Ri
⊕
Ci
Lookup: Send Ek’’(W), fk’(L) Server checks as before
SCHEME 3
Don’t reveal word Si Ek’’(Wi)
⊕
Ci Basic idea: encrypt the word first (Ek’’(Wi) instead of Wi) Problem 1: Randomized encryption would require sending all IVs ⟹Use deterministic encryption F (Si)
fk’(E(Wi))
SLIDE 16
CRYPTDB BUILDING BLOCKS
RND DET OPE HOM SEARCH
AES+CBC+random IV AES+CBC+fixed IV x < y ⟹ OPEK(x) < OPEK(y) Fully homomorphic: F(EK(x)) = EK(F(x)) HOMK(x) * HOMK(y) = HOMK(x+y) basic idea: Ek(Wi)⊕ 〈Si, FKi(Si) Ki = fk’([Ek(Wi)]n-m) To search, give Ki and Ek(Wi)
SLIDE 17
CRYPTDB BUILDING BLOCKS
ONIONS
Peel off the layers as you need them Once removed, can never un-reveal
SLIDE 18
CRYPTDB OPERATIONS
Equi-joins: FROM X,Y where X.id = Y.id Known ahead of time: Encrypt with the same key across columns using DET Not known ahead of time: JOIN-ADJ
SLIDE 19
JOIN-ADJ (ADJUSTABLE JOIN)
Cryptographic hash that can be re-keyed without revealing information
SLIDE 20
ATTACKS
FREQUENCY ANALYSIS
Deterministic encryption (ECB) reveals frequency
SORTING ATTACKS
Order-preserving encryption reveals .. order
CUMULATIVE ATTACK
Order-preserving encryption needs high entropy
ℓP-OPTIMIZATION ATTACKS
Find an assignment from ciphertexts to plaintexts that minimizes a cost function “Developed in the 9th century”
SLIDE 21
ATTACKS ON DTE
Compare the histograms of ciphertexts to histograms of auxiliary data Ciphertext Auxiliary data Match the rankings A more general formulation
SLIDE 22
ATTACKS ON OPE
Exploit the fact that the order is revelatory… Order, not frequency like DTE
SLIDE 23
ATTACKS ON OPE
…or that there is low entropy
Intuitively, if a given OPE ciphertext is greater than 90% of the ciphertexts in the encrypted column c, then we should match it to a plaintext that also is greater than about 90% of the auxiliary data z.
SLIDE 24
BILINEAR MAPS
For any generator Signature scheme: Public key scheme: Private key a Public key Signature = H(m)a Verify: Multisignature scheme: Signatures = H(m)a1 , …, H(m)an Multisignature = H(m)a1 * … * H(m)an
