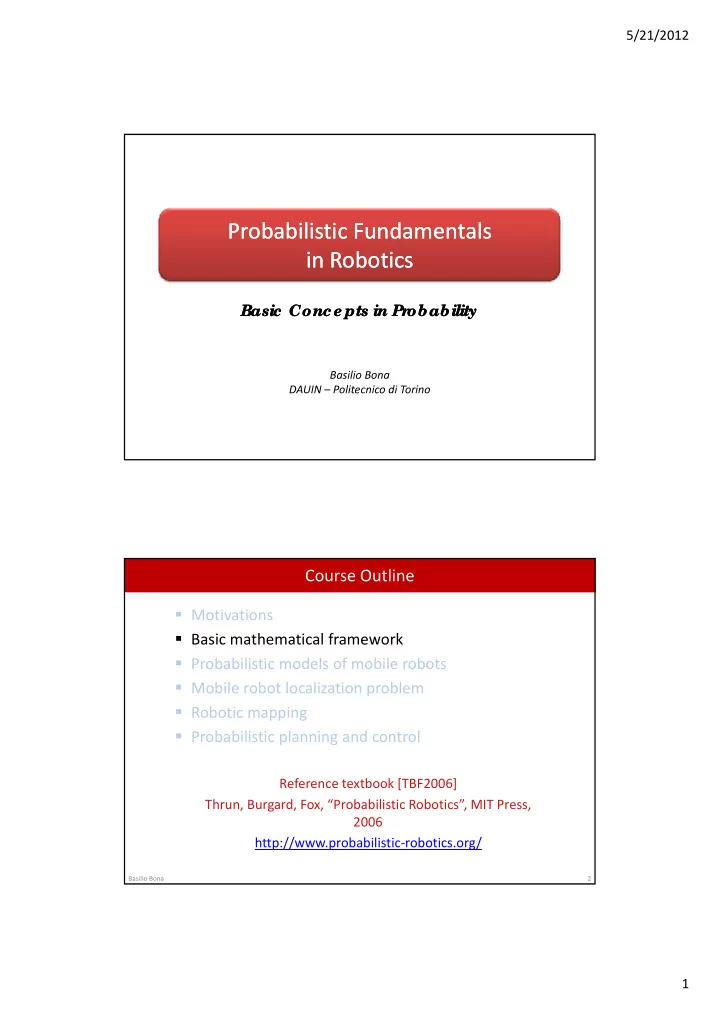

Probabilistic Fundamentals Probabilistic Fundamentals in Robotics in Robotics

Basic Conc e pts in Pr

• bability

Basic Conc e pts in Pr

• bability

Basilio Bona DAUIN – Politecnico di Torino

Course Outline

• Motivations
• Basic mathematical framework
• Probabilistic models of mobile robots

Probabilistic models of mobile robots

• Mobile robot localization problem
• Robotic mapping
• Probabilistic planning and control

Reference textbook [TBF2006] Thrun, Burgard, Fox, “Probabilistic Robotics”, MIT Press, 2006 http://www.probabilistic‐robotics.org/

Basilio Bona 2

5/21/2012 2

Basic mathematical framework

• Basic concepts in probability
• Recursive state estimation

– Robot environment – Bayes filters

• Gaussian filters

– Kalman filter – Extended Kalman Filter – Unscented Kalman filter Information filter – Information filter

• Nonparametric filters

– Histogram filter – Particle filter

Basilio Bona 3

Basic concepts in probability

• In binary logic, a proposition about the state of the world

is only True or False; no third hypothesis is considered

• Bayesian probability is a measure of the degree of

y p y g f belief of a proposition, or an objective degree of rational belief, given the evidence

Basilio Bona 4

5/21/2012 3

Other axioms

A B

True

A B AÇB

Basilio Bona 5

Random variables

Basilio Bona 6

( ) P x x

5/21/2012 4

Continuous random variables

( ) p x

Basilio Bona 7

x a b Pr( ) x

Univariate Gaussian distribution

Basilio Bona 8

5/21/2012 5

Normal distribution

Basilio Bona 9

Normal distribution

Basilio Bona 10

5/21/2012 6

Multi‐variate Gaussian distribution

Mean vector Covariance matrix

Basilio Bona 11

Joint and conditional probabilities

Basilio Bona 12

5/21/2012 7

Marginal and total Probability

Discrete Continuous

Basilio Bona 13

Posterior probability and Bayes rule

Prior probability distribution

Basilio Bona 14

Posterior probability distribution

5/21/2012 8

Bayes rule conditioned by another variable

Basilio Bona 15

Normalization

Basilio Bona 16

5/21/2012 9

Marginal probability

Marginal probability

Basilio Bona 17

Conditional independence

Basilio Bona 18

This is an important rule in probabilistic robotics. It applies whenever a variable y carries no information about a variable x, if the value z of another variable is known

5/21/2012 10

Conditional independence ¹ absolute independence

conditional independence

and

Basilio Bona 19

absolute independence

Expectation of a random variable

• Features of probabilistic distributions are called statistics

statistics

• Expectation of a random variable (RV) X is defined as

Basilio Bona 20

5/21/2012 11

Covariance

• Covariance measures the squared expected deviation
• Covariance measures the squared expected deviation

from the mean

Basilio Bona 21

Entropy

• Entropy measures the expected information that the

value of x carries

Basilio Bona 22

In discrete case is the number of bits required to encode x using an optimal encoding, assuming that p(x) is the probability of observing x

5/21/2012 12

Robot environment interaction

LOCALIZATION LOCALIZATION PLANNING PLANNING PERCEPTION PERCEPTION ACTION ACTION

Basilio Bona 23

Environment Environment

Robot environment interaction

• World or environment is a dynamical system that has an

internal state

• Robot sensors can acquire information about the world

q internal state

• Sensors are noisy and often complete information cannot

be acquired

• A belief measure about the state of the world is stored by

the robot

• Robot influences the world through its actuators (e.g.,

they make it move in the environment)

Basilio Bona 24

5/21/2012 13

State

Basilio Bona 25

Complete state

Basilio Bona 26

5/21/2012 14

Stochastic process

Basilio Bona 27

Markov chains

• a Markov chain is a discrete random process with the

p Markov property

• A stochastic process has the Markov property if the

conditional probability distribution of future states of the process depend only upon the present state; that is, given the present, the future does not depend on the past. p , p p

Basilio Bona 28

5/21/2012 15

Environment interaction

• Measurements: are perceptual interaction between the

robot and the environment obtained through specific equipment (called also perceptions).

• Control actions: are change in the state of the world
• btained through active asserting forces.
• Odometer data: are of perceptual data that convey the

information about the robot change of status; as such they are not considered measurements, but control data, since they measure the effect of control actions.

Basilio Bona 29

Probabilistic generative laws

• Evolution of state is governed by probabilistic laws.
• If state is complete and Markov, then evolution depends
• nly on present state and control actions

y p

• Measurements are generated, according to probabilistic

laws from the present state only

State transition probability

Basilio Bona 30

laws, from the present state only

Measurement probability

5/21/2012 16

Dynamical stochastic system

Temporal generative model Hidden Markov model (HMM) Dynamic Bayesian network (DBN)

Basilio Bona 31

Belief distribution

• What is a belief: it is a measure of the robot’s internal knowledge

about the true state of the environment

• Belief is traditionally expressed as conditional probability

distributions distributions.

• Belief distribution: assigns a probability (or a density) to each

possible hypothesis about the true state, based upon available data (measurements and controls)

Basilio Bona 32

State belief (posterior) State belief (prior) Prediction Correction/update

5/21/2012 17

Bayes filter

• Basic algorithm

Prediction Update

Basilio Bona 33

Mathematical formulation of the Bayesian filter (1)

the state is complete

Basilio Bona 34

5/21/2012 18

Mathematical formulation of the Bayesian filter (2)

the state is complete

Basilio Bona 35

... ...

Mathematical formulation of the Bayesian filter (3)

The filter requires three probability distributions

Basilio Bona 36

5/21/2012 19

Bayes filter recursion

Basilio Bona 37

Causal vs. diagnostic reasoning

A rover obtains a measurement z from a door that can be open (O) or closed (C)

Easier to obtain

Basilio Bona 38

Easier to obtain

5/21/2012 20

Example

Basilio Bona 39

References

• Many textbooks on Probability Theory and Statistics

– Bertsekas, D. P., and J. N. Tsitsiklis. Introduction to Probability. Athena Scientific Press, 2002. Grimmett G R and D R Stirzaker Probability and Random Processes 3rd – Grimmett, G. R., and D. R. Stirzaker. Probability and Random Processes. 3rd ed., Oxford University Press, 2001. – Ross S., A First Course in Probability. 8th ed., Prentice Hall, 2009.

• Other materials

– http://cs.ubc.ca/~arnaud/stat302.html: slides from the course by A. Doucet, University of British Columbia – video course: http://academicearth.org/lectures/introduction‐probability‐ video course: http://academicearth.org/lectures/introduction probability and‐counting: UCLA/MATHEMATICS – Introduction: Probability and Counting, by Mark Sawyer | Math and Probability for Life Sciences

Basilio Bona 40

5/21/2012 21

Thank you. Any question?

Basilio Bona 41
