SLIDE 1

1 1

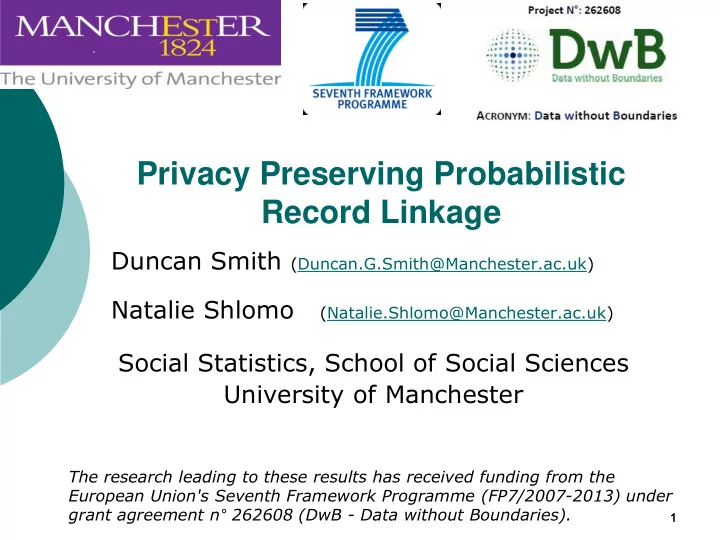

Privacy Preserving Probabilistic Record Linkage

Duncan Smith (Duncan.G.Smith@Manchester.ac.uk) Natalie Shlomo (Natalie.Shlomo@Manchester.ac.uk) Social Statistics, School of Social Sciences University of Manchester

The research leading to these results has received funding from the European Union's Seventh Framework Programme (FP7/2007-2013) under grant agreement n° 262608 (DwB - Data without Boundaries).

SLIDE 2

2 2

Topics Covered

Introduction
Probabilistic Record Linkage
String Anonymisation
Putting the probabilities back into Privacy–

Preserving Record Linkage

Experiment
Discussion

SLIDE 3

3 3

Probabilistic record linkage developed by Fellegi and

Sunter, 1969

Administrative sources are being used to improve the

quality of surveys or to replace traditional censuses

Traditionally, all datasets in one location (NSI) and

matching variables (first name, last name, address) used to link data without the need for anonymisation

Data on individuals may be in distinct databases and

may be owned by different custodians: Alice (A) and Bob (B)

Privacy restrictions prevent the release of certain

variables or information is suppressed/coarsened that uniquely identifies an individual

Introduction

SLIDE 4

4 4

CS Literature, techniques for anonymising identifying

variables

Third party (Carole) only sees matching variables and

returns pairs of unique record IDs (assigned by Alice and Bob)

Two possible scenarios (there are more…):
Trusted Carole –sees the true values of single

matching variable

Non-trusted Carole –sees anonymised values of

single matching variable

Privacy preserving record linkage (PPRL) allows exact

matching and can allow linkage based on similarity scores generated from anonymised values

F&S probabilistic record linkage typically not used in

PPRL

Introduction

SLIDE 5

5 5

Alice and Bob clean, harmonize and standardize

data and anonymise matching variables (using the same method and seed)

In our new approach, we apply probabilistic record

linkage to anonymised values to obtain a probability

f a correct match (PPPRL)
Motivation:
Data can be held within an archive, users can

carry out PPPRL within a ‘black box’ for dynamic database integration

Three party Alice, Bob, Carole scenario as set out

in UK Beyond 2011 project where Carole has access to original values and can calculate string comparators

In PPRL, no possibility of clerical review and links

classified into 2 classes: true matches and false matches

Introduction

SLIDE 6

6 6

F&S probabilistic record linkage uses a Binomial EM

algorithm based on an agree/disagree indicator to estimate likelihood ratio

Matching score based on the sum of the log of the

likelihood ratio: where is the probability of agree given it’s a match and probability of agree given its not a match

String comparators, eg. Jaro-Winkler, are used to

adjust the matching score based on partial agreements, eg. typing errors, etc.

Probabilistic Record Linkage

) ( u / ) ( m   }) p .. 1 i {

, i 

   ) ( m  ) ( u 

SLIDE 7

7 7

String anonymisation can use hash functions on bigrams:
Minwise hashing (Broder 1997) generates a random

permutation of a set of elements and returns the hash for the first ordered element

The probability of a hash collision on the first ordered

element is the Jaccard similarity score:

Estimate of Jaccard similarity score based on many hash

values where the number of collisions is distributed: (m number of hash functions)

And estimated by

String Anonymisation

'john' → {'jo', 'oh', 'hn'} → {21299418, 21496024, 20971735} 'jon' → {'jo', 'on'} → {21299418, 21889246}

| B A | | B A | J

B , A

   ) J , m ( Bin ~ n

B , A

m n J ˆ

B , A



SLIDE 8

8 8

Proposed method: concatenated 1-bit minwise hashing
Estimation of the Jaccard similarity score is:

String Anonymisation

H1 H2 H3 H4 H5 … Hm S1

451153726 1123790273 2501120381 2030682762 965995804

S2

797504823 1123790273 262296169 1744666338 965995804

… Sn

Example: Minwise hashes and 1-bit minwise hashes under a binary representation for S1={’jo’,’oh’,’hn’} and S2= {’jo’,’on’}

H1 H2 H3 H4 H5 … Hm S1

1 1

S2

1 1 1

… Sn

1 m n 2 J ˆ

B , A

 

With 5 hash functions, estimate of the Jaccard similarity

score is 2/5 for minwise hashes and 3/5 for 1-bit hashes; true value is 1/4

SLIDE 9

9 9

String Anonymisation

Bias in Bloom filter

approaches

Smaller variance in

minwise hash compared to concatenated 1-bit hash but requires more storage

Concatenated hash

approximately same MSE as Bloom filter

Precision can be

controlled by choice of m – the number of hash functions

Simulation Study: File A 300 names, File B obtained by

perturbing File A to simulate typographical errors

Tokenized bigrams with leading and trailing underscores
True Jaccard scores compared with estimated scores on all pairs

in A x B

SLIDE 10

10 10

Extend Binomial EM Algorithm to K categories, k=1,…,K

where each category is a grouping of similarity scores (Jaro for original values; Jaccard for anonymised values) i.e. 8 categories with (inclusive) upper bounds: [0.2,0.4,0.6,0.8,0.9,0.95,0.999,1]

Element in agreement vector for variable q of pair j

with similarity score in category k, , otherwise 0

Multinomial EM algorithm to estimate matching

parameters: , and

Blocking: In PPRL literature methods include: canopy

clustering (McCallum et al., 2000) which divides the pairs into overlapping subsets before classification; multibit tree structures to identify similar comparison vectors under the Bloom filter framework (Bachteler et al.,2013 ), and more...

Privacy Preserving Probabilistic Record Linkage

k , q

m ˆ

k , q

u ˆ p ˆ

1

j k , q 



SLIDE 11

11 11

1000 records from a Census database with attached

English names (File A)

File B generated by perturbing File A under a

probabilistic approach including swapping, deleting and transposing characters on variables: Gender, Year of Birth, Month of Birth and First Name

4 Perturbed datasets perturbed at different levels of

perturbation

A random sample of 700 records from File A and a

random sample of 400 records from perturbed files used for matching

No blocking was carried out

Experiment

SLIDE 12

12 12

Experiment

PPPRL:

Binary EM: standard EM approach based on exact matching of
strings. No similarity score used
LR weighted: outputs of Binary EM and downweight likelihood

ratios

Log LR weighted: outputs of Binary EM and downweight log

likelihood ratios

EM (8): multinomial EM approach with 9 bins having upper

bounds [0.2, 0.4, 0.6, 0.8, 0.9, 0.95, 0.999, 1]. Jaccard similarity score (with padded underscores on bigrams)

EM (15): multinomial EM approach with 15 bins having upper

bounds [0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.85, 0.9, 0.925, 0.95, 0.975, 0.999, 1]. As above PRL:

Jaro: multinomial EM approach with 8 bins using Jaro string

comparator

Jaro-Winkler: As above but with Jaro-Winkler string comparator

SLIDE 13

13 13

Correct links identified and used to construct precision-

recall plots

Plots show for any given threshold the precision and

recall based on false positives , true positives, false negatives , true negatives, and can be used to compare approaches

Good approaches will produce curves in the upper right
f the plot

Experiment

fn tp tp call Re  

fp tp tp ecision Pr  

SLIDE 14

14 14

Experiment

low perturbation high perturbation

All approaches perform better with low level of perturbation
Binary EM without similarity scores performs the worst
Down weighting log likelihood ratios outperforms down weighting
f likelihood ratios
Multinomial EM outperforms Binary EM with no clear difference

between 8 category and 15 category Jaccard score schemes

Jaro schemes provide the best performance, although these are

not privacy preserving

SLIDE 15

15 15

Discussion

PPPRL does not allow clerical review and one

threshold is determined based on posterior probability

f a correct link
PPPRL can be tailored to different types of variables

via the choice/design of the tokenization scheme

So far dealt with 1 to 1 matching
Multinomial EM offers improved classification over the

unweighted and weighted binary EM schemes

Under trusted Carole, the Jaro and Jaro-Winkler

schemes outperformed the padded bigram tokenization scheme under PPPRL
