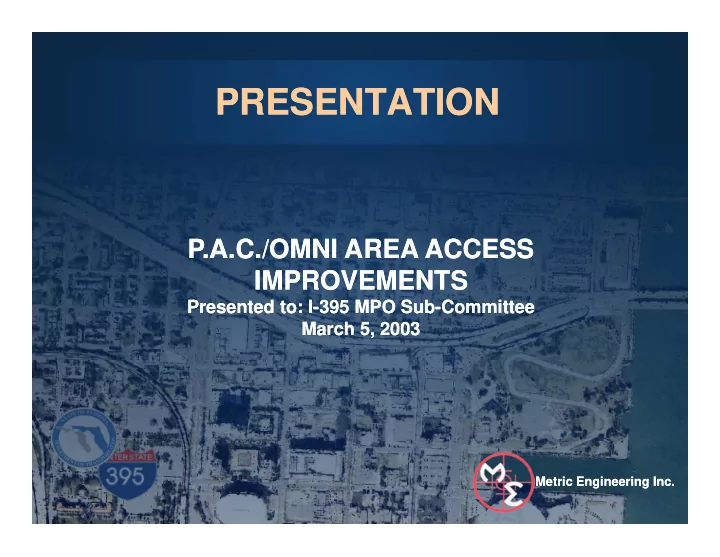

PRESENTATION PRESENTATION P.A.C./OMNI AREA ACCESS P.A.C./OMNI AREA ACCESS IMPROVEMENTS IMPROVEMENTS Presented to: I-395 MPO Sub-Committee Presented to: I-395 MPO Sub-Committee March 5, 2003 March 5, 2003 Metric Engineering Inc. Metric

slide-1
SLIDE 1

PRESENTATION PRESENTATION

Metric Engineering Inc. Metric Engineering Inc.

P.A.C./OMNI AREA ACCESS IMPROVEMENTS

Presented to: I-395 MPO Sub-Committee March 5, 2003

P.A.C./OMNI AREA ACCESS IMPROVEMENTS

Presented to: I-395 MPO Sub-Committee March 5, 2003

slide-2
SLIDE 2

ISSUES ISSUES

  • Improve I-395/Local Access
  • Provide Aesthetic Opportunities
  • Improve I-395/Local Access
  • Provide Aesthetic Opportunities
slide-3
SLIDE 3

ACCESS ACCESS

  • Existing Access

– Exits

  • NE 2nd Ave.
  • NE 13th St.

– Entrances

  • NE 1st Ave.
  • Biscayne Blvd.
  • Bayshore Dr.
  • Existing Access

– Exits

  • NE 2nd Ave.
  • NE 13th St.

– Entrances

  • NE 1st Ave.
  • Biscayne Blvd.
  • Bayshore Dr.

395

INTERSTATE

Bayshore Dr.

N E 1 A V E . Biscayne BLVD. N E 1 3 S t . NE 12 St. NE 14 St. Bicentennial Park Bicentennial Park NE 11 St.

PAC PAC PAC PAC

slide-4
SLIDE 4

CIRCULATION CIRCULATION

  • Local Street

– One-Way

  • NB

– NE 1st Ave.

  • SB

– NE 2nd Ave.

  • Local Street

– One-Way

  • NB

– NE 1st Ave.

  • SB

– NE 2nd Ave.

395

INTERSTATE

395

INTERSTATE

NE 1 AVE. NE 1 AVE. Biscayne BLVD. Biscayne BLVD. N E 1 3 S t . N E 1 3 S t . N E 1 2 S t . N E 1 2 S t . N E 1 4 S t . N E 1 4 S t .

Bayshore Dr. Bayshore Dr.

395

INTERSTATE

395

INTERSTATE

PAC PAC PAC PAC

slide-5
SLIDE 5

ACCESS ACCESS

  • Access

– I-395 EB to NB Movement

  • Restricted to

Biscayne Blvd.

  • Access

– I-395 EB to NB Movement

  • Restricted to

Biscayne Blvd.

395

INTERSTATE

395

INTERSTATE

NE 1 AVE. NE 1 AVE. B i s c a y n e B L V D . B i s c a y n e B L V D . NE 13 St. NE 13 St. N E 1 2 S t . N E 1 2 S t . NE 11 St. NE 11 St. Bicentennial Park Bicentennial Park

P.A.C.

slide-6
SLIDE 6

ACCESS ACCESS

  • To I-395 WB

– From the North

  • NE 12th St.
  • To I-395 WB

– From the North

  • NE 12th St.

NE 14 St. NE 14 St. NE 1 AVE. NE 1 AVE. B i s c a y n e B L V D . B i s c a y n e B L V D .

NE 13 St. NE 13 St. N E 1 2 S t . N E 1 2 S t . NE 11 St.

PAC PAC

Bicentennial Park Bicentennial Park

slide-7
SLIDE 7

ACCESS IMPROVEMENTS ACCESS IMPROVEMENTS

  • Local Street

– Two-Way

  • Local Street

– Two-Way

395

INTERSTATE

NE 1 AVE. B i s c a y n e B L V D .

395

INTERSTATE

NE 14 St. NE 14 St. NE 11 St.

PAC PAC PAC PAC

slide-8
SLIDE 8

ACCESS IMPROVEMENTS ACCESS IMPROVEMENTS

  • Ample room for two-way street conversion
  • Ample room for two-way street conversion

Southbound along NE 2nd AVE Southbound along NE 2nd AVE Northbound along NE 1st AVE Northbound along NE 1st AVE

slide-9
SLIDE 9

ACCESS IMPROVEMENTS ACCESS IMPROVEMENTS

  • Separation of

Traffic

– SR 836 & I-95

  • Outbound

Movements

– Via NE 1st Avenue & NE 12th Street

  • Separation of

Traffic

– SR 836 & I-95

  • Outbound

Movements

– Via NE 1st Avenue & NE 12th Street

NE 14 St. NE 1 AVE. B i s c a y n e B L V D .

NE 13 St. N E 1 2 S t . NE 11 St.

PAC PAC

Bicentennial Park Bicentennial Park NE 1 AVE.

slide-10
SLIDE 10

TRAFFIC IMPROVEMENTS TRAFFIC IMPROVEMENTS

  • Travel Time

– From Omni Area to I-395 WB

  • Over 20% reduction

– From I-395 WB to Omni Area

  • Over 20% reduction
  • Travel Time

– From Omni Area to I-395 WB

  • Over 20% reduction

– From I-395 WB to Omni Area

  • Over 20% reduction
slide-11
SLIDE 11

BENEFITS BENEFITS

  • Improved Access to/from the Performing Arts

Center (PAC)

  • Improved travel time to/from Omni area

from/to I-395

  • Alleviate traffic congestion for both event and

non-event days

  • Compatible with Downtown Miami’s

Transportation Master Plan

  • Improved Access to/from the Performing Arts

Center (PAC)

  • Improved travel time to/from Omni area

from/to I-395

  • Alleviate traffic congestion for both event and

non-event days

  • Compatible with Downtown Miami’s

Transportation Master Plan

slide-12
SLIDE 12

N E 1 A V E . NE 2 AVE. Biscayne BLVD. NE 13 St. B a y s h

  • r

e D r .

Bicentennial Park

NE 12 St. NE 14 St. N E 1 1 S t .

LANDSCAPING LANDSCAPING

Landscape Opportunities

slide-13
SLIDE 13

SIGNAGE SIGNAGE

  • To Miami Beach

– Southbound along Biscayne Blvd.

  • To Miami Beach

– Southbound along Biscayne Blvd.

Southbound along Biscayne Blvd. Southbound along Biscayne Blvd.

  • DEFICIENT!!!
  • DEFICIENT!!!
slide-14
SLIDE 14

RECOMMENDATIONS RECOMMENDATIONS

  • Conversion of NE 1st & 2nd Avenue from one-way

to two-way circulation between NE 11th St. & NE 14th St.

  • Separation of I-395EB traffic originating from SR

836 & I-95. SR 836 traffic can utilize NE 2nd Ave. NB & I-95 traffic would continue to use NE 11th

  • Ter. & Biscayne Blvd
  • COST : $700,000
  • Conversion of NE 1st & 2nd Avenue from one-way

to two-way circulation between NE 11th St. & NE 14th St.

  • Separation of I-395EB traffic originating from SR

836 & I-95. SR 836 traffic can utilize NE 2nd Ave. NB & I-95 traffic would continue to use NE 11th

  • Ter. & Biscayne Blvd
  • COST : $700,000
