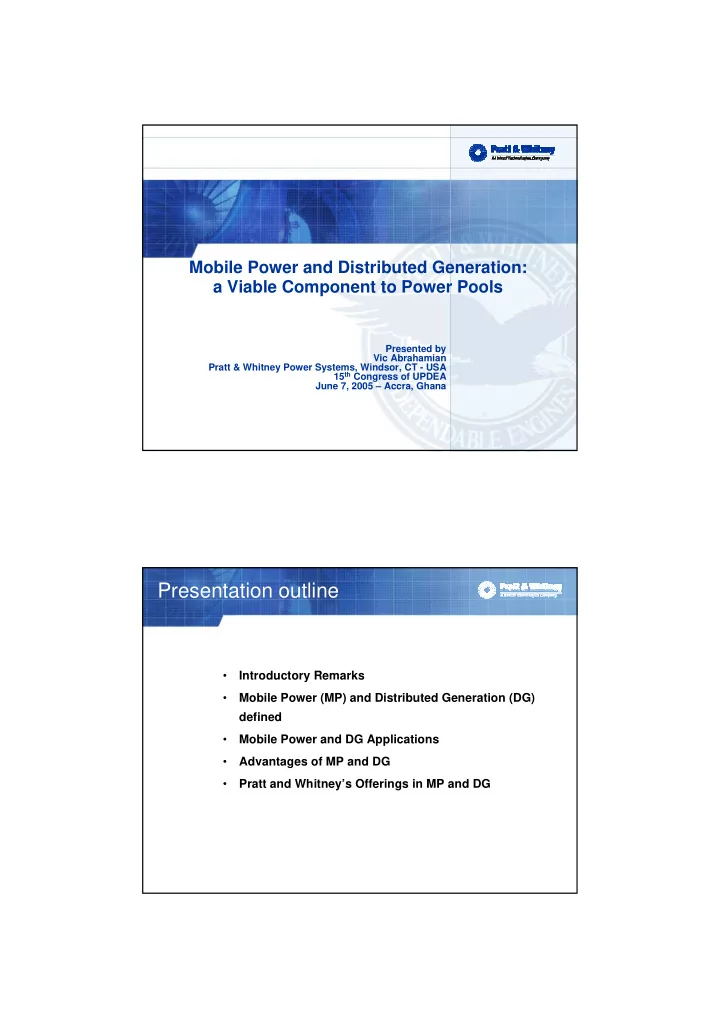

Mobile Power and Distributed Generation: a Viable Component to Power Pools Presented by Vic Abrahamian Pratt & Whitney Power Systems, Windsor, CT - USA 15 th Congress of UPDEA June 7, 2005 Accra, Ghana Presentation outline


  1. Mobile Power and Distributed Generation: a Viable Component to Power Pools Presented by Vic Abrahamian Pratt & Whitney Power Systems, Windsor, CT - USA 15 th Congress of UPDEA June 7, 2005 – Accra, Ghana Presentation outline Introductory Remarks • • Mobile Power (MP) and Distributed Generation (DG) defined • Mobile Power and DG Applications • Advantages of MP and DG • Pratt and Whitney’s Offerings in MP and DG

  2. UNITED TECHNOLOGIES CORPORATION Overview of United Technologies Corporation Annual Revenues ( $ Billions) Number of Subsidiary Activity Results 2004 Employees World Leader Air Conditioning and Carrier Heating Systems 10.6 43,492 Security Systems and Chubb Fire Protection 2.9 45,193 Aero spatial and Hamilton Sundstrand Industrial Systems 3.9 16,092 World Leader Elevators and Otis Escalators 9.0 59,872 Aircraft Engines, Gas Turbines and Space Pratt & Whitney Propulsion Systems 8.3 34,178 Sikorsky Helicopters 2.5 8,978 Total - 37.2 208,267 Stocks quoted on New York, London, Paris, Frankfurt and Swiss Stock Exchanges www.utc.com

  3. Small Engines Large Engines Aftermarket Services Military Engines Space Propulsion Power Systems Mobile Power and Distributed Generation Defined • DG resources are smaller scale power generation equipment (up to 50 MW) located close to where the power is used; MP power generation is equipment designed to be • conveniently movable to suit load shift requirements; • DG and MP equipment include: micro turbines, combustion turbines, reciprocating engines, Fuel Cells, etc; • DG and MP equipment is used to complement central power systems, provide incremental capacity in a short time, and avoid/reduce the cost of T&D system upgrades.

  4. Mobile Power and DG Applications • Supporting the grid in situations where new load requirements cannot be met without costly T&D upgrades; • Meeting demand for power in emergency situations or in areas not served by the grid; • Avoiding voltage sags, voltage spikes and noise which can cause problems for sensitive industrial equipment; • Reducing overall load by using highly efficient generators in lieu of grid supplied power; Mobile Power and DG Applications (cont.) Supplementing grid capacity to meet seasonal or event • related power requirements (international meetings and sporting events such as World Cup, Africa Cup, etc); • Improving power reliability and quality for high tech equipment used in industrial parks, mining operations and refineries; • Peak shaving to reduce load demand on the grid during peak times.

  5. Advantages of MP and DG • Combustion turbines can be installed in record times (3 weeks); • Combustion turbines can be relocated to suit load shifts or be resold if no longer needed; • Provides alternatives in case of catastrophic failure of central power plants; • Avoids or reduces T&D upgrade costs; • Reduces transmission losses; Facilitates the entry of local entrepreneurs in the IPP sector • because of lower capital cost. Disadvantages of MP and DG Do not always offer economies of scale involved in central • power plants; • Depending on the applications, initial capital costs could be higher; • (see if we add some more!!!)

  6. International Experience PWPS Representatives & Licensees CT 1 PWPS Sales Managers PWPS Sales Managers Canada 3 FL 10 IL 14 MA 2 IN 8 FT8 Installations NC 22 MI 2 Russia CA 14 NY 6 MO 16 OR 4 UK NJ 8 Germany 12 MN 2 Germany WA 5 China PA 10 Austria 1 NE 4 Romania VA 10 Ireland 8 France 7 OH 8 China 9 Japan Turkey WV 12 Spain 3 Japan 14 Israel Canary Virgin Islands 1 Saudi Arabia Islands 4 United Arab Emirates Jamaica 1 Mexico Iraq 3 Thailand, Cambodia, Laos & Vietnam Trinidad & Tobago India Togo 1 Colombia Venezuela Benin 1 Ecuador Malaysia Peru Indonesia Brazil Brazil 8 New Colombia 2 Zealand 6 Chile 2 Fleet Ft8: Over 1,5 million operating hours Rich Experience Number of Units Installed • Over 2000 units installed GG/FT12 • including 300 turnkey systems GG3 • Simple and combined cycle • Over 16 millions operating FT8 hours Small • Over 176.000 aircraft engines Turbines delivered FT4 0 200 400 600 800 1000

  7. P & W’s Offerings in MP & DG FT8 � TWINPAC™ � Gas Turbine FT8 POWERPAC™ Gas Turbine The FT8 POWERPAC is designed and stocked for fast The TWINPAC is a unique technology with a gas turbine at delivery, installation and commissioning. each end of a double-ended electric generator. FT8 SWIFTPAC™ Gas Turbine The FT8 SWIFTPAC is a transportable unit, able to be setup in several days. FT8 Performance Configuration: FT8-1, Natural Gas, 60 Hz 3” H 2 0 Inlet & 1.5” H 2 0 Exhaust Losses, Water Injected to 25 PPMVD NOx ref. to 15% O 2 Site Conditions: 15 o C, Sea Level, 60% RH. FT8 POWERPAC FT8 Plus POWERPAC FT8 TWINPAC FT8 Plus TWINPAC Gross Output (kW) 27,550 30,504 55,450 61,270 Heat Rate (Btu/kWh) 9,245 9295 9190 9254 Exhaust Flow (PPS) 195.3 202.6 780.8 810.4 Exhaust Temp (C° ) 449 48 1 449 481 Water Flow (GPM) 25.8 30.7 104.0 122.8 Typical Power Island 145 145 250 250 Aux Load (kW)

  8. First SWIFTPAC™ 50 Installation CalPeak- El Cajon Site Commercial Operation: May 2002 SWIFTPAC 25 Features • Base Engine FT8 Generator Trailer • US Transport Time 6 days • Number of Trailers 2-4 • Installation 2 - 3 days Control Trailer • Noise 65 dBA @ 400’ Engine Trailer • NOx / CO 25/80 (In standard configuration) *Minimal foundation requirements Major Shipments Engine Generator Inlet & Exh Controls Trailer Size 16.15 m 16.15 m 16.15 m 14.63 m • Length 3.63 m 3.63 m 3.63 m 3.05 m • Width 4.12 m 4.12 m 4.12 m 4.12 m • Height • Weight (trailer GVW) 45360 kg 36288 kg 49896 kg 58968 kg

  9. SWIFTPAC 50 ISO Output 55 MW US Transport Time 6 Days Number of Trailers 10-12 Foundation 7.62 cm Concrete Installation 3 weeks Noise 65 dBA @ 400’ NOx/CO (w/ CO Converter) 25/10 Fuel Dual Frequency 50/60Hz DLN and inlet fogging models also available Rapid Installation Modular Assembly 1. Generator 2. Gas 3. Control 4. Inlet 5. Inlet Filter & is Placed on Turbine Enclosure, Silencer & 13.8 kV “Road Bed” Enclosure Generator Secondary Air Connection Pad Assemblies Silencer, & GT Inlet Set In Installed Aligned to Stacks Set In Place 6. Quick Generator Place Disconnect Interconnect Cables Installed Elapsed Time 3 weeks
