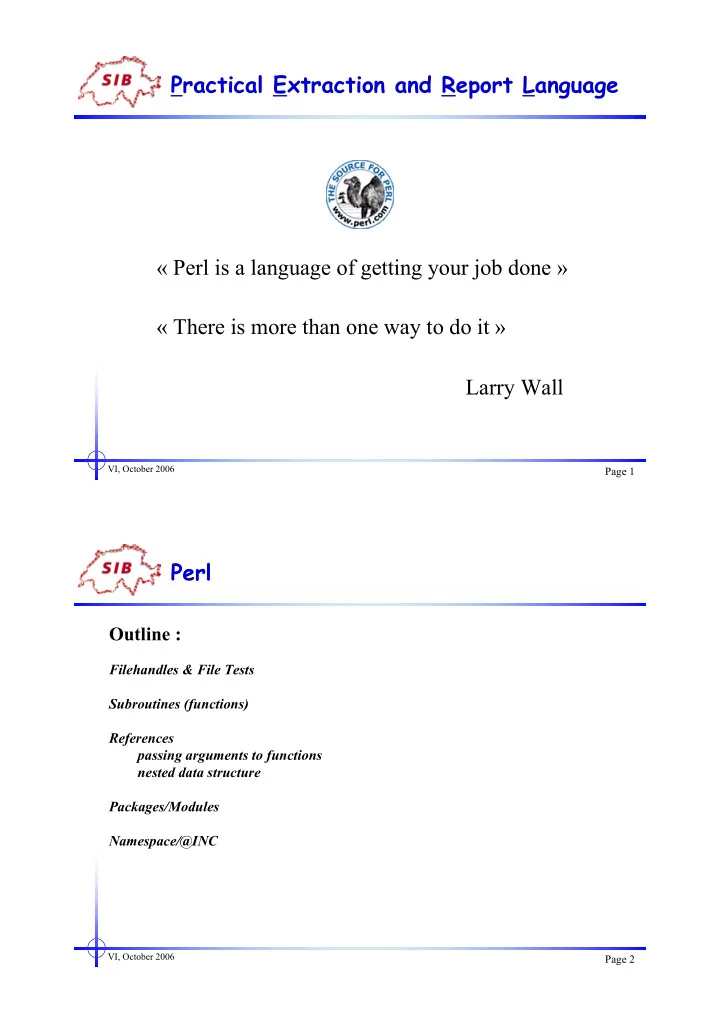

SLIDE 1

Page 1

VI, October 2006

Practical Extraction and Report Language « Perl is a language of getting your job done » Larry Wall « There is more than one way to do it »

Page 2

VI, October 2006

Perl

Filehandles & File Tests Subroutines (functions) References passing arguments to functions nested data structure Packages/Modules Namespace/@INC

Outline :

SLIDE 2

Page 3

VI, October 2006

Perl Filehandles

A filehandle is the name in a Perl program for an I/O connection between your Perl process and the outside world. (Good practice: use all uppercase letters in the name of your filehandle) Perl special file handles

There are three connections that always exist and are always "open" when your program starts: STDIN, STDOUT, and STDERR. Actually, these names are file handles. File handles are variables used to manipulate files. STDIN reads from standard input which is usually the keyboard in normal Perl script (or input from a Browser in a CGI script. Cgi-lib.pl reads from this automatically.) STDOUT (standard output) and STDERR (standard error) by default write to a console (or a browser in CGI). We have been using the STDOUT file handle without knowing it for every print() statement during Perl presentations. The print() function uses STDOUT as the default if no

• ther file handle is specified.

Page 4

VI, October 2006

How to get a value from the keyboard into a Perl program ?

The simplest way is to use the line-input operator: <STDIN> Each time we use <STDIN> in a place where a scalar value is expected, Perl reads the next complete text line up to the first newline from the keyboard (unless you modified it).

Please enter your Lastname: Please enter your Firstname:

Vassilios Ioannidis

Hello Vassilios Ioannidis, I hope you like Perl programming !

#!/usr/bin/perl print "Please enter your Lastname: "; my $lastname = <STDIN>; #<> chomp $lastname; print "Please enter your Firstname: "; my $firstname = <STDIN>; #<> chomp $firstname; print "Hello $firstname $lastname,\n I hope you like Perl programming !\n"; exit;

Perl Filehandles

SLIDE 3

Page 5

VI, October 2006

Perl Filehandles

vioannid$ cat listparticipants.csv "Barkow","Simon","ETHZ","8057","Mr." "Basle","Arnaud","University of Basel","4056","Dr. (Mr.)" "Blevins","Todd","FMI","4058","Mr." "Bodenhausen","Natacha","University of Lausanne","1015","Mrs." "Botta","Francesca","University of Fribourg","6601","Mrs." "Kerschgens","Jan","EPFL","1015","Mr." "Keusch","Jeremy","FMI","4058","Dr. (Mr.)" "Kutter","Claudia","FMI","4058","Mrs." "Livingstone","Magdalena","ETHZ","8057","Mrs." "Meury","Marcel","University of Basel","4056","Mr." "Moore","James","University of Basel","4056","Dr. (Mr.)" "Muller","Joachim","University of Bern","3012","Dr. (Mr.)" "Mungpakdee","Sutada","other","5008","Mrs." "Nipitwattanaphon","Mingkwan","University of Lausanne","CH - 1015","Mrs." "Padavattan","sivaraman","University of Basel","4056","Dr. (Mr.)" "Paul","Ralf","University of Basel","4056","Dr. (Mr.)" "Tobler","Kurt","University of Zurich","8057","Dr. (Mr.)" "Vanoaica","Liviu","EPFL","1066","Mr." "Vellore Palanivelu","Dinesh","University of Basel","4056","Dr. (Mr.)" "von Castelmur","Eleonore","University of Basel","4056","Mrs." "Wassmann","Paul","University of Basel","4056","Mr." "Yadetie","Fekadu","other","N-5008","Dr. (Mr.)" vioannid$ Page 6

VI, October 2006

The invocation argument: @ARGV

Perl Filehandles

#!/usr/bin/perl use strict; use warnings;

• pen (FILE, "listparticipants.csv") or die "Error. Could not open the file !\n";

while (<FILE>) { if (m/^\"(.*)\",\"(.*)\",\"(.*)\",\"(.*)\",\"(.*)\"/) { print "Hello $5 $2 $1 from $4, $3 !\n"; } else {} } exit;

vioannid$ ./argv.pl Hello Mr. Simon Barkow from 8057, ETHZ ! Hello Dr. (Mr.) Arnaud Basle from 4056, University of Basel ! Hello Mr. Todd Blevins from 4058, FMI ! . . . Hello Dr. (Mr.) Fekadu Yadetie from N-5008, other ! vioannid$

SLIDE 4

Page 7

VI, October 2006

The invocation argument: @ARGV

Perl Filehandles

#!/usr/bin/perl use strict; use warnings; print @ARGV; my $nb_arg = @ARGV; my $argument = $ARGV[0]; print "\n$nb_arg\n"; print "The invocation argument is: $argument\n"; exit;

Technically, the diamond <> operator is not looking literally at the invocation argument. It works from the @ARGV array. This is a special array that is preset by Perl to be a list

• f the invocation arguments. When the program starts, @ARGV contains the list of

invocation arguments. And can be handled as a just like any other array !

vioannid$ ./argv3.pl listparticipants The invocation argument is: listparticipants vioannid$ 1 listparticipants Page 8

VI, October 2006

The invocation argument: @ARGV

Perl Filehandles

#!/usr/bin/perl use strict; use warnings; my $filename = $ARGV[0];

• pen (FILE, "$filename") or die "Error. Could not open the file $filename !\n";

while (<FILE>) { if (m/^\"(.*)\",\"(.*)\",\"(.*)\",\"(.*)\",\"(.*)\"/) { print "Hello $5 $2 $1 from $4, $3 !\n"; } else {} } exit;

vioannid$ ./argv.pl listparticipants.csv Hello Mr. Simon Barkow from 8057, ETHZ ! Hello Dr. (Mr.) Arnaud Basle from 4056, University of Basel ! Hello Mr. Todd Blevins from 4058, FMI ! . . . Hello Dr. (Mr.) Fekadu Yadetie from N-5008, other ! vioannid$

SLIDE 5

Page 9

VI, October 2006

Perl Filehandles

You can open a file for input or output using the open() function.

• pen(INFILE, "input.txt") or die "Can't open input.txt: $!";
• pen(OUTFILE, ">output.txt") or die "Can't open output.txt: $!";
• pen(LOGFILE, ">>logfile") or die "Can't open logfile: $!";

You can use your own naming instead of "INFILE", "OUTFILE" or "LOGFILE". When you're done with your filehandles, you should close() them (though Perl will clean up after you if you forget…): close INFILE;

print() can also take an optional first argument specifying which filehandle to print to:

print STDERR "This is your final warning\n"; print OUTFILE $record; print LOGFILE $logmessage;

use whatever name you like BUT: STDIN, STDOUT, STDERR, ARGV !

Page 10

VI, October 2006

Perl Filehandles

File test Meaning

• r

File is readable by effective user/group.

• w

File is writable by effective user/group.

• x

File is executable by effective user/group.

• File is owned by effective user.
• R

File is readable by real user/group.

• W

File is writable by real user/group.

• X

File is executable by real user/group.

• O

File is owned by real user.

• e

File exists.

• z

File has zero size.

• s

File has nonzero size (returns size).

• f

File is a plain file.

• d

File is a directory.

• l

File is a symbolic link.

File test Meaning

• p

File is a named pipe (FIFO).

• S

File is a socket.

• b

File is a block special file.

• c

File is a character special file.

• t

Filehandle is opened to a tty.

• u

File has setuser bit set.

• g

File has setgroup bit set.

• k

File has sticky bit set.

• T

File is a text file.

• B

File is a binary file (opposite of -T).

• M

Age of file (at startup) in days since modification.

• A

Age of file (at startup) in days since last access.

• C

Age of file (at startup) in days since inode change. . . . if (-e $filename) { #do something } . . .

SLIDE 6

Page 11

VI, October 2006

Perl Filehandles

You can read from an open filehandle using the "<>" operator.

In scalar context it reads a single line (or a single record) from the filehandle, and in list context it reads the whole file in, assigning each line to an element of the list: my $line = <INFILE>; my @lines = <INFILE>; Reading in the whole file at one time is called slurping. It can be useful but it may be a memory hog. Most text file processing can be done a line at a time with Perl's looping constructs. The "<>" operator is most often seen in a while loop: while (<INFILE>) { # assigns each line in turn to $_ print "Just read in this line: $_"; } close INFILE;

Page 12

VI, October 2006

Perl Filehandles

You can read from an open filehandle using the "<>" operator.

In scalar context it reads a single line (or a single record) from the filehandle. Most text file processing can be done a line at a time with Perl's looping constructs. The "<>" operator is most often seen in a while loop:

>3BHS1_RAT PGWSCLVTGAGGFVGQRIIRMLVQEKELQEVRALDKVFRPETKEEFSKLQTKAKVTMLEG DILDAQYLRRACQGISVVIHTAAVIDVSHVLPRQTILDVNLKGTQNILEACVEASVPAFI YCSTVDVAGPNSYKKIILNGHEEEHHESTWSDAYPYSKRMAEKAVLAANGSILKNGGTLH TCALRPMYIYGERSPFLSVMILAALKNKGILNVTGKFSIANPVYVGNVAWAHILAARGLR DPKKSQNVQGQFYYISDDTPHQSYDDLNCTLSKEWGLRLDSSWSLPLPLLYWLAFLLETV SFLLRPFYNYRPPFNCHLVTLSNSKFTFSYKKAQRDLGYVPLVSWEEAKQKTSEWIGTLV EQHRETLDTKSQ >3BHS2_RAT PGWSCLVTGAGGFVGQRIIRMLVQEKELQEVRALDKVFRPETKEEFSKLQTKAKVTMLEG DILDAQYLRRACQGISVVIHTASVMDFSRVLPRQTILDVNLKGTQNLLEAGIHASVPAFI YCSTVDVAGPNSYKKTILNGREEEHHESTWSNPYPYSKKMAEKAVLAANGSILKNGGTLH TCALRPMYIYGERGQFLSRIIIMALKNKGVLNVTGKFSIVNPVYVGNVAWAHILAARGLR DPKKSQNIQGQFYYISDDTPHQSYDDLNCTLSKEWGLRLDSSWSLPLPLLYWLAFLLETV SFLLRPFYNYRPPFNCHLVTLSNSKFTFSYKKAQRDLGYEPLVSWEEAKQKTSEWIGTLV EQHRETLDTKSQ >3BHS4_RAT PGWSCLVTGAGGFLGQRIVQLLVQEKDLKEVRVLDKVFRPETREEFFNLGTSIKVTVLEG DILDTQCLRRACQGISVVIHTAALIDVTGVNPRQTILDVNLKGTQNLLEACVQASVPAFI . . .

SLIDE 7

Page 13

VI, October 2006

Perl Filehandles

You can read from an open filehandle using the "<>" operator.

In scalar context it reads a single line (or a single record) from the filehandle. Most text file processing can be done a line at a time with Perl's looping constructs. The "<>" operator is most often seen in a while loop:

ID 3BHS1_RAT STANDARD; PRT; 372 AA. AC P22071; . . . . . SQ SEQUENCE 372 AA; 41906 MW; F989617C1AF18949 CRC64; PGWSCLVTGA GGFVGQRIIR MLVQEKELQE VRALDKVFRP ETKEEFSKLQ TKAKVTMLEG DILDAQYLRR ACQGISVVIH TAAVIDVSHV LPRQTILDVN LKGTQNILEA CVEASVPAFI YCSTVDVAGP NSYKKIILNG HEEEHHESTW SDAYPYSKRM AEKAVLAANG SILKNGGTLH TCALRPMYIY GERSPFLSVM ILAALKNKGI LNVTGKFSIA NPVYVGNVAW AHILAARGLR DPKKSQNVQG QFYYISDDTP HQSYDDLNCT LSKEWGLRLD SSWSLPLPLL YWLAFLLETV SFLLRPFYNY RPPFNCHLVT LSNSKFTFSY KKAQRDLGYV PLVSWEEAKQ KTSEWIGTLV EQHRETLDTK SQ // ID 3BHS2_RAT STANDARD; PRT; 372 AA. AC P22072; . . . . . SQ SEQUENCE 372 AA; 42145 MW; EDAB175F3F33334B CRC64; PGWSCLVTGA GGFVGQRIIR MLVQEKELQE VRALDKVFRP ETKEEFSKLQ TKAKVTMLEG DILDAQYLRR ACQGISVVIH TASVMDFSRV LPRQTILDVN LKGTQNLLEA GIHASVPAFI YCSTVDVAGP NSYKKTILNG REEEHHESTW SNPYPYSKKM AEKAVLAANG SILKNGGTLH TCALRPMYIY GERGQFLSRI IIMALKNKGV LNVTGKFSIV NPVYVGNVAW AHILAARGLR DPKKSQNIQG QFYYISDDTP HQSYDDLNCT LSKEWGLRLD SSWSLPLPLL YWLAFLLETV SFLLRPFYNY RPPFNCHLVT LSNSKFTFSY KKAQRDLGYE PLVSWEEAKQ KTSEWIGTLV EQHRETLDTK SQ //

Page 14

VI, October 2006

Perl Filehandles

You can modify the regular record separator "\n" by something else: $/= "\/\/\n"; for a file containing SwissProt entries or $/=">"; for a fasta file

$/=">"; while (<INFILE>) { # assigns each line in turn to $_ print "Entry: $_"; }

vioannid$ ./test.pl wgetz-1 Entry:>Entry:3BHS1_RAT PGWSCLVTGAGGFVGQRIIRMLVQEKELQEVRALDKVFRPETKEEFSKLQTKAKVTMLEG DILDAQYLRRACQGISVVIHTAAVIDVSHVLPRQTILDVNLKGTQNILEACVEASVPAFI YCSTVDVAGPNSYKKIILNGHEEEHHESTWSDAYPYSKRMAEKAVLAANGSILKNGGTLH TCALRPMYIYGERSPFLSVMILAALKNKGILNVTGKFSIANPVYVGNVAWAHILAARGLR DPKKSQNVQGQFYYISDDTPHQSYDDLNCTLSKEWGLRLDSSWSLPLPLLYWLAFLLETV SFLLRPFYNYRPPFNCHLVTLSNSKFTFSYKKAQRDLGYVPLVSWEEAKQKTSEWIGTLV EQHRETLDTKSQ >Entry:3BHS2_RAT PGWSCLVTGAGGFVGQRIIRMLVQEKELQEVRALDKVFRPETKEEFSKLQTKAKVTMLEG DILDAQYLRRACQGISVVIHTASVMDFSRVLPRQTILDVNLKGTQNLLEAGIHASVPAFI YCSTVDVAGPNSYKKTILNGREEEHHESTWSNPYPYSKKMAEKAVLAANGSILKNGGTLH TCALRPMYIYGERGQFLSRIIIMALKNKGVLNVTGKFSIVNPVYVGNVAWAHILAARGLR DPKKSQNIQGQFYYISDDTPHQSYDDLNCTLSKEWGLRLDSSWSLPLPLLYWLAFLLETV SFLLRPFYNYRPPFNCHLVTLSNSKFTFSYKKAQRDLGYEPLVSWEEAKQKTSEWIGTLV EQHRETLDTKSQ . . . . .

SLIDE 8

Page 15

VI, October 2006

Perl

Filehandles & File Tests Subroutines (functions) References passing arguments to functions nested data structure Packages/Modules Namespace/@INC

Outline :

Page 16

VI, October 2006

Perl Subroutines

#!/usr/local/bin/perl use strict; use warnings; my @names1 = ("Pedro", "Claire", "Yemima", "Fabien" ,"Francisco"); foreach (@names1 ) { my $size = length($_); print '*'x($size+2),"\n"; print "*$_*\n"; print '*'x($size+2),"\n"; } exit ;

******* *Pedro* ******* ******** *Claire* ******** ******** *Yemima* ******** ******** *Fabien* ******** *********** *Francisco* ***********

SLIDE 9

Page 17

VI, October 2006

Perl Subroutines

#!/usr/local/bin/perl use strict; use warnings; my @names1 = ("Pedro", "Claire", "Yemima", "Fabien" ,"Francisco"); foreach (@names1 ) { my $size = length($_); print '*'x($size+2),"\n"; print "*$_*\n"; print '*'x($size+2),"\n"; } my @names2 = ("Sandra Yukie", "Simona", "Christophe", "Dominique", "Michaela"); foreach (@names2 ) { my $size = length($_); print '*'x($size+2),"\n"; print "*$_*\n"; print '*'x($size+2),"\n"; } my @names3 = ("Lionel", "Gabriele", "Michael", "Charlotte", "Subhash", "Adam"); foreach (@names3 ) { my $size = length($_); print '*'x($size+2),"\n"; print "*$_*\n"; print '*'x($size+2),"\n"; } exit ;

******* *Pedro* ******* ******** *Claire* ******** ******** *Yemima* ******** ******** *Fabien* ******** *********** *Francisco* *********** Page 18

VI, October 2006

Perl Subroutines

Functions in Perl are called subroutines A subroutine is a named, reusable, and accessible chunk of code that was written to accomplish a specific goal. Therefore, functions are useful to avoid typing redundant code over and over. Functions help in the clarity of scripts.

Don't reinvent the wheel !!!

There are already many available functions in Perl: http://searchcpanorg/~nwclark/perl-5.8.6/pod/perlfunc.pod

SLIDE 10

Page 19

VI, October 2006

Perl Subroutines (procedure, function)

#defining subroutine sub myfunc { my $param = shift(@_); . . . return $result; } # calling a function $calcul = myfunc($value); #defining subroutine sub myproc { my $param = shift(@_); . . . return; } # calling procedure myproc($value); Some Perl commands tell the Perl interpreter to do something. A statement starting with a "verb" is generally purely imperative. We often call these "verbs" procedures: a frequently seen command is the print command. Some verbs are for asking questions, and are useful in conditional statements. Other verbs translate their input parameters into return values, just as a recipe tells you how to turn raw ingredients into something (hopefully)

• edible. We tend to call these verbs functions.

Page 20

VI, October 2006

Perl Subroutines

#!/usr/local/bin/perl use strict; use warnings; my @names1 = ("Pedro", "Claire", "Yemima", "Fabien" ,"Francisco"); my @names2 = ("Sandra Yukie", "Simona", "Christophe", "Dominique", "Michaela"); my @names3 = ("Lionel", "Gabriele", "Michael", "Charlotte", "Subhash", "Adam"); my @names4 = ("Sebastian", "Tu", "Sergey", "Olusegun", "Joel", "Uta", "Viviane"); my @names5 = ("Stanislav", "Kyrill", "Petr", "Sebastien", "Haleh"); &pretty_print(@names1); &pretty_print(@names2); &pretty_print(@names3); &pretty_print(@names4); &pretty_print(@names5); exit ; sub pretty_print { foreach (@_) { my $size = length($_); print '*'x($size+2),"\n"; print "*$_*\n"; print '*'x($size+2),"\n"; } }

******* *Pedro* ******* ******** *Claire* ******** ******** *Yemima* ******** ******** *Fabien* ******** *********** *Francisco* ***********

SLIDE 11

Page 21

VI, October 2006

Perl functions

#!/usr/bin/perl use strict; use warnings; #call the helloworld function #& is optional with parentheses helloworld(); #tell the program to exit exit; sub helloworld{ print "hello World !\n"; } vioannid$ ./sub_hello.pl hello World ! vioannid$

In the same manner than “$” stands for scalar, “@” for arrays and “%” for hashes, “&” stands for subroutines (optional when () are used). Note, however, that in practice, helloworld(); is preferred to &helloworld;

Page 22

VI, October 2006

Perl functions

#!/usr/bin/perl use strict; use warnings; # pass 2 arguments to the plus function # receive the output in $sum my $sum = plus(12,34); print "$sum\n"; exit; sub plus{ my($x, $y)=@_; return $x+$y; } vioannid$ ./sub_plus.pl 46 vioannid$

In order to accomplish this goal a subroutine can sometimes need input, or what are called input parameters. In this case, the list of those parameters will be caught through the default variable @_

SLIDE 12

Page 23

VI, October 2006

Perl functions

#!/usr/bin/perl use strict; use warnings; my @vals=(1, 4, 5, 8); my $sum = &plus(@vals); print "sum=$sum\n"; sub plus{ my @values = @_; my $add = 0; foreach(@values){ $add += $_; } return $add; } vioannid$ ./sub_plus_array.pl sum=18 vioannid$ Page 24

VI, October 2006

Perl functions

Checking/Detecting parameters

Checking the number of parameters A common problem is to check the number of parameters (and maybe return an error). @_ is a normal array, therefore:

my $nbParam = scalar @_;

Detecting a parameter type with ref($x) (is it a scalar? an array reference? a file handle?) ref($x) will return a string with the type of the argument: empty string for scalar, “ARRAY” for array, “HASH” for hash table, “GLOB” for a file handle etc. Detecting the parameters type allows to handle in the same subroutine many different situations.

SLIDE 13

Page 25

VI, October 2006

Perl Scope of Variables

Scope refers to the visibility of variables. In other words, which parts of your program can see or use them. Lexical Scope Lexical scope is more ideal for the majority of variables programmers use regularly. Lexical scope allows a variable to exist only within its containing closure.

#!/usr/bin/perl use strict; use warnings; my @list = ( "Simon","Arnaud", "Todd","Natacha" ); foreach my $name (@list) { print "Hello $name !\n"; } print "Hello $name !\n"; exit ; vioannid$ ./scope.pl Global symbol "$name" requires explicit package name at ./scope.pl line 14. Execution of ./scope.pl aborted due to compilation errors. vioannid$

The widest scope available to a lexical variable is the entire file in which its declared. No entry is created in the symbol table for lexically scoped variables and these variables will be purged once they're out of scope. This use of Perl's garbage collection can save resources and prevent variable collisions. Lexical scope has to be declared by using Perl's my() function. Variables have to be declared with "use strict".

Page 26

VI, October 2006

Perl Scope of Variables

#!/usr/bin/perl use strict; use warnings; my $a = 5; my $b = 10; print '$a before: '."$a\n"; print '$b before: '."$b\n\n"; double($a,$b); print '$a after: '."$a\n"; print '$b after: '."$b\n"; exit ; sub double { $a = shift; #$a = $_[0]; $b = shift; #$b = $_[1]; $a=$a*2; $b=$b*2; print 'double, $a: '."$a\n"; print 'double, $b: '."$b\n\n"; } vioannid$ ./ref.pl $a before: 5 $b before: 10 double, $a: 10 double, $b: 20 $a after: 10 $b after: 20 vioannid$

SLIDE 14

Page 27

VI, October 2006

Perl Scope of Variables

#!/usr/bin/perl use strict; use warnings; my $a = 5; my $b = 10; print '$a before: '."$a\n"; print '$b before: '."$b\n\n"; double($a,$b); print '$a after: '."$a\n"; print '$b after: '."$b\n"; exit ; sub double { my $a = shift; #my $a = $_[0]; my $b = shift; #my $b = $_[1]; $a=$a*2; $b=$b*2; print 'double, $a: '."$a\n"; print 'double, $b: '."$b\n\n"; } vioannid$ ./ref.pl $a before: 5 $b before: 10 double, $a: 10 double, $b: 20 $a after: 5 $b after: 10 vioannid$ Page 28

VI, October 2006

Perl functions

#!/usr/bin/perl use strict; use warnings; my @list1 = ("Pamela","Monica","Sophie"); my @list2 = ("Natacha","Francesca","Magdalena"); print "@list1\n";print "@list2\n"; list(@list1,@list2); exit ; sub list { my(@firstArray, @secondArray) = @_ ; print("The first array is @firstArray.\n"); print("The second array is @secondArray.\n"); } vioannid$ ./ref3.pl Pamela Monica Sophie Natacha Francesca Magdalena The first array is Pamela Monica Sophie Natacha Francesca Magdalena. The second array is . vioannid$

SLIDE 15

Page 29

VI, October 2006

Perl

Filehandles & File Tests Subroutines (functions) References passing arguments to functions nested data structure Packages/Modules Namespace/@INC

Outline :

Page 30

VI, October 2006

Perl References

References

If you want to pass more than one array or hash into a function (or return them from it) and maintain their integrity, then you have to use an explicit pass-by- reference… In Perl, you can pass only one kind of argument to a subroutine: a scalar. You do that by passing a reference to it. A reference to anything is a scalar. Think at a reference as the Macintosh's alias or the Windows's shortcut.

SLIDE 16

Page 31

VI, October 2006

Perl References

References

If you want to pass more than one array or hash into a function (or return them from it) and maintain their integrity, then you have to use an explicit pass-by- reference… In Perl, you can pass only one kind of argument to a subroutine: a scalar. You do that by passing a reference to it. A reference to anything is a scalar. Think at a reference as the Macintosh's alias or the Windows's shortcut.

name value "address" @list_names john magdalena luc 0x180b324 \@list_names 0x180b324 0x180b318 @list_copy john magdalena luc 0x180b524

(an array with 10000 elements … ?)

Page 32

VI, October 2006

Perl References

#!/usr/bin/perl use strict; use warnings; my @list1 = ("Pamela","Monica","Brad"); my @list2 = ("Natacha","Francesca","James"); print "@list1\n"; print "@list2\n"; list(\@list1,\@list2); print "@list1\n"; print "@list2\n"; exit ; sub list { my($ref1, $ref2) = @_; @{$ref1} = uc reverse @{$ref1}; print("First array sorted: @{$ref1}.\n"); print("Second array reversed: @{$ref2}.\n"); } vioannid$ ./ref4.pl Pamela Monica Sophie Natacha Francesca Magdalena First array sorted: EIHPOSACINOMALEMAP. Second array reversed: Natacha Francesca Magdalena. EIHPOSACINOMALEMAP Natacha Francesca Magdalena vioannid$

SLIDE 17

Page 33

VI, October 2006

Perl References

References

The following table discusses the referencing and de-referencing of variables. Note that in the case of lists and hashes, you reference and dereference the list or hash as a whole, not individual elements.

${$ref}{"name"} $ref->{"job"} %{$ref} %$ref $ref = \%hash $hash = { "name" => "steve", "job" => "DJ" }; %hash = ( "name" => "steve", "job" => "DJ" ); %hash ${$ref}[1] $ref->[1] @$ref @{$ref} $ref = \@list $ref = [ "steve", "fred" ]; @list = ( "steve", "fred" ); @list NA $$ref ${$ref} $ref = \$scalar ${$ref} $scalar="steve"; $scalar Accessing an element Dereferencing it Referencing it Instantiating a reference to it Instantiating the scalar Variable

Page 34

VI, October 2006

Perl References

References

#!/usr/bin/perl use strict; use warnings; my %hash = ( "name" => "steve", "job" => "DJ" ); my $ref = \%hash; print ${$ref}{"name"}; print "\n"; print $ref->{'job'}; print "\n"; my %hash_copy = %$ref; print %hash_copy; print "\n"; exit; steve DJ namestevejobDJ

SLIDE 18

Page 35

VI, October 2006

Perl References

References

#!/usr/bin/perl use strict; use warnings; my @list = ( "bruce", "michael" ); my $ref2 = \@list; print ${$ref2}[0]; print "\n"; print $ref2->[1]; print "\n"; my @list_copy = @$ref2; print @list_copy; print "\n"; exit; bruce michael brucemichael Page 36

VI, October 2006

Perl

Filehandles & File Tests Subroutines (functions) References passing arguments to functions nested data structure Packages/Modules Namespace/@INC

Outline :

SLIDE 19

Page 37

VI, October 2006

Perl Nested Data Structures

References are commonly used in Nested Data Structures:

ARRAY REF ARRAY REF Gene1 AKT_signaling Erk Integrin_signaling ARRAY REF ARRAY REF Gene2 LCK_signaling BRCA-1_pathway TCF-1_pathway

Page 38

VI, October 2006

Perl Nested Data Structures

References are commonly used in Nested Data Structures:

#!/usr/bin/perl use strict; use warnings; my @gene1 = qw(AKT_signaling Erk Integrin_signaling); my @gene1_name = ('gene1', \@gene1); my @gene2 =qw(LCK_signaling BRCA-1_pathway TCF-1_pathway ); my @gene2_name = ('gene2', \@gene2); my @all_gene_names = (\@gene1_name,\@gene2_name,); print @all_gene_names ; print "\n"; my @array_gene_name_refs = @{$all_gene_names[0]}; print @array_gene_name_refs ; print "\n"; my $value_array_gene_name_refs1 = @{$all_gene_names[0]}[0]; print $value_array_gene_name_refs1 ; print "\n"; my $value_array2_field3 = ${${$all_gene_names[1]}[1]}[2]; print $value_array2_field3; print "\n"; exit; gene1ARRAY(0x180b324) gene1 ARRAY(0x180b318)ARRAY(0x180d888) TCF-1_pathway

SLIDE 20

Page 39

VI, October 2006

Perl Nested Data Structures

References are commonly used in Nested Data Structures:

#!/usr/bin/perl use strict; use warnings; my @gene1 = qw(AKT_signaling Erk Integrin_signaling); my @gene1_name = ('gene1', \@gene1); my @gene2 =qw(LCK_signaling BRCA-1_pathway TCF-1_pathway ); my @gene2_name = ('gene2', \@gene2); my @all_gene_names = (\@gene1_name,\@gene2_name,); print @all_gene_names ; print "\n"; my @array_gene_name_refs = @{$all_gene_names[0]}; print @array_gene_name_refs ; print "\n"; my $value_array_gene_name_refs1 = $all_gene_names[0]->[0]; print $value_array_gene_name_refs1 ; print "\n"; my $value_array2_field3 = $all_gene_names[1]->[1]->[2]; print $value_array2_field3; print "\n"; exit; gene1ARRAY(0x180b324) gene1 ARRAY(0x180b318)ARRAY(0x180d888) TCF-1_pathway Page 40

VI, October 2006

Perl Nested Data Structures

References are commonly used in Nested Data Structures:

Arrays of arrays Hashes of arrays Arrays of Hashes Hashes of hashes… And more!

When the nested data structures become to complex, it may be worth considering Object Oriented Perl programming ……

SLIDE 21

Page 41

VI, October 2006

Perl

#!/usr/local/bin/perl use strict; use warnings; my $v1 = complex_operation (param1); . . . my $v2 = complex_operation (param2); exit ; sub complex_operation {

• - - - -

} #!/usr/local/bin/perl use strict; use warnings; my $v1 = complex_operation (param1); . . . my $v2 = complex_operation (param2); exit ; sub complex_operation {

• - - - -

}

script1.pl script2.pl

Page 42

VI, October 2006

Perl

Filehandles & File Tests Subroutines (functions) References passing arguments to functions nested data structure Packages/Modules Namespace/@INC

Outline :

SLIDE 22

Page 43

VI, October 2006

Perl Package/Module

#!/usr/local/bin/perl use strict; use warnings; use Mymod; my $v1 = Mymod::complex_operation (param1); . . . my $v2 = Mymod::complex_operation (param2); . . . sub complex_operation {

• - - - -

}

script1.pl Module Mymod

#!/usr/local/bin/perl use strict; use warnings; use Mymod; my $v1 = Mymod::complex_operation (param1); . . . my $v2 = Mymod::complex_operation (param2); . . .

script2.pl

Page 44

VI, October 2006

Perl Package/Module

• Structure of module

Mymod.pm package Mymod; sub f { … } sub g { … } @array = ( … ); … 1;

• Calling the functions in a

script use Mymod; … Mymod::f($param); $a = Mymod::g();

A module is a package defined in a file whose name is the same as the package.

SLIDE 23

Page 45

VI, October 2006

Perl

Filehandles & File Tests Subroutines (functions) References passing arguments to functions nested data structure Packages/Modules Namespace/@INC

Outline :

Page 46

VI, October 2006

Perl namespace

A namespace stores names (or identifiers), including names of variables, subroutines, filehandles, and formats. Each namespace has its own symbol table, which is basically a hash with a key for each identifier. Variables in different namespaces can even have the same name, but they are completely distinct from one another. The default namespace for programs is main. Each package starts with a package declaration. The package call takes one argument, the name of the package. Within the scope of a package declaration, all regular identifiers are created within that package (except for my variables).

SLIDE 24

Page 47

VI, October 2006

Perl @INC / Export

Perl locates modules by searching the @INC array (defined when Perl is built). When you refer to MyModule in your program, Perl searches in the directories listed in @INC for the module file MyModule.pm, and uses the first one it finds.

Page 48

VI, October 2006

Perl @INC / Export

To include a module in your program: require Module; use Module; The difference between use and require is that use pulls in the module at compile time. This means that functions like func1 or func2 can be used as predeclared list operators throughout the file. func1($a,$b); The require call does not necessarily load the module during compilation, so you must explicitly qualify its routines with the package name. Module::func1($a,$b);

SLIDE 25

Page 49

VI, October 2006

Perl @INC / Export

# two essential lines in a package require Exporter;

• ur @ISA = ('Exporter'); # inherits from Exporter

# export by default

• ur @EXPORT = qw($cat %canis carnivore);

# export on demand

• ur @EXPORT_OK = qw($tiger);

# variables & functions declaration . . . 1; use Animals; # import all @EXPORT symbols use Animals qw($cat $tiger); # import $tiger and $cat

Package User's script

Animals.pm

Page 50

VI, October 2006

Perl
