DEPARTMENT OF TRANSPORTATION

SP 7001-128

MN 47 and MN 65 Planning and Environmental Linkage (PEL) Study

MN 47 MN 65

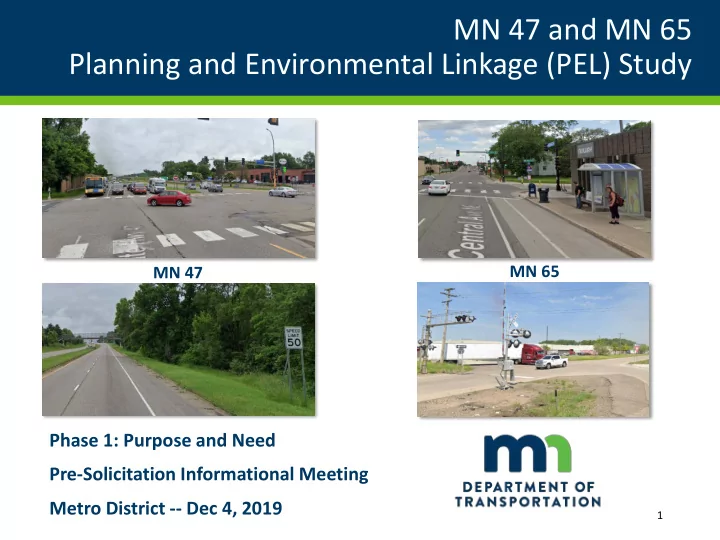

Phase 1: Purpose and Need Pre-Solicitation Informational Meeting Metro District -- Dec 4, 2019

1

12/04/19

z

.,

ridley

• -= ==

i

]

Columb

• r..;
• I eights
• lh Ave N

./

7

• '

"'

r i

iu5

"

• '

CR

iew

,. "'

W L

m ,

SP 7001-128

TH 47 and 65 PEL Study Phase 1

Blaine

Anoka County

ANOKA COUNTY

Blaine Coon Rapids Spring Lake Park Fridley

HENNEPIN

Hennepin County

COUNTY

Minneapolis

2

,

Need For This Study

Safety

• 2018 Road Safety Audit (RSA) of both corridors identified short-,

medium-, and long-term measures to improve safety.

• City of Minneapolis’ Vision Zero Action Plan identifies segments
• f TH 47 and TH 65 (University and Central Avenues) as “High

Injury Streets.”

• MnDOT Toward Zero Death initiative

11/21/19 mndot.gov 3

• TH 47 Crash Severity

TH 47 Crashes by Severity (2013 - March 2018)

12/04/19 mndot.gov 4 4 13 88 162 377 7 7 13 6 2 50 100 150 200 250 300 350 400 Fatal Suspected Serious Injury Suspected Minor Injury Possible Injury Property Damage Only Crashes

Motorized Collision Bike / Pedestrian Collision

Fatal 1% Suspected Serious Injury Suspected Minor Injury Possible Injury 25% Property Damage Only 56%

7 out of 11 fatal collisions were ped/bike

• 700

TH 65 Crash Severity

Crashes

TH 65 Crashes by Severity (2013 - March 2018)

2 600 500 400 300 200 100 3 19 138 237 638 1 6 18 15 Fatal Suspected Serious Injury Suspected Minor Injury Possible Injury Property Damage Only

Motorized Collision Bike / Pedestrian Collision

1 out of 4 fatal collisions were ped/bike

Fatal 0.4% Suspected Serious Injury 2% Suspected Minor Injury 15% Possible Injury 23% Property Damage Only 60%

mndot.gov 12/04/19 5

TOWARD

ZERO

• DEATHS

Goals of a Road Safety Audit (RSA)

#1: Eliminate Fatal and Serious Injuries (K’s+A’s)

• State Performance Measures
• Toward Zero Deaths (TZD)

#2: Reduce Total Crashes

• Number
• Severity

Multi-Dimensional Approach to Safety

• Part of TZD
• 4E’s: Engineering, Enforcement, Education, Emergency

Medical and Trauma Services

Provide Recommendations

• Short, Medium, and Long-Term Solutions

12/4/2019 mndot.gov 6

(§) @

L

t

@

G)

...

·-

[ili]

Spring

t'ak

e Park

@ @

...

University Ave NE 85th Ave NE 83rd Ave NE 81st Ave NE Osborne Rd NE 73rd Ave NE Mississippi St NE 57th Ave NE 53rd Ave NE 49th Ave NE 44th Ave NE 40th Ave NE 37th Ave NE

N

US-10 South Ramp Terminal 89th Ave NE 85th Ave NE Middletown Rd 81st Ave NE Osborne Rd NE E Moore Lake Dr 52nd Ave NE 50th Ave NE 49th Ave NE 47th Ave NE 46th Ave NE 45th Ave NE 44th Ave NE 43rd Ave NE 42nd Ave NE 40th Ave NE Gould Ave NE 37th Ave NE

Key Intersections

12/4/2019 mndot.gov 7

rn~

DEPARTMENT OF

I I TRANSPORTATION

Short-Term (0-5 years) Recommendations

TOWARD

ZERO

• DEATHS

m ,

• 1. TZD Coalition

Creation of a Toward Zero Deaths Coalition and/or Corridor Coalition(s) to prioritize safety on TH 47 and TH 65.

• Diverse group consisting of representatives from:
• Local police
• Emergency services
• Education
• Politicians
• Government agencies
• Communities
• First meeting will be January 2020

9 12/4/2019

• 2. Corridor Lighting

Improvements

New LED Lamps or LED Upgrades @

• Osborne & University/TH47
• 81st & University/TH47
• 85th & University/TH47
• 40th & Central/TH65
• 44th & Central/TH65
• 45th & Central/TH65
• Moore Lake Dr & Central/TH65
• Osborne & Central/TH65
• 85th & Central/TH65
• 89th & CentralTH65

12/4/2019 10

....

• New

....

• Update Zebra Croni"J:5
• NEW w

..

• 59 Crosswalk Bloc ks
• 2

• 3. Crossing Treatments

High Visibility Crosswalk Markings New or Upgraded Crosswalks and Stop Bars @

• 44th and University/TH47
• 49th and University/TH47
• 53rd and University/TH47
• Mississippi and University/TH47
• 40th and Central/TH65
• 42nd and Central/TH65
• 43rd and Central/TH65
• 46th and Central/Th65

12/4/2019 11

Leading Pedestrian Interval

z

tt

t

t

f

0 People walking are given a 3 to 7 second head start entering

the intersection.

El

e

Through and turning traffic are g iven t he greer: light. Turning traffic yields to people walking who are already 1n the crosswalk.

~ ~

STOP

Do not enter the intersection.

CLEARANCE

Pre pa re to stop. Yield if completing a permissive turn.

YIELD

Turn only after yielding to all vehicles and pedestrians.

PROCEED

U-turns must yield.

zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA

• 4. Traffic Signals

Leading Pedestrian Interval & Flashing Yellow Arrow

12/4/2019 12

mndot.gov 12/04/19

• .r

.r,.

• •

+o, Robbinsdale

• lden

alley

z

<

Sprin

.Lak, ark

• orn

Fridley ~illtop

Columbia Heights z .Lexington

CR J CR

z

.,

WE "

l:

.s

=

sm

m ,

SP 7001-128

• Need For This Study

Key RSA recommendation: Understand the regional roles

• f both corridors so future

improvements are effective. Subregional context

• MN 65 from US 10 to Ham

Lake PEL study

• US 252 improvements
• I-35W MnPass Lanes

reconstruction

• I-35W Gateway Study

Current corridor visions are not well-defined.

13

mndot.gov

Managed Lane System

• - Existing MnPASS Lanes
• MnPASS Lanes

Opening 2021-2022

• •••• Managed Lanes

Under Review

m ,

SP 7001-128

Need For This Study

MN 65 PEL study

14

mndot.gov 12/04/19

q

.r,.

• +o,

Robbinsdale

• lden

alley

z

Sprin .Lak, ark

0 ilO

Fridley

~illtop Columbia

.Lexington

CR .1

z

CR w E

:E

t

"'

sm

Falcon Heights

m ,

SP 7001-128

2018 AADT and HCAADT

• 34,000

HC 1,250 12,500 13,500 28,000 HC 400 29,500 HC 950 31,500 HC 1,050

15

12/04/19

z

,,.

.__

• 0 ~---.-----...

=ridley

=

..

• r ...

/

\

lilltop Columb Heights

z.,

"

• '
• hNO~A CD

CR

"'

WL

m ,

SP 7001-128 Blaine Anoka County Hennepin County

Key Issues

Northtown Mall expansion, access Transit Center relocation aBRT service planning High-speed, freeway-like character Major employers (i.e., Medtronic) Freight distribution centers (i.e., Target) Urban street grid

16

,

Why a PEL?

Planning and Environmental Linkages A High-level and Contextual Vision. Establishes collaboration, information sharing, and an integrated approach early in the planning process. Promotes shared understanding of needs. Reduces potential duplication of NEPA process requirements for subsequent projects.

mndot.gov 17

,

MN 47/65 PEL Phase 1 Focus Areas

• 1. Understand roles and functions of the two corridors

locally and in the region.

• 2. Identify immediate and long term user needs for all

modes.

• 3. Corridor evaluation of existing and future conditions.
• 4. Evaluation criteria and approach to complete the PEL

study and federal concurrence.

12/04/19 mndot.gov 18

,

PEL Challenges Managing expectations for when alternatives, solutions, and details will be discussed. Engaging stakeholders without traditional layouts and drawings.

11/21/19 mndot.gov 19

,

MN 47/65 PEL Phase 1 Highlights

• MnDOT Metro’s 2nd PEL
• Will complete Purpose and Need Statement
• Scope and approach to complete Alternatives Analysis

and Corridor Vision

• FHWA Support

11/21/19 mndot.gov 20

,

Multimodal Emphasis

• MMLOS (The “Oregon Method”)
• Bicycle Network Analysis
• Freight needs and impacts
• MnDOT SPACE tool

12/04/19 mndot.gov 21

Bicycle/Pedestrian Suitability Analysis

Eric DeVoe I Office of Traffic Engineering June 25, 2019 To prioritize reviewing projects for bicycle and pedestrian accommodations, t his high -level ana lysis aggregates data on keylcharacteristics across the entire state. For project selection o r prioritization, this process captures an esti mate for demand but not existing infrastructure . To avoid issues with updates to the LRS and ensure cont inu ity across geograph ies, the entire state was divided into 522,263 equal sized hexagons. Each hexagon is approximately 104 acres; as a frame of reference, the Mall of America with attached parking is approximately 88 acres.

m ,

MnDOT SPACE Tool

11/21/19 mndot.gov 22

n,1

DEPARTMENT OF TRANSPORTATION

Environmental Scope of Work

Nani Jacobson, Environmental Coordinator, Metro District

,

Environmental Related Tasks

Logical Termini

• MnDOT will identify and complete documentation and agency reviews
• Contractor will provide analyses, such as traffic and safety, and

recommendation of broader regional transportation impacts

Environmental Existing Conditions

• MnDOT will complete analysis, documentation, agency reviews
• Contractor will complete other Existing/Future Conditions tech memos
• Contractor will provide graphics support for consistency between tech

memos and incorporate Environmental Tech Memo into Existing and Future Conditions Tech Memo

12/4/2019 mndot.gov 24

,

Environmental Related Tasks

Purpose and Need Statement

• MnDOT will develop draft and final versions, conduct agency

reviews

• Contractor will provide Existing Conditions analysis, graphics

support and meeting support to capture stakeholder input/FHWA concurrence

12/4/2019 mndot.gov 25

,

Study Phasing

Phase 1 Complete the Purpose and Need Statement (FHWA concurrence point 2). Recommend strategies for completing the Alternatives Development and Analysis, and Corridor Evaluation (concurrence points 3 and 4. Next Phase(s) To follow immediately in late 2020/early 2021 so there is no break in the PEL process.

mndot.gov 26

,

Study Partners/Coordination

Counties: Anoka and Hennepin Cities: Minneapolis, Columbia Heights, Fridley, Spring Lake Park, Coon Rapids, and Blaine Agencies: FHWA, Metro Transit, Met Council

12/04/19 mndot.gov 27

,

Public Engagement

Policy Advisory Committee Technical Advisory Committee Council and Commission presentations Stakeholder briefings and interviews Online survey with comment geotagging 2 open houses with content available as “Online Open House”

12/04/19 mndot.gov 28

,

zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA

• T
• Public Engagement Meetings

12/04/19 mndot.gov 29

Anticipated Schedule

• Corridor evaluation technical work
• Stakeholder identification

March/ April May/June • Existing and Future Conditions

• Stakeholder interviews, engagement

July/Aug

• Base year and Forecast Year Conditions
• Follow-on study strategy recommendation

Sept/Oct

• Draft Purpose and Need Statement (by MnDOT)

for Public Review

• Open Houses, other Public Engagement
• Final document, FHWA concurrence

mil

DEPARTMENT OF TRANSPORTATION

m ,

Questions and Discussion

David Elvin, AICP Tony Wotzka, PLA Co-Project Manager Co-Project Manager David.Elvin@state.mn.us Anthony.Wotzka@state.mn.us 651-234-7795 651-234-7712

12/04/19 mndot.gov 30
