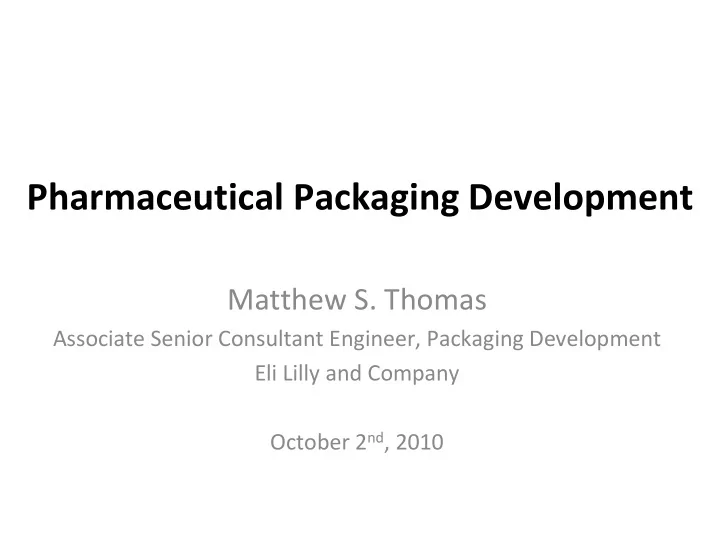

Pharmaceutical Packaging Development

Matthew S. Thomas

Associate Senior Consultant Engineer, Packaging Development Eli Lilly and Company October 2nd, 2010

SLIDE 2

Technical, Quality and Supervisory Reviews

Author Review: I confirm that the information in this technical presentation is clearly written, scientifically accurate and does not contain any confidential information. ____________________________________________________________________________________________ Matthew S. Thomas, Assoc. Sr. Consultant Engineer, KY227 Date Technical Review: I have reviewed the information in this technical presentation and confirm it is clearly written and scientifically accurate. ____________________________________________________________________________________________ David Dziennik, Consultant Engineer, KY227 Date Quality Review: I have reviewed the information in this technical presentation and confirm it is clearly written and does not contain any confidential information. ____________________________________________________________________________________________ Harold Lowe, Assoc. Consultant QA Representative, KY114 Date Supervisory Review: I have reviewed the information in this technical presentation and confirm the listed author and reviewers are qualified to complete their activities. ____________________________________________________________________________________________ Randy Thackrey, Director, KY227 Date Matthew S. Thomas, Eli Lilly and Company 2

SLIDE 3

Pharmaceutical Packaging Development

Packaging Components and Systems
Packaging Regulations
Performance Testing
Product Protection
Patient/User Centered Design

3 Matthew S. Thomas, Eli Lilly and Company

SLIDE 4

Packaging Components and Systems

Primary Packaging Component: packaging component that provides product protection and contains materials of construction that come into contact with a pharmaceutical drug product. Critical Secondary Packaging Component: packaging component that provides product protection but does not contain materials of construction that come into contact with a pharmaceutical drug product.

4 Matthew S. Thomas, Eli Lilly and Company

SLIDE 5

Packaging Components and Systems

Parenteral Packaging Components for Injection

5 Matthew S. Thomas, Eli Lilly and Company

SLIDE 6

Packaging Components and Systems

Parenteral Packaging Systems for Injection

6 Matthew S. Thomas, Eli Lilly and Company

SLIDE 7

Packaging Components and Systems

Dry Solid Oral Packaging Components

Matthew S. Thomas, Eli Lilly and Company 7

SLIDE 8

Packaging Components and Systems

Matthew S. Thomas, Eli Lilly and Company 8

Dry Solid Oral Packaging Systems

SLIDE 9

Packaging Regulations

Food Contact

– United States Code of Federal Regulations (CFR) – European Directives

Compendia Standards

– United States Pharmacopeia (USP) – European Pharmacopeia (PhEur) – Japanese Pharmacopeia (JP)

Performance Testing

– American Society for Testing and Materials (ASTM) – International Organization for Standardization (ISO) – International Safe Transit Association (ISTA) – United States and European Pharmacopeia

Matthew S. Thomas, Eli Lilly and Company 9

SLIDE 10

Stability Testing (Product Protection)

– International Conference on Harmonization (ICH) – World Health Organization (WHO)

Food and Drug Administration (FDA) Guidance

– Container Closure System Suitability

Protection
Compatibility
Safety
Performance

Poison Prevention Packaging Act

Child Resistance and Senior Friendly

Matthew S. Thomas, Eli Lilly and Company 10

Packaging Regulations

SLIDE 11

Performance Testing

Shipping and Distribution (Cold Chain)

Matthew S. Thomas, Eli Lilly and Company 11

Corrugated Shipping Container Gel Pack Insulation (e.g., expanded polystyrene)

SLIDE 12

Performance Testing

Matthew S. Thomas, Eli Lilly and Company 12

Container Closure Integrity

Sealed Chambers Before Vacuum (1 ATM) Vacuum Applied

Seal Integrity No Seal Integrity

Vacuum / Pressure Decay

SLIDE 13

Performance Testing

Matthew S. Thomas, Eli Lilly and Company 13

Water Vapor Transmission Rate (WVTR)

= Desiccant Temperature and Relative Humidity (RH) Controlled Chambers

Chamber Condition – 25C/60% RH

Inside Package

0% RH

Inside Package

0% RH

WVTR

mg H2 O/day

Chamber Condition – 25C/60% RH

WVTR

mg H2 O/day

SLIDE 14

Matthew S. Thomas, Eli Lilly and Company 14

Performance Testing

Water Vapor Transmission Rate (WVTR)

Diffusion Sorption Desorption

Outside Package (high RH) Inside Package (low RH) WVTR

H2 O H2 O

Plastic Wall Cross Section

PET Bottles HDPE Bottles Typical Blister Laminate PVC PVDV

SLIDE 15

ICH and WHO Stability Conditions

Zone I and II Countries (Temperate & Subtropical/Mediterranean)

– Real time storage at 25C/60%RH

Zone III and IV Countries (Hot/Dry & Hot/Humid)

– Real time storage at 30C/65%RH or 30C/75%RH

Matthew S. Thomas, Eli Lilly and Company 15

Product Protection (stability testing)

SLIDE 16

Matthew S. Thomas, Eli Lilly and Company 16

Patient/User Centered Design

SLIDE 17

Matthew S. Thomas, Eli Lilly and Company 17

Patient/User Centered Design

SLIDE 18

Matthew S. Thomas, Eli Lilly and Company 18

Patient/User Centered Design

SLIDE 19

Matthew S. Thomas, Eli Lilly and Company 19

Patient/User Centered Design

SLIDE 20

Matthew S. Thomas, Eli Lilly and Company 20
