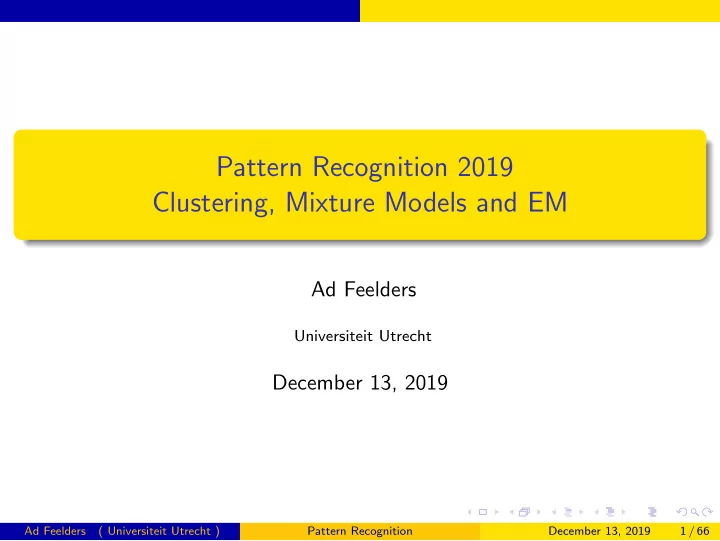

Pattern Recognition 2019 Clustering, Mixture Models and EM

Ad Feelders

Universiteit Utrecht

December 13, 2019

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 1 / 66

Objective of Clustering

Put objects (persons, images, web-pages, ...) into a number of groups in such a way that the objects within the same group are similar, but the groups are dissimilar.

Variable 1 Variable 2

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 2 / 66

Similarity between objects

Each object is described by a number of variables (also called features

• r attributes).

The similarity between objects is determined on the basis of these variables. The measurement of similarity is central to many clustering methods.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 3 / 66

Clustering = Classification

In classification the group to which an object belongs is given, and the task is to discriminate between groups on the basis of the variables used to describe the objects. In clustering the groups are not given, but the objective is to discover them. Clustering is sometimes called unsupervised learning, and classification supervised learning.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 4 / 66

Clustering Techniques

Many techniques have been developed to cluster objects into groups: Hierarchical clustering (not discussed). Partitioning methods (e.g. K-means, K-medoids). Model-based clustering (mixture models).

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 5 / 66

Data Matrix

We have observations on N objects, that we want to cluster into a number

• f groups. For each object we observe D variables, numbered 1, 2, . . . , D.

Data matrix: X =         x11 . . . x1j . . . x1D . . . . . . . . . xn1 . . . xnj . . . xnD . . . . . . . . . xN1 . . . xNj . . . xND         where xnj denotes the value of object n for variable j.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 6 / 66

Distance Measures: numeric variables

Variable 1 Variable 2 (x11,x12) x21 x11 (x21,x22) x22 x12 Object 1 Object 2

Dashed line: Euclidian distance Solid line: Manhattan distance

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 7 / 66

Distance Measures: numeric variables

Manhattan distance between xi and xj:

D

• d=1

|xid − xjd|. Squared Euclidian distance between xi and xj:

D

• d=1

(xid − xjd)2 = xi − xj2.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 8 / 66

Standardization

Units of measurement should not be important for cluster structure. Therefore variables are often standardized. For example: sj =

• 1

N − 1

N

• n=1

(xnj − ¯ xj)2 Standardized measurement: x∗

nj = xnj − ¯

xj sj x∗

j has mean zero and standard deviation 1.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 9 / 66

Partitioning methods

Search directly for a division of the N objects into K groups that maximizes the quality of the clustering. The number of distinct partitions P(N, K) of N objects into K non-empty groups is O(K N). For example: P(100, 5) = 1068. Exhaustive search is not feasible.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 10 / 66

K-means Clustering

There are many possibilities to measure the quality of a partition. In case of numeric data, one can use for example J =

N

• n=1

K

• k=1

rnkxn − µk2 (9.1) Sum of the squares of Euclidian distances of each data point to the center

• f the cluster to which it has been assigned.

rnk = 1 if xn has been assigned to cluster k, and rnk = 0 otherwise (1-of-K coding).

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 11 / 66

Minimize J with respect to rnk (E-step)

Optimize for each point n separately by choosing rnk to be 1 for the value

• f k that gives the minimum distance xn − µk2.

More formally rnk = 1 if k = arg minj xn − µj2

• therwise.

(9.2)

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 12 / 66

Minimize J with respect to µj (M-step)

Take derivative of J with respect to µj and equate to zero −2

N

• n=1

rnj(xn − µj) = 0 (9.3) which gives µj =

• n rnjxn
• n rnj

(9.4) i.e. the mean of the points that are assigned to cluster j.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 13 / 66

K-means algorithm

1 Partition the observations into K initial clusters. 2 Calculate the mean of each cluster (M-step). 3 Assign each observation to the cluster whose mean is nearest (E-step). 4 If reassignments have taken place, return to step 2; otherwise stop. Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 14 / 66

Old Faithful data set

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 15 / 66

Old Faithful data set

(a) −2 2 −2 2 (b) −2 2 −2 2 (c) −2 2 −2 2 (d) −2 2 −2 2 (e) −2 2 −2 2 (f) −2 2 −2 2 Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 16 / 66

Old Faithful data set

(g) −2 2 −2 2 (h) −2 2 −2 2 (i) −2 2 −2 2 Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 17 / 66

Convergence of algorithm

• 1

2 3 4 500 1000

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 18 / 66

How to do this in R

# load library/package MASS > library(MASS) # scale data > faith.sc <- scale(faithful) # K-means with K=2 applied to faithful data > faithful.k2 <- kmeans(faith.sc,2) # plot resulting clusters > plot(faith.sc[,1],faith.sc[,2],xlim=c(-2,2),type="n") > points(faith.sc[,1],faith.sc[,2], col=faithful.k2$cluster*2,pch=19)

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 19 / 66

Final clustering obtained

−2 −1 1 2 −2 −1 1 2 eruptions waiting

• ●
• ●
• Ad Feelders

( Universiteit Utrecht ) Pattern Recognition December 13, 2019 20 / 66

How many clusters?

Required number of groups usually not known in advance. Determine the appropriate number of groups from the data. Informal: plot the quality criterion against the number of groups. Look for large jumps to determine the appropriate number of groups.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 21 / 66

Example: Ruspini data

20 40 60 80 100 120 50 100 150

Variable 1 Variable 2

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 22 / 66

Determining the number of groups

number of groups within sum of squares 2 3 4 5 6 20000 40000 60000 80000 Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 23 / 66

K-medoids

Can be used with other dissimilarity measures than Euclidian distance. Use a number of representative objects (called medoids) instead of means. Advantage: less sensitive to outliers than K-means (cf. the mean and median of a sample).

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 24 / 66

K-medoids: cluster quality

Each object is assigned to the cluster corresponding to the nearest medoid. The K representative objects should minimize the sum of the dissimilarities of all objects to their nearest medoid, i.e. ˜ J =

N

• n=1

K

• k=1

rnkV(xn, µk) (9.6)

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 25 / 66

K-medoids algorithm

1 Choose K initial medoids. 2 Assign each object to the nearest medoid. 3 From each cluster, choose the object that minimizes the summed

distances as the new medoid.

4 Repeat steps 2) and 3) until convergence. Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 26 / 66

Example: Ruspini data

20 40 60 80 100 120 50 100 150

Variable 1 Variable 2

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 27 / 66

Clusters found by K-medoids (K=4)

20 40 60 80 100 120 50 100 150 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 22 2 2 22 22 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 33 3 3 33 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

Variable 1 Variable 2

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 28 / 66

K-medoids in R

# load library/package cluster > library(cluster) # K-medoids with K=4 applied to ruspini data > rusp.pam2 <- pam(ruspini,k=4) # plot resulting clusters > plot(ruspini[,1],ruspini[,2],type="n") > text(ruspini[,1],ruspini[,2],rusp.pam2$clust)

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 29 / 66

Model-Based Clustering

Data is viewed as sample from a population that consists of a number

• f subpopulations (clusters or components)

Each cluster can be described by a probability distribution. Use statistical inference to answer questions such as

What is the probability that an object belongs to a particular cluster? What is the most likely number of clusters present in the population?

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 30 / 66

Mixture distributions

A mixture distribution is a “weighted average” of a number of component distributions. In general, a mixture distribution can be written as p(x) =

K

• k=1

πkpk(x|θk) where K is the number of components, πk the mixing proportions and θk the component parameter vectors.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 31 / 66

Data Matrix and Likelihood Function

The observed data is: X =         x11 . . . x1j . . . x1D . . . . . . . . . xn1 . . . xnj . . . xnD . . . . . . . . . xN1 . . . xNj . . . xND         where xnj denotes the value of object n for variable j. Let xn denote (xn1, . . . , xnD), where the xn are assumed to be drawn independently from a mixture.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 32 / 66

Maximum likelihood for mixtures

Given a training sample (x1, . . . , xN), the values of θ and π are chosen so as to maximize the likelihood p(X|θ, π) =

N

• n=1

K

• k=1

πkpk(xn|θk). In other words: we choose the parameter values for which the probability

• f the observed data is maximal (larger than for any other value of the

parameters).

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 33 / 66

Probability distributions for clusters

Assumption: each cluster is a member of the same parametric family of probability distributions. Frequently used distributions are Numeric data: multivariate normal distribution (section 9.2). Binary data: multivariate Bernoulli distribution (section 9.3.3).

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 34 / 66

Numeric data: normal clusters

For numeric data we usually choose normal (Gaussian) clusters. The likelihood function is then given by p(X|π, µ, Σ) =

N

• n=1

K

• k=1

πkN(xn|µk, Σk) (9.14) N: (multivariate) normal density function µk: mean vector of the k th cluster Σk: covariance matrix of k th cluster.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 35 / 66

ML estimation of mixture models

Complicated likelihood: no closed-form solution for ML estimates Apply iterative scheme: EM algorithm Converges to local maximum of likelihood function

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 36 / 66

ML estimation of univariate normal mixture

Suppose cluster membership were known n x r1 r2 1 4 1 2 8 1 3 2 1 4 6 1 The ML estimates are then simply given by µk = N

n=1 rnkxn

N

n=1 rnk

, σ2

k =

N

n=1 rnk(xn − µk)2

N

n=1 rnk

, πk = N

n=1 rnk

N For data in table: µ1 = 3, µ2 = 7, σ2

1 = 1, σ2 2 = 1, π1 = 0.5, π2 = 0.5.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 37 / 66

ML estimation: first guess

But we don’t know cluster membership, that’s the whole point! Make a first guess at cluster membership n x r1 r2 1 4 1 2 8 1 3 2 1 4 6 1 µk = N

n=1 rnkxn

N

n=1 rnk

, σ2

k =

N

n=1 rnk(xn − µk)2

N

n=1 rnk

, πk = N

n=1 rnk

N ML estimates based on first guess µ(1)

1

= 4, µ(1)

2

= 6, σ2(1)

1

= 4, σ2(1)

2

= 4, π(1)

1

= 0.5, π(1)

2

= 0.5.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 38 / 66

Computing probabilities of cluster membership

Use current parameter estimates and Bayes’ rule to compute for each

• bservation the probability that it belongs to cluster 1 and 2:

p(rk = 1|x) = p(x|rk = 1)p(rk = 1) K

j=1 p(x|rj = 1)p(rj = 1)

(9.13) = N(x|µk, σ2

k)πk

K

j=1 N(x|µj, σ2 j )πj

Fill in these probabilities for r1 and r2 in the table. They act like weights that indicate to what extent each observation belongs to cluster 1 and cluster 2 respectively.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 39 / 66

ML estimation: second guess

Fill in the computed probabilities (the R function dnorm was used to compute normal density values) n x r1 r2 1 4 0.62 0.38 2 8 0.18 0.82 3 2 0.82 0.18 4 6 0.38 0.62 µk = N

n=1 rnkxn

N

n=1 rnk

, σ2

k =

N

n=1 rnk(xn − µk)2

N

n=1 rnk

, πk = N

n=1 rnk

N ML estimates, second guess µ(2)

1

= 3.92, µ(2)

2

= 6.08, σ2(2)

1

= 1.82, σ2(2)

2

= 1.82, π(2)

1

= 0.5, π(2)

2

= 0.5.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 40 / 66

Convergence of EM to local maximum

Continue iteration until likelihood hardly increases, or parameter estimates hardly change. Then we have found a local maximum of the likelihood function.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 41 / 66

Sequence of iterates µ(t)

1 iteration 1

(t)

5 10 15 20 3.0 3.2 3.4 3.6 3.8 4.0

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 42 / 66

Sequence of iterates for µ(t)

2

5 10 15 20 6.0 6.2 6.4 6.6 6.8 7.0

iteration t 2

(t)

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 43 / 66

K-means algorithm

1 Partition the observations into K initial clusters. 2 (M-step) Calculate the mean of each cluster. 3 (E-step) Assign each observation to the cluster whose mean is nearest. 4 If reassignments have taken place, return to step 2; otherwise stop. Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 44 / 66

EM-algorithm for normal mixtures

1 Partition the observations into K initial clusters. 2 (M-step) Calculate the mean, covariance matrix and mixing

proportion of each cluster.

3 (E-step) Calculate the posterior probability of cluster membership for

each observation.

4 (Check convergence) If parameters/posterior probabilities have

changed, return to step 2; otherwise stop.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 45 / 66

Mixture of two normal components (perspective)

• 4
• 2

2 4 X

• 4
• 2

2 4 Y 0 0.020.040.060.08 0.1 0.120.14 Z

= (2,2) = 0.8 x = y = 1 = 0.5 = (1,2) = 0.5 x = y = 1 = 0.5

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 46 / 66

Mixture of two normal components (contour)

x y

• 4
• 2

2 4

• 4
• 2

2 4

= (2,2) = 0.8 x = y = 1 = 0.5 = (1,2) = 0.5 x = y = 1 = 0.5

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 47 / 66

Examples of contours

x y

• 4
• 2

2 4

• 4
• 2

2 4 x y

• 4
• 2

2 4

• 4
• 2

2 4 x y

• 4
• 2

2 4

• 4
• 2

2 4 x y

• 4
• 2

2 4

• 4
• 2

2 4

= 0 x y = 0.8 x y = 0.8 x y = 0.8 x y

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 48 / 66

Finding clusters of different shapes

We can find clusters of different shapes/orientation by constraining the covariance matrices of the clusters in different ways. Examples of restrictions: None (as in Quadratic Discriminant Analysis) Equal for all clusters (as in Linear Discriminant Analysis). Diagonal and equal for all clusters. Diagonal but not equal for all clusters.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 49 / 66

Covariance structure

Equal Arbitrary Diagonal equal Diagonal unequal

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 50 / 66

Analysis of Ruspini data

• ●
• ●
• ●●
• ●
• 20

40 60 80 100 120 50 100 150 Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 51 / 66

Analysis of Ruspini data

> library(mclust) > ruspiniBIC.EII <- EMclust(ruspini,G=2:9,emModelNames="EII") > plot(ruspiniBIC.EII) > ruspiniBIC.Sum <- summary(ruspiniBIC.EII,ruspini) > ruspiniBIC.Sum best BIC values: EII,5 EII,4

• 1344.212 -1351.412

best model: spherical, equal volume > plot(ruspini[,1],ruspini[,2],type="n") > text(ruspini[,1],ruspini[,2],ruspiniBIC.Sum$class)

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 52 / 66

What does EII mean?

In mclust, the model type is specified by properties of the cluster covariance matrices. EII means cluster volumes are equal (E), shape is the identity (I), and orientation is the identity (I). This corresponds to the restriction: Σk = Σ = σ2■

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 53 / 66

How many clusters?

1 1 1 1 1 1 1 1 2 3 4 5 6 7 8 9 −1500 −1450 −1400 −1350 number of clusters BIC

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 54 / 66

BIC Score

Bayesian Information Criterion BIC = 2 ln p(X|θML) − ln(N) × #par > ruspiniBIC.Sum$loglik [1] -639.7248 > ruspiniBIC.Sum$loglik*2-log(75)*15 [1] -1344.212 Why 15 parameters? 5 × 2 means, 1 variance, 4 mixing proportions

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 55 / 66

Final Clustering

20 40 60 80 100 120 50 100 150 ruspini[, 1] ruspini[, 2] 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 22 2 2 22 22 2 2 2 2 2 2 2 4 4 3 3 3 4 4 4 4 4 4 44 4 4 44 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 56 / 66

Find the two clusters

• −5

5 10 15 −1 1 2 3 4 5 x[, 1] x[, 2]

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 57 / 66

How we generated the data

> library(mvtnorm) > sigma <- matrix(c(30,3,3,0.5),2) > sigma [,1] [,2] [1,] 30 3.0 [2,] 3 0.5 > mu1 <- c(1.5,0) > mu2 <- c(2,4) > x1 <- rmvnorm(10,mean=mu1,sigma=sigma) > x2 <- rmvnorm(10,mean=mu2,sigma=sigma) > x <- rbind(x1,x2)

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 58 / 66

Fitting different models

> testBIC <- EMclust(x,emModelNames=c("EII","EEI","EEE","EEV")) > plot(testBIC) EII EEI EEE EEV "1" "2" "3" "4" > testBIC.Sum <- summary(testBIC,x) > testBIC.Sum$class [1] 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 59 / 66

BIC Scores

1 1 1 1 1 1 1 1 1 2 4 6 8 −240 −230 −220 −210 −200 number of clusters BIC 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 60 / 66

Best clustering found

−5 5 10 15 −1 1 2 3 4 5 x[, 1] x[, 2] 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 22 2

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 61 / 66

EII-model

> testBIC.EII <- EMclust(x,emModelNames=c("EII")) > testBIC.EII.Sum <- summary(testBIC.EII,x) > testBIC.EII.Sum classification table: 1 2 3 15 4 1 best BIC values: EII,3 EII,1

• 227.4807 -231.5405

best model: spherical, equal volume > testBIC.EII.Sum$class [1] 1 1 1 1 1 2 2 1 2 1 1 1 3 1 1 1 2 1 1 1

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 62 / 66

Clusters found by EII model

−5 5 10 15 −1 1 2 3 4 5 x[, 1] x[, 2] 1 1 1 1 1 2 2 1 2 1 1 1 3 1 1 1 2 11 1

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 63 / 66

Clusters found by EII model with K=2

−5 5 10 15 −1 1 2 3 4 5 x[, 1] x[, 2] 1 1 2 1 1 1 1 1 1 2 2 2 2 1 1 2 1 11 2

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 64 / 66

Clusters found by K-means with K=2

−5 5 10 15 −1 1 2 3 4 5 x[, 1] x[, 2] 2 1 1 1 2 2 2 2 2 1 1 1 1 2 2 1 2 11 1

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 65 / 66

K-means and model-based clustering

Discriminant function for class k dk(x) = ln |Σk| − 2 ln p(Ck) + (x − µk)⊤Σ−1

k (x − µk)

Assume (EII assumption) Σk = Σ = σ2■ Then Σ−1

❦

= (σ2■)−1 = 1 σ2 ■ so (x − µk)⊤Σ−1

k (x − µk) = 1

σ2 (x − µk)⊤(x − µk) where (x − µk)⊤(x − µk) =

D

• d=1

(xd − µk,d)2 is the squared Euclidian distance between x and µk.

Ad Feelders ( Universiteit Utrecht ) Pattern Recognition December 13, 2019 66 / 66
