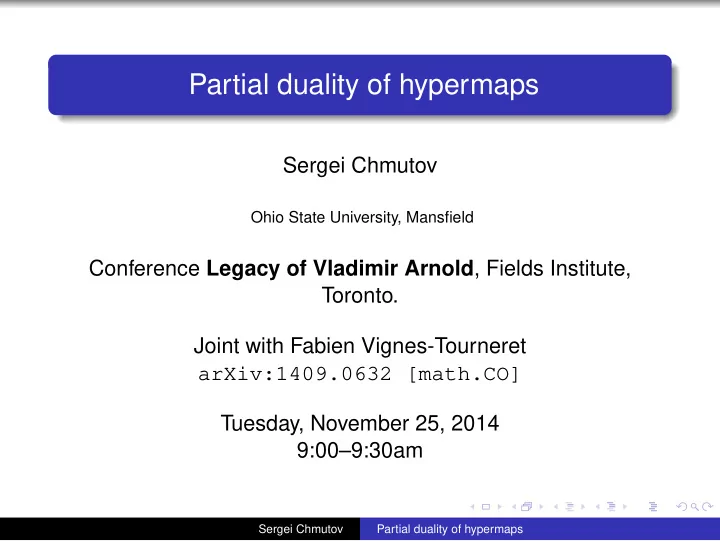

Partial duality of hypermaps

Sergei Chmutov

Ohio State University, Mansfield

Conference Legacy of Vladimir Arnold, Fields Institute, Toronto. Joint with Fabien Vignes-Tourneret arXiv:1409.0632 [math.CO] Tuesday, November 25, 2014 9:00–9:30am

Sergei Chmutov Partial duality of hypermaps

slide-2
SLIDE 2

Maps (Graphs on surfaces)

Sergei Chmutov Partial duality of hypermaps

slide-3
SLIDE 3

Maps (Graphs on surfaces)

Sergei Chmutov Partial duality of hypermaps

slide-4
SLIDE 4

Maps (Graphs on surfaces)

Sergei Chmutov Partial duality of hypermaps

slide-5
SLIDE 5

Maps (Graphs on surfaces)

Sergei Chmutov Partial duality of hypermaps

slide-6
SLIDE 6

Hypermaps

Sergei Chmutov Partial duality of hypermaps

slide-7
SLIDE 7

Hypermaps

Sergei Chmutov Partial duality of hypermaps

slide-8
SLIDE 8

Hypermaps

Sergei Chmutov Partial duality of hypermaps

slide-9
SLIDE 9

Hypermaps

Sergei Chmutov Partial duality of hypermaps

slide-10
SLIDE 10

Hypermaps

Sergei Chmutov Partial duality of hypermaps

slide-11
SLIDE 11

τ-model for hypermaps

a face a flag a (hyper) edge a vertex

Sergei Chmutov Partial duality of hypermaps

slide-12
SLIDE 12

τ-model for hypermaps

a face a flag a (hyper) edge a vertex v’ (v,e,f) (v’,e,f) e f v τ

Sergei Chmutov Partial duality of hypermaps

slide-13
SLIDE 13

τ-model for hypermaps

a face a flag a (hyper) edge a vertex v’ (v,e,f) (v’,e,f) e f v τ

1

τ (v,e’,f) (v,e,f) e v e’ f

Sergei Chmutov Partial duality of hypermaps

slide-14
SLIDE 14

τ-model for hypermaps

a face a flag a (hyper) edge a vertex v’ (v,e,f) (v’,e,f) e f v τ

1

τ (v,e’,f) (v,e,f) e v e’ f

(v,e,f’) (v,e,f)

2

τ v e f’ f

Sergei Chmutov Partial duality of hypermaps

slide-15
SLIDE 15

τ-model. Example.

1 2 3 6 4 7 5 11 12 8 10 9

Sergei Chmutov Partial duality of hypermaps

slide-16
SLIDE 16

τ-model. Example.

1 2 3 6 4 7 5 11 12 8 10 9

τ0 = (1, 11)(2, 12)(3, 10)(4, 8)(5, 9)(6, 7)

Sergei Chmutov Partial duality of hypermaps

slide-17
SLIDE 17

τ-model. Example.

1 2 3 6 4 7 5 11 12 8 10 9

τ0 = (1, 11)(2, 12)(3, 10)(4, 8)(5, 9)(6, 7) τ1 = (1, 2)(3, 4)(5, 6)(7, 9)(8, 10)(11, 12)

Sergei Chmutov Partial duality of hypermaps

slide-18
SLIDE 18

τ-model. Example.

1 2 3 6 4 7 5 11 12 8 10 9

τ0 = (1, 11)(2, 12)(3, 10)(4, 8)(5, 9)(6, 7) τ1 = (1, 2)(3, 4)(5, 6)(7, 9)(8, 10)(11, 12) τ2 = (1, 6)(2, 3)(4, 5)(7, 11)(8, 9)(10, 12)

Sergei Chmutov Partial duality of hypermaps

slide-19
SLIDE 19

σ-model for oriented hypermaps

v

V

σ

Sergei Chmutov Partial duality of hypermaps

slide-20
SLIDE 20

σ-model for oriented hypermaps

v

V

σ

E

e σ

Sergei Chmutov Partial duality of hypermaps

slide-21
SLIDE 21

σ-model for oriented hypermaps

v

V

σ

E

e σ

F

f σ

Sergei Chmutov Partial duality of hypermaps

slide-22
SLIDE 22

σ-model for oriented hypermaps

v

V

σ

E

e σ

F

f σ

σFσEσV = 1 :

F

σV σE σ

Sergei Chmutov Partial duality of hypermaps

slide-23
SLIDE 23

σ-model. Example.

8 1 3 5 7 12

Sergei Chmutov Partial duality of hypermaps

slide-24
SLIDE 24

σ-model. Example.

8 1 3 5 7 12

σV = (1, 3, 5)(7, 8, 12) = τ2τ1|{1,3,5,7,8,12}

Sergei Chmutov Partial duality of hypermaps

slide-25
SLIDE 25

σ-model. Example.

8 1 3 5 7 12

σV = (1, 3, 5)(7, 8, 12) = τ2τ1|{1,3,5,7,8,12} σE = (1, 7)(3, 12)(5, 8) = τ0τ2|{1,3,5,7,8,12}

Sergei Chmutov Partial duality of hypermaps

slide-26
SLIDE 26

σ-model. Example.

8 1 3 5 7 12

σV = (1, 3, 5)(7, 8, 12) = τ2τ1|{1,3,5,7,8,12} σE = (1, 7)(3, 12)(5, 8) = τ0τ2|{1,3,5,7,8,12} σF = (1, 12)(3, 8)(5, 7) = τ1τ0|{1,3,5,7,8,12}

Sergei Chmutov Partial duality of hypermaps

slide-27
SLIDE 27

Duality for graphs G

Sergei Chmutov Partial duality of hypermaps

slide-28
SLIDE 28

Duality for graphs G

Sergei Chmutov Partial duality of hypermaps

slide-29
SLIDE 29

Duality for graphs G

Sergei Chmutov Partial duality of hypermaps

slide-30
SLIDE 30

Duality for graphs G

G∗ = G{1,2,3,4,5,6}

Sergei Chmutov Partial duality of hypermaps

slide-31
SLIDE 31

Partial duality for graphs G

Sergei Chmutov Partial duality of hypermaps

slide-32
SLIDE 32

Partial duality for graphs G

1 2 3 4 5 6

Sergei Chmutov Partial duality of hypermaps

slide-33
SLIDE 33

Partial duality for graphs G

1 2 3 4 5 6 G{1,2,3,4,5} = ???

Sergei Chmutov Partial duality of hypermaps

slide-34
SLIDE 34

Partial duality for graphs (continuation)

Sergei Chmutov Partial duality of hypermaps

slide-35
SLIDE 35

Partial duality for graphs (continuation)

Sergei Chmutov Partial duality of hypermaps

slide-36
SLIDE 36

Partial duality for graphs (continuation)

Sergei Chmutov Partial duality of hypermaps

slide-37
SLIDE 37

Partial duality for graphs (continuation)

Sergei Chmutov Partial duality of hypermaps

slide-38
SLIDE 38

Partial duality for graphs (continuation)

Sergei Chmutov Partial duality of hypermaps

slide-39
SLIDE 39

Partial duality for graphs (continuation)

R{1,2,3,4,5}

Sergei Chmutov Partial duality of hypermaps

slide-40
SLIDE 40

Partial duality for hypermaps

Let S be a subset of the vertex-cells of G.

Sergei Chmutov Partial duality of hypermaps

slide-41
SLIDE 41

Partial duality for hypermaps

Let S be a subset of the vertex-cells of G. Choose a different type of cells, say hyperedges.

Sergei Chmutov Partial duality of hypermaps

slide-42
SLIDE 42

Partial duality for hypermaps

Let S be a subset of the vertex-cells of G. Choose a different type of cells, say hyperedges. Step 1. ∂F is the boundary a surface F which is the union of the cells from S and all hyperedge-cells.

Sergei Chmutov Partial duality of hypermaps

slide-43
SLIDE 43

Partial duality for hypermaps

Let S be a subset of the vertex-cells of G. Choose a different type of cells, say hyperedges. Step 1. ∂F is the boundary a surface F which is the union of the cells from S and all hyperedge-cells. Step 2. Glue in a disk to each connected component of ∂F. These will be the hyperedge-cells for GS.

Sergei Chmutov Partial duality of hypermaps

slide-44
SLIDE 44

Partial duality for hypermaps (continuation)

Step 3. Gluing the vertex-cells.

Sergei Chmutov Partial duality of hypermaps

slide-45
SLIDE 45

Partial duality for hypermaps (continuation)

Step 3. Gluing the vertex-cells.

Sergei Chmutov Partial duality of hypermaps

slide-46
SLIDE 46

Partial duality for hypermaps (continuation)

Step 4. Forming the partial dual hypermap GS.

Sergei Chmutov Partial duality of hypermaps

slide-47
SLIDE 47

Partial duality for hypermaps (continuation)

Step 4. Forming the partial dual hypermap GS.

3 7 8 8 1 12 12 5 5 1 1 5 3 7 11 10 8 2 4 6 12 9 Sergei Chmutov Partial duality of hypermaps

slide-48
SLIDE 48

Partial duality. Properties.

(a) The resulting hypermap does not depend on the choice of type at the beginning.

Sergei Chmutov Partial duality of hypermaps

slide-49
SLIDE 49

Partial duality. Properties.

(a) The resulting hypermap does not depend on the choice of type at the beginning. (b)

  • GSS = G.

Sergei Chmutov Partial duality of hypermaps

slide-50
SLIDE 50

Partial duality. Properties.

(a) The resulting hypermap does not depend on the choice of type at the beginning. (b)

  • GSS = G.

(c) There is a bijection between the cells of type S in G and the cells of the same type in GS. This bijection preserves the valency of cells. The number of cell of other types may change.

Sergei Chmutov Partial duality of hypermaps

slide-51
SLIDE 51

Partial duality. Properties.

(a) The resulting hypermap does not depend on the choice of type at the beginning. (b)

  • GSS = G.

(c) There is a bijection between the cells of type S in G and the cells of the same type in GS. This bijection preserves the valency of cells. The number of cell of other types may change. (d) Is s ∈ S but has the same type as the cells of S, then GS∪{s} =

  • GS{s}.

Sergei Chmutov Partial duality of hypermaps

slide-52
SLIDE 52

Partial duality. Properties.

(a) The resulting hypermap does not depend on the choice of type at the beginning. (b)

  • GSS = G.

(c) There is a bijection between the cells of type S in G and the cells of the same type in GS. This bijection preserves the valency of cells. The number of cell of other types may change. (d) Is s ∈ S but has the same type as the cells of S, then GS∪{s} =

  • GS{s}.

(e)

  • GSS′

= G∆(S,S′), where ∆(S, S′) := (S ∪ S′) \ (S ∩ S′) is the symmetric difference of sets.

Sergei Chmutov Partial duality of hypermaps

slide-53
SLIDE 53

Partial duality. Properties.

(a) The resulting hypermap does not depend on the choice of type at the beginning. (b)

  • GSS = G.

(c) There is a bijection between the cells of type S in G and the cells of the same type in GS. This bijection preserves the valency of cells. The number of cell of other types may change. (d) Is s ∈ S but has the same type as the cells of S, then GS∪{s} =

  • GS{s}.

(e)

  • GSS′

= G∆(S,S′), where ∆(S, S′) := (S ∪ S′) \ (S ∩ S′) is the symmetric difference of sets. (f) The partial duality preserves orientability of hypermaps.

Sergei Chmutov Partial duality of hypermaps

slide-54
SLIDE 54

Partial duality in τ-model.

  • Theorem. Consider the τ-model for a hypermap G given by the

permutations τ0(G) : (v, e, f) → (v′, e, f), τ1(G : (v, e, f) → (v, e′, f), τ2(G) : (v, e, f) → (v, e, f ′) of its local flags. Let V ′ be a subset of its vertices, τ V ′

1

be the product

  • f all transpositions in τ1 for v ∈ V ′, and τ V ′

2

be the product of all transpositions in τ2 for v ∈ V ′. Then its partial dual GV ′ is given by the permutations τ0(GV ′) = τ0, τ1(GV ′) = τ1τ V ′

1 τ V ′ 2 ,

τ2(GV ′) = τ1τ V ′

1 τ V ′ 2

. In other words the permutations τ1 and τ2 swap their transpositions of local flags around the vertices in V ′. The similar statement hold for partial duality relative to the subset of hyperedges E′ and for a subset of faces F ′.

Sergei Chmutov Partial duality of hypermaps

slide-55
SLIDE 55

Partial duality in τ-model. Example.

1 2 3 6 4 7 5 11 12 8 10 9

τ0 = (1, 11)(2, 12)(3, 10)(4, 8)(5, 9)(6, 7) τ1 = (1,2)(3,4)(5,6) (7, 9)(8, 10)(11, 12) τ2 = (1,6)(2,3)(4,5) (7, 11)(8, 9)(10, 12)

Sergei Chmutov Partial duality of hypermaps

slide-56
SLIDE 56

Partial duality in τ-model. Example.

1 2 3 6 4 7 5 11 12 8 10 9

τ0 = (1, 11)(2, 12)(3, 10)(4, 8)(5, 9)(6, 7) τ1 = (1,2)(3,4)(5,6) (7, 9)(8, 10)(11, 12) τ2 = (1,6)(2,3)(4,5) (7, 11)(8, 9)(10, 12)

8 2 4 6 12 9 1 5 3 7 11 10

τ0 = (1, 11)(2, 12)(3, 10)(4, 8)(5, 9)(6, 7) τ1 = (1,6)(2,3)(4,5) (7, 9)(8, 10)(11, 12) τ2 = (1,2)(3,4)(5,6) (7, 11)(8, 9)(10, 12)

Sergei Chmutov Partial duality of hypermaps

slide-57
SLIDE 57

Partial duality in σ-model.

  • Theorem. Let S be a subsets S := V ′ of vertices (resp. subset
  • f hyperedges S := E′ and subset of faces S := F ′) of a

hypermap G. Then its partial dual is given by the permutations GV ′ = (σV ′σ−1

V ′ , σEσV ′, σV ′σF)

GE′ = (σE′σV, σE′σ−1

E′ , σFσE′)

GF ′ = (σVσF ′, σF ′σE, σF ′σ−1

F ′ ) ,

where σV ′, σE′, σF ′ denote the permutations consisting of cycles corresponding to the elements of V ′, E′, F ′ respectively, and overline means the complementary set of cycles.

Sergei Chmutov Partial duality of hypermaps

slide-58
SLIDE 58

Partial duality in σ-model. Example.

8 1 3 5 7 12

σV = (1, 3, 5)(7, 8, 12) σE = (1, 7)(3, 12)(5, 8) σF = (1, 12)(3, 8)(5, 7)

Sergei Chmutov Partial duality of hypermaps

slide-59
SLIDE 59

Partial duality in σ-model. Example.

8 1 3 5 7 12

σV = (1, 3, 5)(7, 8, 12) σE = (1, 7)(3, 12)(5, 8) σF = (1, 12)(3, 8)(5, 7)

1 5 3 7 8 12

σV(G{v}) = σV ′σ−1

V ′ = (1, 5, 3)(7, 8, 12)

σE(G{v}) = σEσV ′ = (1, 12, 3, 8, 5, 7) σF(G{v}) = σV ′σF = (1, 12, 3, 8, 5, 7)

Sergei Chmutov Partial duality of hypermaps
