Parallelization of Scientific Applications (I) A Parallel Structured - - PowerPoint PPT Presentation

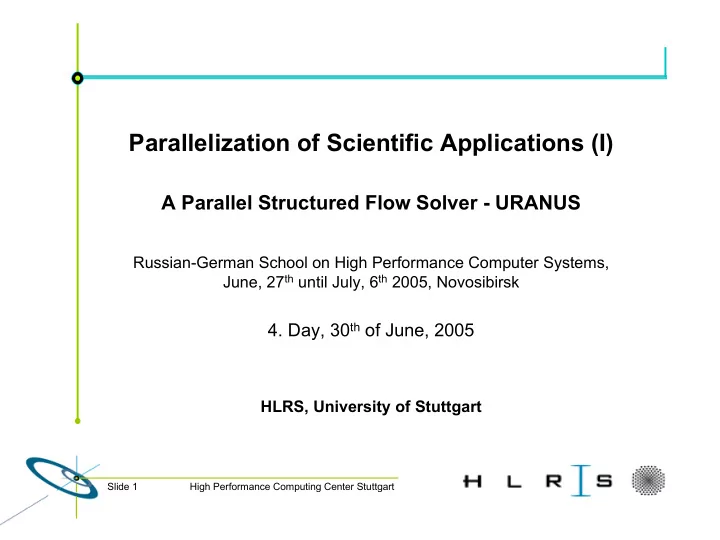

Slide 1 High Performance Computing Center Stuttgart

Parallelization of Scientific Applications (I)

A Parallel Structured Flow Solver - URANUS

Russian-German School on High Performance Computer Systems, June, 27th until July, 6th 2005, Novosibirsk

• 4. Day, 30th of June, 2005

HLRS, University of Stuttgart

Slide 2 High Performance Computing Center Stuttgart

Outline

• Introduction
• Basics
• Boundary Handling
• Example: Finite Volume Flow Simulation on Structured Meshes
• Example: Finite Element Approach on an Unstructured Mesh

Slide 3 High Performance Computing Center Stuttgart

URANUS - Overview

• Calculation of 3D reentry flows

– High mach number – High temperature – Chemistry

• Calculation of heat flow on the surface

– Full catalytic and semi catalytic surfaces

Slide 4 High Performance Computing Center Stuttgart

URANUS - Numerics

• cell-center oriented finite-volume approach for discretization of the

unsteady, compressible Navier-Stokes equations in space

• time integration accomplished by the Euler backward scheme
• the implicit equation system is solved iteratively by Newton’s

method

• two different limiters for second order accuracy
• Jacobi line relaxation method with subiterations to speedup

convergence

• special handling of the singularity in one-block c-meshes

Slide 5 High Performance Computing Center Stuttgart

Parallelization - Target

• High Application Performance
• Calculation of full configrations in 3D with chemical reactions

– Performance Issue – Memory Issue

• Calculation of complex topologies
• Using real big MPP’s

– no loss in efficiency even when using 500 Processors and more

• Using large Vector Systems

Slide 6 High Performance Computing Center Stuttgart

Re-entry Simulation - X38 (CRV)

Slide 7 High Performance Computing Center Stuttgart

Amdahls Law

• Lets assume a problem with fixed size
• The serial fraction
• The parallel fraction
• Number of processors
• Degree of parallelization
• Speedup

s

p

n

β β −   →        − −

∞ →

1 1 1 1 1 1

n

n

p s p + = β

Does parallelization pay off?

Slide 8 High Performance Computing Center Stuttgart

Amdahls Law for 1 - 64 processors

10 20 30 40 50 60 0.8 0.82 0.84 0.86 0.88 0.9 0.92 0.94 0.96 0.98 1 4 64 32 16 8

Slide 9 High Performance Computing Center Stuttgart

Problem with Amdahls Law

• der Schluss is obviously correct
• But it does not taggle an important precondition
• Problem size is considered to be constant
• But this is typically not true for all kind of simulations
• Computers are always too small
• The problem size shall grow, if ever possibel

Slide 10 High Performance Computing Center Stuttgart

Gustafsons Law

• Lets assume a problem of growing size
• Number of Processors
• Constant serial fraction
• The parallel fraction scales
• linearer Speedup

s

n

n p n p

1

) ( =

n p s p p s s p s n p s n n p s n p s

1 1 1 1 1

) ( ) ( + + + = + + = + +

Parallelization may pay off

Slide 11 High Performance Computing Center Stuttgart

Parallelization of CFD Applications - Principles

Slide 12 High Performance Computing Center Stuttgart

A Problem (I) Flow around a cylinder: Numerical Simulation using FV, FE or FD Data Structure: A(1:n,1:m) Solve: (A+B+C)x=b

Movie: Lutz Tobiska, University of Magdeburg http://david.math.uni-magdeburg.de/home/john/cylinder.html

Slide 13 High Performance Computing Center Stuttgart

Parallelization strategies

Flow around a cylinder: Numerical Simulation using FV, FE or FD Data Structure: A(1:n,1:m) Solve: (A+B+C)x=b

Work decomposition Domain decomposition

A(1:20,1:50) A(1:20,51:100) A(1:20,101:150) A(1:20,151:200)

Data decomposition Scaling ?

Scales too much communication ? Good Chance

do i=1,100 i=1,25 i=26,50 i=51,75 i=76,100

Slide 14 High Performance Computing Center Stuttgart

Parallelization Problems

• Decomposition (Domain, Data, Work)
• Communication

du dx u u dx

i i

/ ( ) / = −

+ − 1 1

ui-1 ui+1

Slide 15 High Performance Computing Center Stuttgart

Concepts - Message Passing (II)

User defined communication

Slide 16 High Performance Computing Center Stuttgart

How to split the Domain in the Dimensions (I)

1 - Dimensional 2 (and 3) - Dimensional

Slide 17 High Performance Computing Center Stuttgart

How to split the Domain in the Dimensions (II)

• That depends on:

– computational speed i.e. processor: vectorprocessor or cache – communication speed:

• latency
• bandwidth
• topology

– number of subdomains needed – load distribution (is the effort for every mesh cell equal)

Slide 18 High Performance Computing Center Stuttgart

Replication versus Communication (I)

• If we need a value from a neighbour we have basically two
• pportunities

– getting the necessary value directly from the neighbour, when needed Communication, Additional Synchronisation – calculating the value of the neighbour again locally from values known there Additional Calculation

• Selection depends on the application

Slide 19 High Performance Computing Center Stuttgart

Replication versus Communication (II)

• Normally replicate the values

– Consider how many calculations you can execute while only sending 1 Bit from one process to another (6 µs, 1.0 Gflop/s 6000 operations) – Sending 16 kByte (20x20x5) doubles (with 300 MB/s bandwidth 53.3 µs 53 300 operations) – very often blocks have to wait for their neighbours – but extra work limits parallel efficiency

• Communication should only be used if one is quite sure that this is

the best solution

Slide 20 High Performance Computing Center Stuttgart

2- Dimensional DD with two Halo Cells

Mesh Partitioning Subdomain for each Process

Slide 21 High Performance Computing Center Stuttgart

Back to URANUS

Slide 22 High Performance Computing Center Stuttgart

Analysis of the Sequentiell Program

• Written in FORTRAN77
• Using structured meshes
• Parts of the program

– Preprocessing, reading Data – Main Loop

• Setup of the equation system
• Preconditioning
• Solving step

– Postprocessing, writing Data

Slide 23 High Performance Computing Center Stuttgart

Deciding for the Data Model

• We will use Domain Decomposition

– The domain is split into subdomians – large topologies and large number of subdomains necessary 3D – Domain Decomposition

• Each cell has in maximum 6 neighbors

– Now 2 boundary types:

• Physical boundary – Subdomain boundary is domain

boundary

• Inner boundary – Subdomain boundary is boundary to another

subdomain

– Data exchange between subdomains necessary communication

Slide 24 High Performance Computing Center Stuttgart

Data Distribution

• Domain is splitted by a simple algorithm

– Make subdomains equal sized minor load balancing issue

• Each subdomain is calculated by its own process (on its own

processor)

• Data needs to be distributed before calculating

– One process reads all data – Data are then distributed to all the other processes

• Bottleneck
• Sequential part

– Parallel read would have been better, but MPI-I/O was not available that time

Slide 25 High Performance Computing Center Stuttgart

Dynamic Data Structures

• Pure FORTRAN77 is too static

– number of processors can vary from run to run size of arrays even within the same case can vary – dynamic data structurs

• use Fortran90 dynamic arrays
• use all local memory on a PE for a huge FORTARN77

array and setup your own memory management

• second method has a problem on SMP’s and cc-

NUMA’s we should only use as much memory as necessary

Slide 26 High Performance Computing Center Stuttgart

Inauguration of the Dynamic Data Structure

• FORTRAN77

common /geo/ x(0:n1m,0:n2m,0:n3m), y(0:n1m,0:n2m,0:n3m), z ...

• Fortran90

– Direct usage of dynamic arrays not possible common block – Usage of Fortran90 pointers common /geo/ x, y, z ... real, pointer :: x(:,:,:) real, pointer :: y(:,:,:) – Allocation and Deallocation in the main program necessary

Slide 27 High Performance Computing Center Stuttgart

Hints for (Dynamic) Data Structure

• Do not use global data structures

– All data in a subroutine should be local – Data should be moved to the subroutine during the call – Better maintainability of the program

• This was done by a total reengineering of the URANUS code in a

later step

Slide 28 High Performance Computing Center Stuttgart

Main Loop (I)

• Setup of the equation system

– each cell has 6 neighbours – needs data from neighbour cells – 2 halo cells at the inner boundaries – Special part for handling physical boundaries

Slide 29 High Performance Computing Center Stuttgart

Numbering of the cells in the subdomains

Slide 30 High Performance Computing Center Stuttgart

Routine for data exchange (I)

subroutine dqchange(dq) c------------------------------------------------------------------------------ c c Unterprogramm fuer den Randaustausch von dq an allen 6 Raendern, c Austauschtiefe +-1 c c------------------------------------------------------------------------------ implicit none real dq(0:n1+1,0:n2+1,0:n3+1,nc) integer sendhandle(6), recvhandle(6) real, dimension (:), pointer :: sendbuf1, sendbuf2, recvbuf1, recvbuf2, . sendbuf3, sendbuf4, recvbuf3, recvbuf4, . sendbuf5, sendbuf6, recvbuf5, recvbuf6 integer, dimension (MPI_STATUS_SIZE,6) :: sendstatusarray integer, dimension (MPI_STATUS_SIZE) :: status integer :: uranus_packed

Slide 31 High Performance Computing Center Stuttgart

Routine for data exchange (II)

#ifdef TRACE write (6,*) mytid, ': subroutine dqchange' #endif c...Asynchrones Empfangen der dq der Nachbarprozessoren if (sio.eq.0) then iu = n1+1 io = n1+1 ju = dmju jo = dmjo ku = dmku ko = dmko call prepare_receive(dq, 0, n1+1, 0, n2+1, 0, n3+1, nc, REALx, & iu, io, ju, jo, ku, ko, epio, buffer, count2, uranus_packed) recvbuf2 => buffer call MPI_IRECV(recvbuf2, count2, uranus_packed, tid_io, 10001, MPI_COMM_WORLD, & recvhandle(1), info) else recvhandle(1) = MPI_REQUEST_NULL endif

Slide 32 High Performance Computing Center Stuttgart

Routine for data exchange (III)

if (siu.eq.0) then iu = 0 io = 0 ju = dmju jo = dmjo ku = dmku ko = dmko call prepare_receive(dq, 0, n1+1, 0, n2+1, 0, n3+1, nc, REALx, & iu, io, ju, jo, ku, ko, epiu, buffer, count1, uranus_packed) recvbuf1 => buffer call MPI_IRECV(recvbuf1, count1, uranus_packed, tid_iu, 10001, MPI_COMM_WORLD, & recvhandle(2), info) else recvhandle(2) = MPI_REQUEST_NULL endif

Slide 33 High Performance Computing Center Stuttgart

Routine for data exchange (IV)

c...Asynchrones Senden der dq an die Nachbarprozessoren if (siu.eq.0) then iu = 1 io = 1 ju = dmju jo = dmjo ku = dmku ko = dmko call uranus_pack(dq, 0, n1+1, 0, n2+1, 0, n3+1, nc, REALx, & iu, io, ju, jo, ku, ko, epiu, buffer, count1, uranus_packed) sendbuf1 => buffer call MPI_ISEND(sendbuf1, count1, uranus_packed, tid_iu, 10001, & MPI_COMM_WORLD, sendhandle(1), info) else sendhandle(1) = MPI_REQUEST_NULL endif

Slide 34 High Performance Computing Center Stuttgart

Routine for data exchange (V)

do 300 ni = 1, 6 call MPI_WAITANY(6, recvhandle, handnum, status, info) if (handnum .eq. 1) then iu = n1+1 io = n1+1 ju = dmju jo = dmjo ku = dmku ko = dmko buffer => recvbuf2 call uranus_unpack(dq, 0, n1+1, 0, n2+1, 0, n3+1, nc, REALx, & iu, io, ju, jo, ku, ko, epio, buffer, count2, uranus_packed) call uranus_buffer_release else if (handnum .eq. 2) then

Slide 35 High Performance Computing Center Stuttgart

Routine for data exchange (VI)

else if (handnum .eq. MPI_UNDEFINED) then c case (MPI_UNDEFINED) goto 400 endif 300 continue 400 continue call MPI_WAITALL(6, sendhandle, sendstatusarray, info) buffer => sendbuf1 call uranus_buffer_release ... return end

Slide 36 High Performance Computing Center Stuttgart

Changes in the loops

do 100 k = 0, n3+1 do 100 j = 0, n2+1 do 100 i = 0, n1+1 vdt(i,j,k) = damax(i,j,k) . * ( sqrt( u(i,j,k) * u(i,j,k) . + v(i,j,k) * v(i,j,k) . + w(i,j,k) * w(i,j,k)) + c(i,j,k) ) / cfl 100 continue do 100 k = dmku, dmko do 100 j = dmju, dmjo do 100 i = dmiu, dmio vdt(i,j,k) = damax(i,j,k) . * ( sqrt( u(i,j,k) * u(i,j,k) . + v(i,j,k) * v(i,j,k) . + w(i,j,k) * w(i,j,k)) + c(i,j,k) ) / cfl 100 continue

Slide 37 High Performance Computing Center Stuttgart

Changes for boundary handling

• Boundary handling, only if there is a physical boundary

if (rand_inflow) then do 100 n = 1, nc do 100 k = dmku, dmko do 100 j = dmju, dmjo rhs(0,j,k,n) = - ( q(0,j,k,n) - qzu(n) ) 100 continue endif

Slide 38 High Performance Computing Center Stuttgart

Main Loop (II)

• Preconditioning

– no neighbor information needed at all – completely done locally – Each proces calls the preconditioner with its local subdomain

Slide 39 High Performance Computing Center Stuttgart

Main Loop (III) - Solver

• Sequential:

r A u r u A r r r r

1 −

= =

– Jacobi Line relaxation with subiterations

• Parallelization problems:

– Matrix A is distributed – Matrix inversion is a priori not parallelizable

• Gauss Elamination is recursive

Slide 40 High Performance Computing Center Stuttgart

Heptadiagonalmatrix

                                    D X

X X X D X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X X D X X X X D X X X X D

Slide 41 High Performance Computing Center Stuttgart

Parallelization - Solver

        − = − = − = = + + = =

− − − ) 1 ( 1 ) ( ) 1 ( ) (

) (

j j j j

u M r L u u M r u L u M r u L r u M L M L A r u A r r r r r r r r r r r r r

Slide 42 High Performance Computing Center Stuttgart

Parallelization - Solver (III)

= A

L M +

= A

                                     

12 12 11 11 11 10 10 10 9 9 8 8 7 7 7 6 6 6 5 5 4 4 3 3 3 2 2 2 1 1

m l u m l u m l u m m l u m l u m l u m m l u m l u m l u m

+

                                     

9 8 5 4

l u l u

Slide 43 High Performance Computing Center Stuttgart

A Real Heptadiagonalmatrix

34 35 36 31 32 33 28 29 30 25 26 27 22 23 24 19 20 21 16 17 18 13 14 15 10 11 12 7 8 9 4 5 6 1 2 3

D X X X X D X X X X D X X X D X X X X X D X X X X X D X X X D X X X X X D X X X X X D X X X D X X X X D X X X X D X X D X X X X X D X X X X X D X X X X D X X X X X X D X X X X X X D X X X X D X X X X X X D X X X X X X D X X X X D X X X X X D X X X X X D X X D X X X X D X X X X D X X X D X X X X X D X X X X X D X X X D X X X X X D X X X X X D X X X D X X X X D X X X X D

                                   

1 2 1 1 2 2

Slide 44 High Performance Computing Center Stuttgart

Difference between strong / weak coupling

• Solver with weak coupling

– Extra computational effort due to additional solving step (but no factorization) – Additional update of right hand side – Two times communication

• one after each solving step
• Solver with stronger coupling

– Jacobi line relaxation method with subiterations – collapse iterations from line relaxation and parallelzation – no additional iterations – much more communication

Slide 45 High Performance Computing Center Stuttgart

Comparison of Solvers - Convergence

L2 - Residual

Solver 1 — Solver 2 —

Iterations

Slide 46 High Performance Computing Center Stuttgart

Comparison of Solvers - Performance

T i m e i n S e c

• n

d s

strong Ethernet weak Ethernet weak HPS strong HPS

Number of Processors

Slide 47 High Performance Computing Center Stuttgart

Results - Solving Method

• the presented solver with weak coupling works fine for this CFD

problems

• Solutions differ in the scale of one percent
• convergence rate is nearly equal to the sequential program

Slide 48 High Performance Computing Center Stuttgart

Domain Decomposition

Slide 49 High Performance Computing Center Stuttgart

Computation Time on Cray T3E

T i m e i n S e c

• n

d s Number of Processors

Slide 50 High Performance Computing Center Stuttgart

Speedup on Cray T3E

Number of Processors Speedup

Problemsize 110592 Problemsize 55296 Problemsize 27648

Slide 51 High Performance Computing Center Stuttgart

Scaleup on Cray T3E

Scaleup Number of Processors

Slide 52 High Performance Computing Center Stuttgart

Results - Properties of the Parallel Program

• very flexible

– no recompilation necessary when changing problemsize and process number

• runs on workstation clusters and on supercomputers
• large problems can be computed
• there is no change in program handling

Slide 53 High Performance Computing Center Stuttgart

Portability of Parallel Code

• Application should run on every platform with Fortran 90 and MPI

available

• tested platforms

– Cray T3D, Cray T3E – Hitachi SR2201, Hitachi SR8000 – IBM RS/6000 SP, IBM p690 (Regatta) – Intel Paragon – NEC SX-4, NEC SX-5, NEC SX-6, NEC SX-8 – SGI Origin2000 – Intel IA-64 – Intel IA-32, AMD Opteron

Slide 54 High Performance Computing Center Stuttgart

Computed Solution and Visualization

Slide 55 High Performance Computing Center Stuttgart

Computed Solution and Visualization X-38

Slide 56 High Performance Computing Center Stuttgart

Conclusions

• parallelization of a 3D flow solver
• parallel program is portable and flexible
• no loss in convergence speed due to the parallelization
• speedup is normal for a flow solvers
• scaleup is very good

Slide 57 High Performance Computing Center Stuttgart

Metacomputing

Slide 58 High Performance Computing Center Stuttgart

Metacomputer Setup

Slide 59 High Performance Computing Center Stuttgart

Metacomputer Setup: Network

Slide 60 High Performance Computing Center Stuttgart

Metacomputer Setup: Network Performance

Connection Distance Latency Bandwidth HLRS-CSAR 594 miles 20 ms 10 MBits/s PSC-CSAR 3594 miles 60 ms 1 MBit/s PSC-HLRS 4181 miles 80 ms 4 MBit/s HLRS-ETL 5870 miles 300-500 ms 1-2 MBit/s

Slide 61 High Performance Computing Center Stuttgart

Metacomputing Setup: Computers

• Hitachi SR8000 at TACC/Japan, 512 CPU/64nodes
• Cray T3E-900 at PSC/U.S.A., 512 CPU
• Cray T3E-1200 at CSAR/U.K., 576 CPU
• Cray T3E-900 at HLRS/Germany, 512 CPU

==> Total Performance of more than 2 TFlops/s

Slide 62 High Performance Computing Center Stuttgart

X-38 Calculated Solution

• Mach 6
• Angle of attack 40°
• 888 832 control volumes
• 600 iterations
• Cray T3E: 101 minutes on

128 processors

• Metacomputing:
• 3.6 Million cell mesh
• 1536 processors
• 3 T3E‘s

Slide 63 High Performance Computing Center Stuttgart

Migrating from a parallel single block to a parallel multiblock flow solver

Slide 64 High Performance Computing Center Stuttgart

Outline

• Introduction to parallel URANUS
• Why using Multiblock meshes
• Extending URANUS to use Multiblock meshes
• Results
• Outlook

Slide 65 High Performance Computing Center Stuttgart

Sequential 2D/3D URANUS (Non Equilibrium Flows)

• Cell-center oriented finite volume approach
• solving the unsteady, compressible Navier-Stokes equations
• the implicit equation system is solved iteratively by Newton’s

method

• two different limiters for second order accuracy
• CVCV multiple temperature gas phase model
• Chapman-Cowling transport coefficients models
• Gaskinetic gas-surface model with different catalysis models
• PARADE/HERTA gas-radiation coupling

Slide 66 High Performance Computing Center Stuttgart

Parallelization

• domain decomposition

– with two halo cells at the subdomain boundaries

• dynamic data structures using Fortran90
• special solver
• execution model SPMD
• message-passing with MPI
• still working only on C-meshes

Slide 67 High Performance Computing Center Stuttgart

Why Using Multiblock Meshes

• There are topologies which cannot be meshed or which are hard to

mesh with a C-mesh

• Singularity and sometimes heavily distorted mesh cells are limiting

the convergence rate

• using unstructured meshes would result in rewriting the code
• to obtain performance on current Supercomputers is easier with

structured meshes

• using multiblock meshes:

– meshing of complex topologies is possible – structured blocks – Performance easier to obtain

Slide 68 High Performance Computing Center Stuttgart

A Multiblock Mesh for X-38 (I)

Slide 69 High Performance Computing Center Stuttgart

A Multiblock Mesh for X-38 (II)

Slide 70 High Performance Computing Center Stuttgart

Characteristics of Multiblock Meshes

• Each block may have a local coordinate system which is different

from that of its neighbours

• A block may have one, two or more neighbours on one block side
• Physical boundaries may occur on each blockside
• Blocks have generally different sizes

the program must be able to handle all this

Slide 71 High Performance Computing Center Stuttgart

Extensions Necessary to Handle Multiblock Meshes

• Handling of block internal orientation
• Handling of more complex neighbour dependencies
• Handling of physical boundaries at each block side
• Load balancing
• handling of multiple blocks on one processor
• automatic block splitting
• using of a load balancer for block distribution

Slide 72 High Performance Computing Center Stuttgart

Axis Orientation: Different Local Coordiante Systems

• Reason:
• Solution: Changing storage order according to the difference during

the communication (Currently sender side)

ξ η ξ η ξ η ξ η ξ η

Slide 73 High Performance Computing Center Stuttgart

Neighbour Dependencies - Occurence

• A block may have more than one neighbour at one blockside

Slide 74 High Performance Computing Center Stuttgart

Neighbour Dependencies - Handling

• Up to now only one neighbour block at each side
• How to handle several neighbours at each block side:
• Replacement of the whole communication structure
• New data structure to store all communication specific parameters

like: – Host process of the neighbouring block – orientation of the neighbour – side identifier of the neighbouring side this (part of the) side is connected to – specification of the side (cell subscription) at the block side

• Extension of communication routines

Slide 75 High Performance Computing Center Stuttgart

Physical Boundaries

• C-mesh:

– a specific physical boundary type is bound to a specific block side

• physical boundaries in multiblock meshes can occur on all of the

block sides: Block 2 Block 1 Body

Slide 76 High Performance Computing Center Stuttgart

Efficient Calculation of Boundaries (I)

• Special data structure for each boundary type:

– location of each boundary – subtype of the boundary

• Only one code segment for boundary handling

– no doubling of code for each side

• one code to update and maintain
• no cut and paste bugs
• No branches

– chance of performance improvement

Slide 77 High Performance Computing Center Stuttgart

Efficient Calculation of Boundaries (II)

do m = 0, aktblock%inflowvek(1)-1 do n = 1, nc do k = aktblock%inflowvek(m*17+14), aktblock%inflowvek(m*17+15), . aktblock%inflowvek(m*17+17) do j = aktblock%inflowvek(m*17+9), aktblock%inflowvek(m*17+10), . aktblock%inflowvek(m*17+12) do i = aktblock%inflowvek(m*17+4), aktblock%inflowvek(m*17+5), . aktblock%inflowvek(m*17+7) rhs(i,j,k,n) = - ( q(i,j,k,n) - qzu(n) ) end do end do end do end do

Slide 78 High Performance Computing Center Stuttgart

Load Balancing

• Target: Efficient use of Massively Parallel Processors
• Blocks have different size
• Block number is generally different from number of used processors
• Initial load balancing is necessary
• Problems to solve:

– There are blocks which are too large to be calculated efficiently

• nto one processor

– Block splitting necessary – There are blocks which are too small to be calculated alone

• nto one processor

– Process should be able to calculate more than one block at a time

Slide 79 High Performance Computing Center Stuttgart

Extensions for block handling

• Different block numbers on a process

– Extension of the subroutines and algorithms

• r block loops around subroutines

– Communication between blocks on one process is done using MPI – Extension of the communication structure, so that each incoming message reaches its block

• Blocks on a process may have different size

– how shall we store them

Slide 80 High Performance Computing Center Stuttgart

New Data Structure

• New dynamic data structure

– dynamic linked list of blocks – a block may contain different meshes having different resolutions (prepared for multigrid methods and adaptive mesh refinement) – all information regarding a block is stored in its data structure e.g.: neighbours, physical boundaries, the local jacobian matrix, message handles, ... the result vector and the geometry information is bound to the mesh – number of blocks per process only limited by the available memory

Slide 81 High Performance Computing Center Stuttgart

Block Splitting

• Blocks which are too large for one process are automatically split:

– with a side proportion of 2:1:1 –

• nly powers of two and three as side divider
• Update information for data transmission between new neighbours is

handled by the program (even left case can be handled)

Slide 82 High Performance Computing Center Stuttgart

Load Balancing Step

• Using (parallel) jostle to distribute the obtained blocks to the

available processors

• Generating a graph out of the block distribution with:

– nodes representing the blocks – node weight representing the block size (computational effort) – edges representing the neighbour dependencies between blocks

• block redistribution according to jostle’s suggestion

Slide 83 High Performance Computing Center Stuttgart

Example Block Distribution (I)

• X-38 mesh:

– 6 blocks – 68712 cells – largest: 32256 – smallest: 1176

Slide 84 High Performance Computing Center Stuttgart

Example Block Distribution (II)

• Same mesh with blocks cut

automatically: – 9 procs – 11 blocks

Slide 85 High Performance Computing Center Stuttgart

Example Block Distribution (III)

• Blocks distrubuted to

the processors: – largest 8064 – smallest 6048 – load imbalance: 18 %

Slide 86 High Performance Computing Center Stuttgart

Results

• Solution

(X-38 NG) – mach 19.8 – angle of attack 40°

Slide 87 High Performance Computing Center Stuttgart

Results Speedup Speedup Processors

Slide 88 High Performance Computing Center Stuttgart

Results Parallelization

• The block handling is in principle totally decoupled from the

calculation for the simulation

• In principle the whole block handling can be used to parallelize

every sequential program which uses structured (multiblock) meshes

• In some cases, even the solver can be adapted or directly be used
• Due to advanced data structure many cases where it should fit

(adaptive mesh refinement, multigrid approaches, load balancing)

• All this comes for free

Slide 89 High Performance Computing Center Stuttgart

Summary: Parallel 3D-Multiblock URANUS

• Portable data parallel simulation program

– Fortran90 (dynamic data structures) – message passing using MPI

• Domain decomposition based on structured multiblock meshes
• Different index directions within blocks
• Physical and inner boundaries on all block sides
• Different neighbour numbers on each block side possible
• Handling of different block sizes (automatic initial block distribution)
• Blocks not fitting on one process (load imbalance) are split

automatically

• Number of blocks on each process only limited by memory
