P RINCIPLED K ERNEL P REDICTION FOR S PATIALLY V ARYING BSSRDF S Oskar Elek and Jaroslav K ivnek This project has received funding from the European Unions Horizon 2020 research and innovation programme under the Charles University, Prague

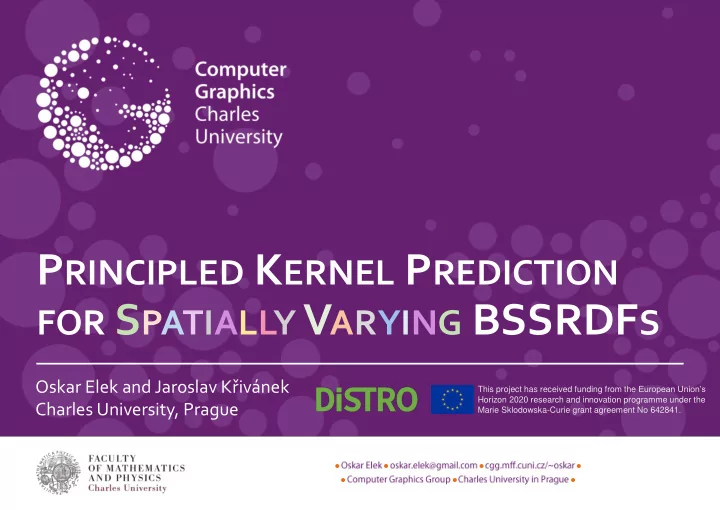

slide-1
SLIDE 1

      

PRINCIPLED KERNEL PREDICTION

FOR SPATIALLY VARYING BSSRDFS

Oskar Elek and Jaroslav Křivánek Charles University, Prague

This project has received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement No 642841.

slide-2
SLIDE 2

Topic

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

Prediction of spatially varying BSSRDF kernels from optical parameters

Scattering albedo texture (here 2.5D) Local approaches Parameter aggregation Ours Path tracing reference

2

slide-3
SLIDE 3

Topic

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

Not tackling SV-BSSRDF acquisition / compression / editing

[Peers et al. @ SIGGRAPH 2006] [Song et al. @ SIGGRAPH 2009]

3

slide-4
SLIDE 4

BSSRDF and SV-BSSRDF

Uses and challenges

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

slide-5
SLIDE 5

BSSRDF: Background

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

𝑇 𝒚𝑗, 𝒚𝑓 = “scattering kernel”

Statistical estimate of point-to-point volumetric light transport

5

slide-6
SLIDE 6

BSSRDF: Background

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

[Donner et al. @ SIGGRAPH 2005] [Frisvad et al. @ ACM ToG 2014] [Jensen et al. @ SIGGRAPH 2001]

Great for (quasi-)homogeneous materials with well localized light transport…

6

slide-7
SLIDE 7

BSSRDF: Background

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

[Elek, Sumin et al. @ SIGGRAPH Asia 2017]

…but not so great when the transport scale exceeds the feature scale

7

slide-8
SLIDE 8

SV-BSSRDF: Kernel Shape

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

Albedo Albedo Point response (“kernel”) Point response (“kernel”)

8

slide-9
SLIDE 9

SV-BSSRDF: Kernel Shape

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

Albedo Albedo Point response (“kernel”) Point response (“kernel”)

9

slide-10
SLIDE 10

SV-BSSRDF: Kernel Shape

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

Two key ideas:

  • 1. Data-driven parameter aggregation
  • 2. Decomposition of transport into local and global

𝑔

𝐻

𝑔

𝑀

𝑔

𝑀

Albedo Point response (“kernel”)

10

slide-11
SLIDE 11

Methodology

Step-by-step walkthrough

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

slide-12
SLIDE 12

Method Outline

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

Preprocessing:

i.

Derive a basis (homogeneous) BSSRDF

ii.

For each (𝒚𝑗, 𝒚𝑓) estimate the transport path distribution connecting them

iii.

Fit a generic parametric model to the distribution (e.g. Gaussian mixture) Runtime:

1)

Use standard MC to select 𝒚𝑓

2)

For given (𝒚𝑗, 𝒚𝑓) aggregate the material properties using the kernel from iii.

3)

Separate the transport kernel into the local and global components

4)

Use point-evaluated properties to compute the local components

5)

Use the aggregate properties from 3) to compute the global component

12

slide-13
SLIDE 13

Method Outline

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

𝑇 ≅ 𝐵𝑗 ∙ 𝑓−𝑠∙𝐶𝑗

𝑗

BSSRDF kernel:

Also see [Christensen and Burley @ SIGGRAPH Talks 2015] normalized radial distance different albedos

0 MFP 10 MFP

Preprocessing:

i.

Derive a basis (homogeneous) BSSRDF

ii.

For each (𝒚𝑗, 𝒚𝑓) estimate the transport path distribution connecting them

iii.

Fit a generic parametric model to the distribution (e.g. Gaussian mixture) Runtime:

1)

Use standard MC to select 𝒚𝑓

2)

For given (𝒚𝑗, 𝒚𝑓) aggregate the material properties using the kernel from iii.

3)

Separate the transport kernel into the local and global components

4)

Use point-evaluated properties to compute the local components

5)

Use the aggregate properties from 3) to compute the global component

13

slide-14
SLIDE 14

Method Outline

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

Distribution of unweighted sub-surface paths Line: [d’Eon and Irving @ SIGGRAPH 2011] Ellipse: [Sone et al. @ EG Shorts 2017]

Preprocessing:

i.

Derive a basis (homogeneous) BSSRDF

ii.

For each (𝒚𝑗, 𝒚𝑓) estimate the transport path distribution connecting them

iii.

Fit a generic parametric model to the distribution (e.g. Gaussian mixture) Runtime:

1)

Use standard MC to select 𝒚𝑓

2)

For given (𝒚𝑗, 𝒚𝑓) aggregate the material properties using the kernel from iii.

3)

Separate the transport kernel into the local and global components

4)

Use point-evaluated properties to compute the local components

5)

Use the aggregate properties from 3) to compute the global component

14

slide-15
SLIDE 15

Method Outline

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

𝐿 = 𝑙𝐻

Aggregation kernel:

𝛽𝑢 = 𝐿(𝒚)

‘Transport’ albedo:

Preprocessing:

i.

Derive a basis (homogeneous) BSSRDF

ii.

For each (𝒚𝑗, 𝒚𝑓) estimate the transport path distribution connecting them

iii.

Fit a generic parametric model to the distribution (e.g. Gaussian mixture) Runtime:

1)

Use standard MC to select 𝒚𝑓

2)

For given (𝒚𝑗, 𝒚𝑓) aggregate the material properties using the kernel from iii.

3)

Separate the transport kernel into the local and global components

4)

Use point-evaluated properties to compute the local components

5)

Use the aggregate properties from 3) to compute the global component

15

slide-16
SLIDE 16

Method Outline

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

𝑔

𝐻

𝑔

𝑀

𝑔

𝑀

𝑇𝑊 = 𝑔

𝑀(𝒚𝑗) ∙ 𝑔 𝐻(𝒚𝑗, 𝒚𝑓) ∙ 𝑔 𝑀(𝒚𝑓)

= 𝛽𝑗 𝛽𝑢 ∙ 𝑇(𝛽𝑢) ∙ 𝛽𝑓 𝛽𝑢 𝑇𝑊 = 𝑇(𝛽𝑗) ∙ 𝑇(𝛽𝑓)

Factorization:

[Song et al. @ SIGGRAPH 2009]

𝑇𝑊 = 𝑇(𝛽𝑢)

[Sone et al. @ EG Shorts 2017]

Aggregation:

Preprocessing:

i.

Derive a basis (homogeneous) BSSRDF

ii.

For each (𝒚𝑗, 𝒚𝑓) estimate the transport path distribution connecting them

iii.

Fit a generic parametric model to the distribution (e.g. Gaussian mixture) Runtime:

1)

Use standard MC to select 𝒚𝑓

2)

For given (𝒚𝑗, 𝒚𝑓) aggregate the material properties using the kernel from iii.

3)

Separate the transport kernel into the local and global components

4)

Use point-evaluated properties to compute the local components

5)

Use the aggregate properties from 2) to compute the global component

16

slide-17
SLIDE 17

Evaluation

Overall quality and detail preservation

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

slide-18
SLIDE 18

Evaluation: Simple Structures

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

18

slide-19
SLIDE 19

Evaluation: Complex Structures

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

19

slide-20
SLIDE 20

Evaluation: Color Features

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

20

slide-21
SLIDE 21

Evaluation: Feature Preservation

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

21

slide-22
SLIDE 22

Discussion

What follows?

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

slide-23
SLIDE 23

Future Work

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

  • Principled aggregation kernel
  • Currently only a manual fit

23

slide-24
SLIDE 24

Future Work

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

  • Principled aggregation kernel
  • Spatial variation of all material parameters
  • Currently only scattering albedo

24

[Hasan et al. @ SIGGRAPH 2010]

slide-25
SLIDE 25

𝑔

𝐻

𝑔

𝑀

𝑔

𝑀

𝑇𝑊 = 𝑔

𝑀(𝒚𝑗) ∙ 𝑔 𝐻(𝒚𝑗, 𝒚𝑓) ∙ 𝑔 𝑀(𝒚𝑓)

Future Work

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

  • Principled aggregation kernel
  • Spatial variation of all material parameters
  • Importance sampling
  • Currently only uniform sampling of incident illumination

25

slide-26
SLIDE 26

Future Work

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

  • Principled aggregation kernel
  • Spatial variation of all material parameters
  • Importance sampling
  • General 3D geometry and parameter distributions
  • Current solution limited to 2.5D objects

[Frisvad et al. @ ACM ToG 2014]

26

slide-27
SLIDE 27

      

PRINCIPLED KERNEL PREDICTION

FOR SPATIALLY VARYING BSSRDFS

Oskar Elek and Jaroslav Křivánek Charles University, Prague

This project has received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement No 642841.

slide-28
SLIDE 28

Extra Slides

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

slide-29
SLIDE 29

Basis BSSRDF

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

29

slide-30
SLIDE 30

Full Results

OSKAR ELEK AND JAROSLAV KRIVANEK: PRINCIPLED KERNEL PREDICTION FOR SPATIALLY VARYING BSSRDFS

30
