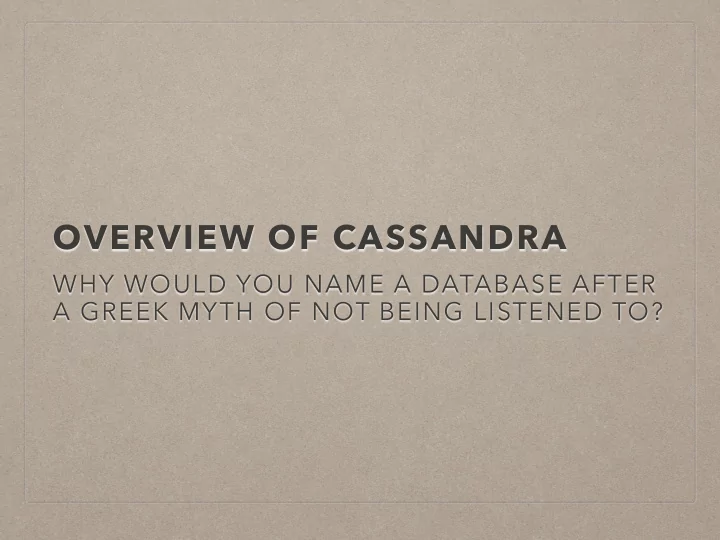

OVERVIEW OF CASSANDRA

WHY WOULD YOU NAME A DATABASE AFTER A GREEK MYTH OF NOT BEING LISTENED TO?

AGENDA

• Bio
• Basic C* Data Model
• Replication vs.

Quorum

• Failure Recovery
• AWS Implications
• Monitoring
• Version issues and

tombstoning

• Maintenance Tasks
• The Dark Side

QUICK BIO

• Programming since 1981
• Four patents
• 2010 JavaOne Rock Star and Duke’s Choice winner
• Frequent contributor to Pragmatic Programmer

magazine, SearchAws.com and LinkinPulse News

• briantarbox.org, log4jfugue.org,

BrianTarbox@gmail.com

C* DATA MODEL; COMPARISON

• “When all you have is a hammer, everything looks

like a thumb.” - Morgan

• Relational (tabular) model: Postgresql
• Relationship (graph) model: Neo4J
• Document model: Mongo
• Time-series model : C*

THE REAL DIFFERENCE BETWEEN SQL AND “NO-SQL”

• In SQL we’re trained to design based on storing

the data, ideally in 3rd Normal form. Queries are bolted on later.

• In no-SQL we design based on the queries we’ll
• perform. “Table” structure falls out of that.
• Queries should get top billing b/c if you just store

the data who cares?

C* DATA MODEL, EXAMPLE

• Wide rows; wide columns, heterogeneous

columns

• For example, a row per stock, with each column

being all we know about that stock for that day.

• Designed to be easy to “select” a row and then

read thousands of columns sequentially

• Not designed to randomly select specific columns

CQL, SLICE PREDICATES

• In postgres you might say “select * from stock

where ticker=“IBM” and price > 100”

• You simply can not do that with C*
• SQL uses indexes to speed up access to rows;

indexes are very problematic in C*

• Often the C* answer is denormalization

SLICE PREDICATES

• Columns have names (e.g. “date”, but columns can

also contain many (hundreds) of values.

• Slice predicates let you specify which columns to

select

CLIQUE, INC.: C* ANTIPATTERN

• My last company folded, but not before providing

a C* anti pattern

• Collaboration software; many ad-hoc queries

(who’s in what context, where was “x” said, etc)

• We ended up with 14 copies of the main data,

each in its own column-family.

• Bad Dog.

REPLICATION VS. READ/WRITE LEVEL

• Replication refers to how many distinct copies of

the data there are

• Read/Write Level refers to how many of the

replicas must respond/agree before proceeding

THE WRITE PATH

• Client picks C* node at random, it becomes the

Coordinator, etc. (diagram), send to replica # of nodes, wait til ’n’ respond before returning

THE READ PATH

• diagram (coordinator, send to all nodes with data,

wait for ’n’ to respond)

• Read Repair

FAILURE RECOVERY - WHERE C* REALLY SHINES

• What happens when a node fails?
• How many nodes can fail w/o data loss depends
• n # nodes and #replicas
• Auto-recovery vs. backup and restore
• With the usual caveats… C* recovery “just works”

RUNNING C* ON AWS

• Scale out not up
• More spindles is better
• Log dir vs. data dir
• Selecting the right instance type
• You must run with NTP (not an AWS standard)

CONFIGURATION

• The main C* config file is 700 lines long
• You really need to deeply understand most of it.
• cluster_name, listen_address, commitlog_directory,

endpoint_snitch, seed_provider,

compaction_throughput_mb_per_sec, concurrent_reads, snapshot_before_compaction, phi_convict_threshold, commitlog_sync, partitioner, key_cache_size_in_mb, row_cache_save_period,

tombstone_warn_threshold, read_request_timeout_in_ms, cross_node_timeout,

internode_compression, inter_dc_tcp_nodelay, dynamic_snitch_badness_threshold, dynamic_snitch_update_interval,


hinted_handoff_enabled, max_hints_delivery_threads,…..

MONITORING YOUR C* CLUSTER

VERSION ISSUES AND TOMBSTONES

• Life is better if you never delete records
• If you delete you can end up with tombstones
• To deal with tombstones you need to run Repair…

and that is a whole nasty can of worms.

MAINTENANCE TASKS

• Full and minor compressions
• snapshot your disks if using AWS/EBS

THE DARK SIDE, PART 1

• Datastax maintains three parallel release branches,

with vastly different feature sets

• New releases are always unstable; never accept an

n.0, n.1 or n.2 release

THE DARK SIDE, PART 2

• C* uses schema-less design
• Requires knowledge of slice predicates rather than

SQL

• DataStax decided to adopt schema and CQL to

gain marketshare at the expense of their soul.

• You can now pretend C* is relational (except no

indexes and mostly no where clauses)
