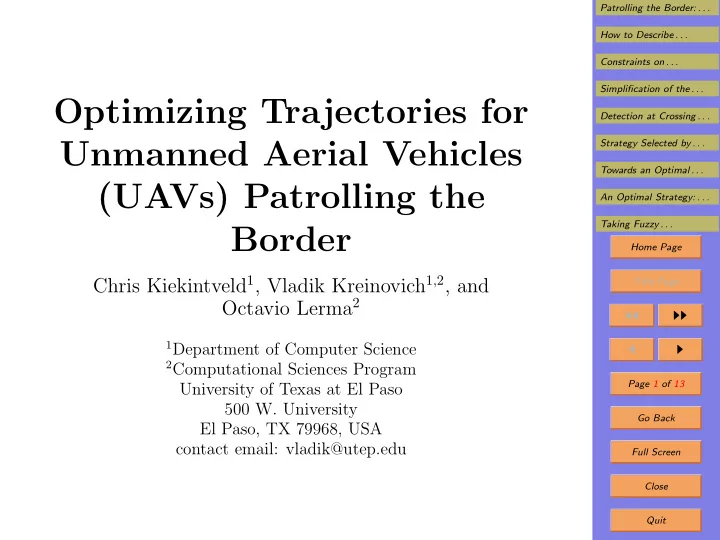

Optimizing Trajectories for Unmanned Aerial Vehicles (UAVs) Patrolling the Border

Chris Kiekintveld1, Vladik Kreinovich1,2, and Octavio Lerma2

1Department of Computer Science 2Computational Sciences Program

University of Texas at El Paso 500 W. University El Paso, TX 79968, USA contact email: vladik@utep.edu
