OpenStack Powered by Tungsten Fabric Sukhdev Kapur Krzysztof Kajkowski Distinguished Engineer, Juniper Networks Director of Engineering, CodiLime Open Infrastructure Summit, Shanghai, November 2019 1 Tungsten Fabric Architecture Overview

slide-1

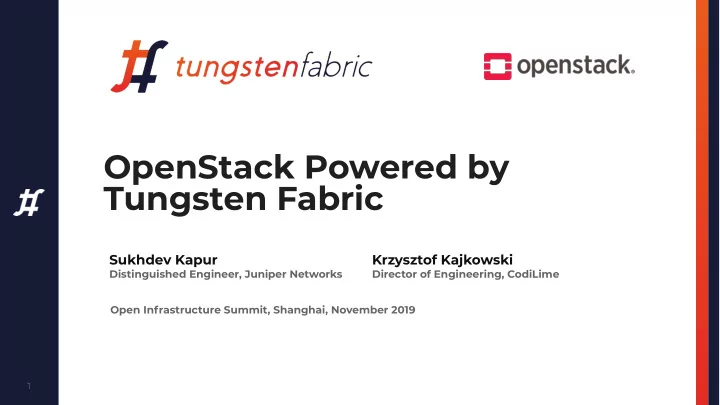

SLIDE 1

1

OpenStack Powered by Tungsten Fabric

Sukhdev Kapur

Distinguished Engineer, Juniper Networks

Krzysztof Kajkowski

Director of Engineering, CodiLime Open Infrastructure Summit, Shanghai, November 2019

slide-2
SLIDE 2

2

Tungsten Fabric Architecture Overview

Physical IP Fabric (no changes)

TF CONTROLLER

Host O/S vRouter Network / Storage Orchestration (Config, Control, Analytics, CSN) (Windows, Linux ….) on BMS TOR Compute Orchestration Virtual Network Blue Virtual Network Red FW

Logical View

BGP BGP XMPP NETCONF Host O/S vRouter

… … …

DC Computes CPE Devices Public Cloud VM

Distributed Policy Enforcement Centralized Policy Definition

ORCHESTRATOR / APPS

Internet / WAN

  • r Legacy Env.

Gateway

…

2

slide-3
SLIDE 3

3

vRouter Architecture Overview

vRouter Agent

  • Exchanging control state such as routes with the Control nodes using

XMPP.

  • Receiving low-level configuration state such as routing instances and

forwarding policy from the Control nodes using XMPP

  • Reporting analytics state such as logs, statistics, and events to the

analytics nodes.

  • Installing forwarding state into the forwarding plane
  • Discovering the existence and attributes of VMs in cooperation with

the Nova agent.

  • Applying forwarding policy for the first packet of each new flow and

installing a flow entry in the flow table of the forwarding plane.

  • Proxying DHCP, ARP, DNS

vRouter Kernel/DPDK

  • Encapsulating packets sent from the overlay network and

de-capsulating packets received for the overlay network.

  • Packets received from the overlay network are assigned to a routing

instance based on the MPLS label or Virtual Network Identifier (VNI).

  • Doing a lookup of the destination address of the in the Forwarding

Information Base (FIB) and forwarding the packet to the correct

  • destination. The routes may be layer-3 IP prefixes or layer-2 MAC

addresses.

  • Doing RPF check before sending Virtual machine traffic to
  • destination. This is configurable.

Host Compute

User space Kernel space vRouter Kernel

Virtual Machine (Tenant A) Virtual Machine (Tenant B)

XMPP

Control Node

pkt0 tap-abc tap-xyz

vRouter Agent

NETLINK

vhost0 Routing Instance Routing Instance Config VRFs Policy Table

ethX OR bondX

3

slide-4
SLIDE 4

4

vRouter Deployment Models

KERNEL vROUTER DPDK vROUTER SRIOV/ vROUTER COEXISTENCE SMARTNIC vROUTER

4

  • vRouter runs as a user space

process and uses DPDK for fast path Packet I/O.

  • Full set of SDN Capabilities

Supported

  • Requires the VMs to have DPDK

enabled for performance benefits

  • vRouter fwding plane runs within

the NIC

  • Workloads are SRIOV-connected

to the NIC

  • Some workloads can directly

SR-IOV into the NIC, while others go through the vRouter

  • Sometimes a VNF can have

multiple interfaces some of which are SRIOV-ed to the NIC

  • Interfaces that are SRIOV-ed into

NIC don’t get the benefits / features of vRouter

  • This the normal operation where

fwding plane of vRouter runs in the kernel and are connected to VMs using TAP interface (or veth pair for containers)

  • vRouter itself is enhanced using
  • ther performance related

features: ○ TSO / LRO ○ Multi-Q Virtio

VM1 vRouter Agent VM 2

...

VM1 vRouter Agent VNF 2

...

VM1 VM... vRouter Agent

...

VM1 VM... vRouter Agent

...

slide-5
SLIDE 5

5

Distributed Networking for VMs, PODs, & BMS

5

Kubernetes CNI

Neutron/CNI/DM/Fabric

SDN Controller

Edge/MC-GW

OpenStack Neutron

Edge/POP Site Edge/POP Site Edge/POP Site

Basic Networking:

L2/L3 or L2/L3 Network IPAM/DHCP, DNS, Multi-Tenancy

Advanced Networking:

VLAN-ID, VRRP, VIP, LB, Routes Advertisement, GW Function, Service Chaining, Traffic Steering, Flow awareness, QoS, SR-IOV/DPDK, BGP-VPN, Inter Site Federation, Health Checks, FW, IPSec/TLS Support

BMS & Fabric Manager

On-Prem:

  • Core Site
  • Core Distributed Site
  • Edge Site
slide-6
SLIDE 6

6

Policy Framework

Old B e h a v i o r New B e h a v i o r

Can we use one policy to be applied in all the different deployments?

…

Web App db App1, Deployment = Prod Network Policy = P3

1.

Reduced Complexity

2.

Simplified Management

3.

Improved Scalability

Web App db App1, Deployment = Staging Network Policy = P2 Web App db App1, Deployment = Dev Network Policy = P1

…

Web App db App1, Deployment = Dev Web App db App1, Deployment = Staging Web App db App1, Deployment = Prod Policy = P

6

slide-7
SLIDE 7

7

Policy Framework

Web App db App1, Deployment = Dev-AWS

…

Web App

db App1, Deployment = Dev Web App db App1, Deployment = Staging Web App db App1, Deployment = Prod

Reuse of policies across multiple clouds and with multiple orchestrators

Web App db App1, Deployment = Dev-K8s Web App db App1, Deployment = Dev-Mesos Reuse policy Web App db App1, Deployment = Staging-BMS B a r e M e t a l S e r v e r s R e u s e p

  • l

i c y Reuse policy Reuse policy Policy = P

Define/Review/Approve Once → Use Everywhere

7

slide-8
SLIDE 8

8

Policy Framework – Use Case Example

site = US site = EMEA Web App App = Finance, Deployment = Dev Web App App = Finance, Deployment = Prod Web App App = Finance, Deployment = Dev Web App App = Finance, Deployment = Staging

match deployment allow https-traffic tier=web > tier=app

1

allow mysql-traffic tier=app > tier=db match site

2

Dev Production Staging

Legacy Data (tier = db)

&& site

E n f o r c e m e n t D e f n Legacy Data (tier = db)

8

slide-9
SLIDE 9

9

Tungsten Fabric Deployment Models with Openstack

  • Two Deployment models

○ Monolithic Plugin ○ ML2 based - this is used in the demo

Neutron

ML2 Plugin MechanismDriver

VLAN GRE VxLAN Flat

OpenvSwitch

TypeDriver

OpenDaylight Arista Cisco Nexus Networking Open Contrail 9

slide-10
SLIDE 10

10

  • Running Tungsten Fabric SDN along with other ML2

drivers

  • This facilitates:

○

Running OVS, SR-IOV and vRouter based works simultaneously

○

Running OVS and SR-IOV workloads and have Tungsten Fabric manage the fabric

○

Live migration of OVS based computes to vRouter based computes

https://opendev.org/x/networking-opencontrail

Tungsten Fabric and ML2 demo

10

slide-11
SLIDE 11

11

Demo Setup Overview

b1s19 - node1 b1s19 - node3 b1s19 - node4

eth0 eth0 eth0 VM VM VM VM VM VM SRIOV OVS TF

vMX (on b1s19 - node2)

ge-0/0 QFX xe-0/1 vMX xe-0/2 xe-0/3 xe-0/0 11

slide-12
SLIDE 12

12

Live Migration Scenario

12

b1s19 - node1 b1s19 - node3 b1s19 - node4

VM-SRIOV eth0 VM-OVS eth0 eth0 50.50.50.200 50.50.50.231

LAN 50.50.50.0/24

VM-MIGRATE 50.50.50.183 VM-ROUTER 50.50.50.76 VM-MIGRATE 50.50.50.183

slide-13
SLIDE 13

13

The Demo

slide-14
SLIDE 14

14

Questions & Answers

slide-15
SLIDE 15

15

Try Tungsten Fabric

Tungsten Fabric 15 minute deployment with k8s on AWS

slide-16
SLIDE 16

THANK YOU.

16
