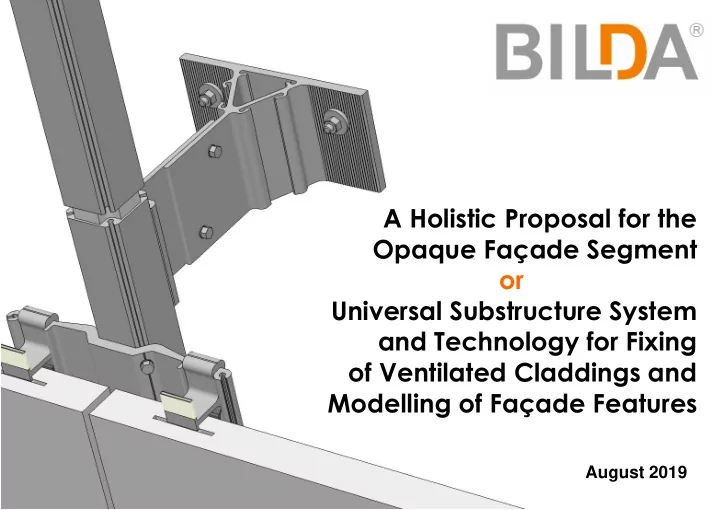

A Holistic Proposal for the Opaque Façade Segment

• r

Universal Substructure System and Technology for Fixing

• f Ventilated Claddings and

Modelling of Façade Features

August 2019

• Building envelope industry has evolved dynamically in the last

decades.

• Glazing enclosures developed in a technical way to reach a

state of certain maturity nowadays.

• Opaque enclosures responded with craftsmanship oriented,

improvised solutions.

2

• Inadequate application of the potential of different cladding

materials.

• Insufficient compatibility between different cladding and

enclosure materials.

• Sustainability requirements where opaque enclosures are

efficient.

• Demand for diversity and “materiality” in facades'

appearance.

• Fragmentation resulting from the multitude of techniques and

methods in the cladding sector.

3

• Facilitate the usage and increase the share of ventilated claddings
• Devise a universal system/ technology regarding:

a. all types of cladding materials b. all methods of clamping the panels

• Systemize the existing cladding culture
• Enrich cladding activity with new functions like façade volume modelling, grid

pattern diversification The result - BILDA - Universal Substructure System and Technology for Fixing of Ventilated Claddings and Modelling of Façade Features

4

• Universality – applicable for skin elements of any material (stone, ceramics, HPL,

metal, FCB, GFRC etc.) - facilitates design and engineering. Installation of the whole envelope by a single contractor becomes feasible.

5

• Downsizing of cladding’s thickness - specific fastening intrusion (precision slot)

allows thinner skin elements to be applied. A range of instruments and machines pertaining to BILDA technology assures low-invasive flat “sockets” in panels’ side edges

• Lighter subframe – sophisticated structural optimisation of subframe’s

components achieves an excellent strength-to-weight ratio

7

• Fast assembly – revolutionary dual tongue & groove peripheral fastening

ensures easy assembly with minimised errors and low installation costs

8

• System solutions for various facade elements – suitable for different cladding

areas (corners, reveals, copings, etc.) and for interface sections (to window, to curtain wall, etc.)

9

The Innovation

BILDA TECHNOLOGY IS BASED ON TWO BASIC INNOVATIONS

DUAL TONGUE & GROOVE PERIPHERAL FASTENING PRECISION SLOT IN THE FAÇADE PANEL

10

The System

1 2 3 4

1a 2a 2b

5 1 4 5 6

Legend: 1 Strut (Vertical, Horizontal) 3 Yoke Clip (plate-hook connection to the yoke) 1a Q-channel for accommodation of tongues and screws 4 Rainscreen panel (wedge-in-slot hooking) 2 Yoke (for clips’ connection to the strut) 5 Precision slot to accommodate the wedge of the clip 2a Tongue protruding into the Q-channel of the strut 6 Strut Clip (square-hook connection to the strut) 2b Plate section to accommodate the yoke clip

One-layer Vertical Substructure Grid

(for landscape oriented cladding panels)

One-layer Horizontal Substructure Grid

(for portrait oriented cladding panels)

11

12

Double-layer Substructure Grid

(for ‘bas-relief’ modelling)

Legend: 1 Struts (Vertical and Horizontal) 2 Yoke (for clips’ connection to the strut) 3 Yoke Clip (plate-hook connection to the yoke)

The System

4 Rainscreen panel (wedge-in-slot hooking) 5 Precision slot to accommodate the wedge of the clip 6 Strut Clip (square-hook connection to the strut)

13

Spatial Substructure Grid

(for wider void and volume modelling)

The System

Legend: 1 Struts (Vertical and Horizontal) 2 Yoke (for clips’ connection to the strut) & Yoke Clip (plate-hook connection to the yoke) 4 Rainscreen panel (wedge-in-slot hooking) 6 Strut Clip (square-hook connection to the strut) 7 Bracket 8 Diagonal

50 mm half - moon shape 25 mm wide

• easy and inexpensive to process
• minimum intrusion into the panel
• reliable grip of the fixing components
• allows downsizing of claddings thickness
• better static performance
• possibility of wedge or clasp fixing

Slot Pin Clasp fixing

The Precision Slot

BILDA Slot milling machine

14

15

BILDA precision slot is easy and inexpensive to mill with our patented stationary or handheld slot-milling machines. Equipment is light and compact, with high performance that guarantees initial low cost investment and fast return.

Slot Milling Rig

• 16

Slot Milling Rig

Slot Milling Rig Description

The stationary slot milling rig produces narrow half-moon precision slots in the sides

• f

cladding panels

• f

various materials - mainly natural stone and ceramics. The rig is designed for productivity and ease of use. It can easily be converted into drilling rig. It is available in mainly three different sizes. Highly efficient, fast milling diamond wheels

• f different sizes (thickness 2-

10mm, diameter 40-80mm) are supplied.

Hole Drilling Application

BILDA slot milling rig is converted into stationary side drilling rig by just reassembling the spindle-and-trolley mobile

• components. It makes holes of 5, 6, 8 and

10 mm in diameter in the sides of cladding panels of various materials - mainly natural stone and ceramics. The holes are produced with precise and clean finish. Standard drill bits of different sizes (5 - 10mm) are used.

The Property Rights

Intellectual property rights

17

• Bulgaria – Patent – A system for ventilated facade

claddings

• Bulgaria – Utility model – A milling machine for milling of

slots in facade cladding panels

• United States of America – Patent – Construction profile,

construction set, construction profile kit and fixing system for ventilated claddings

• China – Patent – Construction profile, construction set,

construction profile kit and fixing system for ventilated claddings

• Europe – Patent - Construction set and fixing

system for ventilated claddings

• Eurasia – Patent - Construction profile,

construction set, construction profile kit and fixing system for ventilated claddings

BILDA Tests

18

Comparative Analyses

45 22.5 22.5 45

140 60 10 50 70 2.2 2.2

40 20 20 45 3 3 3

BILDA profile SISTEMA MASA U-profile Conventional T - profile

Weight (kg/m) Area (m2) Section modulus (cm3) BILDA profile 1.160 4,310 5,612 SISTEMA MASA U-profile 1,196 4,430 4,550 Conventional T-profile 1,175 4,350 2,324

19

Side-by-Side Comparison

System profile/kit (AL) System profile/kit (AL) System profile/kit (AL) System profile/kit (AL) System profile/kit (SS)

Availability of thermal bridges to building

low medium high high medium

Proactive compatibility with extra thick thermal insulation (components, details, methods)

 x x x x

System solutions for corners, reveals, soffits,

• penings

 x x x x

Volume forming capacity, shaping capacity by means of system components (pilasters, etc.)

 x x x x

System components and details for interface condition zone (to glazing, windows, etc.) special details

 x x x x

System components for fixing of integrated solar panels and solar parks, pergolas and media facilities

 x x x x

Accommodating different material panels with the help of one system

 x x x x

Universality in panel penetration for fixing to substructure (side slot, side hole, back undercut hole)

 partial partial partial x

20

Side-by Side Comparison

System profile/kit (AL) System profile/kit (AL) System profile/kit (AL) System profile/kit (AL) System profile/kit (SS)

Different design solutions (round surfaces, inclined grid, inclined surfaces, running /

• ffset bond pattern)

 partial partial partial x

Substructure weight for grid of cladding panels 60/100cm (kg/m²)

1.01 1.38 2.06 1.79 3.18

Quantity of labour/number of operations needed for fixing at site

50% (low) 80% (medium) 80% (medium) 80% (medium) 100% (high)

Certification

partial partial partial  

Ability to fix thin panels 10-12 mm thickness

 x x x x

Budget price per sq.m. at landscape grid (60/100cm)

18 24 36 31 55

Optimized distance of panel fixing points from edges of panels.

 x x x 

21

Comparative Analyses

Strut (kg/m2) Clip (kg/m2) Fixed Support (kg/m2) Sliding Support (kg/m2) Total Weight (kg/m2) (%)

0.765 0.135 0.110 0.055 1.065 100 1.072 0.057 0.127 0.127 1.383 130

Total Difference (kg/m2)

+0.307

• 0.078

+0.017 +0.072 +0.318

+30%

Strut (kg/m2) Clip (kg/m2) Fixed Support (kg/m2) Sliding Support (kg/m2) Total Weight (kg/m2) (%)

0.903 0.295 0.171 0.086 1.455 100 0.937 0.262 0.406 0.191 1.796 123

Total Difference (kg/m2)

+0.034

• 0.033

+0.235 +0.106 +0.342

+23%

Strut (kg/m2) Clip (kg/m2) Fixed Support (kg/m2) Sliding Support (kg/m2) Total Weight (kg/m2) (%)

0.903 0.222 0.141 0.071 1.337 100 1.196 0.333 0.267 0.267 2.063 163

Total Difference (kg/m2)

+0.293 +0.111 +0.126 +0.197 +0.727

+54%

22

BILDA Worldwide

bulgaria canada egypt germany greece iran ireland israel netherlands MOSCOW u.a.e.

23

TUMEN

Reference Projects

SAAF - STUDENT ACTIVITIES AND ATHLETIC FACILITIES, Kuwait

24

Reference Projects

GrafiX Business Center, Sofia, Bulgaria

25

Reference Projects

Adgar 360 Business Center, Tel Aviv, Israel

26

Reference Projects

Onyx Westend, Frankfurt a. Main, Germany

27

Reference Projects

CHARLOTTENHÖFE Lietzenburger Strasse Berlin, Germany

28

Chausseestrasse 121 Berlin, Germany

Reference Projects

29

Sofia Ring Mall Sofia, Bulgaria

Reference Projects

30

Reference Projects

INTERNATIONAL Casino and Hotel, Golden Sands Resort, Bulgaria

31

Prüfbericht zur statischen Berechnung

32

Reference Letters

33

Reference Letters

34

3a, Ivan Borimechkata 1756 Sofia, Bulgaria T: +359 2 974 48 88 F: +359 2 974 62 79 E-mail: stoa@stoa.net Web: www.bilda.net
