On the structural robustness of evolutionary models of cooperation Segismundo S. Izquierdo Luis R. Izquierdo IDEAL 2006 Burgos, 20-9-2006 PRESENTATION OUTLINE Aim and necessary background Previous work and problems with it

slide-1

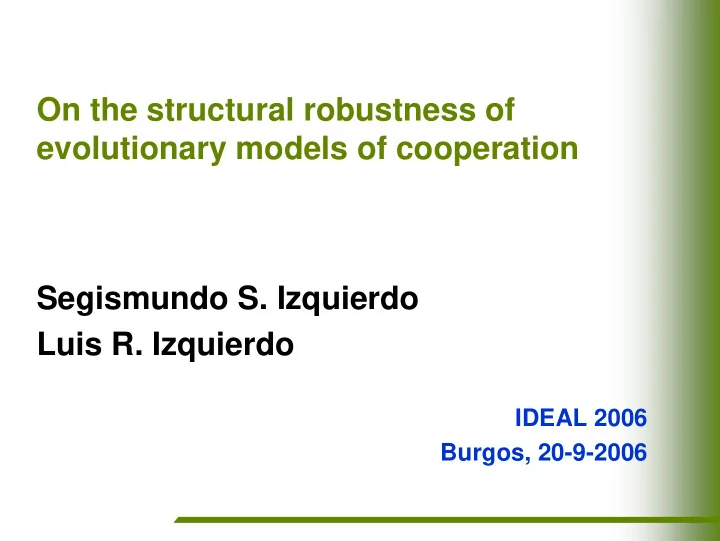

SLIDE 1

On the structural robustness of evolutionary models of cooperation Segismundo S. Izquierdo Luis R. Izquierdo

IDEAL 2006 Burgos, 20-9-2006

slide-2
SLIDE 2

PRESENTATION OUTLINE

  • Aim and necessary background
  • Previous work and problems with it

– Classical Game Theory – Axelrod’s (1984) Tournaments – (Mainstream) Evolutionary Game Theory

  • Our work:

– Methodology: Agent-based modelling – Results and discussion

  • Conclusions
slide-3
SLIDE 3

PRESENTATION OUTLINE

  • Aim and necessary background
  • Previous work and problems with it

– Classical Game Theory – Axelrod’s (1984) Tournaments – (Mainstream) Evolutionary Game Theory

  • Our work:

– Methodology: Agent-based modelling – Results and discussion

  • Conclusions
slide-4
SLIDE 4

AIM

To advance our formal understanding of the evolution of cooperation by determining in the context of social dilemmas what behavioural traits are likely to emerge and be sustained under evolutionary pressures.

slide-5
SLIDE 5

BACKGROUND: Social dilemmas …

  • Social Dilemmas:

– Each individual receives a higher payoff for a socially defecting choice than for a socially cooperative choice, no matter what the other individuals in society do, but – All individuals are better off if all cooperate than if all defect.

slide-6
SLIDE 6

Player 2 Cooperate Defect Cooperate 3 3 4 Defect 4 1 1 Player 1 The Prisoner’s Dilemma

Both players prefer defecting no matter what the other one does Both players are better off if they both cooperate than if they both defect

… and its simplest formalisation

slide-7
SLIDE 7

Player 2 Cooperate Defect Cooperate 3 3 4 Defect 4 1 1 Player 1 The Prisoner’s Dilemma

… and its simplest formalisation

Examples of strategies or behavioural traits:

ALL D: Always Defect ALL C: Always Cooperate TFT: C and then do what the other player did

slide-8
SLIDE 8

The initial population

ALLD ALLC Another strategy TFT

slide-9
SLIDE 9

The pairing and the game

ALLC ALLD Another strategy TFT

slide-10
SLIDE 10

The selection

Old population

New population

Higher payoffs Lower payoffs New entrants

(death) …

slide-11
SLIDE 11

PRESENTATION OUTLINE

  • Aim and necessary background
  • Previous work and problems with it

– Classical Game Theory – Axelrod’s (1984) Tournaments – (Mainstream) Evolutionary Game Theory

  • Our work:

– Methodology: Agent-based modelling – Results and discussion

  • Conclusions
slide-12
SLIDE 12

CLASSICAL GAME THEORY:

Player 2 Cooperate Defect Cooperate 3 3 4 Defect 4 1 1 Player 1 The Prisoner’s Dilemma

  • Played only once:

Rational players defect.

Crucial assumption: Common knowledge of rationality

  • Played any finite number of times:

Rational players ALWAYS defect!

slide-13
SLIDE 13

PRESENTATION OUTLINE

  • Aim and necessary background
  • Previous work and problems with it

– Classical Game Theory – Axelrod’s (1984) Tournaments – (Mainstream) Evolutionary Game Theory

  • Our work:

– Methodology: Agent-based modelling – Results and discussion

  • Conclusions
slide-14
SLIDE 14

AXELROD’S TOURNAMENTS

  • Finitely repeated PD (200 rounds)
  • Round robin (and vs. random strategy)
  • Under common knowledge of

rationality, everyone should play ALLD... ... but the winner was TFT !!! Would TFT be the winner under other (more general) conditions?

slide-15
SLIDE 15

PRESENTATION OUTLINE

  • Aim and necessary background
  • Previous work and problems with it

– Classical Game Theory – Axelrod’s (1984) Tournaments – (Mainstream) Evolutionary Game Theory

  • Our work:

– Methodology: Agent-based modelling – Results and discussion

  • Conclusions
slide-16
SLIDE 16

EVOLUTIONARY GAME THEORY

What strategies (i.e. behavioural traits) are likely to emerge and be sustained under evolutionary pressures?

ALLD ALLC Another strategy TFT

slide-17
SLIDE 17

Mainstream EVOLUTIONARY GAME THEORY

  • Infinite populations
  • Only deterministic strategies
  • Pairing: Random
  • Selection: Proportional fitness rule
  • No mutation or random drift

PROBLEM: Some assumptions made to achieve mathematical tractability:

Even with many of these assumptions, we don’t really know what strategies are more plausible

slide-18
SLIDE 18

PRESENTATION OUTLINE

  • Aim and necessary background
  • Previous work and problems with it

– Classical Game Theory – Axelrod’s (1984) Tournaments – (Mainstream) Evolutionary Game Theory

  • Our work:

– Methodology: Agent-based modelling – Results and discussion

  • Conclusions
slide-19
SLIDE 19

Definition of the (unbiased) strategy space

  • PC:

Probability to cooperate in the first round

  • PC/C: Probability to cooperate in round n (n > 1)

given that the other player has cooperated.

  • PC/D: Probability to cooperate in round n (n > 1)

given that the other player has defected. Example: [ 0.13, 0.34, 0.93] ALLC: [ 1, 1, 1] ALLD: [ 0, 0, 0] TFT: [ 1, 1, 0]

[ PC, PC/C, PC/D ]

slide-20
SLIDE 20

The initial population (different sizes)

[ 1, 1, 1]

slide-21
SLIDE 21

The pairing (random, children together…)

… and (different) number of rounds

slide-22
SLIDE 22

The selection (roulette wheel, tournament…)

Old population

New population

Higher payoffs Lower payoffs New entrants

… and the mutation

slide-23
SLIDE 23

The (unbiased) strategy space

ALLD TFT ALLC

slide-24
SLIDE 24

The modelling framework interface

slide-25
SLIDE 25

PC PC/C PC/D

EVO-2 x2 − A Modelling Framework to Study

the Evolution of Strategies in 2x2 Symmetric Games under Various Competing Assumptions

Izquierdo et al.

slide-26
SLIDE 26

EVO-2 x2 − An Application to the Study of

the Evolutionary Emergence of Cooperation

Stochastic strategies Deterministic strategies

TFT: 58% ALLD: 8% TFT: 0.16% ALLD: 60%

slide-27
SLIDE 27

PRESENTATION OUTLINE

  • Aim and necessary background
  • Previous work and problems with it

– Classical Game Theory – Axelrod’s (1984) Tournaments – (Mainstream) Evolutionary Game Theory

  • Our work:

– Methodology: Agent-based modelling – Results and discussion

  • Conclusions
slide-28
SLIDE 28

RESULTS AND DISCUSSION

Stochastic strategies Deterministic strategies

CC-payoff = 3; CD-payoff = 0; DC-payoff = 5; DD-payoff = 1; num-players = 100; mutation-rate = 0.05; rounds-per-match = 10; selection-mechanism = roulette wheel; pairing-settings = random pairings;

TFT: 0.16% TFT: 58% ALLD: 8% ALLD: 60%

slide-29
SLIDE 29

RESULTS AND DISCUSSION

Mutation rate = 0.05 Mutation rate = 0.01 TFT: 0.2% TFT: 3.2%

CC-payoff = 3; CD-payoff = 0; DC-payoff = 5; DD-payoff = 1; num-players = 100; rounds-per-match = 50; selection-mechanism = roulette wheel; pairing-settings = random pairings;

slide-30
SLIDE 30

RESULTS AND DISCUSSION

  • Pop. size = 100
  • Pop. size = 10

3.2 % 0.3 %

CC-payoff = 3; CD-payoff = 0; DC-payoff = 5; DD-payoff = 1; mutation-rate = 0.01; rounds-per-match = 50; selection-mechanism = roulette wheel; pairing-settings = random pairings;

slide-31
SLIDE 31

RESULTS AND DISCUSSION

Random pairings Children together TFT: 1% TFT: 22%

CC-payoff = 3; CD-payoff = 0; DC-payoff = 5; DD-payoff = 1; num-players = 100; mutation-rate = 0.05; rounds-per-match = 5; selection-mechanism = roulette wheel;

ALLD: 1% ALLD: 72%

slide-32
SLIDE 32

RESULTS AND DISCUSSION

CC-payoff = 3; CD-payoff = 0; DC-payoff = 5; DD-payoff = 1; num-players = 100; mutation-rate = 0.01; rounds-per-match = 10; selection-mechanism = roulette wheel; pairing-settings = random pairings;

0.2 0.4 0.6 0.8 1 2 3 4 5 6 7 8 9 10 20 30 40 50 100 num-strategies

TFT-10 ALLD-30

slide-33
SLIDE 33

RESULTS AND DISCUSSION

CC-payoff = 3; CD-payoff = 0; DC-payoff = 5; DD-payoff = 1; num-players = 100; mutation-rate = 0.01; rounds-per-match = 10; selection-mechanism = roulette wheel; pairing-settings = random pairings;

0.E+00 1.E+08 2.E+08 3.E+08 4.E+08 5.E+08

2 3 4 5 6 7 8 9 10 20 30 40 50 100 num-strategies Number of outcomes CC CD/DC DD

slide-34
SLIDE 34

PRESENTATION OUTLINE

  • Aim and necessary background
  • Previous work and problems with it

– Classical Game Theory – Axelrod’s (1984) Tournaments – (Mainstream) Evolutionary Game Theory

  • Our work:

– Methodology: Agent-based modelling – Results and discussion

  • Conclusions
slide-35
SLIDE 35

CONCLUSIONS (1/2)

  • What type of strategies are likely to

emerge and be sustained in evolutionary contexts is strongly dependent on assumptions that traditionally have been thought to be unimportant.

  • Strategies similar to ALLD and TFT are

the two most successful strategies in most contexts.

slide-36
SLIDE 36

CONCLUSIONS (2/2)

  • Strategies similar to ALLD tend to be the

most successful in most environments.

  • Strategies similar to TFT tend to spread

best:

– In large populations – where the individuals with similar strategies interact frequently – for many rounds – with low mutation rates – and only deterministic strategies are allowed.

slide-37
SLIDE 37

ACKNOWLEDGEMENTS

  • Edoardo Pignotti,

University of Aberdeen

  • Bruce Edmonds,

Manchester Metropolitan University

  • Nick Gotts

The Macaulay Institute

slide-38
SLIDE 38

End

On the structural robustness of evolutionary models of cooperation Segismundo S. Izquierdo Luis R. Izquierdo
