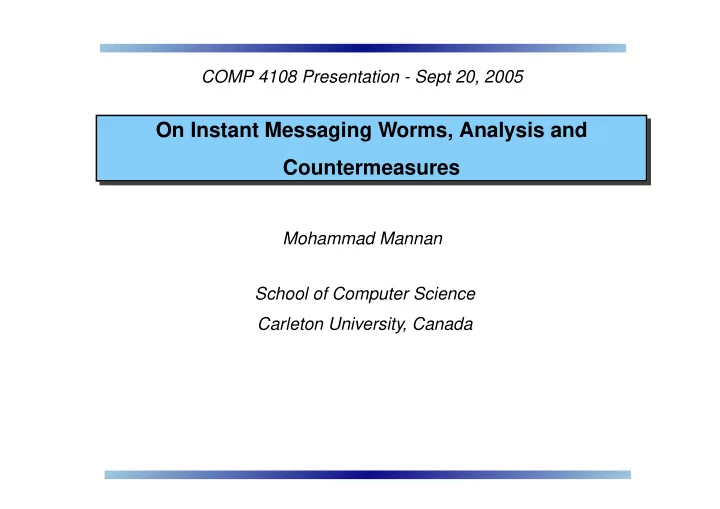

COMP 4108 Presentation - Sept 20, 2005

On Instant Messaging Worms, Analysis and Countermeasures

Mohammad Mannan School of Computer Science Carleton University, Canada

Goals of this talk ➠ Discuss a few IM worms ➠ Analyze well-known countermeasures for IM worms ➠ Present two variations of current techniques

Mohammad Mannan

Page 2

COMP 4108 Presentation - Sept 20, 2005

Definition of IM worms ➠ Worm: Malicious code that propagates over a network, with or

without human assistance (Kienzle and Elder in WORM 2003)

➠ IM worms: Worms that spread in IM networks, by exploiting fea-

tures and vulnerabilities of IM clients and protocols

Mohammad Mannan

Page 3

COMP 4108 Presentation - Sept 20, 2005

IM worms: why do we need to worry? ➠ IM is a popular application ☞ instant communication (home users) ☞ instant collaboration (enterprise users) ➠ A big target for attackers

Mohammad Mannan

Page 4

COMP 4108 Presentation - Sept 20, 2005

“I don’t use IM. Why should I care?” ➠ The user base is big enough to impact the whole network ➠ You may use it unknowingly! (integrated IM in popular applica-

tions)

Mohammad Mannan

Page 5

COMP 4108 Presentation - Sept 20, 2005

Outline of the talk ➠ IM overview ➠ Examples of IM worms and vulnerabilities ➠ Distinguishing features of IM networks ➠ Topology of IM contacts ➠ Existing techniques and remarks on them ➠ New proposals ➠ Discussion

Mohammad Mannan

Page 6

COMP 4108 Presentation - Sept 20, 2005

IM communication model (1)

Client−Server Communications Client−Client (Direct) Communications Client−Client (Server−mediated) Communications A C H B D E H

Server Client A

B’s contact list

Client B

Single (Centralized) IM Server Model A’s contact list

Figure 1: Centralized server model

Mohammad Mannan

Page 7

COMP 4108 Presentation - Sept 20, 2005

IM communication model (2)

Client−Server Communications Client−Client (Direct) Communications Client−Client (Server−mediated) Communications B D E H A C H

Server 2 Client A Client B Server 1

Multiple (Distributed) IM Server Model B’s contact list A’s contact list

Figure 2: Distributed server model

Mohammad Mannan

Page 8

COMP 4108 Presentation - Sept 20, 2005

Examples: IM worms (1) ➠ SoFunny

– File transfer – Runs as a service process in Windows

➠ JS Menger

– URL – IE vulnerability

➠ Bropia/Kelvir

– File transfer – Disables Task Manager, debugging tools etc. – Installs a variant of the Agobot/Spybot worm – Custom language

Mohammad Mannan

Page 9

COMP 4108 Presentation - Sept 20, 2005

Examples: IM worms (2) ➠ Serflog

– URL or P2P file-sharing – Terminates anti-virus processes – Modifies the system’s HOSTS file

Mohammad Mannan

Page 10

COMP 4108 Presentation - Sept 20, 2005

Examples: client vulnerabilities ➠ Buffer overflows ➠ PNG (display picture) ➠ GIF (emoticon)

Mohammad Mannan

Page 11

COMP 4108 Presentation - Sept 20, 2005

IM worm replication mechanisms ➠ File transfer ➠ URL message ➠ IM client vulnerabilities ➠ OS or commonly used application vulnerabilities

Mohammad Mannan

Page 12

COMP 4108 Presentation - Sept 20, 2005

What makes IM networks different? ➠ Popular and connected ➠ Instant hit-list ➠ Instant user-action ➠ Integration with popular applications

Mohammad Mannan

Page 13

COMP 4108 Presentation - Sept 20, 2005

Scale-free (SF) networks ➠ Preferential attachment and strong local clustering (hubs) ➠ Epidemic threshold: In a fully connected network, if an infected

node has a chance β of infecting another, and a chance of δ being cured, then the virus will have a sustained population if β/δ > 1

➠ There is no critical threshold for epidemics in scale-free networks ➠ Highly resistant to accidental failures: Internet will be functional

even with 80% randomly failed routers

➠ Fragile against targeted/deliberated attacks

Mohammad Mannan

Page 14

COMP 4108 Presentation - Sept 20, 2005

Topology of the IM contacts network ➠ The topology of the IM contacts network is shown to be scale-free ➠ Following aspects may complicate the SF model:

• 1. IM worms may ‘successfully’ guess contacts
• 2. Each node can become a hub by joining a chatroom

➠ Implication – restoring a finite epidemic threshold by patching most

• f the hubs in an infected network would be difficult

Mohammad Mannan

Page 15

COMP 4108 Presentation - Sept 20, 2005

Existing techniques to restrict IM worms ➠ Temporary server shutdown ➠ Temporarily disabling the most-connected users ➠ Virus throttling for IM

Mohammad Mannan

Page 16

COMP 4108 Presentation - Sept 20, 2005

Virus throttling for IM – the mechanism

g f e b c d a n = 4 working set request h delay queue new add Queue length detector rate timer clock update process not−new

Figure 3: Throttling algorithm for IM

Mohammad Mannan

Page 17

COMP 4108 Presentation - Sept 20, 2005

Virus throttling for IM – shortcomings ➠ One new contact/day may be too restrictive ➠ Instant messages may get delayed ➠ User confirmation may be bypassed by a worm ➠ Data size is small – only 710 users and 2.5 messages/user/day ➠ Group chat ➠ Large memory requirement at the IM server ➠ Worm may ‘learn’ a user’s working set

Mohammad Mannan

Page 18

COMP 4108 Presentation - Sept 20, 2005

New proposals – background ➠ File transfer and URL messages are the mostly used replication

mechanisms

➠ File transfer is not expected to be instant ➠ Challenge senders of potentially damaging payloads ➠ Assumptions: ☞ File transfer and URL messages are much less frequently used

than normal text messages

☞ IM connections are secure ➠ Let’s restrict file transfer and URL messages

Mohammad Mannan

Page 19

COMP 4108 Presentation - Sept 20, 2005

New proposals – mechanisms ➠ Throttle file transfer requests and URL messages ➠ Challenge senders of a file transfer request or URL message with

a CAPTCHA

☞ Some users send more files than others – use secure cookies ☞ Challenges may come from the IM server or the recipient IM

client

Mohammad Mannan

Page 20

COMP 4108 Presentation - Sept 20, 2005

Frequency of IM text messaging and file transfer (1)

Feature

• Avg. Number

File Transfer (FT) 143 Text Message (TM) 25953 Online Users 7459 Table 1: Average file transfer, text messages, and online users over 15-minute intervals

Mohammad Mannan

Page 21

COMP 4108 Presentation - Sept 20, 2005

Frequency of IM text messaging and file transfer (2)

Ratio Value FT/TM 0.0055 FT/user/day 1.84 TM/user/day 334.03 Table 2: Comparison of file transfer (FT) and text message (TM) usage

Mohammad Mannan

Page 22

COMP 4108 Presentation - Sept 20, 2005

Findings from the user study ➠ File transfer requests are less frequent than text messages ➠ Assumption: An IM connection is opened more often for text mes-

saging than file transfer

➠ Also true for URL messages? ➠ We don’t know interesting user behavior e.g., how many users sent

• ne or more files, the maximum number of files sent by a user

Mohammad Mannan

Page 23

COMP 4108 Presentation - Sept 20, 2005

Comparing virus throttling to new proposals ➠ Throttling minimize the number of IM worm connections – a worm

can establish a certain number of connections unchecked

➠ New proposals restrict only file transfers and URL messages, not

IM connections (e.g. for text messages) – apparently more user- friendly

➠ Throttling connections is more effective than our techniques when

connection establishment implicitly transfers user-configurable file data (e.g. MSN display picture file)

☞ Automatic file data transfer may not be a good idea

Mohammad Mannan

Page 24

COMP 4108 Presentation - Sept 20, 2005

Concluding remarks ➠ Usability should be seriously considered – IM users are mostly

‘casual’

➠ CAPTCHAs can be broken by machines ➠ New proposals presented here are preliminary

Mohammad Mannan

Page 25

COMP 4108 Presentation - Sept 20, 2005

• Discussion. . .

Mohammad Mannan

Page 26

COMP 4108 Presentation - Sept 20, 2005
