Numerical modeling of non-destructjve testjng of composites Katerina Beklemysheva, Alexey Ermakov, Alexander Kazakov, Igor B. Petrov, Alexey Vasyukov Moscow Instjtute of Physics and Technology Composites Low-velocity strike on a polymer


slide-1
SLIDE 1

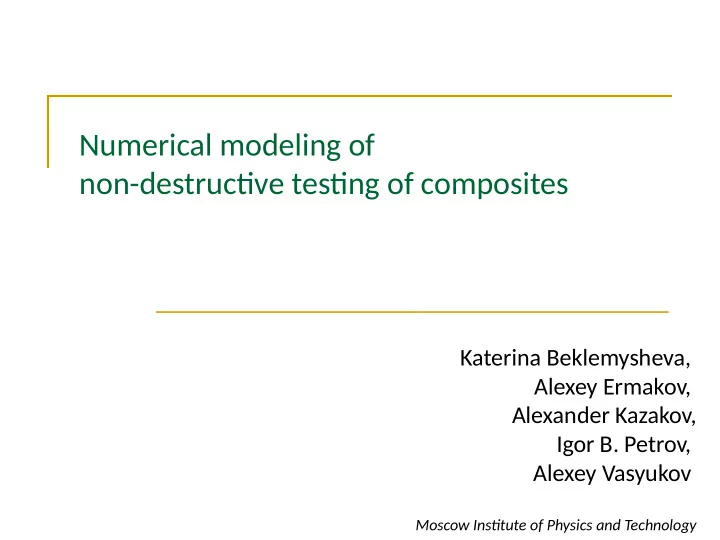

Numerical modeling of non-destructjve testjng of composites

Katerina Beklemysheva, Alexey Ermakov, Alexander Kazakov, Igor B. Petrov, Alexey Vasyukov

Moscow Instjtute of Physics and Technology

slide-2
SLIDE 2

Composites

Low-velocity strike on a polymer composite constructjon

 Caused by: hail, debris, maintenance failures, etc.  Internal composite damage – damage is not visible!  Methods and standards for strength tests, developed for metals,

are not efgectjve enough for composites.

 Non-destructjve testjng devices for composites require a signifjcant

amount of tjme and laboratory equipment.

slide-3
SLIDE 3

Back side notch

Separated-combined sensor (two piezoelectric crystals )

Problem statement

Emituer and receiver on the front side

slide-4
SLIDE 4

Anisotropic material

slide-5
SLIDE 5

Grid-characteristic method

 Split by space variables  Hyperbolic equations in plane (ξ, t)

Этап 1 Итог (2D) Этап 2

⃗ un+1=⃗ un−τ( A1 Δ1+A2 Δ2)⃗ un +O(τ 2)

slide-6
SLIDE 6

GCM on unstructured grid

 Tetrahedral interpolatjon of a Riemann’s invariant :

  • linear – fjrst order of approximatjon;
  • quadratjc – second order of approximatjon;
  • scheme hybridizatjon depending on a solutjon

“smoothness”. A B C D O A B C D O AB BC CD AD BD N’ A O N K n+1 n τ λτ

slide-7
SLIDE 7

Borders and contacts

External surface Surface between media

  • External force
  • External velocity
  • Mixed conditjons

А – real node В – virtual node

  • Adhesion
  • Sliding
  • Frictjon
  • Destructjble adhesion

B’ B n+1 n τ

slide-8
SLIDE 8

Verifjcation

  • SiteScan D-20 с преобразователем RDT2550
slide-9
SLIDE 9

A-scan comparison

slide-10
SLIDE 10

A-scan comparison

slide-11
SLIDE 11

A-scan comparison

slide-12
SLIDE 12

Serial calculations

Emituer and receiver on the front side

slide-13
SLIDE 13

Data representation

Green – separated-combined sensor. Purple – combined sensor. X axis – tjme step, Y axis – velocity amplitude, averaged by receiver area: z component for longitudinal wave, x or y – transverse.

slide-14
SLIDE 14

Green – separated-combined sensor. Purple – combined sensor.

  • Increasing notch depth =>

increasing number of responses.

  • The initjal signal is visible on

the transverse wave data.

  • Combined sensor is betuer

for processing longitudinal wave response, but can’t be used for transverse waves.

Steel plate: notch depth

Longitudinal wave Transverse wave

slide-15
SLIDE 15

Green – separated-combined sensor. Purple – combined sensor.

  • Increasing pulse length =>

increasing noise amplitude

  • The initjal signal becomes

visible on longitudinal wave data.

  • Transverse wave signal from

the notch is visible only on low pulse length.

Steel plate: pulse length

Transverse wave Longitudinal wave

slide-16
SLIDE 16

Purple – combined sensor, blue – separated-combined sensor, across the fjber directjon, green – along. Lefu – transverse wave along fjber directjon, center – across, right – longitudinal wave.

  • High noise on the

longitudinal component

Composite plate: notch depth

slide-17
SLIDE 17

Conclusion

  • A hybrid grid-characteristjc method of 1-2 order on

irregular tetrahedral grid is used.

  • A carbon fjber polymer matrix of unidirectjonal

composite is modeled as a homogeneous orthotropic media with a single distjnguished directjon along the fjber.

  • A comparison with an isotropic material (steel) was

conducted.

  • One-dimensional graphics, which correspond to

A-scans in real devices, were obtained.

  • The detailed analysis of received data is presented.
slide-18
SLIDE 18

Application

  • 1. Analysis of complex NDT cases: detail geometry,

delaminatjons, complex destructjon types.

  • 2. Development of diagnostjc methodology, parameters

and modes optjmizatjon.

  • 3. Equipment prototyping – research and selectjon of

sensor parameters.

  • 4. Assessment of danger from various destructjon types.
slide-19
SLIDE 19

Thank you for your time and attention!
