Numerical methods for the best low multilinear rank approximation of - - PowerPoint PPT Presentation

SLIDE 1

Introduction Some applications Algorithms Local minima

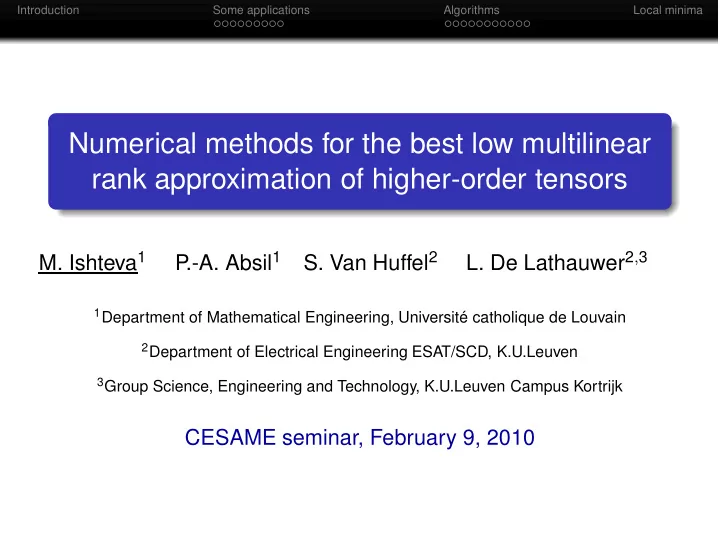

Numerical methods for the best low multilinear rank approximation of higher-order tensors

• M. Ishteva1

P .-A. Absil1

• S. Van Huffel2
• L. De Lathauwer2,3

1Department of Mathematical Engineering, Université catholique de Louvain 2Department of Electrical Engineering ESAT/SCD, K.U.Leuven 3Group Science, Engineering and Technology, K.U.Leuven Campus Kortrijk

CESAME seminar, February 9, 2010

SLIDE 2

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 3

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 4

Introduction Some applications Algorithms Local minima

Scalars

R 4 67 3.23 −45.8 2 √ 2 −14/8 −339/7534 −4.397534

SLIDE 5

Introduction Some applications Algorithms Local minima

Vectors

Rn 4 15 −45.3 12.345 1.3 1.7 2.1 1.4 0.2 65 −15 −23.44

SLIDE 6

Introduction Some applications Algorithms Local minima

Matrices

Rm×n 1.3 0.6 1.1 2.0 1.9 1.7 1.0 1.3 2.8 2.6 2.1 2.1 1.6 3.7 2.7 1.4 1.4 1.4 2.2 2.0 0.2 1.3 0.9 1.9 1.7

SLIDE 7

Introduction Some applications Algorithms Local minima

Tensors

Rm×n×p

SLIDE 8

Introduction Some applications Algorithms Local minima

Ranks

Rank-(R1, R2, R3) Rank-R

• Rank-1 tensor:
• R = min(r), s.t. A =

r

• i=1

{rank-1 tensor}i In general, R1 = R2 = R3 = R1 and R1, R2, R3 ≤ R.

SLIDE 9

Introduction Some applications Algorithms Local minima

Decompositions

Singular value decomposition (SVD) Higher-order SVD (HOSVD) PARAFAC/CANDECOMP

SLIDE 10

Introduction Some applications Algorithms Local minima

Main problem

Truncated SVD → Best rank-R approximation of a matrix Truncated HOSVD → Good but not best rank-(R1, R2, R3) approximation of a tensor Best rank-(R1, R2, R3) approximation of a tensor: Given: third-order tensor A ∈ RI1×I2×I3 minimize A − ˆ A 2 ˆ A ∈ RI1×I2×I3 subject to: rank1( ˆ A) ≤ R1, rank2( ˆ A) ≤ R2, rank3( ˆ A) ≤ R3

SLIDE 11

Introduction Some applications Algorithms Local minima

Reformulation of the main problem

Given: third-order tensor A ∈ RI1×I2×I3 maximize A •1 UT •2 VT •3 WT 2 = UT A(1)(V ⊗ W) 2 U ∈ St(R1, I1) V ∈ St(R2, I2) W ∈ St(R3, I3) Then ˆ A = A •1 UUT •2 VVT •3 WWT. Notation : St(R, I) = {X ∈ RI×R : XTX = I}

SLIDE 12

Introduction Some applications Algorithms Local minima

Higher-order orthogonal iteration (HOOI)

Initial values: HOSVD. To maximize UT A(1)(V ⊗ W) 2 (∗), iterate until convergence:

• ptimize (∗) over U :

left dominant subspace of A(1)(V ⊗ W) columns of U

• ptimize (∗) over V ,
• ptimize (∗) over W .

→ Linear convergence

SLIDE 13

Introduction Some applications Algorithms Local minima

Goal and motivation

Goal: conceptually faster algorithms matrix-based algorithms → tensor-based algorithms

• ptimization w.r.t. numerical accuracy & comput. efficiency

Applications of the best rank-(R1, R2, R3) approximation Chemometrics, biomedical signal processing, telecommunications, etc. Dimensionality reduction; signal subspace estimation

SLIDE 14

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 15

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 16

Introduction Some applications Algorithms Local minima

Electrodes

SLIDE 17

Introduction Some applications Algorithms Local minima

Electroencephalogram

SLIDE 18

Introduction Some applications Algorithms Local minima

Epileptic seizure onset localization: results of PARAFAC with 2 atoms

temporal component

1 2 3 4 5 6 7 8 9 10 −0.06 −0.04 −0.02 0.02 0.04 0.06

Time (sec) temporal atom of seizure activity

1 2 3 4 5 6 7 8 9 10 −0.08 −0.06 −0.04 −0.02 0.02 0.04 0.06 0.08 0.1 0.12

temporal atom of eye−blink activity Time (sec)

frequency component

5 10 15 20 25 30 35 40 45 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18

frequency distribution of seizure activity Freq (Hz)

5 10 15 20 25 30 35 40 45 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0.2

Freq (Hz) frequency distribution of eye−blink activity

spatial component

red atom: related to the seizure, blue atom: related to the eye blinks.

SLIDE 19

Introduction Some applications Algorithms Local minima

Dimensionality reduction

A Rank-(R1, R2, R3) approx. Rank-R approx.

SLIDE 20

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 21

Introduction Some applications Algorithms Local minima

Problem formulation: Multi-channel case

x(3) x(3)

1

x(3)

2

x(3)

3

x(3)

M−1

x(3)

3

x(3)

4

x(3)

5

x(3)

L−1

x(3)

N−1

x(2) x(2)

1

x(2)

2

x(2)

3

x(2)

M−1

x(2)

1

x(2)

2

x(2)

3

x(2)

L−1

x(2)

N−1

x(1) x(1)

1

x(1)

2

x(1)

3

x(1)

M−1

x(1)

1

x(1)

2

x(1)

3

x(1)

L−1

x(1)

N−1

x(1) x(1)

1

x(1)

2

x(1)

3

x(1)

4

x(1)

5

· · ·

ch 1

x(2) x(2)

1

x(2)

2

x(2)

3

x(2)

4

x(2)

5

· · ·

ch 2

x(3) x(3)

1

x(3)

2

x(3)

3

x(3)

4

x(3)

5

· · ·

ch 3

. . .

x(q)

n

= K

k=1 c(q) k zn k + e(q) n

= K

k=1 a(q) k

exp{jϕ(q)

k } exp{(−αk + 2jπνk) tn} + e(q) n

. Given: samples x(q)

n , n=0,...,N−1, q=1,...,Q

Find: estimates of the complex amplitudes c(q)

k

and the poles zk.

SLIDE 22

Introduction Some applications Algorithms Local minima

HO-HTLSstack algorithm

Compute the best rank-(K, K, R3) approx. (R3 ≤ min(K, Q)), ˆ H = S •1 U •2 V •3 W. Compute the eigenvalues λk of Z : U↑ ≈ U↓ Z. Estimate the poles: ˆ zk = λk. Estimate the complex amplitudes: ˆ zk, x(q)

n

→ ˆ c(q)

k .

SLIDE 23

Introduction Some applications Algorithms Local minima

Observations

H

=

1 1 1        1 · · · 1 z1 · · · zK z2

1

· · · z2

K

. . . · · · . . . zL

1

· · · zL

K

          1 z1 z2

1

· · · zM

1

. . . . . . . . . · · · . . . 1 zK z2

K

· · · zM

K

  

     c 1

1

c 2

1

c 3

1

. . . c Q

1

. . . . . . . . . · · · . . . c 1

K

c 2

K

c 3

K

. . . c Q

K

    

If the matrix of the amplitudes is ill-conditioned then reduce the mode-3 rank,

SLIDE 24

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 25

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 26

Introduction Some applications Algorithms Local minima

Reformulation

g = UT A(1)(V⊗W) 2, X = (U, V, W), R1(X) = UTA(1)(V⊗W). New goal F(X) ≡ (F1(X), F2(X), F3(X)) = 0 , F1(X) = U R1(X)R1(X)T − A(1)(V ⊗ W)R1(X)T. Invariance property F(X) = 0 ⇔ F(XQ) = 0, XQ = (UQ1, VQ2, WQ3), Qi–orth. ⇒ the zeros of F are not isolated ⇒ convergence issues → Work on RI1×R1

∗

/OR1 × RI2×R2

∗

/OR2 × RI3×R3

∗

/OR3.

SLIDE 27

Introduction Some applications Algorithms Local minima

Summary: Geometric Newton algorithm

Initial estimates X0: HOSVD + HOOI Iterate until convergence (k = 0, 1, 2, . . .): Solve the linear system of equations (MATLAB’s GMRES):

• Ph

U D(Ph UF1)(Xk)[∆k] = −Ph UF1(Xk)

Ph

V D(Ph V F2)(Xk)[∆k] = −Ph V F2(Xk)

Ph

W D(Ph WF3)(Xk)[∆k] = −Ph WF3(Xk)

Xk+1 = Xk + ∆k , ∆k ∈ HU × HV × HW

• D(Ph

X F)(X)[∆] is the derivative of Ph X F(X) along ∆

• Ph

Y Z = Z − Y skew((YTY)−1YTZ), skew(B) = (B − BT)/2.

• Quadratic convergence in the neighborhood of the

nondegenerate zeros of Ph

X F(X).

SLIDE 28

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 29

Introduction Some applications Algorithms Local minima

Trust-region scheme and the manifold

Trust-region subproblem Obtain and minimize a quadratic model of the cost function around the current iterate. Evaluate; accept/reject the step; update the radius. Invariance property g(U, V, W) = UT A(1)(V ⊗ W) 2 . g(U, V, W) = g(UQ(1), VQ(2), WQ(3)) . Manifold M M = St(R1, I1)/OR1 × St(R2, I2)/OR2 × St(R3, I3)/OR3 .

SLIDE 30

Introduction Some applications Algorithms Local minima

Retraction

M TXM X ξ RX(ξ) g : M → R, R : TM → M, ˆ gX : TXM → R : ξ → g(RX(ξ)). Retraction R(U,V,W)(ZU, ZV, ZW) = (qf(U + ZU), qf(V + ZV), qf(W + ZW)).

SLIDE 31

Introduction Some applications Algorithms Local minima

Summary: Trust-region algorithm

Initial values X0 = (U0, V0, W0): HOSVD Iterate until convergence:

mXk(Z) = −g(Xk)+−grad g(Xk), Z+ 1

2−Hess g(Xk)[Z], Z.

Solve (tCG) min

Z∈TXk M mXk(Z),

subject to Z, Z ≤ ∆2

k.

ρk = −g(Xk) + g(RXk (Zk)) mXk(0Xk) − mXk(Zk) . Xk+1 =

• RXk(Zk),

if ρk is large Xk,

• therwise

∆k+1 =   

1 4∆k,

if ρk is small 2∆k, if ρk is large ∆k,

• therwise

SLIDE 32

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 33

Introduction Some applications Algorithms Local minima

CG and vector transport

Linear conjugate gradient method

1 4 3

2 5

Manifold M = St(R1, I1)/OR1 × St(R2, I2)/OR2 × St(R3, I3)/OR3 . Vector transport TηXξX = Ph

X+¯

ηX ¯

ξX .

M

TXM

η ξ

RX(η)

Tηξ ξ X

SLIDE 34

Introduction Some applications Algorithms Local minima

Summary: CG algorithm

Initial iterate: X0 = (U0, V0, W0) ∈ M. Set η0 = −grad g(X0). Iterate until convergence (k = 0, 1, 2, . . .)

Compute αk; e.g., use Armijo stepsize. Set Xk+1 = RXk(αkηk). Compute βk+1, e.g., via the Fletcher-Reeves formula βk+1 = gradg(Xk+1), gradg(Xk+1) gradg(Xk), gradg(Xk) . Set ηk+1 = −gradg(Xk+1) + βk+1Tαkηk (ηk).

SLIDE 35

Introduction Some applications Algorithms Local minima

Summary: all algorithms

HOOI + simple + cost per iter. O(I3R+IR4+R6): cheap – linear convergence Newton-based – cost per iter. O(I3R3): expensive – convergence issues + quadratic convergence TR-based +/– cost per iteration ≤ O(I3R3) + superlinear (up to quadratic) conv. CG-based – large number of iterations + cost per iter. ∼ O(I3R): cheap Use if precision/time are noncritical Use if good start- ing point is available Precise. Fast if the imposed multilinear rank is small Best performance for easy problems. Competitive if randn

SLIDE 36

Introduction Some applications Algorithms Local minima

Outline

1

Introduction

2

Some applications Epileptic seizure onset localization Parameter estimation

3

Algorithms Geometric Newton algorithm Trust-region based algorithm Conjugate gradient based algorithm

4

Local minima

SLIDE 37

Introduction Some applications Algorithms Local minima

Example 1

ˆ A = T /T + 0.2 ∗ E/E, A = ˆ A/ ˆ A

10 20 30 40 50 60 70 80 90 100 0.1909 0.1909 0.1909 0.1909 0.1909 0.1909 0.1909 TR HOOI

Cost function f Run

A ∈ R10×10×10 (R1, R2, R3) = (2, 2, 2) T is exactly rank-(2, 2, 2) E : noise; randn elements U0, V0, W0 : column-wise ⊥

SLIDE 38

Introduction Some applications Algorithms Local minima

Example 1

ˆ A = T /T + 2 ∗ E/E, A = ˆ A/ ˆ A

10 20 30 40 50 60 70 80 90 100 0.885 0.89 0.895 0.9 0.905 0.91 0.915 0.92 0.925 TR HOOI

Cost function f Run

A ∈ R10×10×10 (R1, R2, R3) = (2, 2, 2) T is exactly rank-(2, 2, 2) E : noise; randn elements U0, V0, W0 : column-wise ⊥

SLIDE 39

Introduction Some applications Algorithms Local minima

Example 1

ˆ A = T /T + 4 ∗ E/E, A = ˆ A/ ˆ A

10 20 30 40 50 60 70 80 90 100 0.925 0.93 0.935 0.94 0.945 0.95 0.955 TR HOOI

Cost function f Run

A ∈ R10×10×10 (R1, R2, R3) = (2, 2, 2) T is exactly rank-(2, 2, 2) E : noise; randn elements U0, V0, W0 : column-wise ⊥

SLIDE 40

Introduction Some applications Algorithms Local minima

Example 2

10 20 30 40 50 60 70 80 90 100 17.5 17.55 17.6 17.65 17.7 17.75 17.8 17.85 TR HOOI

Cost function f Run

20 40 60 80 100 120 29.75 29.8 29.85 29.9 29.95 30 TR HOOI HOSVD+TR HOSVD+HOOI

Cost function f Run

rank-(7, 8, 9) approx. rank-(2, 2, 2) approx. randn A ∈ R10×10×10 Initial values: column-wise orthonormal U0, V0, and W0

SLIDE 41

Introduction Some applications Algorithms Local minima

Summary: local minima

Essential difference with the matrix case Similar values of f at the local minima → OK for compression applications Different subspaces → Consequences for subspace based applications, including dimensionality reduction for PARAFAC Truncated HOSVD global minimum → Compute enough local minima and choose the best The global minimum is not always the best choice → No meaningful solution?

SLIDE 42

Conclusions References

Conclusions

Parameter estimation: If the matrix of the amplitudes is ill-conditioned then use the tensor algorithm with reduced mode-3 rank. Best low multilinear rank approximation: We have developed 3 new algorithms and examined their advantages and disadvantages. Local minima: Use best low multilinear rank approximation only if it “makes sense”.

SLIDE 43

Conclusions References

Key references I

Background

• L. De Lathauwer, B. De Moor, and J. Vandewalle. A multilinear singular value
• decomposition. SIAM J. Matrix Anal. Appl., 21(4):1253–1278, 2000.
• L. De Lathauwer, B. De Moor, and J. Vandewalle. On the best rank-1 and

rank-(R1, R2, . . . , RN) approximation of higher-order tensors. SIAM J. Matrix

• Anal. Appl., 21(4):1324–1342, 2000.

P .-A. Absil, R. Mahony, and R. Sepulchre. Optimization Algorithms on Matrix

• Manifolds. Princeton University Press, Princeton, NJ, 2008.

P .-A. Absil, C. G. Baker, and K. A. Gallivan. Trust-region methods on Riemannian

• manifolds. Found. Comput. Math., 7(3):303–330, 2007.

Our algorithms and local minima

• M. Ishteva, L. De Lathauwer, P

.-A. Absil, and S. Van Huffel. Differential-geometric Newton method for the best rank-(R1, R2, R3) approximation of tensors. Numerical Algorithms, 51(2):179–194, 2009.

• M. Ishteva, L. De Lathauwer, P

.-A. Absil, and S. Van Huffel. Best low multilinear rank approximation of higher-order tensors, based on the Riemannian trust-region

• scheme. Tech. Report 09-142, ESAT-SISTA, K.U.Leuven, Belgium, 2009.

SLIDE 44

Conclusions References

Key references II

• M. Ishteva, P

.-A. Absil, S. Van Huffel, and L. De Lathauwer. Best low multilinear rank approximation with conjugate gradients. Tech. Report 09-246, ESAT-SISTA, K.U.Leuven, Belgium, 2009.

• M. Ishteva, P

.-A. Absil, S. Van Huffel, and L. De Lathauwer. Local minima of the best low multilinear rank approximation of higher-order tensors. Tech. Report 09-247, ESAT-SISTA, K.U.Leuven, Belgium, 2009. Related papers

• L. Eldén and B. Savas. A Newton–Grassmann method for computing the best

multi-linear rank-(r1, r2, r3) approximation of a tensor. SIAM J. Matrix Anal. Appl., 31(2):248–271, 2009.

• B. Savas and L.-H. Lim. Best multilinear rank approximation of tensors with

quasi-Newton methods on Grassmannians. Tech. Report LITH-MAT-R-2008-01-SE, Dept. of Mathematics, Linköping University, 2008.

• B. Savas and L. Eldén. Krylov subspace methods for tensor computations. Tech.

Report LITH-MAT-R-2009-02-SE, Dept. of Mathematics, Linköping University, 2009.

SLIDE 45

Conclusions References

Thank you for your attention!
