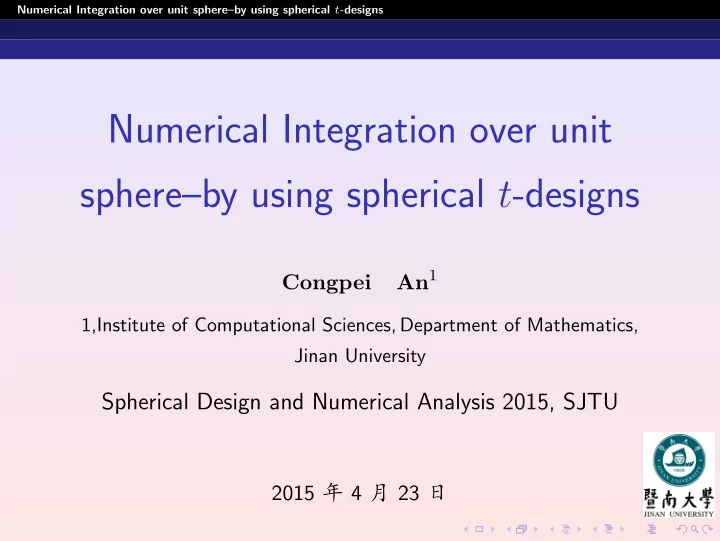

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integration over unit sphere–by using spherical t-designs

Congpei An1

1,Institute of Computational Sciences, Department of Mathematics, Jinan University

Spherical Design and Numerical Analysis 2015, SJTU

2015 c 4 23 F

Numerical Integration over unit sphere–by using spherical t-designs

Outline

1 Well conditioned spherical designs 2 Numerical verification methods 3 Numerical results of verification methods 4 Numerical integration over unit sphere 5 Performance of Numerical Integrations

Numerical Integration over unit sphere–by using spherical t-designs

Notations

XN = {x1, . . . , xN} ⊂ S2 =

• x, y, z ∈ R3 |x2 + y2 + z2 = 1
• Pt = { spherical polynomials of degree ≤ t}

= {polynomials in x, y, z of degree ≤ t restricted to S2} N = Number of points t = Degree of polynomials

Numerical Integration over unit sphere–by using spherical t-designs

Spherical coordinates

x1 =     1     , x2 =     sin(θ2) cos(θ2)     , xi =     sin(θi) cos(φi) sin(θi) sin(φi) cos(θi)     , i = 3, . . . , N. (1)

Numerical Integration over unit sphere–by using spherical t-designs Background on spherical t−designs

Part I

Background on spherical t−designs

Numerical Integration over unit sphere–by using spherical t-designs Background on spherical t−designs

Definition of Spherical t−design

Definition (Spherical t−design) The set XN = {x1, . . . , xN} ⊂ S2 is a spherical t-design if 1 N

N

• j=1

p (xj) = 1 4π

• S2 p(x)dω(x)

∀p ∈ Pt, (2) where dω(x) denotes surface measure on S2. The definition of spherical t−design was given by Delsarte, Goethals, Seidel in 1977 [10].

Numerical Integration over unit sphere–by using spherical t-designs Background on spherical t−designs

Real Spherical harmonics Real Spherical harmonics[14] Yℓk : k = 1, . . . , 2ℓ + 1, ℓ = 0, 1, . . . , t

Basis Pt=Span{Yℓk : k = 1, . . . , 2ℓ + 1, ℓ = 0, 1, . . . , t} Orthonormality with respect to L2 inner product (p, q)L2 =

• S2 p(x)q(x)dω(x),

Normalization Y0,1 =

1 √ 4π

dim Pt = (t + 1)2 Addition Theorem

2ℓ+1

• k=1

Yℓ,k(x)Yℓ,k(y) = 2ℓ+1

4π Pℓ (x · y) , x, y ∈ S2

Numerical Integration over unit sphere–by using spherical t-designs Background on spherical t−designs

Spherical harmonic basis matrix

For t ≥ 1, and N ≥ dim(Pt) = (t + 1)2, let Y0

t be the ((t + 1)2 − 1) by

N matrix defined by Y0

t (XN) := [Yℓ,k(xj)],

k = 1, . . . , 2ℓ + 1, ℓ = 1, . . . , t; j = 1, . . . , N, (3) Yt(XN) :=

• 1

√ 4π eT

Y0

t (XN)

• ∈ R(t+1)2×N,

(4) where e = [1, . . . , 1]T ∈ RN. Gt (XN) := Yt (XN)T Yt (XN) ∈ RN×N, Ht (XN) := Yt (XN) Yt (XN)T ∈ R(t+1)2×(t+1)2.

Numerical Integration over unit sphere–by using spherical t-designs Background on spherical t−designs

Nonlinear system Ct(XN) = 0

Let N ≥ (t + 1)2, define Ct : (Sd)N → R, Ct(XN) = EGt(XN)e (5) where the N × N Gram matrix Gt for XN ⊂ S2 Gt (XN) = Yt (XN)T Yt (XN) e =        1 1 . . . 1        ∈ RN, E = [1, −I] ∈ R(N−1)×N, 1 = [1, . . . , 1]T ∈ RN−1 (6)

Numerical Integration over unit sphere–by using spherical t-designs Background on spherical t−designs

Nonlinear system Ct(XN) = 0

Theorem (ACSW2010,[1]) Let N ≥ (t + 1)2. Suppose that XN = {x1, . . . , xN} is a fundamental system for Pt. Then XN is a spherical t-design if and only if Ct (XN) = 0. Definition (Fundamental system) A point set XN = {x1, . . . , xN} ⊂ S2 is a fundamental system for Pt if the zero polynomial is the only member of Pt that vanishes at each point xi, i = 1, . . . , N. Ht(XN) is nonsingular ⇐ ⇒ XN is a fundamental system for Pt. Let N = (t + 1)2, Gt(XN) is nonsingular⇐ ⇒ XN is a fundamental system for Pt.

Numerical Integration over unit sphere–by using spherical t-designs

Well conditioned spherical designs

II

Well conditioned spherical designs

Numerical Integration over unit sphere–by using spherical t-designs

Well conditioned spherical designs Definition

Chen and Womersley [8], Chen, Frommer and Lang [9] verified that a spherical t-design exists in a neighborhood of an extremal system. This leads to the idea of extremal spherical t-designs, which first appeared in [8] in N = (t + 1)2. We here extend the definition to N ≥ (t + 1)2. Definition (Extremal spherical designs[1]) A set XN = {x1, . . . , xN} ⊂ S2 of N ≥ (t + 1)2 points is a extremal spherical t-design if the determinant of the matrix Ht(XN) := Yt(XN)Yt(XN)T ∈ R(t+1)2×(t+1)2 is maximal subject to the constraint that XN is a spherical t-design.

Numerical Integration over unit sphere–by using spherical t-designs

Well conditioned spherical designs

Optimization Problem on S2

max log det (Ht(XN)) XN ⊂ S2 subject to Ct (XN) = 0. (7) ⇓

Well conditioned spherical t-design.

The log of the determinant is bounded above by logdet(HL(XN)) ≤ (t + 1)2 log N 4π

• .

(8)

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

III

Numerical Verification method

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

Notations on Interval method

1 By IRn, denote [a] = [a, a], a, a ∈ Rn, a ≤ a 2 +, −, ∗, / can be extended from Rn to IRn and from Rn×n to IRn×n. 3 Let mid[a] = (a + a)/2 in componentwise. 4 diam[a] = a − a = 2rad [a] , 5 F : D ⊆ Rn → Rn be a continuously differentiable function.Let

[dF] ∈ IRn×n be an interval matrix containing F′(ξ) for all ξ ∈ [x], i.e. {F′(x) : x ∈ [x]} ⊆ [dF] ([x]). (9) Such [dF] can be obtained by an interval arithmetic evaluation of (expressions for) the Jacobian F′ at the interval vector [x].

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

Krawczyk operator

Definition (Krawczyk operator,[11]) Given a nonsingular matrix BL ∈ Rn×n, ˇ z ∈ [z] ⊆ D and [dF] ∈ IRn×n, the Krawczyk operator [11] is defined by: kF(ˇ z, [z] , BL, [dF]) := ˇ z − BLF(ˇ z) + (In − BL · [dF])([z] − ˇ z). (10) It is known that kF(ˇ z, [z] , BL, [dF]) is an interval extension of the function ψ(z) := z − BLF(z) over [z], that is, z − BLF(z) ∈ kF(ˇ z, [z] , BL, [F]) for all z ∈ [z].

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

Verification Theorem

Theorem (Krawczyk 1969 [11], Moore 1977[12]) Let F : D ⊂ Rn → Rn be a continuously differentiable function. Choose [z] ∈ IRn, ˇ z ∈ [z] ⊆ D, an invertible matrix BL ∈ Rn×n and [dF] ∈ IRn×n such that F′ (ξ) ∈ [dF] for all ξ ∈ [z]. Assume that kF (ˇ z, [z], BL, [dF]) ⊆ [z]. Then F has a zero z∗ in kF (ˇ z, [z], BL, [dF]).

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

Deal with Ct(XN)

1 Represent the points xi on the sphere by spherical coordinates with φ, θ .

That is [xi] = [sin([θ])cos([φi]), sin([θi])sin([φi]), cos([θi])]T , i = 1, . . . , N.

2 Ct(XN) is redefined as a system of nonlinear equation

˜ F(y) = 0. The components of y are yi−1 = θi, i = 2, . . . , N, yN+i−3 = ϕi, i = 3, . . . , N.

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

1 Use a QR-factorization method at each step to determine the N − 2 least

important components of y, which we label collectively by yN, then write y := (z, yN), and define a new function F(z) = ˜ F(z, yN), where F : RN−1 → RN−1.

2 Using the Krawczyk operator with BL = (mid[dF])−1 we can verify the

existence of a fixed point of z − BLF(z), which is a solution of F(z) = 0.

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

The estimate on determinant

Theorem (ACSW2010,[1]) Let U be a nonsingular upper triangular matrix. Assume that In − UT [A]U∞ ≤ r < 1. (11) Let β = N Π

j=1Ujj

−2 . Then 0 < β(1 − r)N ≤ det (A) ≤ β(1 + r)N, for A ∈ [A] and AT = Aa. (12)

• aC. An, X, Chen, I. H. Sloan, R. S. Womersley, Well Conditioned Spherical

Designs for integration and interpolation on the two-Sphere, SIAM J. Numer. Anal.

• Vo. 48, Issue 6, pp. 2135-2157.

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

• Proof. We consider a symmetric matrix A ∈ [A]. Noting that UT AU

preserves the symmetric structure, we denote its (real) eigenvalues by λi(UT AU). Since max

1≤i≤N | 1 − λi(UT AU) |= ρ

• In − UT AU
• ≤ In − UT AU∞ ≤ r,

where ρ is the spectral radius, we have 0 < 1 − r ≤ λi(UT AU) ≤ 1 + r, i = 1, . . . , N. Hence, (1 − r)N ≤ det

• UT AU
• ≤ (1 + r)N .

Noting that det (U) det

• UT

= N Π

j=1Ujj

2 = β−1, from 0 < (1 − r)N ≤ β−1 det (A) ≤ (1 + r)N , we obtain (12). ✷

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Verification method

In practical computation for Ht

1 Choose a preconditioning matrix U s.t (U−1)T U−1 = mid[Ht] 2 Conduct all operations in machine interval arithmetic and get an interval

enclosing In − UT [Ht]U∞. In − UT [Ht]U∞ =UT ((U−1)T U−1 − [Ht])U∞ (13a) =UT (mid(Ht) − [Ht])U∞ (13b) ≤UT ∞rad(Ht)∞U∞ < 1, (13c)

3

[log det (Ht(XN))] ⊆

• b, b
• (14)

for all XN ∈ [XN], where b = log β + N log (1 − r) and b = log β + N log (1 + r) .

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method

IV

Numerical results of verification method

For N = (t + 1)2, det(Gt(XN)) = det(Ht(XN)). Using an Extremal system 1as a initial point set. Based on the MATLAB toolbox INTLAB 2§3.

• 1I. H. Sloan and R. S. Womersley, Extremal systems of points and numerical

integration on the sphere, Adv. Comput. Math., 21 , pp. 107–125(2004).

• 2X. Chen, A. Frommer and B. Lang, Computational existence proof for

spherical t-designs, Numer. Math., 117 (2011), pp. 289-205

• 3S. M. Rump, INTLAB – INTerval LABoratory, in Developments in Reliable

Computing, T. Csendes, ed., Dordrecht, Kluwer Academic Publishers, pp. 77–104, 1999.

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method For t = 1, . . . , 151 with N = (t + 1)2

1 max diam([XN]) represents the maximum diameter of all computed

enclosures for the parametrization of the respective spherical t-design.

2 [log det(Gt(XN))] is over 104 for the largest t.

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method

Figure: The diameters of [XN]

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method

Figure: Middle point values and diameters of [log det(Gt(XN))]

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method Geometry

Separation distance–well separated spherical t-design δXN := min

xi,xj∈XN ,i=j dist (xi, xj) ≥ π

2t ≥ π 2 √ N .

Figure: The separation of XN with N = (t + 1)2

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method Existence of well separated spherical t-designs

For each even N ≥ Cdtd, there exists of a well separated spherical t-design in the sphere Sd consisting of N points, where Cd is a constant depending only on d4.

• 4Bondarenko. A., Radchenko, D. Viazovska, M, Well-Separated Spherical

Designs,Constructive Approximation February 2015, Volume 41, Issue 1, pp 93-112

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method Geometry

Mesh norm hXN := max

y∈S2 min xi∈XN dist(y, xi) ≤ 4.8097

t ,

Figure: The mesh norm of XN with N = (t + 1)2

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method Geometry

Mesh ratio ρXN :=

2hXN δXN

≥ 1

Figure: The mesh ratio of extremal spherical t-designs with N = (t + 1)2

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method Conjecture on S2

Let Cδ, Ch be constants. A lower bound on the separation of well conditioned spherical t-designs for δXN ≥ CδN − 1

2 ,

combined with the known upper bounds on mesh norm hXN ≤ ChN

1 2

would give the uniform bound ρXN ≤ 2Ch Cδ independent of t, N. (15)

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method An example

Figure: Well conditioned 49 design with 2500 points

Numerical Integration over unit sphere–by using spherical t-designs

Numerical results of verification method A question Can we verify Womersley’s efficient spherical t-designs successfully by using Interval analysis?

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere

V

Numerical Integrations over unit sphere

1 Bivariate trapezoidal rule5, with q = 2.5. 2 Well conditioned spherical t-designs 3 Equal area points6

• 5K. Atkinson. Quadrature of singular integrands over surfaces. Electron.
• Trans. Numer. Anal., 7:133–150, 2004.
• 6EA. Rakhmanov, EB. Saff, and Y. Zhou, Minimimal discrete energy on the
• sphere. Math. Res. Lett., 11(6): 647–662, 1994

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere Bivariate trapezoidal rule

For the problem of approximate I(f) =

• S2 f(x)dω(x)

in which f is several times continuously differentiable over the unit sphere S2, we can use spherical coordinates to rewrite it as I(f) = π 2π f(cos φ sin θ, sin φ sin θ, cos θ) sin θdφdθ .

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere

We use a transformation L : S2 → ˜ S2 With respect to spherical coordinates on S2 L : x = (cos φ sin θ, sin φ sin θ, cos θ) → (16) ˜ x = (cos φ sinq θ, sin φ sinq θ, cos θ) √ cos2 θ + sin2q θ = L(θ, φ). (17) In this transformation, q ≥ 1 is a ‘grading parameter’, The north and south poles of S2 remain fixed, while the region around them is distorted by the mapping. if we chose a higher q, the area near two poles will have more points and equator area are more sparser.

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere

The integral I(f) becomes I(f) =

• S2 f(Lx)JL(˜

x)dω(˜ x) with JL(˜ x) the jacobian of the mapping L, JL(˜ x) = |DφL(θ, φ)×DθL(θ, φ)| = sin2q−1 θ(q cos2 θ + sin2 θ) (cos2θ + sin2q θ)

3 2

. In spherical coordinates, I(f) = π sin2q−1 θ(q cos2 θ + sin2 θ) (cos2θ + sin2q θ)

3 2

2π f(ξ, η, ζ)dφdθ, (ξ, η, ζ) = (cos φ sinq θ, sin φ sinq θ, cos θ) √ cos2 θ + sin2q θ (18)

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere

For n ≥ 1, let h = π/n, and φj = θj = jh π 2π g(sin θ, cos θ, sin φ, cos φ) dφ dθ ≈ h2

n−1

• k=1

2n

• j=1

g(sin θk, cos θk, sin φj, cos φj) ≡ In, g = sin2q−1 θ(q cos2 θ + sin2 θ) (cos2θ + sin2q θ)

3 2

f(ξ, η, ζ). Error satisfies I − In = O(hk) f ∈ Ck(S2)

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere Equal-Area Points

The equal-area points aim to achieve a partition T of the sphere into a user-chosen number of N of subsets Tj each of which has the same area |Tj| = 4π N , j = 1, . . . , N, and diam(Tj) ≤ c √ N , Then we obtain the equal weight rule INf := 4π N

N

• j=1

f(xj). We have |If − INf| ≤ 4πσc √ N

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere Geometry of different nodes

(a) Bi. trapezoidal rule (b) Equal area points (c) spherical t-design

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere Franke1 function

f1(x, y, z) =0.75 exp(−(9x − 2)2/4 − (9y − 2)2/4 − (9z − 2)2/4) + 0.75 exp(−(9x + 1)/49 − (9y + 1)/10 − (9z + 1)/10) + 0.5 exp(−(9x − 7)2/4 − (9y − 3)2/4 − (9z − 5)2/10) + 0.2 exp(−(9x − 4)2 − (9y − 7)2 − (9z − 5)2/10)

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere C0 function

f2(x) = sin2(1 + ||x||1)/10 is not continuously differentiable at points where any component of x is zero.

Figure: f2

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere Nearby singular function

f3(x, y, z) = 1/(101 − 100z) is analytic over S2, it has a pole just off the surface of the sphere at x = (0, 0, 1.01), in other word, f3((0, 0, 1.01)) = inf.

Figure: f3

Numerical Integration over unit sphere–by using spherical t-designs

Numerical Integrations over unit sphere Cap function with R = 1

3, center x0 = (0, 0, 1)T.

f4(x) =    cos2( π

2 dist(x, x0)/R)

if dist(x, x0) < R if dist(x, x0) ≥ R,

Figure: f4

Numerical Integration over unit sphere–by using spherical t-designs

Performance of Numerical Integrations

VI

Performance of Numerical Integrations

Numerical Integration over unit sphere–by using spherical t-designs

Performance of Numerical Integrations Performance of Numerical Integrations

function exact integration values f1 6.6961822200736179523 f2 0.45655373990000 f3 π log 201/50∗ f4 0.103351∗

Absolute error = |If − Inf| (19)

Numerical Integration over unit sphere–by using spherical t-designs

Performance of Numerical Integrations

Figure: f1

Numerical Integration over unit sphere–by using spherical t-designs

Performance of Numerical Integrations

Figure: f2

Numerical Integration over unit sphere–by using spherical t-designs

Performance of Numerical Integrations

Figure: f3

Numerical Integration over unit sphere–by using spherical t-designs

Performance of Numerical Integrations

Figure: f4

Numerical Integration over unit sphere–by using spherical t-designs

Performance of Numerical Integrations Final Remark

1 Well conditioned Spherical t-design is a useful tool to deal

with numerical integration over the sphere.

2 Can we give a sharp error analysis for numerical

integration (with different nodes) over the sphere as results on [−1, 1]?

3 How to set up a efficient quadrature rule when integrand

with special properties? such as highly oscillatory integrals, potential integrals....

Numerical Integration over unit sphere–by using spherical t-designs

Performance of Numerical Integrations

Thank you very much!

Numerical Integration over unit sphere–by using spherical t-designs REFERENCES

REFERENCES

Numerical Integration over unit sphere–by using spherical t-designs REFERENCES [1]

• C. An, X, Chen, I. H. Sloan, R. S. Womersley, Well Conditioned Spherical Designs for integration and

interpolation on the two-Sphere, SIAM J. Numer. Anal. Vo. 48, Issue 6, pp. 2135-2157. [2]

• C. An, X, Chen, I. H. Sloan, R. S. Womersley, Regularized least squares approximation on sphere

using spherical designs, SIAM J. Numer. Anal. Vol. 50, No. 3, pp. 1513õ1534. [3] C.An, Distributing points on the unit sphere and spherical designs, Ph.D Thesis, The Hong Kong Polytechnic University, 2011. [4]

• E. Bannai , R.M. Damerell, Tight spherical designs I. Math Soc Japan 31(1): 199-207,1979.

[5]

• R. Bauer, Distribution of points on a sphere with application to star catalogs , J. Guidance, Control, and

Dynamics, 23 (2000), pp. 130–137. [6]

• A. Bondarenko, D. Radchenko, and M. Viazovska, Optimal asymptotic bounds for spherical designs.

ArXiv:1009.4407v1[math.MG], 2011. [7]

• A. Bondarenko, D. Radchenko, and M. Viazovska,Well separated spherical designs. ArXiv:1303.5991

[math.MG],2013. [8]

• X. Chen and R. S. Womersley, Existence of solutions to systems of undetermined equations and

spherical designs, SIAM J. Numer. Anal., 44 (2006), pp. 2326–2341. [9]

• X. Chen, A. Frommer and B. Lang, Computational existence proof for spherical t-designs, Numer.

Math., 117 (2011), pp. 289-205 [10]

• P. Delsarte, J. M. Goethals and J. J. Seidel, Spherical codes and designs, Geom. Dedicata, 6

(1977), pp. 363–388. [11]

• R. Krawczyk, Newton-Algorithmen zur Bestimmung von Nullstellen mit Fehlerschranken, Computing, 4 ,
• pp. 187–201(1969).

[12]

• R. E. Moore, A test for existence of solutions to nonlinear systems, SIAM J. Numer. Anal., 14 , pp.

611–615(1977). [13]

• S. M. Rump, INTLAB – INTerval LABoratory, in Developments in Reliable Computing, T. Csendes, ed.,

Dordrecht, Kluwer Academic Publishers, pp. 77–104, 1999. [14]

• C. M¨

uller, Spherical Harmonics, vol. 17 of Lecture Notes in Mathematics, Springer Verlag, Berlin, New-York, 1966. [15]

• R. J. Renka, Multivariate interpolation of large sets of scattered data, ACM Trans. Math. Software, 14

(1988), pp. 139–148. [16] P.D. Seymour and T. Zaslavsky ,Averaging sets: A generalization of mean values and spherical designs. Advances in Mathematics, vol. 52, pp. 213-240,1984. [17]

• I. H. Sloan, Polynomial interpolation and hyperinterpolation over general regions, J. Approx. Theory, 83

(1995), pp. 238–254. [18]

• I. H. Sloan and R. S. Womersley, Extremal systems of points and numerical integration on the sphere,
• Adv. Comput. Math., 21 , pp. 107–125(2004).

[19]

• I. H. Sloan and R. S. Womersley, Constructive polynomial approximation on the sphere, J. Approx.

Theory, 103 (2000), pp. 91-98. [20]

• I. H. Sloan and R. S. Womersley, Filtered hyperinterpolation: A constructive polynomial approximation
• n the sphere, Int. J. Geomath., 3, pp. 95õ117, 2012.
