State Of The Art on Functional Fabrication Asla Medeiros e Sa Karina Rodriguez-Echavarria Nico Pietroni Paolo Cignoni 1 c What is Digital Fabrication? Additive Manufacturing CNC Milling Laser Cutter + any computer assisted fabrication

slide-1
SLIDE 1

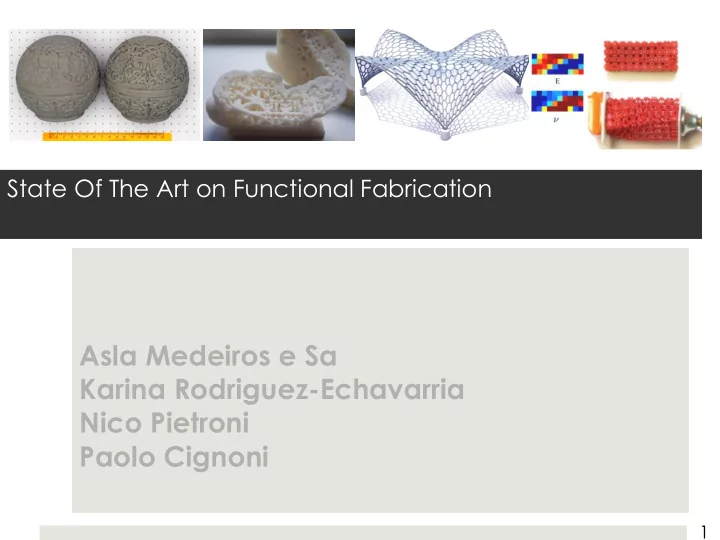

State Of The Art on Functional Fabrication

Asla Medeiros e Sa Karina Rodriguez-Echavarria Nico Pietroni Paolo Cignoni

1

slide-2
SLIDE 2

cWhat is Digital Fabrication? Additive Manufacturing Laser Cutter CNC Milling + any computer assisted fabrication methodology ...

slide-3
SLIDE 3

Why is Digital Fabrication relevant?

Additive Manufacturing (AM) technologies are posing the question: How design could take advantage of AM digital fabrication technology? This is feeding the discussion in a broader sense: How digital fabrication technology could impact on manufacturing processes and the exploration of the design space?

slide-4
SLIDE 4

Why isn't Digital Fabrication plug-and- play?

(YET)

MAIN GAP: Digital/Virtual worlds lack of physicality! MAIN GAP: Technology limitations

Our work focus on this gap!!!

slide-5
SLIDE 5

What is Functional Fabrication?

Functional Fabrication comprises the design and manufacture of physical

  • bjects with functionalities by means of

digital fabrication technologies. These functionalities include:

  • Mechanically enhanced workpieces,
  • Articulated physical models,
  • Aerodynamic workpieces,
  • Deformable workpieces and
  • Object’s with controlled appearance

and acoustics.

Spin-It: Optimizing Moment of Inertia for Spinnable Objects Moritz Bächer, Emily Whiting, Bernd Bickel, Olga Sorkine-Hornung Fabricating Articulated Characters from S Color Enhancement for Rapid Prototyping

  • P. Cignoni, E. Gobbetti, R. Pintus and R. Scopigno
slide-6
SLIDE 6

What role CG community plays?

Recent design tools are clearly taking advantage of relevant computer graphics techniques and extending these techniques to realise new physical forms as well as bringing innovation to feed into the design space. That is: Guiding the exploration of the feasible design space!

Input Motion Generated Automaton Physical Prototype

Designing and Fabricating Mechanical Automata from Mocap Sequences Duygu Ceylan, Wilmot Li, Niloy J. Mitra, Maneesh Agrawala and Mark Pauly. Pteromys: Interactive Design and Optimization of Free-formed Free-flight Model Airplanes

  • N. Umetani, Y. Koyama, R. Schmidt, T.Igarashi
slide-7
SLIDE 7

Classification

  • 1. Articulating
  • 2. Controlling deformability
  • 3. Enhancing structural properties
  • 4. Achieving balance
  • 5. Aerodynamics
  • 6. Appearance and Acoustics
slide-8
SLIDE 8
  • 1. Articulating Workpieces
slide-9
SLIDE 9
  • 1. Articulating Workpieces
slide-10
SLIDE 10
  • 1. Articulating Workpieces
slide-11
SLIDE 11
  • 1. Articulating Workpieces
slide-12
SLIDE 12
  • 1. Articulating Workpieces
slide-13
SLIDE 13
  • 1. Articulating Workpieces
slide-14
SLIDE 14
  • 1. Articulating Workpieces
slide-15
SLIDE 15
  • 1. Articulating Workpieces
slide-16
SLIDE 16
  • 1. Articulating Workpieces
slide-17
SLIDE 17
  • 1. Articulating Workpieces
slide-18
SLIDE 18

1

2.Controlling Deformability

Small-scale microstructure “looks” homogenous

slide-19
SLIDE 19

1

A lot of different patterns…

Goal: design microstructures for widest range of elastic behaviors …A library of Elastic Tensors

Elastic Textures for Additive Fabrication Julian Panetta, Qingnan Zhou, Luigi Malomo, Nico Pietroni, Paolo Cignoni, Denis Zorin Siggraph 2015,

slide-20
SLIDE 20

2.Controlling Deformability

Target: Young’s Modulus Poisson’s Ratio

Elastic Textures for Additive Fabrication Julian Panetta, Qingnan Zhou, Luigi Malomo, Nico Pietroni, Paolo Cignoni, Denis Zorin Siggraph 2015

slide-21
SLIDE 21

2.Controlling Deformability

slide-22
SLIDE 22

2.Controlling Deformability

Procedural Voronoi Foams for Additive Manufacturing Jonàs Martínez, Jérémie Dumas, Sylvain Lefebvre SIGGRAPH 2016

slide-23
SLIDE 23

2.Controlling Deformability

slide-24
SLIDE 24

3.Structurally Functional Shapes

slide-25
SLIDE 25

3.Structurally Functional Shapes

slide-26
SLIDE 26

3.Structurally Functional Shapes

slide-27
SLIDE 27

3.Structurally Functional Shapes

slide-28
SLIDE 28

3.Structurally Functional Shapes

slide-29
SLIDE 29

3.Structurally Functional Shapes

slide-30
SLIDE 30

3.Structurally Functional Shapes

slide-31
SLIDE 31

3.Structurally Functional Shapes

slide-32
SLIDE 32

3.Structurally Functional Shapes:

Architecture

Paneling Improving Performance Construction Plan

slide-33
SLIDE 33
  • 3. Architecture Paneling

Planar faces are highly desirable Bending glass panel may be an expensive operation

Form-finding with Polyhedral Meshes Made Simple Shape-Up: Shaping Discrete Geometry with Projections

slide-34
SLIDE 34
  • 3. Architecture: Static performance

Optimize performances by changing the meshing Keeping the overall weight constant Concentrate cells in region with higher stress Elongate cells along stress directions

35

Statics Aware Grid Shells

slide-35
SLIDE 35
  • 3. Architecture: Construction Plan

36

Assembling Self-Support Structures

slide-36
SLIDE 36
  • 4. Achieving Balance
slide-37
SLIDE 37
  • 4. Achieving Balance
slide-38
SLIDE 38
  • 4. Achieving Balance
slide-39
SLIDE 39
  • 4. Achieving Balance
slide-40
SLIDE 40
  • 4. Achieving Balance
slide-41
SLIDE 41
  • 5. Capturing Aereodynamics
slide-42
SLIDE 42
  • 5. Capturing Aereodynamics
slide-43
SLIDE 43
  • 5. Capturing Aereodynamics
slide-44
SLIDE 44
  • 6. Appearance
slide-45
SLIDE 45
  • 6. Appearance

[Cignoni(2008]

slide-46
SLIDE 46
  • 6. Appearance

Multi material 3D-prints [Hasan et al. 2010]

Alexa and Matusik [2011]

3D Printing svBRDF [2013]

  • O. Rouiller, B. Bickel, J. Kautz, W. Matusik and M. Alexa
slide-47
SLIDE 47
  • 6. Appearance

Kiser et al. [2013] Milling a BRDF [Weyrich et al. 2007]

slide-48
SLIDE 48

Conclusions and Future Work
