SLIDE 1
C1 - Unrestricted Version 1.0 Vodafone Group R&D 1 LTE algorithms, for SKEW 2011 17 Feb 2011
C1 - Unrestricted Version 1.0 Vodafone Group R&D 2 LTE algorithms, for SKEW 2011 17 Feb 2011
New mobile phone algorithms a real world story Steve Babbage - - PowerPoint PPT Presentation
New mobile phone algorithms a real world story Steve Babbage - - PowerPoint PPT Presentation

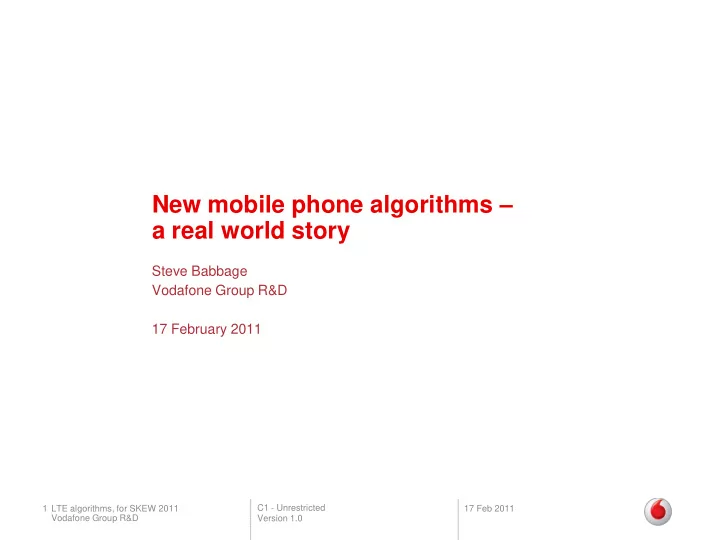

New mobile phone algorithms a real world story Steve Babbage Vodafone Group R&D 17 February 2011 1 LTE algorithms, for SKEW 2011 C1 - Unrestricted 17 Feb 2011 Vodafone Group R&D Version 1.0 Standards groups 2 LTE algorithms,
SLIDE 2
SLIDE 3
C1 - Unrestricted Version 1.0 Vodafone Group R&D 3 LTE algorithms, for SKEW 2011 17 Feb 2011
First generation
SLIDE 4
C1 - Unrestricted Version 1.0 Vodafone Group R&D 4 LTE algorithms, for SKEW 2011 17 Feb 2011
GSM security architecture
SIM RAND, XRES, KC RAND
AKA KC XRES
RES RES = XRES?
Encryption algorithm A5 KC RAND AKA RES Ki
Home network Visited network KC
ENCRYPT USING KC
Ki RAND Authentication and cipher key generation algorithm A3/A8
SLIDE 5
C1 - Unrestricted Version 1.0 Vodafone Group R&D 5 LTE algorithms, for SKEW 2011 17 Feb 2011
GSM security limitations
> Key length > One-way authentication > Unprotected signalling > A5/1, A5/2
SLIDE 6
C1 - Unrestricted Version 1.0 Vodafone Group R&D 6 LTE algorithms, for SKEW 2011 17 Feb 2011
UMTS security architecture (slightly simplified)
SIM RAND, XRES, CK, IK, SQN, MAC RAND, SQN, MAC
CK XRES
RES RES = XRES? CK, IK
Authentication and key agreement algorithm f1–f5 Encryption algorithm UEA, integrity algorithm UIA
Home network Visited network
ENCRYPT USING CK INTEGRITY PROTECT USING IK
RAND SQN IK MAC CK XRES RAND SQN IK MAC K K Check SQN Check MAC AKA AKA
SLIDE 7
C1 - Unrestricted Version 1.0 Vodafone Group R&D 7 LTE algorithms, for SKEW 2011 17 Feb 2011
First UMTS algorithms, UEA1 / UIA1
KASUMI (CK) BLKCTR = 0 BLKCTR = 1 BLKCTR = 2 BLKCTR = n
A
KASUMI (CK) KASUMI (CK) KASUMI (CK) KASUMI (CK) KASUMI (CK) KASUMI (CK) BLKCTR = 0 BLKCTR = 1 BLKCTR = 2 BLKCTR = n
A
KASUMI (CK) KASUMI (CK) KASUMI (CK) KASUMI (CK) KASUMI (CK) KASUMI (CK) KASUMI (CK) KASUMI (CK)
KASUMI (IK) KASUMI (IK) First 64 bits Second 64 bits Last 64 bits KASUMI (IK) KASUMI (IK) KASUMI (IK) KASUMI (IK) Third 64 bits KASUMI (IK) KASUMI (IK) KASUMI (IK) KASUMI (IK) MAC (left 32 bits)
A5/3 ≈ UEA1
(but 64-bit key)
SLIDE 8
C1 - Unrestricted Version 1.0 Vodafone Group R&D 8 LTE algorithms, for SKEW 2011 17 Feb 2011
So now we can replace A5/1 with A5/3 …
Image from http://www.elkomas.lt/
SLIDE 9
C1 - Unrestricted Version 1.0 Vodafone Group R&D 9 LTE algorithms, for SKEW 2011 17 Feb 2011
Second UMTS algorithms, UEA2 / UIA2
> SNOW 3G – Why not AES? – Why not SNOW 2.0?
SLIDE 10
C1 - Unrestricted Version 1.0 Vodafone Group R&D 10 LTE algorithms, for SKEW 2011 17 Feb 2011
LTE security architecture (part 1)
SIM RAND, XRES, CK, IK, SQN, MAC, KASME RAND, SQN, MAC
CK AKA XRES
RES RES = XRES? CK, IK
Authentication and key agreement algorithm f1–f5
Home network Visited network
RAND SQN IK MAC CK AKA XRES RAND SQN IK MAC K K Check SQN Check MAC PLMNID KASME PLMNID KASME
SLIDE 11
C1 - Unrestricted Version 1.0 Vodafone Group R&D 11 LTE algorithms, for SKEW 2011 17 Feb 2011
GSM security limitations
> Key length > One-way authentication > Unprotected signalling > A5/1, A5/2 > Same key regardless of algorithm choice
SLIDE 12
C1 - Unrestricted Version 1.0 Vodafone Group R&D 12 LTE algorithms, for SKEW 2011 17 Feb 2011
LTE security architecture (part 2)
SIM Home network Visited network
KASME
ALGID
Kα
ALGID
Kβ
ALGID
Kγ
ALGID
Kδ Kε
ALGID
KASME
ALGID
Kα
ALGID
Kβ
ALGID
Kγ
ALGID
Kδ Kε
ALGID
MOBILITY SIGNALLING: ENCRYPT USING Kα INTEGRITY PROTECT USING Kβ RADIO RESOURCE SIGNALLING: ENCRYPT USING Kγ INTEGRITY PROTECT USING Kδ USER PLANE: ENCRYPT USING Kε
Encryption algorithm EEA, integrity algorithm EIA
SLIDE 13
C1 - Unrestricted Version 1.0 Vodafone Group R&D 13 LTE algorithms, for SKEW 2011 17 Feb 2011
Original LTE algorithms (from day one)
> Based on SNOW-3G – 128-EEA1: straightforward stream cipher use – 128-EIA1: polynomial evaluation UHF – Identical to UMTS algorithms > Could have been based on Kasumi or AES; chose AES – 128-EEA2: AES in counter mode – 128-EIA2: AES in CMAC mode
SLIDE 14
C1 - Unrestricted Version 1.0 Vodafone Group R&D 14 LTE algorithms, for SKEW 2011 17 Feb 2011
The designers
DACAS: Data Assurance and communication security research center, Chinese Academy of Sciences Dongdai Lin Xiutao Feng
SLIDE 15
C1 - Unrestricted Version 1.0 Vodafone Group R&D 15 LTE algorithms, for SKEW 2011 17 Feb 2011
Plan A
May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb 2009 2010 Mar Apr May Jun Jul 2011 SAGE evaluation Paid expert team evaluation Algorithm acceptance (hopefully) Public evaluation Under NDA
SLIDE 16
C1 - Unrestricted Version 1.0 Vodafone Group R&D 16 LTE algorithms, for SKEW 2011 17 Feb 2011
Plan B
May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb 2009 2010 Mar Apr May Jun Jul 2011 SAGE evaluation Paid expert team evaluation Algorithm acceptance (hopefully) Public evaluation Agree and sign NDA
SLIDE 17
C1 - Unrestricted Version 1.0 Vodafone Group R&D 17 LTE algorithms, for SKEW 2011 17 Feb 2011
Take your time
Advanced Encryption Standard process From Wikipedia, the free encyclopedia Start of the process On January 2, 1997, NIST announced that they wished to choose a successor to DES to be known as AES …. The result of this feedback was a call for new algorithms on September 12, 1997 Rounds one and two In the nine months that followed, fifteen different designs were created and submitted …. NIST held two conferences to discuss the submissions (AES1, August 1998 and AES2, March 1999), and in August 1999 they announced that they were narrowing the field from fifteen to five …. … AES3 conference in April 2000 …. Selection of the winner On October 2, 2000, NIST announced that Rijndael had been selected as the proposed AES ….
SLIDE 18
C1 - Unrestricted Version 1.0 Vodafone Group R&D 18 LTE algorithms, for SKEW 2011 17 Feb 2011
Encryption
PLAINTEXT BLOCK EEA COUNT DIRECTION BEARER LENGTH KEY KEYSTREAM BLOCK CIPHERTEXT BLOCK EEA COUNT DIRECTION BEARER LENGTH KEY KEYSTREAM BLOCK PLAINTEXT BLOCK Sender Receiver
SLIDE 19
C1 - Unrestricted Version 1.0 Vodafone Group R&D 19 LTE algorithms, for SKEW 2011 17 Feb 2011
Integrity
EIA
KEY COUNT BEARER DIRECTION LENGTH MESSAGE MAC-I Sender
EIA
KEY COUNT BEARER DIRECTION LENGTH MESSAGE XMAC-I Receiver
SLIDE 20
C1 - Unrestricted Version 1.0 Vodafone Group R&D 20 LTE algorithms, for SKEW 2011 17 Feb 2011
ZUC – named after Zu Chongzhi
SLIDE 21
C1 - Unrestricted Version 1.0 Vodafone Group R&D 21 LTE algorithms, for SKEW 2011 17 Feb 2011
ZUC
One of these words mixed into LFSR during nonlinear initialisation
SLIDE 22
C1 - Unrestricted Version 1.0 Vodafone Group R&D 22 LTE algorithms, for SKEW 2011 17 Feb 2011
Encryption algorithm 128-EEA3
SLIDE 23
C1 - Unrestricted Version 1.0 Vodafone Group R&D 23 LTE algorithms, for SKEW 2011 17 Feb 2011
Integrity algorithm 128-EIA3
Universal Hash Function
SLIDE 24
C1 - Unrestricted Version 1.0 Vodafone Group R&D 24 LTE algorithms, for SKEW 2011 17 Feb 2011
Initial SAGE evaluation
> Fit for purpose > Smells OK – Must be not just strong, but free of suspicion
SLIDE 25
C1 - Unrestricted Version 1.0 Vodafone Group R&D 25 LTE algorithms, for SKEW 2011 17 Feb 2011
Plan B
May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb 2009 2010 Mar Apr May Jun Jul 2011 SAGE evaluation Paid expert team evaluation Algorithm acceptance (hopefully) Public evaluation Agree and sign NDA
SLIDE 26
C1 - Unrestricted Version 1.0 Vodafone Group R&D 26 LTE algorithms, for SKEW 2011 17 Feb 2011
Plan C
May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb 2009 2010 Mar Apr May Jun Jul 2011 Paid expert team evaluation Algorithm acceptance (hopefully) Public evaluation Agree and sign NDA Expert team contract SAGE evaluation
SLIDE 27
C1 - Unrestricted Version 1.0 Vodafone Group R&D 27 LTE algorithms, for SKEW 2011 17 Feb 2011
External expert team evaluation
> Codes and Ciphers Limited – Carlos Cid, Sean Murphy, Fred Piper, Matthew Dodd > Alice and Bob Technologies – Lars Knudsen, Bart Preneel, Vincent Rijmen > Several corrections / improvements to existing evaluation > All standard attack types considered – all seem unlikely to succeed > Strength inherited from SNOW-like construction > Some components not fully explained > Like most UHF MACs – not robust against nonce reuse
SLIDE 28
C1 - Unrestricted Version 1.0 Vodafone Group R&D 28 LTE algorithms, for SKEW 2011 17 Feb 2011
Conclusion of the SAGE and paid evaluation
> Transparency is vital – nothing suspicious
SLIDE 29
C1 - Unrestricted Version 1.0 Vodafone Group R&D 29 LTE algorithms, for SKEW 2011 17 Feb 2011
Plan C
May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb 2009 2010 Mar Apr May Jun Jul 2011 Paid expert team evaluation Algorithm acceptance (hopefully) Public evaluation Agree and sign NDA Expert team contract SAGE evaluation
SLIDE 30
C1 - Unrestricted Version 1.0 Vodafone Group R&D 30 LTE algorithms, for SKEW 2011 17 Feb 2011
Plan D
May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb 2009 2010 Mar Apr May Jun Jul 2011 Paid expert team evaluation Go public Public evaluation Agree and sign NDA Expert team contract Algorithm acceptance (hopefully) SAGE evaluation
SLIDE 31
C1 - Unrestricted Version 1.0 Vodafone Group R&D 31 LTE algorithms, for SKEW 2011 17 Feb 2011
Crypto rump session
SLIDE 32
C1 - Unrestricted Version 1.0 Vodafone Group R&D 32 LTE algorithms, for SKEW 2011 17 Feb 2011
IACR newsletter
SLIDE 33
C1 - Unrestricted Version 1.0 Vodafone Group R&D 33 LTE algorithms, for SKEW 2011 17 Feb 2011
The ZUC Forum
SLIDE 34
C1 - Unrestricted Version 1.0 Vodafone Group R&D 34 LTE algorithms, for SKEW 2011 17 Feb 2011
The first post
SLIDE 35
C1 - Unrestricted Version 1.0 Vodafone Group R&D 35 LTE algorithms, for SKEW 2011 17 Feb 2011
Questions
> Why not AES? > Why not eStream? > ―Chinese algorithm‖ means China can break it? > Is there something wrong with the other LTE algorithms? > What happens now to the other LTE algorithms? > Why does China get this special privilege? > If every other country insists on a home-grown algorithm, will every LTE phone have to support 200 algorithms? > Authenticated encryption?
SLIDE 36
C1 - Unrestricted Version 1.0 Vodafone Group R&D 36 LTE algorithms, for SKEW 2011 17 Feb 2011
ZUC-10 Workshop
SLIDE 37
C1 - Unrestricted Version 1.0 Vodafone Group R&D 37 LTE algorithms, for SKEW 2011 17 Feb 2011
Loss of entropy in initialisation (1)
Z mixed into LFSR during nonlinear initialisation
Matthew Dodd (private communication) Bing Sun et al (ZUC workshop)
SLIDE 38
C1 - Unrestricted Version 1.0 Vodafone Group R&D 38 LTE algorithms, for SKEW 2011 17 Feb 2011
Loss of entropy in initialisation (2)
Hongjun Wu et al (AsiaCrypt rump session, IACR ePrint archive)
s16 = f z If s16 = 0, set s16 = 231-1 Whatever f is … … z = 231-1-f gives the same result as z = f Two IVs → colliding state z f
SLIDE 39
C1 - Unrestricted Version 1.0 Vodafone Group R&D 39 LTE algorithms, for SKEW 2011 17 Feb 2011
Forgery attack on EIA3
Fuhr/Gilbert/Reinhard/Videau (ZUC workshop, IACR ePrint archive)
SLIDE 40
C1 - Unrestricted Version 1.0 Vodafone Group R&D 40 LTE algorithms, for SKEW 2011 17 Feb 2011
New versions
SLIDE 41
C1 - Unrestricted Version 1.0 Vodafone Group R&D 41 LTE algorithms, for SKEW 2011 17 Feb 2011
Plan D
May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb 2009 2010 Mar Apr May Jun Jul 2011 Paid expert team evaluation Go public Public evaluation Agree and sign NDA Expert team contract Algorithm acceptance (hopefully) SAGE evaluation
SLIDE 42
C1 - Unrestricted Version 1.0 Vodafone Group R&D 42 LTE algorithms, for SKEW 2011 17 Feb 2011
Plan E
May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan Feb 2009 2010 Mar Apr May Jun Jul 2011 Paid expert team evaluation Go public Public evaluation Agree and sign NDA Expert team contract Algorithm revision Algorithm acceptance (hopefully) Public evaluation Algorithm acceptance (hopefully) SAGE evaluation
SLIDE 43
C1 - Unrestricted Version 1.0 Vodafone Group R&D 43 LTE algorithms, for SKEW 2011 17 Feb 2011
Thank you
http://zucalg.forumotion.net/ http://gsmworld.com/our-work/programmes-and-initiatives/fraud-and- security/gsm_security_algorithms.htm
- r http://tinyurl.com/33ezbmj
