Needs for special rooms underground (food, emergency, small workshop, temporary computing,..) Questions Food and services Small workshop, machine shop, parts stores, tool storage, etc. Temporary office/meeting/computer space

slide-1
SLIDE 1

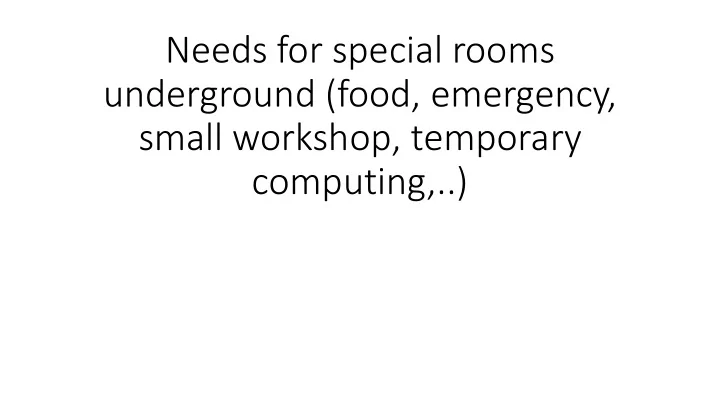

Needs for special rooms underground (food, emergency, small workshop, temporary computing,..)

slide-2
SLIDE 2

Questions

  • Food and services
  • Small workshop, machine shop, parts stores, tool storage, etc.
  • Temporary office/meeting/computer space
  • Emergency/first aid

18-Dec-2017 2

slide-3
SLIDE 3

Work shop

  • Based on the experience at ProtoDUNE, there is a need from the

detector and cryostat groups to have a small work shop underground.

  • Space estimate from Nova, 6 m x 9 m, (20’ x 30’) or 45 m2.
  • A list of common tools, hardware, clean room supplies, tool boxes, etc

should be stored someplace underground.

18-Dec-2017 3

slide-4
SLIDE 4

Cost estimate from Nova for work shop

  • Total M&S Costs: $28,190
  • Procurement and Installation
  • Lab Manager 20 hours
  • Technician: (2 FTE’s) 160 hours
  • M&S: $28,190
  • M&S costs include the costs for outfitting a machine shop and

generic lab tools.

  • Lathe- McMaster Carr-2006 catalog-$5171 plus tooling for lathe

$1000-Total $6171

  • Milling/Drill Machine-Grainger 2006-$1546, stand-$326, Tooling

$500-Total $2372

  • MIG Welder-Grainger 2006-$2377, Safety equipment, wire, etc.

$500-Total $2877

  • Drill Press-Grainger 2006-$315, Drill bits, Safety Equipment $200-

Total $515

  • 2 complete Tool Chest and mechanic set-Granger 2006-$2138
  • Air Compressor-Granger 2006-$2752, hoses, misc. air tools $500
  • Oxygen/Acetylene-Granger 2006-$648
  • Machine Vise-Granger 2006-$649
  • 2-Work Benches-Granger 2006-$204 each-Total $408
  • Hand tools-Granger 2007-Total $5389
  • 2-Cord-less DeWalt 18v drills-$199 each
  • 1-Cord-less DeWalt Combo kit, Circular saw, Jig saw, reciprocating saw and hammer

drill-$749

  • Power drill ½” DeWalt-$179, bit sets $49
  • Mag base drill-Granger-3F865-$1755
  • Hilti Drill-$698
  • 4 ½ ” Grinder-$99
  • Worm Drive circular saw DeWalt-$169, blade pack $45
  • Chop Saw DeWalt 12” Slide-$409, blade set $69
  • Table Saw DeWalt 10” stationary-$1099 blade set $130
  • Sanders Belt and obiting-$189 and $79
  • Shop Vac-$319
  • Misc. hand tools $500
  • Bits, taps, saw blades, anchors-$100
  • 2-High Capacity Storage Shelves-Granger 2007-$567 each-$1134

18-Dec-2017 4

slide-5
SLIDE 5

Some temporary space that could be available (CUC)

18-Dec-2017 5

Approximately 35 m x 15 m, 525 m2

slide-6
SLIDE 6

Can this space be utilized?

18-Dec-2017 6

slide-7
SLIDE 7

Original mezzanine 12 x 35 m

18-Dec-2017 7

slide-8
SLIDE 8

Current cryostat and proposed expansion

18-Dec-2017 8

Approved 4.8 m shift to the East for easier access to the feed thrus near at the West end of the cryostat Current 12 x 35 m Proposed 4.8 m addition. This would be used for local Cryo controls, personal work space. Also space may be needed if septum is removed for electrical.

slide-9
SLIDE 9

CUC “enclosed” spaces, this is being repackaged

18-Dec-2017 9

slide-10
SLIDE 10

Other considerations

  • Cleaning services through out the process
  • Air filtration – air quality measurement, maintenance, etc.
  • “Facilities” near the chambers. (toilets, hand wash stations, etc)
  • Waste management.

18-Dec-2017 10

slide-11
SLIDE 11

18-Dec-2017 11

slide-12
SLIDE 12

18-Dec-2017 12
