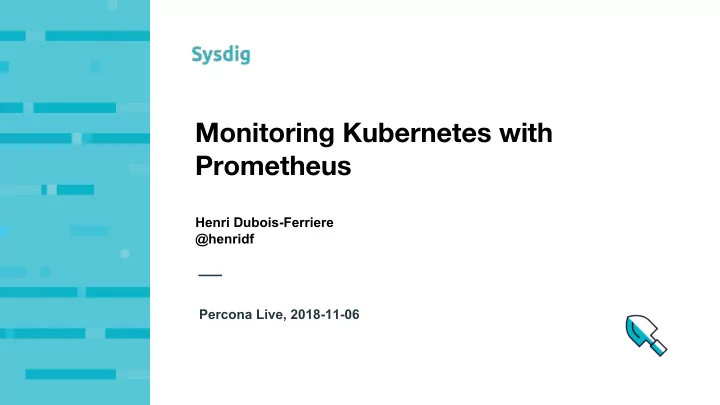

Monitoring Kubernetes with Prometheus

Henri Dubois-Ferriere @henridf

Hello.

Henri Dubois-Ferriere Technical Director, Sysdig

Doing “observability” for many many years, from network to web apps via many startups. PhD in CS from EPFL Repatriate from San Francisco to Switzerland

Outline

• Kubernetes
• Prometheus
• Kubernetes metrics & sources
• Deployment

Monitor why?

• Know about outages before users tell me
• Understand my production environment (or try…)
• Plan/trend/forecast

Kubernetes

Kubernetes

• Container orchestration system
• aka “OS for your cluster”
• Abstracts away the underlying infra
• declarative APIs with control loops

https://commons.wikimedia.org/wiki/File:Kubernetes.png

Prometheus

Prometheus

❏ Started at SoundCloud in 2012 ❏ Motivated by challenges with monitoring dynamic environments ❏ Made public 2015, now second CNCF “graduate”

More than a TSDB

https://prometheus.io/assets/architecture.png

It’s all about the pull

• Prom scrapes targets to get metrics
• Nice side effect: know when target down
• Needs to know what to scrape

What should Prometheus scrape?

• Service discovery provides answer
• Azure, Consul, GCE, K8S, EC2, ...
• Can also watch a file containing target list

Dimensional data model

Query: http_requests_total{code=”200”, method=”get”}

Selector (aka filter) Metric name

Query:

http_requests_total{code=”200”, method=”get”}

Response: http_requests_total{code="200", method=”get”, route="/api/users"} 1528706829.115 1741 http_requests_total{code="200", method=”get”, route="/api/objects"} 1528706829.115 1920

Label/value pairs (aka dimensions)

Dimensional data model

Query:

http_requests_total{code=”200”, method=”get”}

Response: http_requests_total{code="200", method=”get”, route="/api/users"} 1528706829.115 1741 http_requests_total{code="200", method=”get”, route="/api/objects"} 1528706829.115 1920

Timestamp value

Dimensional data model

Metadata discovery

• SD also provides metadata
• Metadata can be mixed in with metrics
• Powerful relabelling feature for label manipulation at

ingest

Instrumentation

Off-the-shelf or write your own

Kubernetes metrics

Monitoring resources and methods

• For resources like memory, queues, CPUs, disks…
• USE Method: Utilization, Saturation, Errors
• http://www.brendangregg.com/usemethod.html
• For services
• “RED” Method: Request rate, Error rate, Duration
• https://www.weave.works/blog/the-red-method-key-metrics-for-micr
• services-architecture/

• Host metrics
• CPU
• Memory
• Disk
• Network
• ...
• Not K8S specific, but useful as referential and for totals

node_exporter: node metrics

• Runs in kubelet (usually, for now..)
• Resource stats about running containers
• Mostly container and node-level labels…
• (k8s: plus namespace and pod_name)

cAdvisor: container metrics

Sample cAdvisor metric queries

Percent of total cluster memory used:

sum(container_memory_rss) / sum(machine_memory_bytes)

Memory used by kubernetes namespace:

sum(container_memory_rss) by (namespace)

Top 5 pods by network I/O:

topk(5, sum by (pod_name) (rate(container_network_transmit_bytes_total[5m])))

$ kubectl get deploy my-app -o yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: name: my-app ... spec: replicas: 4 ... status: replicas: 4 ...

Kube-state metrics

$ kubectl get deploy my-app -o yaml apiVersion: extensions/v1beta1 kind: Deployment metadata: name: my-app ... spec: replicas: 4 ... status: replicas: 4 ...

Kube-state metrics

kube_deployment_spec_replicas{deployment="my-app", ...} Metrics created by kube-state-metrics With label set from this deployment kube_deployment_status_replicas{deployment="my-app", ...}

Sample kube-state-metrics queries

Deployments with issues

kube_deployment_spec_replicas != kube_deployment_status_replicas_available

Top 10 longest-running pods (“reverse uptime”)

topk(10, sort_desc(time() - kube_pod_created))

• API Server
• etcd3
• kube-dns
• scheduler, controller-manager

Kube core service metrics

Metrics recap

Deployment mode How many Metrics about node_exporter daemonset 1 per node node resources cAdvisor inside kubelet 1 per node container resources kube-state-metrics deployment singleton k8s object state etcd, Api Server, controller manager, ... core service singleton or HA group Itself

Deploying

• Monitoring runs inside thing being monitored?
• Yes. It’s fine really. Really, it’s fine.
• (And being outside has own challenges)

Monitoring from the inside

• Metrics services
• node_exporter
• kube-state-metrics
• (cAdvisor usually enabled out of box)
• Prometheus running
• Storage
• Read access to API server (for service discovery)
• Service discovery config for above
• Service discovery config for apps/services

Deployment outline

helm fetch stable/prometheus vi prometheus/values.yaml # configure install helm upgrade -i # or manually deploy yaml

Helm-based install

Prometheus operator

• Use Kubernetes API facilities to make Prometheus “native”
• new Prometheus-related objects: `kubectl get prometheus`
• PrometheusRule, ServiceMonitor, AlertManager,

AlertingSpec, ...

• Prometheus configuration abstracted via all these objects
• Young but promising
• Consider more direct route first (hand-rolled or Helm), and Operator once

more familiar with challenges of direct route

Thank You.

Henri Dubois-Ferriere @henridf

Pointers

• Prometheus SD for Kubernetes:

https://prometheus.io/docs/prometheus/latest/configuration/configuration/#kubernetes_sd_config

• KSM metrics: https://github.com/kubernetes/kube-state-metrics/tree/master/Documentation
• Prometheus Helm chart: https://github.com/helm/charts/tree/master/stable/prometheus
• Prometheus operator: https://github.com/coreos/prometheus-operator
• “A deep dive into Kubernetes metrics” blog series:

https://blog.freshtracks.io/a-deep-dive-into-kubernetes-metrics-66936addedae
