SLIDE 1

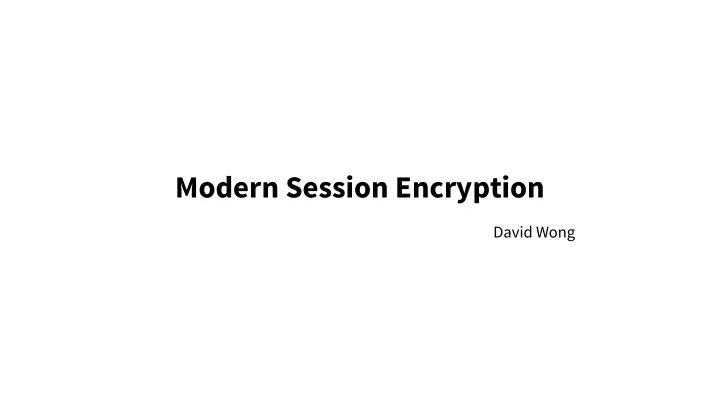

Modern Session Encryption

David Wong

SLIDE 2

2. STROBE
utline
1. KECCAK
3. NOISE
4. ???

SLIDE 3

f

⊕ ⊕

f

⊕

f f f

squeezing

Sponge Construction

absorbing

00101 01001 01100 11001 01011 10101

SLIDE 4

f

input

⊕

init

utput

duplexing

Duplex Construction

f

input

⊕

utput

duplexing

f

input

utput

duplexing

⊕

SLIDE 5

Keyed-mode

f

key

⊕

init duplexing

SLIDE 6

f

key

⊕

init duplexing

Encryption?

SLIDE 7

f

key

⊕

init duplexing

ciphertext1 plaintext1

⊕

Encryption

SLIDE 8

f

key

⊕

init duplexing

ciphertext1 plaintext1

⊕

f

⊕

tag1

duplexing

Authenticated Encryption

SLIDE 9

f

key

⊕

init duplexing

ciphertext1 plaintext1

⊕

f

⊕

tag1

duplexing

f

ciphertext2

duplexing

f

⊕

tag2

duplexing

plaintext2

⊕

Sessions

SLIDE 10

f

key ⊕

init duplexing

ciphertext1 plaintext1 ⊕

f

⊕ tag1

duplexing

f

ciphertext2

duplexing

f

⊕ tag2

duplexing

plaintext2 ⊕

f

ciphertext3

duplexing

f

⊕ tag3

duplexing

plaintext3 ⊕

f

ciphertext4

duplexing

f

⊕ tag4

duplexing

plaintext4 ⊕

SLIDE 11

2. STROBE
utline
1. KECCAK

SLIDE 12

peration = AD

⊕

data = 010100…

⊕

AD

peration = KEY

⊕

data = 010100…

KEY

f

peration = PRF

⊕

00000…

PRF

f

utput
peration = send_CLR

⊕

data = 010100…

⊕

send_CLR

peration = recv_CLR

⊕

data = 010100…

⊕

recv_CLR

peration = send_ENC

⊕

ciphertext

send_ENC

f

plaintext

⊕

peration = send_MAC

⊕

tag

send_MAC

f

peration = RATCHET

⊕

RATCHET

f

0000

peration = recv_ENC

⊕

plaintext

recv_ENC

f

⊕

ciphertext

peration = recv_MAC

⊕

recv_MAC

f

0000…

⊕

tag

Strobe functions

SLIDE 13

myProtocol = Strobe_init(“myWebsite.com”) myProtocol.AD(sharedSecret) buffer = myProtocol.send_ENC(“GET /”) buffer += myProtocol.send_MAC(len=16) // send the buffer // receive a ciphertext message = myProtocol.recv_ENC(ciphertext[:-16])

k = myProtocol.recv_MAC(ciphertext[-16:])

if !ok { // reset the connection }

Strobe protocol example

SLIDE 14

buffer = myProtocol.send_ENC(plaintext1) buffer += myProtocol.send_MAC(len=16) // send the buffer buffer = myProtocol.send_ENC(plaintext2) buffer += myProtocol.send_MAC(len=16) // send the buffer buffer = myProtocol.send_ENC(plaintext3) buffer += myProtocol.send_MAC(len=16) // send the buffer buffer = myProtocol.send_ENC(plaintext4) buffer += myProtocol.send_MAC(len=16) // send the buffer

SLIDE 15

Strobe

flexible framework to support a large number of protocols
large symmetric cryptography library

SLIDE 16

myHash = Strobe_init(“david_wong_hash”) myHash.AD(“something to be hashed”) hash = myHash.PRF(outputLen=32)

Strobe as a Hash Function

SLIDE 17

peration = AD

⊕

rate capacity

SLIDE 18

peration = AD

⊕

data = 010100…

⊕

rate capacity

SLIDE 19

peration = AD

⊕

data = 010100…

⊕

peration = send_ENC

⊕

rate capacity

SLIDE 20

peration = AD

⊕

data = 010100…

f

⊕

peration = send_ENC

⊕

rate capacity

SLIDE 21

peration = AD

⊕

data = 010100…

f

⊕

peration = send_ENC

data = hello

⊕

ciphertext

⊕

rate capacity

SLIDE 22

peration = AD

⊕

data = 010100…

f f

⊕

peration = send_ENC

data = hello

⊕

ciphertext

len = 16 tag

⊕

peration = send_MAC

⊕

rate capacity

SLIDE 23

peration = AD

⊕

data = 010100…

f f

⊕

peration = send_ENC

data = hello

⊕

ciphertext

len = 16 tag

⊕

peration = send_MAC

send_AEAD

⊕

rate capacity

SLIDE 24

Strobe

flexible framework to support a large number of protocols
large symmetric cryptography library
fits into tiny IoT devices (~300 lines of code)
relies on strong SHA-3 standard (SHAKE-compliant)

SLIDE 25

strobe.sourceforge.io

SLIDE 26

2. STROBE
utline
1. KECCAK
3. NOISE

SLIDE 27

TLS

TLS is the de facto standard for securing communications
complex specification (TLS 1.3 is 160-page long)
supported by other specifications (asn.1, x509, 44 mentioned RFCs …)
design carrying a lot of legacy decisions
cryptographic agility and complicated state machine
huge and scary libraries (OpenSSL is 700k LOC, 165 CVEs)
cumbersome configuration…
ofuen dangerously re-implemented (custom implementations)
or re-invented (proprietary protocols)

SLIDE 28

Complexity is the enemy of security

SLIDE 29

www.noiseprotocol.org

SLIDE 30

The Noise Protocol Framework

no need for certificates or a PKI
many handshakes to choose from (flexible)
it’s straight forward to implement (<1k LOC, 18kb for Arduino)
there are already libraries that you can leverage
minimal (or zero) configuration
used by WhatsApp, Slack, the Bitcoin Lightning Network, …
if you have a good excuse not to use TLS, Noise is the answer

SLIDE 31

DH: X25519 or X448
AEAD: Chacha20-Poly1305 or AES-GCM
HASH: BLAKE2 or SHA-2

The crypto functions

SLIDE 32

ephemeral key ephemeral key Client Server

handshake

SLIDE 33

ephemeral key ephemeral key Client Server

handshake

Diffie-Hellman() Diffie-Hellman() keys keys

SLIDE 34

ephemeral key ephemeral key Client Server

handshake

encrypted data encrypted data

post-handshake

Diffie-Hellman() Diffie-Hellman() keys keys

SLIDE 35

e e Client Server

handshake

encrypted data encrypted data

post-handshake

ee ee keys keys

SLIDE 36

→ e ← e, ee

SLIDE 37

e: ephemeral key
s: static key
ee: DH(client ephemeral key, server ephemeral key)
es: DH(client ephemeral key, server static key)
se: DH(client static key, server ephemeral key)
ss: DH(client static key, server static key)
psk: pre-shared key

Tokens

SLIDE 38

→ e ← e, ee NN(): ← s … → e, es ← e, ee NK(rs): → e ← e, ee, s, es NX(rs): → e ← e, ee → s, se XN(s): ← s → s … → e, es, ss ← e, ee, se KK(s, rs): → e ← e, ee, s, es → s, se XX(s, rs): ← s … → e, es N(rs): ← s → s … → e, es, ss K(s,rs): ← s … → e, es, s, ss X(s,rs): ← s … → e, es ← e, ee → s, se XK(s, rs): → s … → e ← e, ee, se KN(s):

Handshake Patterns

SLIDE 39

NX(rs): → e ← e, ee, s, es

Client Server

SLIDE 40

epublic Client Server

NX(rs): → e ← e, ee, s, es

SLIDE 41

payload1 epublic Client Server

NX(rs): → e ← e, ee, s, es

SLIDE 42

republic epublic Client Server payload1

NX(rs): → e ← e, ee, s, es

SLIDE 43

republic epublic Client Server payload1

NX(rs): → e ← e, ee, s, es

SLIDE 44

republic EK1(rs) epublic Client Server payload1

NX(rs): → e ← e, ee, s, es

SLIDE 45

republic EK1(rs) epublic Client Server payload1

NX(rs): → e ← e, ee, s, es

SLIDE 46

republic EK1(rs) EK2(payload2) epublic Client Server payload1

NX(rs): → e ← e, ee, s, es

SLIDE 47

SLIDE 48

SLIDE 49

HandshakeState SymmetricState CipherState

epublic payload1 republic Ek1(rspublic)

HKDF

DH(e, re)

ck n=0 k1 e

GENERATE_KEYPAIR()

Initialization

ck h

“Noise_NX_25519_AESGCM_SHA256”

HASH

h e.public_key

HASH

re.public_key

HASH

h rs

DecryptWithAd() Ek1(rspublic)

h

HASH

h

Ek1(rspublic) HASH

h

payload1

CipherState

HKDF

k k n=0 n=0 CipherState

Ek2(payload2)

re

republic HKDF

DH(e, rs)

ck n=0 k2

DecryptWithAd() Ek2(payload2)

h

payload2 HASH

h

Ek2(payload2)

SLIDE 50

2. STROBE
utline
1. KECCAK
3. NOISE
4. DISCO

SLIDE 51

HandshakeState StrobeState

epublic payload1 republic E(rspublic) Initialization E(payload2)

InitStrobe()

“Noise_NX_25519_Strobe”

e

GENERATE_KEYPAIR() send_CLR() payload1 send_CLR()

e.public_key re.public_key

recv_CLR() republic recv_AEAD() E(payload2) payload2 AD()

DH(e, rs)

rs.public_key

recv_AEAD() E(rspublic)

StrobeState StrobeState

… …

AD()

DH(e, re)

SLIDE 52

StrobeState

send_AEAD() send_AEAD() send_AEAD() send_AEAD() send_AEAD() send_AEAD() send_AEAD()

StrobeState

recv_AEAD() recv_AEAD() recv_AEAD() recv_AEAD() recv_AEAD() recv_AEAD() recv_AEAD()

SLIDE 53

HandshakeState StrobeState

epublic payload1 republic E(rspublic), tag1 E(payload2), tag2

e

GENERATE_KEYPAIR()

Initialization

“Noise_NX_25519_Strobe”

⊕

e.public_key

⊕

payload1

⊕

DH(e, re)

⊕

DH(e, rs)

⊕

re.public_key

⊕

republic tag1

rs.public_key

E(rspublic)

⊕

rs.public_key

E(payload2)

⊕

tag2

SLIDE 54

www.discocrypto.com

SLIDE 55

700,000 LOC

disco-c libdisco (go) OpenSSL

4,000 LOC 1,000 LOC 2,000 LOC

DiscoNet* (C#)

* implementation by Artyom Makarov

SLIDE 56

DISCO STROBE X25519 KECCAK-F

Trust Graph of Disco

SLIDE 57

Trust Graph of biased SSL/TLS

TLS 1.3 HMAC X25519 SHA-256 HKDF ECDSA AES-GCM

SLIDE 58

Trust Graph of SSL/TLS

TLS 1.3 HMAC SHA-256 SHA-384 SHA-512 HKDF ECDSA AES-GCM DH ECDH CHACHA20- POLY1305 TLS 1.2 TLS 1.1 X.509 ASN.1 DER secp256r1 secp384r1 secp521r1 ffdhe2048 X25519 X448 ffdhe3072 ffdhe4096 ffdhe6144 ffdhe8192 RSA-PSS or RSA-PKCS#1 v1.5 AES-CCM ed25519 ed448

SLIDE 59

Disco is a drafu specification extending Noise (experimental)
Noise is a stable drafu (rev34)
Strobe is alpha (v1.0.2)
⚠ Disco and the implementations are still experimental
need more eyes, more interoperability testing, etc.
looking to formally prove handshakes with Tamarin

The state of Disco

SLIDE 60

the disco is at www.discocrypto.com I write about crypto www.cryptologie.net follow me on twitter.com/cryptodavidw

(and I work here)
