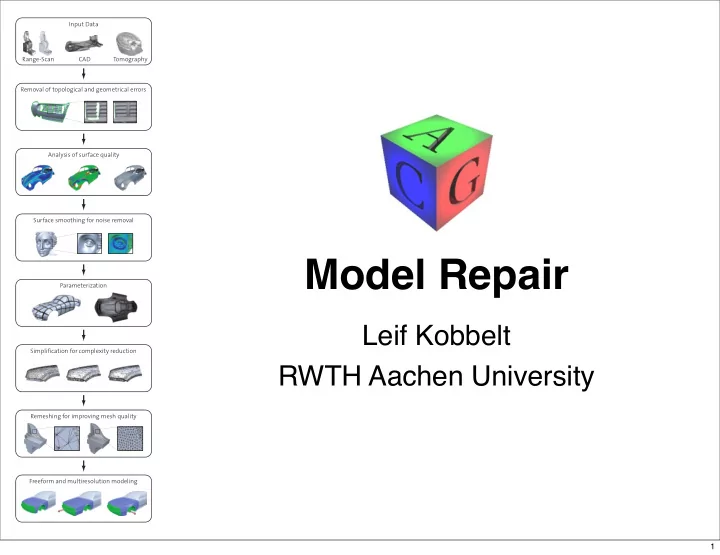

SLIDE 1

Model Repair

Leif Kobbelt RWTH Aachen University

1

SLIDE 2

Leif Kobbelt RWTH Aachen University

Model Repair

model repair is the removal of

artifacts from a geometric model such that it becomes suitable for further processing.

produce a nice, manifold triangle mesh

– with boundary or – without boundary (watertight)

2

2

SLIDE 3

Leif Kobbelt RWTH Aachen University

Model Repair

types of input
surface-oriented algorithms

– Filling holes in meshes [Liepa 2003]

volumetric algorithms

– Simplification and repair of polygonal models using volumetric techniques [Nooruddin and Turk 2003] – Automatic restoration of polygon models [Bischoff, Pavic, Kobbelt 2005]

conclusion & outlook

3

3

SLIDE 4

Leif Kobbelt RWTH Aachen University

Range Images

4

registered range images are a set of patches that

describe different parts of an object.

Registration

4

SLIDE 5

Leif Kobbelt RWTH Aachen University

Range Images

5

large areas of overlap are ...

– ... necessary for registration but – ... bad for consistency

how to merge the patches into

a single mesh?

– inconsistent geometry – incompatible connectivities

large scale

verlaps

5

SLIDE 6

Leif Kobbelt RWTH Aachen University

Range Images

6

successfully merged range

images are manifold meshes with holes and islands (i.e. boundaries)

6

SLIDE 7

Leif Kobbelt RWTH Aachen University

Range Images

7

holes and islands are due to obstructions in the

line of sight of the scanner

identify correspondences

between holes and islands

fill holes

– smoothly – geometry transfer/synthesis

avoid intersections

holes and isles

7

SLIDE 8

Leif Kobbelt RWTH Aachen University

Contoured Meshes

contoured meshes have been

extracted from a volumetric representation (e.g. by marching cubes)

8

SLIDE 9

Leif Kobbelt RWTH Aachen University

Contoured Meshes

contoured meshes are usually manifold and

closed, but may contain topological noise

– disconnected components – spurious handles – cavities

9

SLIDE 10

Leif Kobbelt RWTH Aachen University

Triangulated NURBS

set of patches that contain small scale gaps and
verlaps

10

SLIDE 11

Leif Kobbelt RWTH Aachen University

Triangulated NURBS

set of patches that contain small scale gaps and
verlaps

10

SLIDE 12

Leif Kobbelt RWTH Aachen University

Triangulated NURBS

gaps and overlaps are due to triangulating a

common (trimmed) patch boundary differently from both sides

issues

– consistent orientation – structure preservation

11

small scale gaps and overlaps

11

SLIDE 13

Leif Kobbelt RWTH Aachen University

Triangulated NURBS

12

typical workflow, e.g., in CAD/CAM:

Editing Repair

Simulation

manual

ften:manu

al(!) automatic NURBS triangle mesh

12

SLIDE 14

Leif Kobbelt RWTH Aachen University

Triangle Soups

a triangle soup is a set of triangles without

connectivity information

13

SLIDE 15

Leif Kobbelt RWTH Aachen University

Triangle Soups

a triangle soup is a set of triangles without

connectivity information

13

SLIDE 16

Leif Kobbelt RWTH Aachen University

Triangle Soups

good for visualization but bad for downstream

applications that require manifold meshes

in addition to the artifacts we already encountered:

14

intersections singular vertex complex edges incompatible

rientations

14

SLIDE 17

Leif Kobbelt RWTH Aachen University

Not Covered In This Lecture ...

geometrical noise

➙ smoothing (Mark)

badly meshed manifolds

➙ remeshing (Pierre)

15

SLIDE 18

Leif Kobbelt RWTH Aachen University

Model Repair

types of input
surface-oriented algorithms

– Filling holes in meshes [Liepa 2003]

volumetric algorithms

– Simplification and repair of polygonal models using volumetric techniques [Nooruddin and Turk 2003] – Automatic restoration of polygon models [Bischoff, Pavic, Kobbelt 2005]

conclusion & outlook

16

16

SLIDE 19

Leif Kobbelt RWTH Aachen University

Surface-Oriented Algorithms

surface oriented approaches

explicitly identify and resolve artifacts

methods

– snapping – splitting – stitching – ...

17

SLIDE 20

Leif Kobbelt RWTH Aachen University

Surface-Oriented Algorithms

advantages

– fast – conceptually easy – memory friendly – structure preserving, minimal modification

f the input

18

SLIDE 21

Leif Kobbelt RWTH Aachen University

Surface-Oriented Algorithms

problems

– not robust

numerical issues
inherent non-robustness

– no quality guarantees on the output

19

SLIDE 22

Leif Kobbelt RWTH Aachen University

Example Algorithm

algorithm for filling holes

Peter Liepa Filling Holes in Meshes In Proc. Symposium on Geometry Processing 2003

three stages
1. compute a coarse triangulation T to fill a hole
2. refine the triangulation, T → Tʼ, to match the vertex

densities of the surrounding area

3. smooth the triangulation Tʼ to match the geometry
f the surrounding

20

SLIDE 23

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

compute a coarse triangulation T

21

SLIDE 24

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

compute a coarse triangulation T
f minimal weight w(T)

22

n vertices, n−2 triangles

1 2 11 10 9 8 7 6 5 4 3

22

SLIDE 25

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

weight w(T) is a mixture of

– area(T) = area(∆ ) – maximum dihedral angle in T

thus, we favour triangulations of low area and low

normal variation

23

∆ ∈ T

∑

23

SLIDE 26

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

let w[a,c] be the minimal weight that can be

achieved in triangulating the polygon a,a+1,...,c

24

1 2 11 10 9 8 7 6 5 4 3

w[2,9] = ?

24

SLIDE 27

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

let w[a,c] be the minimal weight that can be

achieved in triangulating the polygon a,a+1,...,c

25

1 2 11 10 9 8 7 6 5 4 3

w[2,9] = min( w(∆(2,3,9)) + w[3,9], w[2,4] + w(∆(2,4,9)) + w[4,9], w[2,5] + w(∆(2,5,9)) + w[5,9], w[2,6] + w(∆(2,6,9)) + w[6,9], w[2,7] + w(∆(2,7,9)) + w[7,9], w[2,8] + w(∆(2,8,9)) )

25

SLIDE 28

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

let w[a,c] be the minimal weight that can be

achieved in triangulating the polygon a,a+1,...,c

26

1 2 11 10 9 8 7 6 5 4 3

w[2,9] = min( w(∆(2,3,9)) + w[3,9], w[2,4] + w(∆(2,4,9)) + w[4,9], w[2,5] + w(∆(2,5,9)) + w[5,9], w[2,6] + w(∆(2,6,9)) + w[6,9], w[2,7] + w(∆(2,7,9)) + w[7,9], w[2,8] + w(∆(2,8,9)) )

26

SLIDE 29

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

let w[a,c] be the minimal weight that can be

achieved in triangulating the polygon a,a+1,...,c

27

1 2 11 10 9 8 7 6 5 4 3

w[2,9] = min( w(∆(2,3,9)) + w[3,9], w[2,4] + w(∆(2,4,9)) + w[4,9], w[2,5] + w(∆(2,5,9)) + w[5,9], w[2,6] + w(∆(2,6,9)) + w[6,9], w[2,7] + w(∆(2,7,9)) + w[7,9], w[2,8] + w(∆(2,8,9)) )

27

SLIDE 30

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

let w[a,c] be the minimal weight that can be

achieved in triangulating the polygon a,a+1,...,c

28

1 2 11 10 9 8 7 6 5 4 3

w[2,9] = min( w(∆(2,3,9)) + w[3,9], w[2,4] + w(∆(2,4,9)) + w[4,9], w[2,5] + w(∆(2,5,9)) + w[5,9], w[2,6] + w(∆(2,6,9)) + w[6,9], w[2,7] + w(∆(2,7,9)) + w[7,9], w[2,8] + w(∆(2,8,9)) )

28

SLIDE 31

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

let w[a,c] be the minimal weight that can be

achieved in triangulating the polygon a,a+1,...,c

29

1 2 11 10 9 8 7 6 5 4 3

w[2,9] = min( w(∆(2,3,9)) + w[3,9], w[2,4] + w(∆(2,4,9)) + w[4,9], w[2,5] + w(∆(2,5,9)) + w[5,9], w[2,6] + w(∆(2,6,9)) + w[6,9], w[2,7] + w(∆(2,7,9)) + w[7,9], w[2,8] + w(∆(2,8,9)) )

29

SLIDE 32

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

let w[a,c] be the minimal weight that can be

achieved in triangulating the polygon a,a+1,...,c

30

1 2 11 10 9 8 7 6 5 4 3

w[2,9] = min( w(∆(2,3,9)) + w[3,9], w[2,4] + w(∆(2,4,9)) + w[4,9], w[2,5] + w(∆(2,5,9)) + w[5,9], w[2,6] + w(∆(2,6,9)) + w[6,9], w[2,7] + w(∆(2,7,9)) + w[7,9], w[2,8] + w(∆(2,8,9)) )

30

SLIDE 33

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 1

let w[a,c] be the minimal weight that can be

achieved in triangulating the polygon a,a+1,...,c

recursion formula
dynamic programming leads to an O(n3) algorithm

31

w[a,c] = min w[a,b] + w(∆(a,b,c)) + w[b,c]

a<b<c

w[x,x+1] = 0

31

SLIDE 34

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 2+3

refine the triangulation such that its vertex

density matches that of the surrounding area ➡ Pierreʼs talk about remeshing

smooth the filling such that its geometry matches

that of the surrounding area ➡ Markʼs talk about mesh smoothing

32

SLIDE 35

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes - 2+3

refinement and smoothing

33

SLIDE 36

Leif Kobbelt RWTH Aachen University 34 Input model Minimal triangulation Refined triangulation Output model Output model

34

SLIDE 37

Leif Kobbelt RWTH Aachen University

Filling Holes in Meshes

what problems do we encounter?

– islands are not incorporated – self-intersections cannot be excluded – quality depends on boundary distortion

35

SLIDE 38

Leif Kobbelt RWTH Aachen University

Model Repair

types of input
surface-oriented algorithms

– Filling holes in meshes [Liepa 2003]

volumetric algorithms

– Simplification and repair of polygonal models using volumetric techniques [Nooruddin and Turk 2003] – Automatic restoration of polygon models [Bischoff, Pavic, Kobbelt 2005]

conclusion & outlook

36

36

SLIDE 39

Leif Kobbelt RWTH Aachen University

Volumetric Algorithms

1. convert the input model into an intermediate

volumetric representation ➙ loss of information

37

voxel grid adaptive octree BSP tree

37

SLIDE 40

Leif Kobbelt RWTH Aachen University

Volumetric Algorithms

1. convert the input model into an intermediate

volumetric representation ➙ loss of information

2. discrete volumetric representation ➙ robust

and reliable processing

– morphological operators (dilation, erosion) – smoothing – flood-fill to determine interior/exterior – ...

38

SLIDE 41

Leif Kobbelt RWTH Aachen University

Volumetric Algorithms

1. convert the input model into an intermediate

volumetric representation ➙ loss of information

2. discrete volumetric representation ➙ robust

and reliable processing

– morphological operators (dilation, erosion) – smoothing – flood-fill to determine interior/exterior

3. extract the surface of a solid object from the

volume ➙ manifold and watertight

39

SLIDE 42

Leif Kobbelt RWTH Aachen University

Volumetric Algorithms

1. convert the input model into an intermediate

volumetric representation ➙ loss of information

2. discrete volumetric representation ➙ robust

and reliable processing

– morphological operators (dilation, erosion) – smoothing – flood-fill to determine interior/exterior

3. extract the surface of a solid object from the

volume ➙ manifold and watertight

40

SLIDE 43

Leif Kobbelt RWTH Aachen University

Volumetric Algorithms

advantages

– fully automatic – few (intuitive) user parameters – robust – guaranteed manifold output

41

SLIDE 44

Leif Kobbelt RWTH Aachen University

Volumetric Algorithms

problems

– slow and memory intensive ➙ adaptive data structures – aliasing and loss of features ➙ feature sensitive reconstruction (EMC, DC) – loss of mesh structure ➙ bad luck (... hybrid approaches) – large output ➙ mesh decimation (Markʼs talk)

42

SLIDE 45

Leif Kobbelt RWTH Aachen University

Example 1

example algorithm 1
F. S. Nooruddin and G. Turk
Simplification and Repair of Polygonal Models Using Volumetric Techniques
IEEE Transactions on Visualization and Computer Graphics 2003
issues

– classification of sample points as being inside or outside of the object

(parity count, ray stabbing)

– sampling the volume – extracting the mesh

43

SLIDE 46

Leif Kobbelt RWTH Aachen University

Nooruddin and Turkʼs Method

point classification: Layered depth images (LDI)

44

x y

44

SLIDE 47

Leif Kobbelt RWTH Aachen University

Nooruddin and Turkʼs Method

point classification: Layered depth images (LDI)

45

x y

45

SLIDE 48

Leif Kobbelt RWTH Aachen University

Nooruddin and Turkʼs Method

point classification: Layered depth images (LDI)

46

x y

46

SLIDE 49

Leif Kobbelt RWTH Aachen University

Nooruddin and Turkʼs Method

point classification: Layered depth images (LDI)

47

x y

47

SLIDE 50

Leif Kobbelt RWTH Aachen University

point classification: Layered depth images (LDI)
1. record n layered depth images
2. project the query point x into each depth image
3. if any of the images classifies x as exterior, then

x is globally classified as exterior else as interior

Nooruddin and Turkʼs Method

48

SLIDE 51

Leif Kobbelt RWTH Aachen University

supersampling
filtering

– Gaussian – morphological filters (dilation, erosion)

model simplification
reduction of topological

noise

marching cubes

Nooruddin and Turkʼs Method

49

SLIDE 52

Leif Kobbelt RWTH Aachen University

Nooruddin and Turkʼs Method

50

supersampling
filtering

– Gaussian – morphological filters (dilation, erosion)

model simplification
reduction of topological

noise

marching cubes

50

SLIDE 53

Leif Kobbelt RWTH Aachen University

supersampling
filtering

– Gaussian – morphological filters (dilation, erosion)

model simplification
reduction of topological

noise

marching cubes

Nooruddin and Turkʼs Method

51

SLIDE 54

Leif Kobbelt RWTH Aachen University 52 100×100×100 Input model Input model 200×200×200 300×300×300 50×50×50

52

SLIDE 55

Leif Kobbelt RWTH Aachen University 53 Supersampling Raw Smoothing Supersampling + smoothing Marching Cubes

53

SLIDE 56

Leif Kobbelt RWTH Aachen University

voxelization

– characteristic function / signed distance function – cannot handle all kinds of inconsistencies

repair

– uniform treatment of voxel – cannot exploit local shape information

extraction

– thresholding – sampling artifacts

Nooruddin and Turkʼs Method

54

SLIDE 57

Leif Kobbelt RWTH Aachen University

Example 2

example algorithm 2
S. Bischoff, D. Pavic, L. Kobbelt
Automatic Restoration of Polygon Models
Transactions on Graphics 2005

55

SLIDE 58

Leif Kobbelt RWTH Aachen University

Overview

56

volumetric representation volumetric representation manifold mesh extraction gap filling, removal of interior geometry voxelization

56

SLIDE 59

Leif Kobbelt RWTH Aachen University

Overview

57

SLIDE 60

Leif Kobbelt RWTH Aachen University

Overview

57

SLIDE 61

Leif Kobbelt RWTH Aachen University

Overview

57

SLIDE 62

Leif Kobbelt RWTH Aachen University

Overview

57

SLIDE 63

Leif Kobbelt RWTH Aachen University

Overview

57

SLIDE 64

Leif Kobbelt RWTH Aachen University

Overview

57

SLIDE 65

Leif Kobbelt RWTH Aachen University

Overview

57

SLIDE 66

Leif Kobbelt RWTH Aachen University

Conversion

58

adaptive octree: subdivide a cell, if it contains

multiple planes or a boundary

voxel topology = polygon topology

58

SLIDE 67

Leif Kobbelt RWTH Aachen University

Closing Gaps

59

close gaps by dilating the boundary voxels

59

SLIDE 68

Leif Kobbelt RWTH Aachen University

Closing Gaps

59

close gaps by dilating the boundary voxels

59

SLIDE 69

Leif Kobbelt RWTH Aachen University

Closing Gaps

59

close gaps by dilating the boundary voxels

59

SLIDE 70

Leif Kobbelt RWTH Aachen University

Determine Exterior

60

determine the exterior by flood filling & dilation

60

SLIDE 71

Leif Kobbelt RWTH Aachen University

Determine Exterior

60

determine the exterior by flood filling & dilation

60

SLIDE 72

Leif Kobbelt RWTH Aachen University

Determine Exterior

60

determine the exterior by flood filling & dilation

60

SLIDE 73

Leif Kobbelt RWTH Aachen University

Determine Exterior

60

determine the exterior by flood filling & dilation

60

SLIDE 74

Leif Kobbelt RWTH Aachen University

Extract the Surface

61

extract the surface by a variant of Dual Contouring

61

SLIDE 75

Leif Kobbelt RWTH Aachen University

Extract the Surface

61

extract the surface by a variant of Dual Contouring

61

SLIDE 76

Leif Kobbelt RWTH Aachen University

Extract the Surface

61

extract the surface by a variant of Dual Contouring

61

SLIDE 77

Leif Kobbelt RWTH Aachen University

Results

62

SLIDE 78

Leif Kobbelt RWTH Aachen University

Results

63

SLIDE 79

Leif Kobbelt RWTH Aachen University

Results

64

riginal

1124 triangles reconstruction 279892 triangles (at 1000³) decimated 7018 triangles

64

SLIDE 80

Leif Kobbelt RWTH Aachen University

Results

65

without gap filling with gap filling

65

SLIDE 81

Leif Kobbelt RWTH Aachen University

Results

66

SLIDE 82

Leif Kobbelt RWTH Aachen University

Model Repair

types of input
surface-oriented algorithms

– Filling holes in meshes [Liepa 2003]

volumetric algorithms

– Simplification and repair of polygonal models using volumetric techniques [Nooruddin and Turk 2003] – Automatic restoration of polygon models [Bischoff, Pavic, Kobbelt 2005]

conclusion & outlook

67

67

SLIDE 83

Leif Kobbelt RWTH Aachen University

Conclusion

mesh repair to remove artifacts that arise in

various types of input models

68

SLIDE 84

Leif Kobbelt RWTH Aachen University

Conclusion

surface-oriented algorithms ...

– fast, structure preserving – often not robust, need user interaction and cannot give quality guarantees on the output

volumetric algorithms ...

– use an intermediate volumetric representation and thus produce guaranteed watertight meshes – suffer from (topological) sampling problems

69

SLIDE 85

Leif Kobbelt RWTH Aachen University

History of Mesh Repair

– Bøhn, Wozny: Automatic CAD Model Repair: Shell-Closure.

1992

– Mäkelä, Dolenc: Some Efficient Procedures for Correcting Triangulated Models.

1993

– Turk, Levoy: Zippered Polygon Meshes from Range Images.

1994

– Barequet, Sharir: Filling Gaps in the Boundary of a Polyhedron.

1995

– Curless, Levoy: A Volumetric Method for Building Complex Models from Range Images. 1996 – Barequet, Kumar: Repairing CAD Models.

1997

– Murali, Funkhouser. Consistent Solid and Boundary Representations.

1997

– Guéziec, Taubin, Lazarus, Horn: Cutting and Stitching: [...]

2001

– Guskov, Wood: Topological Noise Removal.

2001

– Borodin, Novotni, Klein: Progressive Gap Closing for Mesh Repairing.

2002

– Davis, Marschner, Garr, Levoy: Filling Holes in Complex Surfaces Using Volumetric Diffusion. 2002 – Liepa: Filling Holes in Meshes.

2003

– Greß, Klein: Efficient Representation and Extraction of 2-Manifold Isosurfaces Using kd-Trees. 2003 – Nooruddin, Turk: Simplification and Repair of Polygonal Models Using Volumetric Techniques. 2003 – Borodin, Zachmann Klein: Consistent Normal Orientation for Polygonal Meshes.

2004

– Ju: Robust Repair of Polygonal Models.

2004

– Bischoff, Pavic, Kobbelt: Automatic Restoration of Polygon Models.

2005

– Podolak, Rusinkiewicz: Atomic Volumes for Mesh Completion.

2005

– Shen, O'Brien, Shewchuk: Interpolating and Approximating Implicit Surfaces from Polygon Soup. 2005

70

Surface-oriented
Volumetric

70

SLIDE 86

Leif Kobbelt RWTH Aachen University

Outlook

hybrid algorithms that are ...

– ... robust and – ... structure preserving

Bischoff, Kobbelt: Structure Preserving CAD Model Repair. Eurographics 2005

71
