Mining from Big Data Vipin Kumar Department of Computer Science - - PowerPoint PPT Presentation

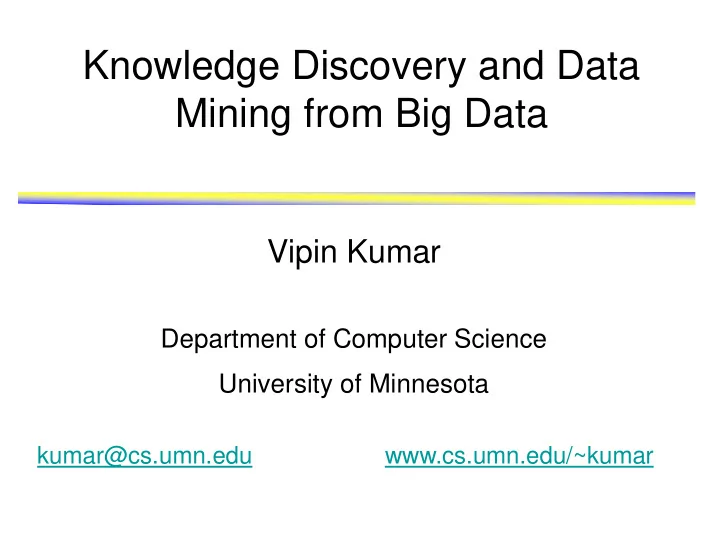

Knowledge Discovery and Data Mining from Big Data

Vipin Kumar

Department of Computer Science University of Minnesota

kumar@cs.umn.edu www.cs.umn.edu/~kumar

July 15, 2015 Mining Big Data ‹#›

Introduction

Mining Big Data: Motivation

• Today‟s digital society has seen

enormous data growth in both commercial and scientific databases

• Data Mining is becoming a

commonly used tool to extract information from large and complex datasets

• Examples:
• Helps provide better customer

service in business/commercial setting

• Helps scientists in hypothesis

formation

Computational Simulations Business Data Sensor Networks Geo-spatial data Homeland Security Scientific Data

July 15, 2015 Mining Big Data ‹#›

Data Mining for Life and Health Sciences

• Recent technological advances are helping to

generate large amounts of both medical and genomic data

• High-throughput experiments/techniques
• Gene and protein sequences
• Gene-expression data
• Biological networks and phylogenetic profiles
• Electronic Medical Records
• IBM-Mayo clinic partnership has created a DB of 5

million patients

• Single Nucleotides Polymorphisms (SNPs)
• Data mining offers potential solution for

analysis of large-scale data

• Automated analysis of patients history for customized

treatment

• Prediction of the functions of anonymous genes
• Identification of putative binding sites in protein

structures for drugs/chemicals discovery

Protein Interaction Network

July 15, 2015 Mining Big Data ‹#›

• Draws ideas from machine learning/AI, pattern

recognition, statistics, and database systems

• Traditional Techniques

may be unsuitable due to

– Enormity of data – High dimensionality

• f data

– Heterogeneous, distributed nature

• f data

Origins of Data Mining

Machine Learning/ Pattern Recognition Statistics/ AI Data Mining Database systems

July 15, 2015 Mining Big Data ‹#›

Data Mining as Part of the Knowledge Discovery Process

Data Mining Tasks...

Tid Refund Marital Status Taxable Income Cheat 1 Yes Single 125K No 2 No Married 100K No 3 No Single 70K No 4 Yes Married 120K No 5 No Divorced 95K Yes 6 No Married 60K No 7 Yes Divorced 220K No 8 No Single 85K Yes 9 No Married 75K No 10 No Single 90K Yes 11 No Married 60K No 12 Yes Divorced 220K No 13 No Single 85K Yes 14 No Married 75K No 15 No Single 90K Yes

Milk

Data

July 15, 2015 Mining Big Data ‹#›

Predictive Modeling: Classification

July 15, 2015 Mining Big Data ‹#›

General Approach for Building a Classification Model

Test Set

Training Set

Model Learn Classifier

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Graduate 5 Yes 2 Yes High School 2 No 3 No Undergrad 1 No 4 Yes High School 10 Yes … … … … …

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Undergrad 7 ? 2 No Graduate 3 ? 3 Yes High School 2 ? … … … … …

July 15, 2015 Mining Big Data ‹#›

• Predicting tumor cells as benign or malignant
• Classifying secondary structures of protein

as alpha-helix, beta-sheet, or random coil

• Predicting functions of proteins
• Classifying credit card transactions

as legitimate or fraudulent

• Categorizing news stories as finance,

weather, entertainment, sports, etc

• Identifying intruders in the cyberspace

Examples of Classification Task

July 15, 2015 Mining Big Data ‹#›

Commonly Used Classification Models

• Base Classifiers

– Decision Tree based Methods – Rule-based Methods – Nearest-neighbor – Neural Networks – Naïve Bayes and Bayesian Belief Networks – Support Vector Machines

• Ensemble Classifiers

– Boosting, Bagging, Random Forests

July 15, 2015 Mining Big Data ‹#›

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Graduate 5 Yes 2 Yes High School 2 No 3 No Undergrad 1 No 4 Yes High School 10 Yes … … … … …

Class

Model for predicting credit worthiness

Employed No Education Number of years No Yes Graduate { High school, Undergrad } Yes No > 7 yrs < 7 yrs Yes

Classification Model: Decision Tree

July 15, 2015 Mining Big Data ‹#›

Constructing a Decision Tree

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Graduate 5 Yes 2 Yes High School 2 No 3 No Undergrad 1 No 4 Yes High School 10 Yes 5 Yes Graduate 2 No 6 No High School 2 No 7 Yes Undergrad 3 No 8 Yes Graduate 8 Yes 9 Yes High School 4 Yes 10 No Graduate 1 No

Employed Worthy: 4 Not Worthy: 3 Yes

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Graduate 5 Yes 2 Yes High School 2 No 3 No Undergrad 1 No 4 Yes High School 10 Yes 5 Yes Graduate 2 No 6 No High School 2 No 7 Yes Undergrad 3 No 8 Yes Graduate 8 Yes 9 Yes High School 4 Yes 10 No Graduate 1 No

No Worthy: 0 Not Worthy: 3

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Graduate 5 Yes 2 Yes High School 2 No 3 No Undergrad 1 No 4 Yes High School 10 Yes 5 Yes Graduate 2 No 6 No High School 2 No 7 Yes Undergrad 3 No 8 Yes Graduate 8 Yes 9 Yes High School 4 Yes 10 No Graduate 1 No

Graduate High School/ Undergrad Worthy: 2 Not Worthy: 2 Education Worthy: 2 Not Worthy: 4

Key Computation

Worthy Not Worthy

4 3 3 Employed = Yes Employed = No

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Graduate 5 Yes 2 Yes High School 2 No 3 No Undergrad 1 No 4 Yes High School 10 Yes 5 Yes Graduate 2 No 6 No High School 2 No 7 Yes Undergrad 3 No 8 Yes Graduate 8 Yes 9 Yes High School 4 Yes 10 No Graduate 1 No

Worthy: 4 Not Worthy: 3 Yes No Worthy: 0 Not Worthy: 3 Employed

July 15, 2015 Mining Big Data ‹#›

Constructing a Decision Tree

Employed = Yes Employed = No

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Graduate 5 Yes 2 Yes High School 2 No 3 No Undergrad 1 No 4 Yes High School 10 Yes 5 Yes Graduate 2 No 6 No High School 2 No 7 Yes Undergrad 3 No 8 Yes Graduate 8 Yes 9 Yes High School 4 Yes 10 No Graduate 1 No

Tid Employed Level of Education # years at present address Credit Worthy 1 Yes Graduate 5 Yes 2 Yes High School 2 No 4 Yes High School 10 Yes 5 Yes Graduate 2 No 7 Yes Undergrad 3 No 8 Yes Graduate 8 Yes 9 Yes High School 4 Yes

Tid Employed Level of Education # years at present address Credit Worthy 3 No Undergrad 1 No 6 No High School 2 No 10 No Graduate 1 No

July 15, 2015 Mining Big Data ‹#›

Design Issues of Decision Tree Induction

• How should training records be split?

– Method for specifying test condition

• depending on attribute types

– Measure for evaluating the goodness of a test condition

• How should the splitting procedure stop?

– Stop splitting if all the records belong to the same class or have identical attribute values – Early termination

July 15, 2015 Mining Big Data ‹#›

How to determine the Best Split

Greedy approach:

– Nodes with purer class distribution are preferred

Need a measure of node impurity:

C0: 5 C1: 5 C0: 9 C1: 1

High degree of impurity Low degree of impurity

July 15, 2015 Mining Big Data ‹#›

Measure of Impurity: GINI

• Gini Index for a given node t :

(NOTE: p( j | t) is the relative frequency of class j at node t).

– Maximum (1 - 1/nc) when records are equally distributed among all classes, implying least interesting information – Minimum (0.0) when all records belong to one class, implying most interesting information



 

j

t j p t GINI

2

)] | ( [ 1 ) (

July 15, 2015 Mining Big Data ‹#›

Measure of Impurity: GINI

• Gini Index for a given node t :

(NOTE: p( j | t) is the relative frequency of class j at node t).

– For 2-class problem (p, 1 – p):

• GINI = 1 – p2 – (1 – p)2 = 2p (1-p)



 

j

t j p t GINI

2

)] | ( [ 1 ) (

C1 C2 6 Gini=0.000 C1 2 C2 4 Gini=0.444 C1 3 C2 3 Gini=0.500 C1 1 C2 5 Gini=0.278

July 15, 2015 Mining Big Data ‹#›

Computing Gini Index of a Single Node

C1 C2 6

C1 2 C2 4 C1 1 C2 5

P(C1) = 0/6 = 0 P(C2) = 6/6 = 1 Gini = 1 – P(C1)2 – P(C2)2 = 1 – 0 – 1 = 0



 

j

t j p t GINI

2

)] | ( [ 1 ) (

P(C1) = 1/6 P(C2) = 5/6 Gini = 1 – (1/6)2 – (5/6)2 = 0.278 P(C1) = 2/6 P(C2) = 4/6 Gini = 1 – (2/6)2 – (4/6)2 = 0.444

July 15, 2015 Mining Big Data ‹#›

Computing Gini Index for a Collection of Nodes

 When a node p is split into k partitions (children) where, ni = number of records at child i, n = number of records at parent node p.  Choose the attribute that minimizes weighted average Gini index of the children  Gini index is used in decision tree algorithms such as CART, SLIQ, SPRINT







k i i split

i GINI n n GINI

1

) (

July 15, 2015 Mining Big Data ‹#›

Binary Attributes: Computing GINI Index

 Splits into two partitions  Effect of Weighing partitions:

– Larger and Purer Partitions are sought for.

B?

Yes No Node N1 Node N2

Parent C1 7 C2 5 Gini = 0.486

N1 N2 C1 5 2 C2 1 4 Gini=0.361

Gini(N1) = 1 – (5/6)2 – (1/6)2 = 0.278 Gini(N2) = 1 – (2/6)2 – (4/6)2 = 0.444

Weighted Gini of N1 N2 = 6/12 * 0.278 + 6/12 * 0.444 = 0.361 Gain = 0.486 – 0.361 = 0.125

July 15, 2015 Mining Big Data ‹#›

Continuous Attributes: Computing Gini Index

 Use Binary Decisions based on one value  Several Choices for the splitting value – Number of possible splitting values = Number of distinct values  Each splitting value has a count matrix associated with it – Class counts in each of the partitions, A < v and A  v  Simple method to choose best v – For each v, scan the database to gather count matrix and compute its Gini index – Computationally Inefficient! Repetition of work.

ID Home Owner Marital Status Annual Income Defaulted 1 Yes Single 125K No 2 No Married 100K No 3 No Single 70K No 4 Yes Married 120K No 5 No Divorced 95K Yes 6 No Married 60K No 7 Yes Divorced 220K No 8 No Single 85K Yes 9 No Married 75K No 10 No Single 90K Yes

Annual Income > 80K?

Yes No

≤ 80 > 80 Yes 3 No 3 4

July 15, 2015 Mining Big Data ‹#›

Decision Tree Based Classification

 Advantages:

– Inexpensive to construct – Extremely fast at classifying unknown records – Easy to interpret for small-sized trees – Robust to noise (especially when methods to avoid

• verfitting are employed)

– Can easily handle redundant or irrelevant attributes (unless the attributes are interacting)

 Disadvantages:

– Space of possible decision trees is exponentially large. Greedy approaches are often unable to find the best tree. – Does not take into account interactions between attributes – Each decision boundary involves only a single attribute

July 15, 2015 Mining Big Data ‹#›

Handling interactions

X Y + : 1000 instances

• : 1000 instances

Entropy (X) : 0.99 Entropy (Y) : 0.99

July 15, 2015 Mining Big Data ‹#›

Handling interactions

+ : 1000 instances

• : 1000 instances

Adding Z as a noisy attribute generated from a uniform distribution Y Z Y Z X Entropy (X) : 0.99 Entropy (Y) : 0.99 Entropy (Z) : 0.98 Attribute Z will be chosen for splitting! X

July 15, 2015 Mining Big Data ‹#›

Limitations of single attribute-based decision boundaries

Both positive (+) and negative (o) classes generated from skewed Gaussians with centers at (8,8) and (12,12) respectively.

July 15, 2015 Mining Big Data ‹#›

Model Overfitting

July 15, 2015 Mining Big Data ‹#›

Classification Errors

• Training errors (apparent errors)

– Errors committed on the training set

• Test errors

– Errors committed on the test set

• Generalization errors

– Expected error of a model over random selection of records from same distribution

July 15, 2015 Mining Big Data ‹#›

Example Data Set

Two class problem: + : 5200 instances

• 5000 instances generated from

a Gaussian centered at (10,10)

• 200 noisy instances added
• : 5200 instances
• Generated from a uniform

distribution

10 % of the data used for training and 90% of the data used for testing

July 15, 2015 Mining Big Data ‹#›

Increasing number of nodes in Decision Trees

July 15, 2015 Mining Big Data ‹#›

Decision Tree with 4 nodes

Decision Tree Decision boundaries on Training data

July 15, 2015 Mining Big Data ‹#›

Decision Tree with 50 nodes

Decision Tree Decision Tree Decision boundaries on Training data

July 15, 2015 Mining Big Data ‹#›

Which tree is better?

Decision Tree with 4 nodes Decision Tree with 50 nodes

Which tree is better ?

July 15, 2015 Mining Big Data ‹#›

Model Overfitting

Underfitting: when model is too simple, both training and test errors are large Overfitting: when model is too complex, training error is small but test error is large

July 15, 2015 Mining Big Data ‹#›

Model Overfitting

Using twice the number of data instances

• If training data is under-representative, testing errors increase and training errors

decrease on increasing number of nodes

• Increasing the size of training data reduces the difference between training and

testing errors at a given number of nodes

July 15, 2015 Mining Big Data ‹#›

Reasons for Model Overfitting

• Presence of Noise
• Lack of Representative Samples
• Multiple Comparison Procedure

July 15, 2015 Mining Big Data ‹#›

Effect of Multiple Comparison Procedure

• Consider the task of predicting whether

stock market will rise/fall in the next 10 trading days

• Random guessing:

P(correct) = 0.5

• Make 10 random guesses in a row:

Day 1 Up Day 2 Down Day 3 Down Day 4 Up Day 5 Down Day 6 Down Day 7 Up Day 8 Up Day 9 Up Day 10 Down

0547 . 2 10 10 9 10 8 10 ) 8 (#

10

                             correct P

July 15, 2015 Mining Big Data ‹#›

Effect of Multiple Comparison Procedure

• Approach:

– Get 50 analysts – Each analyst makes 10 random guesses – Choose the analyst that makes the most number of correct predictions

• Probability that at least one analyst makes

at least 8 correct predictions

9399 . ) 0547 . 1 ( 1 ) 8 (#

50 

    correct P

July 15, 2015 Mining Big Data ‹#›

Effect of Multiple Comparison Procedure

• Many algorithms employ the following greedy strategy:

– Initial model: M – Alternative model: M‟ = M  , where  is a component to be added to the model (e.g., a test condition of a decision tree) – Keep M‟ if improvement, (M,M‟) > 

• Often times,  is chosen from a set of alternative

components,  = {1, 2, …, k}

• If many alternatives are available, one may inadvertently

add irrelevant components to the model, resulting in model overfitting

July 15, 2015 Mining Big Data ‹#›

Effect of Multiple Comparison - Example

Use additional 100 noisy variables generated from a uniform distribution along with X and Y as attributes. Use 30% of the data for training and 70% of the data for testing Using only X and Y as attributes

July 15, 2015 Mining Big Data ‹#›

Notes on Overfitting

• Overfitting results in decision trees that are

more complex than necessary

• Training error does not provide a good

estimate of how well the tree will perform

• n previously unseen records
• Need ways for incorporating model

complexity into model development

July 15, 2015 Mining Big Data ‹#›

Evaluating Performance of Classifier

• Model Selection

– Performed during model building – Purpose is to ensure that model is not overly complex (to avoid overfitting)

• Model Evaluation

– Performed after model has been constructed – Purpose is to estimate performance of classifier on previously unseen data (e.g., test set)

July 15, 2015 Mining Big Data ‹#›

Methods for Classifier Evaluation

• Holdout

– Reserve k% for training and (100-k)% for testing

• Random subsampling

– Repeated holdout

• Cross validation

– Partition data into k disjoint subsets – k-fold: train on k-1 partitions, test on the remaining one – Leave-one-out: k=n

• Bootstrap

– Sampling with replacement – .632 bootstrap:

 





   

b i s i boot

acc acc b acc

1

368 . 632 . 1

July 15, 2015 Mining Big Data ‹#›

Application on Biomedical Data

July 15, 2015 Mining Big Data ‹#›

Application : SNP Association Study

• Given: A patient data set that has genetic variations

(SNPs) and their associated Phenotype (Disease).

• Objective: Finding a combination of genetic

characteristics that best defines the phenotype under study.

SNP1 SNP2 … SNPM Disease Patient 1 1 1 … 1 1 Patient 2 1 … 1 1 Patient 3 1 … … … … … … … Patient N 1 1 1 1

Genetic Variation in Patients (SNPs) as Binary Matrix and Survival/Disease (Yes/No) as Class Label.

July 15, 2015 Mining Big Data ‹#›

SNP (Single nucleotide polymorphism)

• Definition of SNP (wikipedia)

– A SNP is defined as a single base change in a DNA sequence that occurs in a significant proportion (more than 1 percent) of a large population

– How many SNPs in Human genome? – 10,000,000

Individual 1 A G C G T G A T C G A G G C T A Individual 2 A G C G T G A T C G A G G C T A Individual 3 A G C G T G A G C G A G G C T A Individual 4 A G C G T G A T C G A G G C T A Individual 5 A G C G T G A T C G A G G C T A SNP Each SNP has 3 values ( GG / GT / TT ) ( mm / Mm/ MM)

July 15, 2015 Mining Big Data ‹#›

Why is SNPs interesting?

• In human beings, 99.9 percent bases are same.
• Remaining 0.1 percent makes a person unique.

– Different attributes / characteristics / traits

• how a person looks,
• diseases a person develops.
• These variations can be:

– Harmless (change in phenotype) – Harmful (diabetes, cancer, heart disease, Huntington's disease, and hemophilia ) – Latent (variations found in coding and regulatory regions, are not harmful on their own, and the change in each gene only becomes apparent under certain conditions e.g. susceptibility to lung cancer)

July 15, 2015 Mining Big Data ‹#›

Issues in SNP Association Study

• In disease association studies number of SNPs varies

from a small number (targeted study) to a million (GWA Studies)

• Number of samples is usually small
• Data sets may have noise or missing values.
• Phenotype definition is not trivial (ex. definition of

survival)

• Environmental exposure, food habits etc adds more

variability even among individuals defined under the same phenotype

• Genetic heterogeneity among individuals for the same

phenotype

July 15, 2015 Mining Big Data ‹#›

Existing Analysis Methods

• Univariate Analysis: single SNP tested against the

phenotype for correlaton and ranked.

– Feasible but doesn‟t capture the existing true combinations.

• Multivariate Analysis: groups of SNPs of size two or

more are tested for possible association with the phenotype.

– Infeasible but captures any true combinations.

• These two approaches are used to identify

biomarkers.

• Some approaches employ classification methods like

SVMs to classify cases and controls.

July 15, 2015 Mining Big Data ‹#›

Discovering SNP Biomarkers

• Given a SNP data set of Myeloma patients, find a combination of

SNPs that best predicts survival.

• 3404 SNPs selected from various

regions of the chromosome

• 70 cases (Patients survived shorter

than 1 year)

• 73 Controls (Patients survived longer

than 3 years)

cases Controls 3404 SNPs

Complexity of the Problem:

• Large number of SNPs (over a million in GWA

studies) and small sample size

• Complex interaction among genes may be

responsible for the phenotype

• Genetic heterogeneity among individuals sharing

the same phenotype (due to environmental exposure, food habits, etc) adds more variability

• Complex phenotype definition (eg. survival)

July 15, 2015 Mining Big Data ‹#›

Discovering SNP Biomarkers

• Given a SNP data set of Myeloma patients, find a combination of

SNPs that best predicts survival.

• 3404 SNPs selected from various

regions of the chromosome

• 70 cases (Patients survived shorter

than 1 year)

• 73 Controls (Patients survived longer

than 3 years)

cases Controls 3404 SNPs

Odds ratio Measures whether two groups have the same odds of an event.

OR = 1 Odds of event is equal in both groups OR > 1 Odds of event is higher in cases OR < 1 Odds of event is higher in controls

Odds ratio is invariant to row and column scaling

Biomarker (SNPs) CLASS Has Marker Lacks Marker CASE a b Control c d

bc ad d c b a ratio

• dds

  / / _

July 15, 2015 Mining Big Data ‹#›

Discovering SNP Biomarkers

• Given a SNP data set of Myeloma patients, find a combination of

SNPs that best predicts survival.

• 3404 SNPs selected from various

regions of the chromosome

• 70 cases (Patients survived shorter

than 1 year)

• 73 Controls (Patients survived longer

than 3 years)

cases Controls 3404 SNPs

Complexity of the Problem:

• Large number of SNPs (over a million in GWA

studies) and small sample size

• Complex interaction among genes may be

responsible for the phenotype

• Genetic heterogeneity among individuals sharing

the same phenotype (due to environmental exposure, food habits, etc) adds more variability

• Complex phenotype definition (eg. survival)

July 15, 2015 Mining Big Data ‹#›

P-value

• P-value

– Statistical terminology for a probability value – Is the probability that the we get an odds ratio as extreme as the one we got by random chance – Computed by using the chi-square statistic or Fisher‟s exact test

• Chi-square statistic is not valid if the number of entries in a cell
• f the contingency table is small
• p-value = 1 – hygecdf( a – 1, a+b+c+d, a+c, a+b ) if we are

testing value is higher than expected by random chance using Fisher‟s exact test

• A statistical test to determine if there are nonrandom associations

between two categorical variables.

– P-values are often expressed in terms of the negative log of p-value, e.g., -log10(0.005) = 2.3

53

July 15, 2015 Mining Big Data ‹#›

Discovering SNP Biomarkers

• Given a SNP data set of Myeloma patients, find a combination of

SNPs that best predicts survival.

• 3404 SNPs selected from various

regions of the chromosome

• 70 cases (Patients survived shorter

than 1 year)

• 73 Controls (Patients survived longer

than 3 years)

cases Controls 3404 SNPs

Highest p-value, moderate odds ratio Highest odds ratio, moderate p value Moderate odds ratio, moderate p value

July 15, 2015 Mining Big Data ‹#›

Example: High pvalue, moderate odds ratio

Biomarker (SNPs) CLASS

Has Marker Lacks Marker CASE (a) 40 (b) 30 Control (c) 19 (d) 54

Odds ratio = (a*d)/(b*c) = (40 * 54) / (30 * 19) = 3.64 P-value = 1 – hygecdf( a – 1, a+b+c+d, a+c, a+b ) = 1 – hygecdf( 39, 143, 59, 70 ) log10(0.0243) = 3.85 55

Highest p-value, moderate odds ratio

July 15, 2015 Mining Big Data ‹#›

Example …

Biomarker (SNPs) CLASS

Has Marker Lacks Marker CASE (a) 7 (b) 63 Control (c) 1 (d) 72

Odds ratio = (a*d)/(b*c) = (7 * 72) / (63* 1) = 8 P-value = 1 – hygecdf( a – 1, a+b+c+d, a+c, a+b ) = 1 – hygecdf( 6, 143, 8, 70) log10(pvalue) = 1.56 56

Highest odds ratio, moderate p value

July 15, 2015 Mining Big Data ‹#›

Example …

Biomarker (SNPs) CLASS

Has Marker Lacks Marker CASE (a) 70 (b) 630 Control (c) 10 (d) 720

Odds ratio = (a*d)/(b*c) = (70 * 720) / (630* 10) = 8 P-value = 1 – hygecdf( a – 1, a+b+c+d, a+c, a+b ) = 1 – hygecdf( 60, 1430, 80, 700) log10(pvalue) = 6.56 x 10

July 15, 2015 Mining Big Data ‹#›

Example …

Biomarker (SNPs) CLASS

Has Marker Lacks Marker CASE (a) 140 (b) 1260 Control (c) 20 (d) 1440

Odds ratio = (a*d)/(b*c) = (140 * 1440) / (1260* 20) = 8 P-value = 1 – hygecdf( a – 1, a+b+c+d, a+c, a+b ) = 1 – hygecdf( 139, 2860, 160, 1400) log10(pvalue) = 11.9 x 20

July 15, 2015 Mining Big Data ‹#›

Issues with Traditional Methods

Top ranked SNP:

• log10P-value = 3.8; Odds

Ratio = 3.7

• Each SNP is tested and

ranked individually

• Individual SNP

associations with true phenotype are not distinguishable from random permutation of phenotype

However, most reported associations are not robust: of the 166 putative associations which have been studied three or more times, only 6 have been consistently replicated.

Van Ness et al 2009

July 15, 2015 Mining Big Data ‹#›

Evaluating the Utility of Univariate Rankings for Myeloma Data

Feature Selection Leave-one-out Cross validation With SVM Biased Evaluation

July 15, 2015 Mining Big Data ‹#›

Evaluating the Utility of Univariate Rankings for Myeloma Data

Feature Selection Leave-one-out Cross validation With SVM Leave-one-out Cross validation with SVM Feature Selection Biased Evaluation Clean Evaluation

July 15, 2015 Mining Big Data ‹#›

Random Permutation test

• Accuracy larger than 65% are highly significant. (p-value is < 10-4)
• 10,000 random permutations of real phenotype generated.
• For each one, Leave-one-out cross validation using SVM.

July 15, 2015 Mining Big Data ‹#›

Nearest Neighbor Classifier

July 15, 2015 Mining Big Data ‹#›

Nearest Neighbor Classifiers

• Basic idea:

– If it walks like a duck, quacks like a duck, then it‟s probably a duck

Training Records Test Record Compute Distance Choose k of the “nearest” records

July 15, 2015 Mining Big Data ‹#›

Nearest-Neighbor Classifiers



Requires three things – The set of stored records – Distance metric to compute distance between records – The value of k, the number of nearest neighbors to retrieve



To classify an unknown record: – Compute distance to other training records – Identify k nearest neighbors – Use class labels of nearest neighbors to determine the class label of unknown record (e.g., by taking majority vote)

Unknown record

July 15, 2015 Mining Big Data ‹#›

Nearest Neighbor Classification…

• Choosing the value of k:

– If k is too small, sensitive to noise points – If k is too large, neighborhood may include points from other classes

X

July 15, 2015 Mining Big Data ‹#›

Clustering

July 15, 2015 Mining Big Data ‹#›

Clustering

• Finding groups of objects such that the objects in a

group will be similar (or related) to one another and different from (or unrelated to) the objects in other groups

Inter-cluster distances are maximized Intra-cluster distances are minimized

July 15, 2015 Mining Big Data ‹#›

Applications of Clustering

• Applications:

– Gene expression clustering – Clustering of patients based on phenotypic and genotypic factors for efficient disease diagnosis – Market Segmentation – Document Clustering – Finding groups of driver behaviors based upon patterns of automobile motions (normal, drunken, sleepy, rush hour driving, etc)

Courtesy: Michael Eisen

July 15, 2015 Mining Big Data ‹#›

Notion of a Cluster can be Ambiguous

How many clusters? Four Clusters Two Clusters Six Clusters

July 15, 2015 Mining Big Data ‹#›

Similarity and Dissimilarity Measures

• Similarity measure

– Numerical measure of how alike two data objects are. – Is higher when objects are more alike. – Often falls in the range [0,1]

• Dissimilarity measure

– Numerical measure of how different are two data

• bjects

– Lower when objects are more alike – Minimum dissimilarity is often 0 – Upper limit varies

• Proximity refers to a similarity or dissimilarity

July 15, 2015 Mining Big Data ‹#›

Euclidean Distance

• Euclidean Distance

Where n is the number of dimensions (attributes) and xk and yk are, respectively, the kth attributes (components) or data objects x and y.

• Correlation





 

n k k k

y x y x dist

1 2

) ( ) , (

) ( ) ( ) , cov( ) ( ) ( ) )( ( ) , (

1 2 1 2 1 2

y std x std y x y y x x y y x x y x corr

n k k n k k n k k k

     

  

  

July 15, 2015 Mining Big Data ‹#›

Types of Clusterings

• A clustering is a set of clusters
• Important distinction between hierarchical and

partitional sets of clusters

• Partitional Clustering

– A division data objects into non-overlapping subsets (clusters) such that each data object is in exactly one subset

• Hierarchical clustering

– A set of nested clusters organized as a hierarchical tree

p4 p1 p2 p3

July 15, 2015 Mining Big Data ‹#›

Other Distinctions Between Sets of Clusters

• Exclusive versus non-exclusive

– In non-exclusive clusterings, points may belong to multiple clusters. – Can represent multiple classes or „border‟ points

• Fuzzy versus non-fuzzy

– In fuzzy clustering, a point belongs to every cluster with some weight between 0 and 1 – Weights must sum to 1 – Probabilistic clustering has similar characteristics

• Partial versus complete

– In some cases, we only want to cluster some of the data

• Heterogeneous versus homogeneous

– Clusters of widely different sizes, shapes, and densities

July 15, 2015 Mining Big Data ‹#›

Clustering Algorithms

• K-means and its variants
• Hierarchical clustering
• Other types of clustering

July 15, 2015 Mining Big Data ‹#›

K-means Clustering

• Partitional clustering approach
• Number of clusters, K, must be specified
• Each cluster is associated with a centroid (center

point)

• Each point is assigned to the cluster with the

closest centroid

• The basic algorithm is very simple

Example of K-means Clustering

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

Iteration 1

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

Iteration 2

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

Iteration 3

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

Iteration 4

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

Iteration 5

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

Iteration 6

July 15, 2015 Mining Big Data ‹#›

K-means Clustering – Details

• The centroid is (typically) the mean of the points in

the cluster

• Initial centroids are often chosen randomly

– Clusters produced vary from one run to another

• „Closeness‟ is measured by Euclidean distance,

cosine similarity, correlation, etc

• Complexity is O( n * K * I * d )

– n = number of points, K = number of clusters, I = number of iterations, d = number of attributes

July 15, 2015 Mining Big Data ‹#›

Evaluating K-means Clusters

• Most common measure is Sum of Squared Error (SSE)

– For each point, the error is the distance to the nearest cluster – To get SSE, we square these errors and sum them

• x is a data point in cluster Ci and mi is the representative point for

cluster Ci

– Given two sets of clusters, we prefer the one with the smallest error – One easy way to reduce SSE is to increase K, the number of clusters



 



K i C x i

i

x m dist SSE

1 2

) , (

July 15, 2015 Mining Big Data ‹#›

Two different K-means Clusterings

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

Sub-optimal Clustering

• 2
• 1.5
• 1
• 0.5

0.5 1 1.5 2 0.5 1 1.5 2 2.5 3

x y

Optimal Clustering Original Points

July 15, 2015 Mining Big Data ‹#›

Limitations of K-means

• K-means has problems when clusters are
• f differing

– Sizes – Densities – Non-globular shapes

• K-means has problems when the data

contains outliers.

July 15, 2015 Mining Big Data ‹#›

Limitations of K-means: Differing Sizes

Original Points K-means (3 Clusters)

July 15, 2015 Mining Big Data ‹#›

Limitations of K-means: Differing Density

Original Points K-means (3 Clusters)

July 15, 2015 Mining Big Data ‹#›

Limitations of K-means: Non-globular Shapes

Original Points K-means (2 Clusters)

July 15, 2015 Mining Big Data ‹#›

Hierarchical Clustering

• Produces a set of nested clusters
• rganized as a hierarchical tree
• Can be visualized as a

dendrogram

– A tree like diagram that records the sequences of merges or splits

1 2 3 4 5 6 1 2 3 4 5

3 6 2 5 4 1 0.05 0.1 0.15 0.2

July 15, 2015 Mining Big Data ‹#›

Strengths of Hierarchical Clustering

• Do not have to assume any particular number of

clusters

– Any desired number of clusters can be obtained by „cutting‟ the dendrogram at the proper level

• They may correspond to meaningful taxonomies

– Example in biological sciences (e.g., animal kingdom, phylogeny reconstruction, …)

July 15, 2015 Mining Big Data ‹#›

Hierarchical Clustering

• Two main types of hierarchical clustering

– Agglomerative:

• Start with the points as individual clusters
• At each step, merge the closest pair of clusters until only one

cluster (or k clusters) left

– Divisive:

• Start with one, all-inclusive cluster
• At each step, split a cluster until each cluster contains a point

(or there are k clusters)

• Traditional hierarchical algorithms use a similarity or

distance matrix

– Merge or split one cluster at a time

July 15, 2015 Mining Big Data ‹#›

Agglomerative Clustering Algorithm

• More popular hierarchical clustering technique
• Basic algorithm is straightforward

1. Compute the proximity matrix 2. Let each data point be a cluster 3. Repeat 4. Merge the two closest clusters 5. Update the proximity matrix 6. Until only a single cluster remains

• Key operation is the computation of the proximity of

two clusters

– Different approaches to defining the distance between clusters distinguish the different algorithms

July 15, 2015 Mining Big Data ‹#›

Starting Situation

• Start with clusters of individual points and

a proximity matrix

p1 p3 p5 p4 p2 p1 p2 p3 p4 p5

. . .

. . .

Proximity Matrix

...

p1 p2 p3 p4 p9 p10 p11 p12

July 15, 2015 Mining Big Data ‹#›

Intermediate Situation

• After some merging steps, we have some clusters

C1 C4 C2 C5 C3 C2 C1 C1 C3 C5 C4 C2 C3 C4 C5

Proximity Matrix

...

p1 p2 p3 p4 p9 p10 p11 p12

July 15, 2015 Mining Big Data ‹#›

Intermediate Situation

• We want to merge the two closest clusters (C2 and

C5) and update the proximity matrix.

C1 C4 C2 C5 C3 C2 C1 C1 C3 C5 C4 C2 C3 C4 C5

Proximity Matrix

...

p1 p2 p3 p4 p9 p10 p11 p12

July 15, 2015 Mining Big Data ‹#›

After Merging

• The question is “How do we update the proximity

matrix?”

C1 C4 C2 U C5 C3 ? ? ? ? ? ? ? C2 U C5 C1 C1 C3 C4 C2 U C5 C3 C4

Proximity Matrix

...

p1 p2 p3 p4 p9 p10 p11 p12

July 15, 2015 Mining Big Data ‹#›

How to Define Inter-Cluster Distance

p1 p3 p5 p4 p2 p1 p2 p3 p4 p5

. . . . . . Similarity?

• MIN
• MAX
• Group Average
• Distance Between Centroids
• Other methods driven by an objective

function

– Ward‟s Method uses squared error Proximity Matrix

July 15, 2015 Mining Big Data ‹#›

How to Define Inter-Cluster Similarity

p1 p3 p5 p4 p2 p1 p2 p3 p4 p5

. . . . . . Proximity Matrix

• MIN
• MAX
• Group Average
• Distance Between Centroids
• Other methods driven by an objective

function

– Ward‟s Method uses squared error

July 15, 2015 Mining Big Data ‹#›

How to Define Inter-Cluster Similarity

p1 p3 p5 p4 p2 p1 p2 p3 p4 p5

. . . . . . Proximity Matrix

• MIN
• MAX
• Group Average
• Distance Between Centroids
• Other methods driven by an objective

function

– Ward‟s Method uses squared error

July 15, 2015 Mining Big Data ‹#›

How to Define Inter-Cluster Similarity

p1 p3 p5 p4 p2 p1 p2 p3 p4 p5

. . . . . . Proximity Matrix

• MIN
• MAX
• Group Average
• Distance Between Centroids
• Other methods driven by an objective

function

– Ward‟s Method uses squared error

July 15, 2015 Mining Big Data ‹#›

How to Define Inter-Cluster Similarity

p1 p3 p5 p4 p2 p1 p2 p3 p4 p5

. . . . . . Proximity Matrix

• MIN
• MAX
• Group Average
• Distance Between Centroids
• Other methods driven by an objective

function

– Ward‟s Method uses squared error

 

July 15, 2015 Mining Big Data ‹#›

Other Types of Cluster Algorithms

• Hundreds of clustering algorithms
• Some clustering algorithms

– K-means – Hierarchical – Statistically based clustering algorithms

• Mixture model based clustering

– Fuzzy clustering – Self-organizing Maps (SOM) – Density-based (DBSCAN)

• Proper choice of algorithms depends on the type of

clusters to be found, the type of data, and the objective

July 15, 2015 Mining Big Data ‹#›

Cluster Validity

• For supervised classification we have a variety of

measures to evaluate how good our model is

– Accuracy, precision, recall

• For cluster analysis, the analogous question is how to

evaluate the “goodness” of the resulting clusters?

• But “clusters are in the eye of the beholder”!
• Then why do we want to evaluate them?

– To avoid finding patterns in noise – To compare clustering algorithms – To compare two sets of clusters – To compare two clusters

July 15, 2015 Mining Big Data ‹#›

Clusters found in Random Data

0.2 0.4 0.6 0.8 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

x y

Random Points

0.2 0.4 0.6 0.8 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

x y

K-means

0.2 0.4 0.6 0.8 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

x y

DBSCAN

0.2 0.4 0.6 0.8 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

x y

Complete Link

July 15, 2015 Mining Big Data ‹#›

• Distinguishing whether non-random structure actually exists in the

data

• Comparing the results of a cluster analysis to externally known

results, e.g., to externally given class labels

• Evaluating how well the results of a cluster analysis fit the data

without reference to external information

• Comparing the results of two different sets of cluster analyses to

determine which is better

• Determining the „correct‟ number of clusters

Different Aspects of Cluster Validation

July 15, 2015 Mining Big Data ‹#›

• Order the similarity matrix with respect to

cluster labels and inspect visually.

Using Similarity Matrix for Cluster Validation

0.2 0.4 0.6 0.8 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

x y Points Points

20 40 60 80 100 10 20 30 40 50 60 70 80 90 100 Similarity 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

July 15, 2015 Mining Big Data ‹#›

Using Similarity Matrix for Cluster Validation

• Clusters in random data are not so crisp

Points Points

20 40 60 80 100 10 20 30 40 50 60 70 80 90 100 Similarity 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

DBSCAN

0.2 0.4 0.6 0.8 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

x y

July 15, 2015 Mining Big Data ‹#›

Points Points

20 40 60 80 100 10 20 30 40 50 60 70 80 90 100 Similarity 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Using Similarity Matrix for Cluster Validation

• Clusters in random data are not so crisp

K-means

0.2 0.4 0.6 0.8 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

x y

July 15, 2015 Mining Big Data ‹#›

Using Similarity Matrix for Cluster Validation

• Clusters in random data are not so crisp

0.2 0.4 0.6 0.8 1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

x y Points Points

20 40 60 80 100 10 20 30 40 50 60 70 80 90 100 Similarity 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Complete Link

July 15, 2015 Mining Big Data ‹#›

• Numerical measures that are applied to judge various aspects of

cluster validity, are classified into the following three types of indices. – External Index: Used to measure the extent to which cluster labels match externally supplied class labels.

• Entropy

– Internal Index: Used to measure the goodness of a clustering structure without respect to external information.

• Sum of Squared Error (SSE)

– Relative Index: Used to compare two different clusterings or clusters.

• Often an external or internal index is used for this function, e.g.,

SSE or entropy

• For futher details please see “Introduction to Data

Mining”, Chapter 8.

– http://www-users.cs.umn.edu/~kumar/dmbook/ch8.pdf

Measures of Cluster Validity

July 15, 2015 Mining Big Data ‹#›

Clustering Microarray Data

July 15, 2015 Mining Big Data ‹#›

Clustering Microarray Data

• Microarray analysis allows the monitoring of the

activities of many genes over many different conditions

• Data: Expression profiles of approximately 3606

genes of E Coli are recorded for 30 experimental conditions

• SAM (Significance Analysis of Microarrays) package

from Stanford University is used for the analysis of the data and to identify the genes that are substantially differentially upregulated in the dataset – 17 such genes are identified for study purposes

• Hierarchical clustering is performed and plotted using

TreeView

Gene1 Gene2 Gene3 Gene4 Gene5 Gene6 Gene7 …. C1 C2 C3 C4 C5 C6 C7

July 15, 2015 Mining Big Data ‹#›

Clustering Microarray Data…

July 15, 2015 Mining Big Data ‹#›

CLUTO for Clustering for Microarray Data

• CLUTO (Clustering Toolkit) George Karypis (UofM)

http://glaros.dtc.umn.edu/gkhome/views/cluto/

• CLUTO can also be used for clustering microarray data

July 15, 2015 Mining Big Data ‹#›

Issues in Clustering Expression Data

• Similarity uses all the conditions

– We are typically interested in sets of genes that are similar for a relatively small set of conditions

• Most clustering approaches assume that an
• bject can only be in one cluster

– A gene may belong to more than one functional group – Thus, overlapping groups are needed

• Can either use clustering that takes these

factors into account or use other techniques

– For example, association analysis

July 15, 2015 Mining Big Data ‹#›

Clustering Packages

• Mathematical and Statistical Packages

– MATLAB – SAS – SPSS – R

• CLUTO (Clustering Toolkit) George Karypis (UM)

http://glaros.dtc.umn.edu/gkhome/views/cluto/

• Cluster Michael Eisen (LBNL/UCB) (microarray)

http://rana.lbl.gov/EisenSoftware.htm http://genome-www5.stanford.edu/resources/restech.shtml (more microarray clustering algorithms)

• Many others

– KDNuggets http://www.kdnuggets.com/software/clustering.html

July 15, 2015 Mining Big Data ‹#›

Association Analysis

July 15, 2015 Mining Big Data ‹#›

Association Analysis

• Given a set of records, find dependency rules which will

predict occurrence of an item based on occurrences of

• ther items in the record
• Applications

– Marketing and Sales Promotion – Supermarket shelf management – Traffic pattern analysis (e.g., rules such as "high congestion on Intersection 58 implies high accident rates for left turning traffic")

TID Items

1 Bread, Coke, Milk 2 Beer, Bread 3 Beer, Coke, Diaper, Milk 4 Beer, Bread, Diaper, Milk 5 Coke, Diaper, Milk

Rules Discovered: {Milk} --> {Coke} (s=0.6, c=0.75)

{Diaper, Milk} --> {Beer} (s=0.4, c=0.67)

• ns

transacti Total Y and X contain that

• ns

transacti # s Support,  X contain that

• ns

transacti # Y and X contain that

• ns

transacti # c , Confidence 

July 15, 2015 Mining Big Data ‹#›

Association Rule Mining Task

• Given a set of transactions T, the goal of association

rule mining is to find all rules having

– support ≥ minsup threshold – confidence ≥ minconf threshold

• Brute-force approach: Two Steps

– Frequent Itemset Generation

• Generate all itemsets whose support  minsup

– Rule Generation

• Generate high confidence rules from each frequent itemset,

where each rule is a binary partitioning of a frequent itemset

• Frequent itemset generation is computationally

expensive

July 15, 2015 Mining Big Data ‹#›

Efficient Pruning Strategy (Ref: Agrawal & Srikant

1994) If an itemset is infrequent, then all of its supersets must also be infrequent

null AB AC AD AE BC BD BE CD CE DE A B C D E ABC ABD ABE ACD ACE ADE BCD BCE BDE CDE ABCD ABCE ABDE ACDE BCDE ABCDE

Found to be Infrequent

null AB AC AD AE BC BD BE CD CE DE A B C D E ABC ABD ABE ACD ACE ADE BCD BCE BDE CDE ABCD ABCE ABDE ACDE BCDE ABCDE null AB AC AD AE BC BD BE CD CE DE A B C D E ABC ABD ABE ACD ACE ADE BCD BCE BDE CDE ABCD ABCE ABDE ACDE BCDE ABCDE

Pruned supersets

July 15, 2015 Mining Big Data ‹#›

Illustrating Apriori Principle

Item Count Bread 4 Coke 2 Milk 4 Beer 3 Diaper 4 Eggs 1 Itemset Count {Bread,Milk} 3 {Bread,Beer} 2 {Bread,Diaper} 3 {Milk,Beer} 2 {Milk,Diaper} 3 {Beer,Diaper} 3

Itemset Count {Bread,Milk,Diaper} 3

Items (1-itemsets) Pairs (2-itemsets) (No need to generate candidates involving Coke

• r Eggs)

Triplets (3-itemsets)

Minimum Support = 3

If every subset is considered,

6C1 + 6C2 + 6C3 = 41

With support-based pruning, 6 + 6 + 1 = 13

July 15, 2015 Mining Big Data ‹#›

Association Measures

• Association measures evaluate the strength of an

association pattern

– Support and confidence are the most commonly used – The support, (X), of an itemset X is the number of transactions that contain all the items of the itemset

• Frequent itemsets have support > specified threshold
• Different types of itemset patterns are distinguished by a

measure and a threshold – The confidence of an association rule is given by conf(X  Y) = (X  Y) / (X)

• Estimate of the conditional probability of Y given X
• Other measures can be more useful

– H-confidence – Interest

July 15, 2015 Mining Big Data ‹#›

Application on Biomedical Data

July 15, 2015 Mining Big Data ‹#›

• Differential expression  Differential coexpression
• Differential Expression (DE)

– Traditional analysis targets the changes of expression level Expression over samples in controls and cases Expression level controls cases

[Golub et al., 1999], [Pan 2002], [Cui and Churchill, 2003] etc.

Mining Differential Coexpression (DC)

July 15, 2015 Mining Big Data ‹#›

Matrix of expression values

• Differential Coexpression (DC)

– Targets changes of the coherence of expression

controls cases

Question: Is this gene interesting, i.e. associated w/ the phenotype? Answer: No, in term of differential expression (DE). However, what if there are another two genes ……?

Yes!

Expression over samples in controls and cases

Differential Coexpression (DC)

[Silva et al., 1995], [Li, 2002], [Kostka & Spang, 2005], [Rosemary et al., 2008], [Cho et al. 2009] etc. Biological interpretations of DC: Dysregulation of pathways, mutation of transcriptional factors, etc.

genes controls cases [Kostka & Spang, 2005]

July 15, 2015 Mining Big Data ‹#›

• Existing work on differential coexpression

– Pairs of genes with differential coexpression

• [Silva et al., 1995], [Li, 2002], [Li et al., 2003], [Lai et al. 2004]

– Clustering based differential coexpression analysis

• [Ihmels et al., 2005], [Watson., 2006]

– Network based analysis of differential coexpression

• [Zhang and Horvath, 2005], [Choi et al., 2005], [Gargalovic et al. 2006],

[Oldham et al. 2006], [Fuller et al., 2007], [Xu et al., 2008]

– Beyond pair-wise (size-k) differential coexpression

• [Kostka and Spang., 2004], [Prieto et al., 2006]

– Gene-pathway differential coexpression

• [Rosemary et al., 2008]

– Pathway-pathway differential coexpression

• [Cho et al., 2009]

Differential Coexpression (DC)

July 15, 2015 Mining Big Data ‹#›

• Full-space differential coexpression
• May have limitations due to the heterogeneity of

– Causes of a disease (e.g. genetic difference) – Populations affected (e.g. demographic difference)

Existing DC work is “full-space”

Motivation: Such subspace patterns may be missed by full- space models Full-space measures: e.g. correlation difference

July 15, 2015 Mining Big Data ‹#›

• Definition of Subspace Differential Coexpression Pattern

– A set of k genes = {g1, g2 ,…, gk}

– : Fraction of samples in class A, on which the k genes are coexpressed – : Fraction of samples in class B, on which the k genes are coexpressed

Extension to Subspace Differential Coexpression

Details in [Fang, Kuang, Pandey, Steinbach, Myers and Kumar, PSB 2010]

as a measure of subspace differential coexpression

Problem: given n genes, find all the subsets of genes, s.t. SDC≥d

July 15, 2015 Mining Big Data ‹#›

Computational Challenge

Given n genes, there are 2n candidates of SDC pattern! How to effectively handle the combinatorial search space? Similar motivation and challenge as biclustering, but here

differential biclustering !

null AB AC AD AE BC BD BE CD CE DE A B C D E ABC ABD ABE ACD ACE ADE BCD BCE BDE CDE ABCD ABCE ABDE ACDE BCDE ABCDE

Problem: given n genes, find all the subsets of genes, s.t. SDC≥d

July 15, 2015 Mining Big Data ‹#›

Direct Mining of Differential Patterns

[Fang, Pandey, Gupta, Steinbach and Kumar, IEEE TKDE 2011]

Refined SDC measure: “direct”

A measure M is antimonotonic if V A,B: A B  M(A) >= M(B)

Details in [Fang, Kuang, Pandey, Steinbach, Myers and Kumar, PSB 2010]

>> ≈

July 15, 2015 Mining Big Data ‹#›

Advantages: 1) Systematic & direct 2) Completeness 3) Efficiency

null AB AC AD AE BC BD BE CD CE DE A B C D E ABC ABD ABE ACD ACE ADE BCD BCE BDE CDE ABCD ABCE ABDE ACDE BCDE ABCDE

An Association-analysis Approach

[ Agrawal et al. 1994]

null AB AC AD AE BC BD BE CD CE DE A B C D E ABC ABD ABE ACD ACE ADE BCD BCE BDE CDE ABCD ABCE ABDE ACDE BCDE ABCDE

Refined SDC measure

A measure M is antimonotonic if V A,B: A B  M(A) >= M(B)

Disqualified Prune all the supersets

July 15, 2015 Mining Big Data ‹#›

A 10-gene Subspace DC Pattern

• www. ingenuity.com: enriched Ingenuity subnetwork

≈ 60% ≈ 10%

Enriched with the TNF-α/NFkB signaling pathway (6/10 overlap with the pathway, P-value: 1.4*10-5) Suggests that the dysregulation of TNF-α/NFkB pathway may be related to lung cancer

July 15, 2015 Mining Big Data ‹#›

Data Mining Book

For further details and sample chapters see www.cs.umn.edu/~kumar/dmbook

July 15, 2015 Mining Big Data ‹#›

References

• Book
• Computational Approaches for Protein Function Prediction, Gaurav Pandey, Vipin Kumar and Michael Steinbach, to be published by

John Wiley and Sons in the Book Series on Bioinformatics in Fall 2007

• Conferences/Workshops
• Association Analysis-based Transformations for Protein Interaction Networks: A Function Prediction Case Study, Gaurav Pandey, Michael

Steinbach, Rohit Gupta, Tushar Garg and Vipin Kumar, to appear, ACM SIGKDD 2007

• Incorporating Functional Inter-relationships into Algorithms for Protein Function Prediction, Gaurav Pandey and Vipin Kumar, to appear,

ISMB satellite meeting on Automated Function Prediction 2007

• Comparative Study of Various Genomic Data Sets for Protein Function Prediction and Enhancements Using Association Analysis, Rohit

Gupta, Tushar Garg, Gaurav Pandey, Michael Steinbach and Vipin Kumar, To be published in the proceedings of the Workshop on Data Mining for Biomedical Informatics, held in conjunction with SIAM International Conference on Data Mining, 2007

• Identification of Functional Modules in Protein Complexes via Hyperclique Pattern Discovery, Hui Xiong, X. He, Chris Ding, Ya Zhang,

Vipin Kumar and Stephen R. Holbrook, pp 221-232, Proc. of the Pacific Symposium on Biocomputing, 2005

• Feature Mining for Prediction of Degree of Liver Fibrosis, Benjamin Mayer, Huzefa Rangwala, Rohit Gupta, Jaideep Srivastava, George

Karypis, Vipin Kumar and Piet de Groen, Proc. Annual Symposium of American Medical Informatics Association (AMIA), 2005

• Technical Reports
• Association Analysis-based Transformations for Protein Interaction Networks: A Function Prediction Case Study, Gaurav Pandey, Michael

Steinbach, Rohit Gupta, Tushar Garg, Vipin Kumar, Technical Report 07-007, March 2007, Department of Computer Science, University

• f Minnesota
• Computational Approaches for Protein Function Prediction: A Survey, Gaurav Pandey, Vipin Kumar, Michael Steinbach, Technical Report

06-028, October 2006, Department of Computer Science, University of Minnesota
