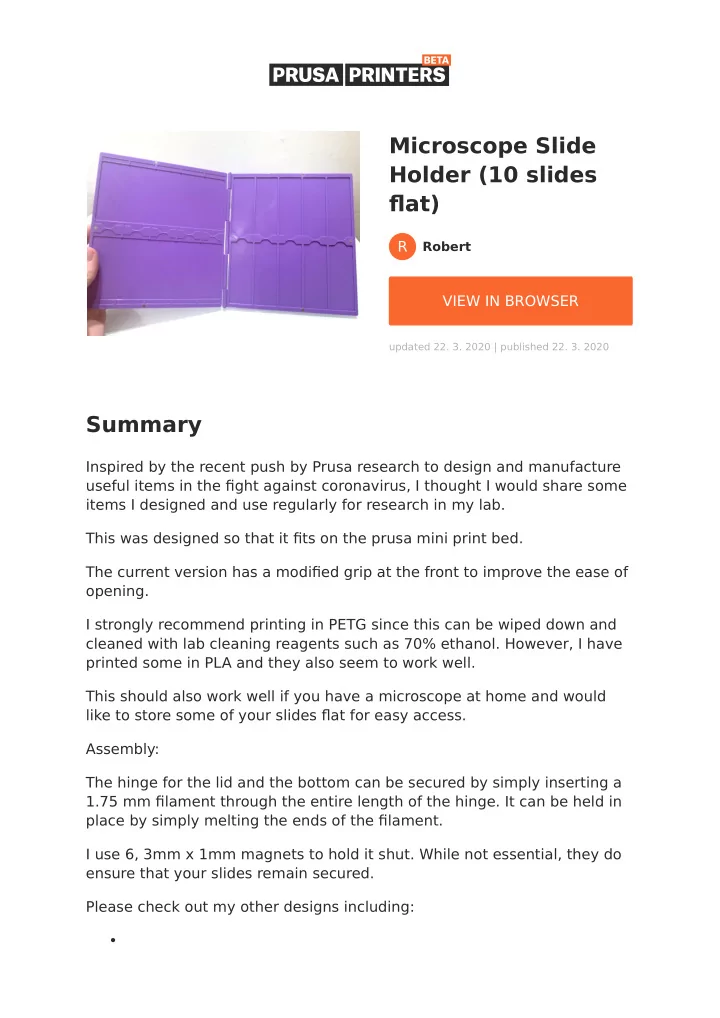

Microscope Slide Holder (10 slides fl at) R Robert VIEW IN - - PDF document

Summary

Inspired by the recent push by Prusa research to design and manufacture useful items in the fight against coronavirus, I thought I would share some items I designed and use regularly for research in my lab. This was designed so that it fits on the prusa mini print bed. The current version has a modified grip at the front to improve the ease of

• pening.

I strongly recommend printing in PETG since this can be wiped down and cleaned with lab cleaning reagents such as 70% ethanol. However, I have printed some in PLA and they also seem to work well. This should also work well if you have a microscope at home and would like to store some of your slides flat for easy access. Assembly: The hinge for the lid and the bottom can be secured by simply inserting a 1.75 mm filament through the entire length of the hinge. It can be held in place by simply melting the ends of the filament. I use 6, 3mm x 1mm magnets to hold it shut. While not essential, they do ensure that your slides remain secured. Please check out my other designs including: R

Robert

Microscope Slide Holder (10 slides flat)

VIEW IN BROWSER

updated 22. 3. 2020 | published 22. 3. 2020



8.04 hrs



2 pcs

f

0.15 mm

k

0.40 mm

h

8



104.00 g

d

MINI

Print Files (.gcode)

 DOWNLOAD ALL FILES

1.5 MB

 4.01 hrs f 0.15 mm k 0.40 mm h PET  52.40 g d MINI updated 22. 3. 2020



1.4 MB

 4.03 hrs f 0.15 mm k 0.40 mm h PET  51.40 g d MINI updated 22. 3. 2020

 Model Files (.stl, .3mf, .obj, .amf)

 DOWNLOAD ALL FILES

A smaller 2 slide immunohistochemistry case: https:// www.prusaprinters.org/prints/26487-immunohistochemistry-staining- chamber-2-slide-hold A larger 8 slide immunohistochemistry case: https:// www.prusaprinters.org/prints/26481-immunohistochemistry-staining- chamber-8-slide-hold While I hope that this case may be useful for other researchers, I am happy to take suggestions on future modifications and improvements. Please comment below or send me a private message and I will do my best, especially if you are currently working on coronavirus related research. Learning > Chemistry & Biology storage slides microscopy microscope biology

• slidecase_lid_015mm_petg_mini_4h0m.gcode

slidecase_base_015mm_petg_mini_4h2m.gcode

365.4 KB

updated 22. 3. 2020



361.6 KB

updated 22. 3. 2020

 License 

This work is licensed under a Creative Commons (4.0 International License)

Attribution—Noncommercial—Share Alike

✖ | Sharing without ATTRIBUTION ✔ | Remix Culture allowed ✖ | Commercial Use ✖ | Free Cultural Works ✖ | Meets Open Definition slidecase_lid.stl slidecase_base.stl
