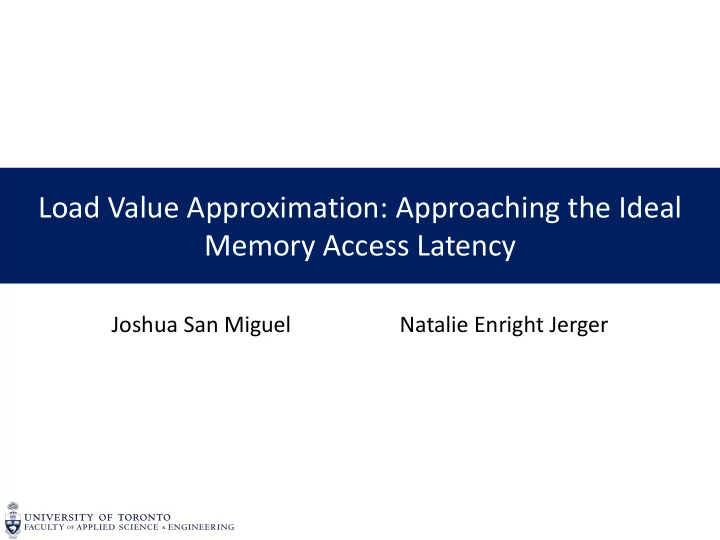

Load Value Approximation: Approaching the Ideal Memory Access Latency Joshua San Miguel Natalie Enright Jerger Chip Multiprocessor main memory shared caches, network-on-chip private cache miss private cache private cache core core core
SLIDE 2
SLIDE 3
Approximate Data
Many applications can tolerate inexact data values.
- In approximate computing applications, 40% to nearly 100% of
memory data footprint can be approximated [Sampson, MICRO 2013].
3
Approximate data storage:
- Reducing SRAM power by lowering supply voltage [Flautner, ISCA 2002].
- Reducing DRAM power by lowering refresh rate [Liu, ASPLOS 2011].
- Improving PCM performance and lifetime by lowering write precision and
reusing failed cells [Sampson, MICRO 2013].
SLIDE 4
Outline
- Load Value Approximation
- Approximator Design
- Evaluation
- Conclusion
4
SLIDE 5
Load Value Approximation
5
core core core private cache private cache private cache shared caches, network-on-chip main memory
SLIDE 6
Load Value Approximation
6
core core core private cache private cache private cache shared caches, network-on-chip main memory approximator approximator approximator
SLIDE 7
Load Value Approximation
7
core core core private cache private cache private cache shared caches, network-on-chip main memory approximator approximator approximator miss A
SLIDE 8
Load Value Approximation
8
core core core private cache private cache private cache shared caches, network-on-chip main memory approximator approximator approximator generate A_approx
SLIDE 9
Load Value Approximation
9
core core core private cache private cache private cache shared caches, network-on-chip main memory approximator approximator approximator A_approx
SLIDE 10
Load Value Approximation
10
core core core private cache private cache private cache shared caches, network-on-chip main memory approximator approximator approximator A_approx request A_actual
SLIDE 11
Load Value Approximation
11
core core core private cache private cache private cache shared caches, network-on-chip main memory approximator approximator approximator A_approx train with A_actual
SLIDE 12
Load Value Approximation
12
core core core private cache private cache private cache shared caches, network-on-chip main memory approximator approximator approximator
Takes memory access off critical path.
SLIDE 13
Approximator Design
13
ℎ , 1.0 2.2 3.1
instruction address
global history buffer
tag tag tag tag tag tag tag tag
approximator table
𝑔
local history buffer
4.1 3.9 4.0
PC ⊕ 1.0 ⊕ 2.2 ⊕ 3.1 (4.1 + 3.9 + 4.0) / 3 A_approx = 4.0 load A
SLIDE 14
Approximator Design
14
Load value approximators overcome the challenges of traditional value predictors:
- No complexity of tracking speculative values.
- No rollbacks.
- High accuracy/coverage with floating-point values.
- More tolerant to value delay.
SLIDE 15
Evaluation
15
EnerJ framework [Sampson, PLDI 2011]:
- Program annotations to distinguish approximate data from
precise data.
- Evaluate final output error and approximator coverage.
benchmark GHB size LHB size approximator size fft 2 49 kB lu 3 1 32 kB raytracer 1 1 32 kB smm 5 1 32 kB sor 2 49 kB
SLIDE 16
Evaluation
16
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% fft lu raytracer smm sor
- utput error
approximator coverage
SLIDE 17
Conclusion
17
Future work:
- Further explore approximator design space (dynamic/hybrid
schemes, machine learning).
- Measure speedup of load value approximation using full-
system simulations.
- Measure power savings (low-power caches/NoCs/memory for
approximate data).
Low-error, high-coverage approximators allow us to approach the ideal memory access latency.
SLIDE 18
Thank you
18 baseline (precise) - raytracer load value approximation - raytracer
