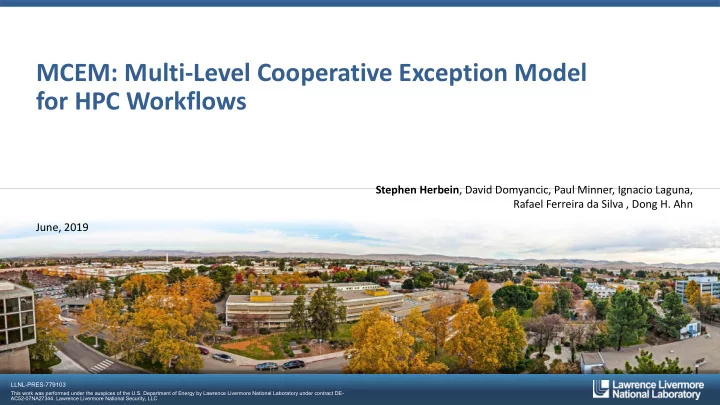

MCEM: Multi-Level Cooperative Exception Model for HPC Workflows Stephen Herbein , David Domyancic, Paul Minner, Ignacio Laguna, Rafael Ferreira da Silva , Dong H. Ahn June, 2019 LLNL-PRES-779103 This work was performed under the auspices of the U.S. Department of Energy by Lawrence Livermore National Laboratory under contract DE- AC52-07NA27344. Lawrence Livermore National Security, LLC

Fault-Tolerance in HPC [1] § The MTBF of our systems is shrinking § The cost of checkpoint/restart is becoming prohibitively expensive § The problem will only get worse with the inclusion of GPUs and node-local SSDs Fault-Tolerance is becoming increasingly important [1] R. Riesen, K. Ferreira and J. Stearley, "See applications run and throughput jump: The case for redundant computing in HPC," 2010 2 International Conference on Dependable Systems and Networks Workshops (DSN-W) , Chicago, IL, 2010, pp. 29-34 LLNL-PRES-779103

Fault-Tolerance Primitives § Detection — the observation of a fault, error, or degradation § Isolation/Diagnosis — the identification of the root cause of the detected fault § Recovery — the remediation of the fault by affected components 3 LLNL-PRES-779103

Fault Tolerance: State of the Practice § Existing State of the Practice fault tolerance techniques are entirely uncoordinated User’s Workflow Scheduler Manager § System components each act independently to detect, Process Exited Rank diagnose, and recover from Abnormally Unresponsive faults Node Resource Manager SegFault Parallel Job Failed Relaunch Restart with Process N-1 Nodes Detection Diagnosis SegFault Node Recovery Lack of coordination results in undetected faults and inefficiency 4 LLNL-PRES-779103

Process Failure Fault Tolerance: State of the Art on Node X ML Model § Components coordinate to detect and diagnose faults Resubmit Job Kill Job User’s Workflow § System components each Scheduler Manager perform their own uncoordinated recovery actions Relaunch Global Event Restart with Process § These actions are usually Database N-1 Nodes Resource Manager redundant and sometimes Parallel Job Process Exited contradictory Rank Abnormally Unresponsive Detection Diagnosis SegFault Node Recovery Lack of coordinated recovery results in suboptimal and redundant work 5 LLNL-PRES-779103

MCEM: Multi-Level Cooperative Exception Model Extend Job Walltime § MCEM extends the idea of Scheduler C++/Java exceptions to an Process Failure entire HPC system on Node X User’s Workflow Manager ML Model § Exceptions are cooperatively Restart with handled in a chain N Nodes Parallel Job § Chained exceptions include fault and recovery metadata Relaunch Rank Process Unresponsive Resource Manager Global Event Detection Diagnosis Database Process Exited Abnormally Node Recovery SegFault 6 LLNL-PRES-779103

MCEM: Global Exceptions Hold Jobs Requiring PFS Parallel FS § Propagating up works well for Scheduler Down exceptions originating from a ML Model single, isolated resource (i.e., User’s Workflow Transfer jobs Manager local exception ) to 2 nd PFS § Reverse propagation direction Parallel Job for exceptions originating Global Event from a shared resource (i.e., Database global exception ) Resource Manager Detection Diagnosis Metadata IO Timeouts Node Failed Node Parallel Filesystem Recovery 7 LLNL-PRES-779103

MCEM: Fault Model § Hard faults — Segmentation Faults, Node Failures, Network Link Failure, PFS Down, User Exceeded Disk Quota § Soft faults — Network or PFS performance degraded, User Approaching Disk Quota § Fault length — Effects must last long enough to be reliably detected, isolated, and recovered from – O(minutes) 8 LLNL-PRES-779103

MCEM Exception Recovery Examples Failure Type Resource Manager Parallel Job Workflow Manager Scheduler Retry job (transient) Parallel Launcher -- -- -- Failure Log system error (permanent) Application Failure Launch mesh -- -- -- (i.e., mesh tangling) relaxation job Process Failure Relaunch Process Restart w/ N ranks -- Grant job addt’l time Restart w/ N-1 ranks Node Failure Mark node down -- Grant job addt’l node OR req addt’l node Migrate some/all User Approaching or Hold queued jobs -- -- workflow jobs to Exceeding Disk Quota requiring PFS access secondary filesystem 9 LLNL-PRES-779103

Quota Exceeded: State of the Practice User’s Workflow Scheduler Manager Migrate to 2 nd PFS User Exceeded Resource Manager Parallel Job Quota EQUOT User Above Detection Diagnosis Hard Quota Parallel Filesystem Recovery 10 LLNL-PRES-779103

User Exceeded Quota Exceeded: State of the Art Quota ML Model Migrate Some Hold User’s Jobs to 2 nd PFS Queued Jobs User’s Workflow Scheduler Manager Global Event Migrate to 2 nd PFS Database Resource Manager Parallel Job EQUOT User Above Detection Diagnosis Hard Quota Parallel Filesystem Recovery 11 LLNL-PRES-779103

Quota Exceeded: MCEM Hold User’s User Exceeded Queued Jobs Scheduler Quota Migrate Some ML Model Jobs to 2 nd PFS User’s Workflow Manager EQUOT Parallel Job Global Event Database Resource Manager Detection Diagnosis User Above Hard Quota Node Parallel Filesystem Recovery 12 LLNL-PRES-779103

Evaluation § In SOA, parallel applications all transition to 2 nd filesystem, and the WFM re-transitions some/all of the jobs § MCEM allows the WFM to only move the minimal subset of jobs exactly once MCEM can reduce IO by up to 90% 13 LLNL-PRES-779103

Implementation: Resource Manager § Why to implement within the system RM — Communication already implemented and fault-tolerant (hopefully) — Can be a plugin/module, result in less code to write and audit § Why not to implement within the system RM — If the RM daemon dies, so does MCEM — RM failures then become potentially undetectable and certainly unrecoverable 14 LLNL-PRES-779103

Implementation: Runtime Interface § Flux — flux job raise –severity=1 –type=“segmentation fault” $ID ’{“rank”: “262”, “pid”: 1182, “node”: ”quartz454”}’ — flux job eventlog $ID — flux_event_subscribe (h, "job-exception") § PMIx — PMIx_Notify_event — PMIx_Register_event_handler • Supports registering a handler for multiple events, simultaneously • “Multi-code” handlers always execute after “single-code” handlers • Supports specifying relative handler precedence within a “category” 15 LLNL-PRES-779103

Acknowledgements § Flux Team § Co-Authors — Ned Bass — David Domyancic — Al Chu — Paul Minner — Jim Garlick — Ignacio Laguna — Mark Grondona — Rafael Ferreira da Silva — Tapasya Patki — Dong H. Ahn — Tom Scogland — Becky Springmeyer 16 LLNL-PRES-779103
