Facilities Services

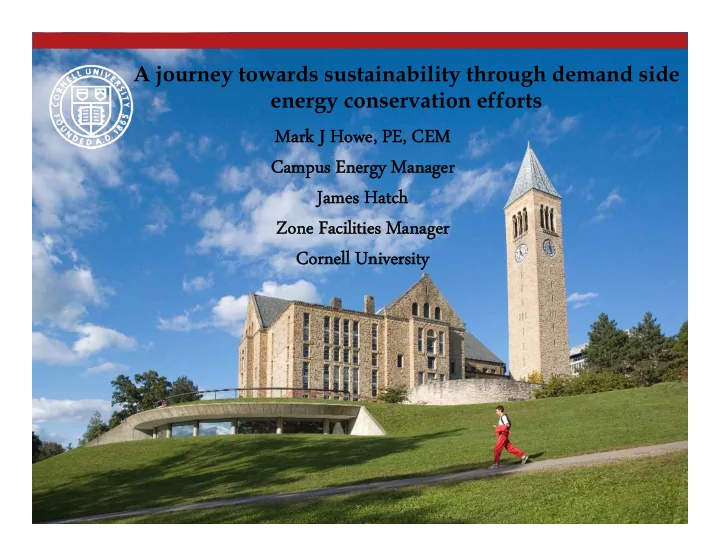

A journey towards sustainability through demand side energy conservation efforts

Mark J Howe, PE, CEM Mark J Howe, PE, CEM Campus Energy Manager Campus Energy Manager James Hatch James Hatch Zone Facilities Manager Zone Facilities Manager Cornell University Cornell University

August 2016 2

• Cornell Climate Action Plan
• Overview of Cornell energy use
• Energy conservation program
• Retro Commissioning Program
• Sustainable Human Ecology Program
• Questions

Agenda

Making Climate Neutrality a Reality

• Actions to eliminate greenhouse gas emissions,

broaden academic research, and enhance educational

• pportunities and outreach efforts by the year 2050.
• Cornell’s Climate Action Plan (CAP) promotes the

education and research needed to generate solutions for the challenges of global warming —and will demonstrate these solutions in campus operations. Climate Action Plan

Climate Neutrality by 2035

• Broad vision for the campus.
• Lab ventilation constitutes about 50% of the $60

million energy costs per year.

• Cornell’s fume hood exhausts represent about

15% of Tompkins County’s carbon footprint.

• Ventilation is the largest user of energy in labs.

– One fume hood = 3 households annual energy usage. – Lowering your fume hood sash is both safer and conserves energy.

• Cold storage of samples is the second largest use
• f energy.

Climate Action Plan 1.Plan space to avoid new buildings 2.Reduce energy demand 3.Use renewable electricity and renewable heat 4.Offset business travel and commuting

Four Tiered Strategy

6

Path to Carbon Neutrality

Campus Energy Use

7 August 2016

Central Energy Plant provides: Electric for about 14,000,000 GSF 214 million kwh (24,500 homes) Steam for 12,800,000 GSF 970,000 klb (9,500 homes) Cooling for 8,700,000 GSF 45 million ton-hrs (11,500 homes)

Steam Energy Use

8

20,000 40,000 60,000 80,000 100,000 120,000 140,000 160,000 180,000 Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Actual Steam Sales (klbs) FY15 by billing month

Metered Building sales: 970,000 klbs Steam use in summer: Reheat; dehumidification and process loads Peak Hourly Steam Load: 380,000 lbs. per hour (every minute we boil 760 gallons of water)

August 2016

Electric Energy Use

9

Metered Building sales: 213 million kwh Usage is quite flat thru out the year, average about 18 million kwh/month Peak load is 35MW, which is about 1/1000

• f the New York State

peak

‐ 5,000,000 10,000,000 15,000,000 20,000,000 25,000,000 Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Actual Electric Sales (kWh) FY15 by billing month

August 2016

Chilled Water Use

10

Metered Building sales: 42 million ton-hrs. About 47% of usage occurs in July/Aug/Sept Winter usage for process cooling and some space cooling Peak load is 25,000 tons (1 ton is the heat rate required to melt one ton of ice in a day)

‐ 1,000,000 2,000,000 3,000,000 4,000,000 5,000,000 6,000,000 7,000,000 8,000,000 Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May Jun Ton‐hrs. Actuals Chilled Water Sales FY15 by billing month

August 2016

11

Forecasting

• Provides the basis for setting budgets
• Weather based for heating and cooling
• Take into account:
• ECI projects and ECCT recommissioning
• Major building renovations/new construction
• Building maturation (important for newer

buildings)

August 2016

August 2016 12

• Forecast is developed for each meter

–100 chilled water, 150 steam, 300 electric –Steam and chilled water require weather regression

• Reviewed / Updated each budget year based on

performance.

• Track performance quarterly
• Building and Campus EUI is tracked and managed
• EUI reporting is part of online IPP metrics

Forecasting

13

Building EUI (kBTU/GSF)

115 160 82 80 75 79 80 74 63 70 49 44 57 39 30 100 165 104 95 72 70 81 100 85 89 53 60 59 46 49 221 41 11 ‐ 1 55 2 ‐ ‐ 136 198 159 134 173 161 89 100 122 82 128 101 71 58 56

572 523 386 320 320 311 305 275 271 241 230 205 187 142 135 ‐ 100 200 300 400 500 600

1165 East Campus Research Facility 2000 Duffield Hall 1164 Vet Medical Center 1018 Biotechnology 2083 Olin Chemistry Research Wing 1028B Bradfield Hall + 1028E Emerson Hall 1014 Weill Hall 1019 Biological Science Complex 1140 Vet Research Tower 1166 Animal Health Diagnostic Cntr 2019 Baker Laboratory 1042A_W Wing Hall and Wing 2076 Physical Sciences Building 2032 Savage/Kinzelberg 1011 Human Ecology Building

Lab/Research Facilities Chilled Water Electric Natural Gas Steam Total EUI

August 2016

14

Building EUI (kBtu/GSF)

29 27 34 28 9 26 11 9 7 11 9 6 17 26 32 43 42 24 25 27 24 15 28 13 21 16 56 37 18 21 54 34 33 30 39 21 36 24 15

110 95 95 91 87 85 71 62 61 60 58 51 48

‐ 25 50 75 100 125 2002 White Hall 1007_1008_1009_ILR_Complex 2044 Gates Hall 3002 Sage Hall 2004 Sibley Hall 2026 Day Hall 1029 Fernow Hall 2013 Goldwin Smith Hall 1070 Bruckner Lab 1026 Warren Hall 2011 Stimson Hall 1003 Ives Hall Faculty Wing 3802 Paul Milstein Hall Office/Teaching Facilities

Chilled Water Electric Natural Gas Steam Total EUI

August 2016

Energy Conservation Program

15 August 2016

Energy Conservation Initiative (ECI) Phase I and II

• Phase I
• 2000-2008 $10 Million project cost
• Energy savings target of $1M annually
• Phase II
• 2010-2015 $33 Million project cost
• Energy savings target of $4M-$5M annually

Endowed 2003 – 2017 (~5M GSF) CCF 2005 – 2017 (~4M GSF)

Maintenance (Continuous Cx) Project Study Design Maintenance (Continuous Cx)

Professional Schools 2011-2013 (~1M GSF)

Steps of ECI

Campus Life 2011-2015 (~3M GSF)

• Lighting – fixtures and occupancy control
• Updating of controls and control logic
• Complete Cx and Re-Cx of systems
• Humidification systems

Conservation Project Elements

Laboratory ventilation is responsible for approximately half of all energy use on campus ~ $30 million per year at billed rates – Focus on controls to reduce outside air use – Occupancy sensors to index room occupancy air flows, and lighting – Relax temperatures to reduce reheat Energy conservation in laboratories

• Work with EH&S to determine spaces that

can have their airflow reduced from 8/4 air exchanges per hour (ACH) to 6/3 ACH

• ccupied/unoccupied
• CFD analysis
• Pilot testing
• 25% Airflow reduction in laboratory spaces

represents a very large potential savings - $ millions/year

Energy conservation in laboratories

• Electrical savings to date
• Over 50 buildings retrofitted
• ~1400 kW reduction (peak)
• 5,000,000 kWh/ year
• 4.2 year simple ROI (2.1 year after

incentive)

LED Lamp Replacement Project

21 August 2016

Steam, $18 Steam, $14 Electric, $9 Electric, $7 Chilled Water, $5 Chilled Water, $4 Total Billed , $31.3 Total Billed , $25.0

$‐ $5 $10 $15 $20 $25 $30 $35

Pre_ECI Project Post_ECI Project

Millions

Post ECI Project Billed Savings: $6.3 million

ECI Project Facts:

• Over 60 Facilities
• Over 90 projects
• Project Cost $33 million
• Project Savings: $6.3 million

at billed rates with 5.3 year payback

ECI project savings % energy savings from ECI project Steam: 126,000 klbs 21% Chilled Water: 5,000,000 ton‐hrs 25% Electric: 19,000,000 kwh 17% EMS1

Slide 22 EMS1 Is this ECI Phase 2?

Ellen M. Sweet, 3/5/2016

• Retro commissioning

–24 month typical cycle goal central mechanical Cx –36 month cycle space Cx

• Empower staff with savings metrics
• Fully involve building managers/directors
• Feedback after the work is complete
• Coordination with routine maintenance crew
• All repairs paid for by maintenance budget

Conservation focused preventive maintenance Energy Conservation Controls Team (ECCT)

23 August 2016

• 10 million sq ft, 100 buildings
• 9 technicians, 1 working supervisor, .5 engineer
• versight
• Highly skilled controls techs
• $1.5 million annual shop expense
• 2-8 % savings, budgeted at 5 %
• Billed cost annual savings is ~ twice cost

ECCT Staffing and Cost

24 August 2016

10 11 12 13 14 15 500,000 1,000,000 1,500,000 2,000,000 2,500,000

FY_2000 FY_2001 FY_2002 FY_2003 FY_2004 FY_2005 FY_2006 FY_2007 FY_2008 FY_2009 FY_2010 FY_2011 FY_2012 FY_2013 FY_2014 FY_2015 FY_2016_Budget FY_2017_Budget

GSF

Millions

MMBTU/YR CHW SALES_MMBTU ELECTRIC SALES_MMBTU STEAM SALES_MMBTU CAMPUS GSF

North Campus ECRF & EHOB Weill Hall Duffield Physical Sciences & AHDC Human Ecology Milstein ~186 kBtu/Sf‐Yr ~148 kBtu/Sf‐Yr Gates Klarman

Energy Use vs Building Space

How can I afford to do these programs with my budget?

It’s how we live and work at HUMAN ECOLOGY

College Level Collaboration

Everyone shares the vision and gives effort!

It’s how we live and work at HUMAN ECOLOGY

Toward a Sustainable Organization

It’s how we live and work at HUMAN ECOLOGY

College Engagement Campaign

It’s how we live and work at HUMAN ECOLOGY

– Creation of College Level Green Team – Bi-monthly campaign themes – Peer to peer educational focus – Role models for sustainable practices selected as green ambassadors – Individual and team recognition for campaign successes – Training identified and supported by the larger campus mission

College Engagement Program Themes

It’s how we live and work at HUMAN ECOLOGY Campaign Kickoff

Energy and Sustainability and CHE (August)

Green Recruitment

Recruiting of CHE Green Ambassadors (September) GREEN Your Workplace Green Labs and Offices certification program (October)

g g The Energy Smackdown: Building vs Building

1st energy competition

• f the program

(November – December)

Recyclemania

Nationwide waste and reduction competition (February- March)

Community Well Being

Healthy Choices Campaign (April)

Green Ambassador celebration

Educational trip and awards May

Campaign Kickoff and Green Recruitment

It’s how we live and work at HUMAN ECOLOGY

– Higher level green team collaborative sessions – Soft launch entertainment event (earth day) – Open recruitment for anyone interested – Green team kickoff collaboration planning event – Quick win event like a “lights out” or “turn back the stat” to engage the entire population. – Selectively recruit those most active to lead departments and units as Green Ambassadors.

Green Office and Lab certification program

It’s how we live and work at HUMAN ECOLOGY Public recognition for staff and faculty engagement:

Personal lab and office assessments 180 people participated Human Ecology has more office and labs green certified than the rest of campus combined Awards were given for all certified labs and

• ffices based on level of certification.

Building Energy Dashboard Smackdown

It’s how we live and work at HUMAN ECOLOGY

Real time energy conservation competition using the building dashboards to track savings percentage under last years usage. Building %Reduction 2014 2015 LEED Beebe Hall 24% 37% None MVR West 33% 34% None MVR Main 29% 30% Gold HEB 5% 21% Platinum S/K Hall 9% 14% None

Total Saved 301,000 kwh in six weeks ***These changes currently remain in place so the savings has continued***

Common Collaborative Opportunities

It’s how we live and work at HUMAN ECOLOGY

Lighting and technology- Use custodial support to re-lamp with LED lights Use students to lead a “Lights out” campaign Use BMS for building occupancy schedules Building scheduling and common/ shared spaces Encourage the use of shared teaching labs Work with registrars to consolidate schedules Encourage the use of commons areas as the hub Understand the Programs needs for use of spaces Not all labs are heavy chemical labs Space programing for HVAC comfort Consolidate and share specialty equipment

Use Fun Facts to stay on target

It’s how we live and work at HUMAN ECOLOGY

These efforts have saved a combine 301,693 KWH

• ver a six week period of time within 650,000 sq ft
• f building spaces.

Multiplying those savings out for the year is equivalent to : Driving 176 trips around the world 83-garbage trucks of waste recycled instead of landfilled 271-family homes fully powered for a year Or 1838- 30’ tall balloons filled with CO2e

Questions?

Contact info: Mark Howe mjh69@cornell.edu Jim Hatch jfh89@cornell.edu
