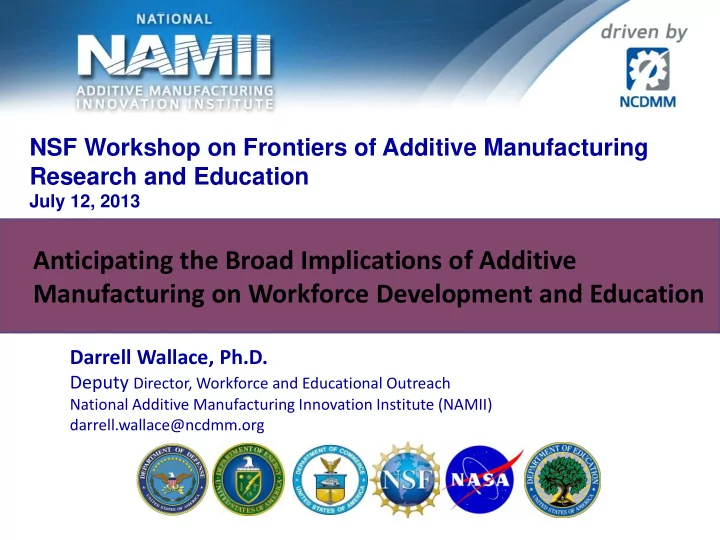

NSF Workshop on Frontiers of Additive Manufacturing Research and Education July 12, 2013 Anticipating the Broad Implications of Additive Manufacturing on Workforce Development and Education Darrell Wallace, Ph.D. Deputy Director, Workforce and

slide-1
SLIDE 1

Anticipating the Broad Implications of Additive Manufacturing on Workforce Development and Education

Darrell Wallace, Ph.D.

Deputy Director, Workforce and Educational Outreach

National Additive Manufacturing Innovation Institute (NAMII) darrell.wallace@ncdmm.org

NSF Workshop on Frontiers of Additive Manufacturing Research and Education

July 12, 2013

slide-2
SLIDE 2

Why Teach Additive Manufacturing?

2

slide-3
SLIDE 3

Why Teach Additive Manufacturing?

Empower people to build what they dream.

3

slide-4
SLIDE 4

Developing Workforce and Education Framework

  • Who should we teach / train?
  • What should we teach / train?
  • How should we teach / train?
  • Challenges and opportunities?

To begin to answer these, we must understand how AM fundamentally changes the manufacturing and education environments.

4

slide-5
SLIDE 5

Reimagining Manufacturing

slide-6
SLIDE 6

Rethinking the Problem

Barriers to broader adoption of AM:

–Cost –Confidence

  • Solutions to these challenges are different for

AM than for traditional processes.

6

slide-7
SLIDE 7

Traditional Model for Manufacturing

7

Tooling Engineering Design Supply Chain Production Business Warehousing Distribution

slide-8
SLIDE 8

Disruptive Technology will Change the Downstream Model

  • Warehousing
  • Distribution
  • Tooling
  • Stock Losses / Risk
  • Carrying costs
  • EOQ / amortization schedules

8

slide-9
SLIDE 9

New Models for Manufacturing: “Traditional” Manufacturers

9

= Distributed / Regional Manufacturing Centers Engineering Design Business

slide-10
SLIDE 10

Additive Manufacturing Changes Who Can be a “Manufacturer”

slide-11
SLIDE 11

Affordable

11

=

slide-12
SLIDE 12

Accessible

12

≈

slide-13
SLIDE 13

Which is the “Consumer” Product?

Milling Machine Boutique Coffee Maker Ability to directly control process parameters (speeds, temperatures) Limited only by machine capabilities Pre-set configurations Ability to directly customize cycle (time/temperature / toolpath) Unlimited Pre-set configurations Raw Materials and tools Best available based on price and properties Limited selection, OEM packaged, expensive Flexibility to innovate High Low

13

slide-14
SLIDE 14

Which is the “Consumer” Product?

<$2000 “Hobby” 3D Printer >$50,000 “Commercial” 3D Printer Ability to directly control process parameters (speeds, temperatures) Limited only by machine capabilities Pre-set configurations Ability to directly customize cycle (time/temperature / toolpath) Unlimited Pre-set configurations Raw Materials and tools Best available based on price and properties. Limited selection, OEM packaged, expensive Flexibility to innovate High Low

14

slide-15
SLIDE 15

Innovation from the Grass Roots

  • Materials
  • Software
  • Toolpaths
  • Equipment

15

Component printed with Laywoo-D3 composite wood filament

slide-16
SLIDE 16

Familiar Trajectory

16

slide-17
SLIDE 17

IBM System 370 1972 1 MIPS

17

Intel 286 1982 2.66 MIPS

slide-18
SLIDE 18

Accelerated

2011

18

2012

slide-19
SLIDE 19

Reduces the barriers to entry

  • Low cost for prototyping
  • Production parts do not require capital

investment

  • Innovations are not limited to technology

firms

19

slide-20
SLIDE 20

The Individual Manufacturing Entrepreneur

20

Design Make Ship

slide-21
SLIDE 21

Designs as Apps

21

Design Make

slide-22
SLIDE 22

Who do we Teach / Train?

slide-23
SLIDE 23

“Workforce”– Traditional View

23

Tooling Engineering Design Supply Chain Production Business Warehousing Distribution

slide-24
SLIDE 24

Traditional View of “Workforce”

– Non-Degree – Labor – Technichians / Technologists

24

slide-25
SLIDE 25

“Workforce” Impacted by AM

25

Tooling Engineering Design Supply Chain Production Business Warehousing Distribution

slide-26
SLIDE 26

A Broader Look at “Workforce”

  • Broadened Age Range:

– K-Gray – Non-Degree through Ph.D.

  • Broad disciplines:

– Labor – STEM – Creative – Entrepreneurial – Business Enterprise

Traditional view in Manufacturing

26

slide-27
SLIDE 27

Identified Focus Areas for Workforce and Education

  • General Awareness

– Public, K-12

  • Workforce (non-degree through graduate curricula)

– AM Foundational Understanding – AM Technology / Process and Materials – AM Inputs – Design for AM – Quality Assurance for AM – AM Enterprise (Business and Economics)

  • Advanced AM Research / Education

27

slide-28
SLIDE 28

Identified Target Groups for Education and Workforce Development

  • Public

– General public

  • The curious
  • The contentious
  • Government

– Poltical leaders – Economic development agencies

  • Individual entrepreneurs / Makers
  • K-12

– Students – Faculty – Administrators – Parents

  • Technical / non-Degree

– Students – Faculty – Administrators

  • 2- and 4-year Degree Programs

– Students – Faculty – Administrators

  • Graduate Degrees / R&D

– Students – Faculty

  • Industry by Role

– Floor Labor

  • Operators
  • Technicians

– Engineering and Design

  • Manufacturing Engineers
  • Designers / Design Engineers

– Business and Administration

  • Management
  • Finance
  • Inventory Management
  • Transportation and Logistics
  • Legal
  • Industry by Segment

– Manufacturers

  • Component suppliers
  • OEM manufacturers / integrators

– Material Suppliers

28

slide-29
SLIDE 29

Evolution of Job Market

Job market and technology adoption are closely related

– Demand for technicians / operators will depend

  • n viability of AM in manufacturing enterprise

– Viability of AM will depend on proper training of designers, engineers, executives, finance, logistics, etc.

29

slide-30
SLIDE 30

What do we Teach / Train?

slide-31
SLIDE 31

Additive Manufacturing as an Integrated System

31

slide-32
SLIDE 32

What do we Teach?

  • What we can teach effectively today:

– AM Processes – Multidisciplinary teaming

  • Topics that depend on further development:

– AM design communication – Costing and enterprise-level design decisions – AM design methodologies

32

slide-33
SLIDE 33

AM Processes

  • Essential for manufacturing professionals to

understand in the context of traditional manufacturing processes.

– Capabilities and limitations – Differentiation between various AM processes (not “Catch All”)

33

slide-34
SLIDE 34

A Unique Bottleneck in Human History

  • Papyrus
  • Phonetic alphabet
  • Gutenberg press
  • 3-View orthographic projections
  • Tolerances
  • Geometric Dimensioning and Tolerancing
  • Digital models (still evolving)
  • Design and communication tools for AM

34

slide-35
SLIDE 35

Everything I Needed to Know about AM Design Communication … I learned from an Igloo

35

slide-36
SLIDE 36

Igloo Language

  • Layer-wise construction technique
  • Requires specialized language to describe

– English language: “snow” – Inuit language: 15 lexemes with 1000+ inflected forms to describe “snow” (several of the lexemes are important for the igloos)

  • Building the structure properly requires the right

combination of types of snow.

– Inuits use precise language to unambiguously describe – Other languages fumble around with modifiers: “new- fallen snow, hard-packed crust, sticky snow” etc.

36

slide-37
SLIDE 37

Chain of Design Communication

  • Design

– Specifications – acceptable tolerances around nominal

  • Manufacturing

– produce parts and assemblies within tolerance

  • Validation

– Based on unambiguous specifications – Based on measuring outcomes against specifications

37

slide-38
SLIDE 38

In a Different Context

38

slide-39
SLIDE 39

“Color” as a Design Parameter

  • Traditional design parameters are discrete /

quantized, seldom continuously varying.

  • Complex contours are already a challenge for

traditional design communication tools.

  • Characteristics that vary in through-body

gradients are much more difficult to specify / satisfy / verify.

39

slide-40
SLIDE 40

“Color” of Parts – 3D Gradients

Some things we can currently control:

  • Material composition
  • Micro/Macro structure

– Microstructure – Gross anisotropy (build orientation) – Local anisotropy (tool path) – E-materials (multi-material deposition patterns)

40

slide-41
SLIDE 41

How do we Specify / Verify?

  • What is the language to communicate the “color”

parameters of our parts?

  • What is our ability to measure and verify

– gradated properties – Internal geometric features

Are our designs hampered by communication? We can make designs that we can’t effectively communicate. How, therefore, do we teach it?

41

slide-42
SLIDE 42

Teaching Additive Manufacturing

  • Teaching and learning depend on effective

communication

– Present concepts – Manipulate concepts

42

slide-43
SLIDE 43

DFAM (Design for Additive)

  • Design for Manufacturing and Assembly

(DFMA) rules have evolved to be generally applied across traditional manufacturing processes.

  • AM disrupts

key assumptions.

43

slide-44
SLIDE 44

How do we Teach / Train?

slide-45
SLIDE 45

Evolving Curriculum in Parallel with Technology

  • Technology is available at all levels of

education

  • Not yet well understood or broadly adopted in

industry

  • Technology and pricing will likely change

dramatically over a short time period

45

slide-46
SLIDE 46

AM Curriculum Development and Credentials

  • AM processes developing at a faster pace than

curricular programs can keep up.

  • NAMII will support shared, current resources
  • Aligning degree, course, certificate, and

certification program content with nationally recognized consensus materials will foster broader credential recognition.

46

slide-47
SLIDE 47

47

slide-48
SLIDE 48

Challenge and Opportunity

  • 83% of US manufacturers report an overall

shortage of qualified employees

  • 59-milion K-12 Students

– Attracting just 1% more to pursue careers in STEM / manufacturing would have tremendous impacts

  • Total number of 3D printers sold worldwide

to-date numbers only in tens of thousands.

48

slide-49
SLIDE 49

Leveling the Playing Field

49

  • Anyone with an idea can be a manufacturer
  • Same technology will be used across broad ranges

demographics

slide-50
SLIDE 50

Experiential Learning

  • Empower students at all levels to create the

tools that allow them to learn

  • Open-ended, multi-disciplinary challenges
  • AM as a classroom resource to be used

whenever applicable

50

slide-51
SLIDE 51

Growing the Pie

  • Opens up opportunities for the largest

untapped populations

– Hands-on experimentation at all levels of education attracts kids who are kinesthetic learners – Low barriers to innovation and entrepreneurship – Cost of technology is approachable

51

slide-52
SLIDE 52

Inspiring Ingenuity

52

2013 First Robotics National Championship

  • Students make what they can’t buy
  • On-site parts hospital
  • Philosophy of empowerment and

self-reliance

  • Demonstration of “cloud sourcing” -

more than 2300 parts in 2 weeks

slide-53
SLIDE 53

Empower Everyone

The best solution to any problem lies outside of your organization.

53

Easton LaChappelle, 15 year old inventor of a 3D printed prosthetic arm that can be controlled by nerve and brain impulses for less than $250.

slide-54
SLIDE 54

Conclusion

  • The opportunities offered by AM are revolutionary.
  • Dissemination of the technology to the many

potential users will democratize manufacturing and spur innovation.

  • Many of the biggest challenges are tied to the rapid

rate of evolution.

  • The ability to educate our students, workers, and

enterprises about this technology is best served by a thriving, dynamic, and connected community of technology experts, manufacturers, and educators.

slide-55
SLIDE 55
