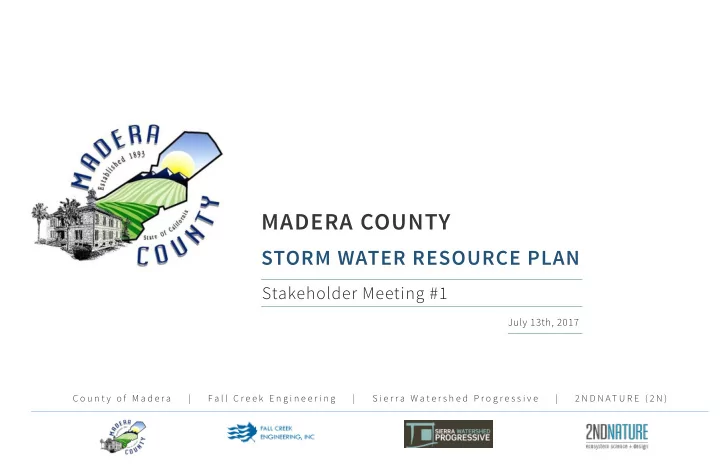

SLIDE 1

MADERA COUNTY

STORM WATER RESOURCE PLAN

C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N )

Stakeholder Meeting #1

July 13th, 2017

SLIDE 2

6:00 Introductions

Meet the SWRP team and other stakeholders

6:10 SWRP Purpose and Goals

Presentation by Sierra Watershed Progressive

6:20 SWRP Process: SWRP Project Solicitation Form Introduction

Presentation by Fall Creek Engineering

6:30 SWRP Process: Prioritization Criteria

Presentation by 2nd Nature

6:45 Discussion of Selected Criteria & Time for Feedback

Facilitated by Sierra Watershed Progressive

M e e t i n g A g e n d a

7:00 Prioritization of Example Projects

Presentation by Fall Creek Engineering and 2nd Nature

7:15 Discussion of Selected Criteria Weights

Facilitated by Sierra Watershed Progressive

7:30 SWRP Schedule 7:40 Next Steps 7:45 Time for Questions

http://www.maderacountywater.com/storm-water-resource-plan-swrp/

SLIDE 3 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

I. WHAT IS THE SWRP: Purpose and Goals

The Madera County Storm Water Resource Plan (SWRP) is a first of its kind watershed based storm water plan that will establish an integrated, holistic, and coordinated storm water run-ofg management strategy for the entire County.

SLIDE 4 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

Development of the SWRP is grant-funded and being led by the County of Madera in coordination with a Technical Advisory Committee, Stakeholder Group, and community members.

I. WHAT IS THE SWRP: Purpose and Goals

SLIDE 5 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

I. WHAT IS THE SWRP: Purpose and Goals

The purpose of the SWRP is to identify and prioritize projects to “bring to the top” those multi-benefit projects that can best meet the identified priorities on a watershed basis.

SLIDE 6 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

Outcome of the plan is to provide the guidance and tools to support the region in developing more competitive projects for state-wide grant funding opportunities to achieve watershed and regional planning goals.

I. WHAT IS THE SWRP: Purpose and Goals

SLIDE 7 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

I. WHAT IS THE SWRP: Purpose and Goals

What exactly is stormwater?

mechanical biological

STORMWATER is the water that drains ofg a land area from

rainfall. This includes rain that falls on roofuops, directed

through gutters and downpipes onto land or into drains, as well as rain falling on ground surface areas such as roads, driveways, footpaths, gardens and lawns. RAINWATER refers only to the rain that falls on the roof, which can be harvested into a storage tank prior to contact with the ground.

STORMWATER is defined by the US EPA “as the runofg generated when precipitation from rain and snowmelt events flows over land or impervious surfaces without percolating into the ground.”

SLIDE 8 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

I. WHAT IS THE SWRP: Purpose and Goals

Stormwater Benefits

slow spread soak

flow control detention retention filtration infiltration treatment

ENHANCE: Fire protection Groundwater recharge Irrigation Domestic Non-potable Livestock watering Long term storage, water features Emergency supply Resilience REDUCE: Fire risk Flooding Problems Soil loss, erosion issues Emergency risk Streambank erosion Nutrient/ Pathogen Loading Local water supply demand Livestock pen management

SLIDE 9 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

I. WHAT IS THE SWRP: Purpose and Goals

Stormwater Regulations Why are we here?

Stormwater

Nuisance Resource Project Funding

PLAN

Management Collaboration Prioritization

SLIDE 10 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

I. WHAT IS THE SWRP: Purpose and Goals

Stormwater Opportunities

We can get ahead of the regulations and use funding to fix problems

How much water can we save?

10 inch average rainfall in Madera = apx. 13M

gallons of water 12,946,727/17.2 gall shower = 752,717 showers enough for OVER 2000 people to shower for a full 1,381.52 EMPIRE STATE BUILDINGS

x 138

OR

x 1000 x 1 YEAR

SLIDE 11 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

II. SWRP PROCESS: SWRP Project Solicitation Form Introduction

Please direct any questions and provide this completed form to Dario Dominguez at dario.dominguez@co.madera.ca.gov by August 21, 2017 For more informatjon and project updates visit www.maderacountywater.com » PROJECT DESCRIPTION. Please include any information that will help us understand the scope

f your project and don’t hesitate to attach extra pages.

» PROJECT LOCATION. The project must be located in Madera County to be considered for inclusion in the Madera SWRP. » MULTI-BENEFIT CRITERIA. All the projects in the SWRP will be prioritized based on a common set of multi-benefit criteria, including the benefit a project can provide for water quality, water supply, flood management, the environment, and other community benefits. Your response to these questions will help us prioritize your project in the SWRP. »

QUANTIFICATION. Where possible, project benefits need to be quantified. For example, if a

project reduces flood risk, we will need to know an estimate of the flood volume reduced. » FUNDING SOURCES: In addition to Proposition 1 grant funds, projects included in the SWRP will be eligible for other grant monies, such as from the Department of Water Resources and California Department of Fish and Wildlife. » TIMELINE FOR SWRP COMPLETION: » July - Aug. 2017: Call for Projects! Send us your completed forms this summer, until August 21. » August - September 2017: New Project Concept Development & Project Prioritization. » October 2017: Dra t SWRP ready for public review and comment. » November 2017: Public & Stakeholder Meeting #2 » December 2017: Final SWRP MADERA COUNTY PUBLIC WORKS AND WATER & NATURAL RESOURCE DEPARTMENTS Contact: Dario Dominguez, Program Manager | dario.dominguez@co.madera.ca.gov | (559) 675-7811 www.maderacountywater.com

MADERA COUNTY

STORM WATER RESOURCE PLAN

PROJECT SOLICITATION FORM

INTRODUCTION & TIPS FOR COMPLETION

The Madera County Storm Water Resource Plan (SWRP) is a fjrst of its kind watershed based storm water plan that will establish an integrated, holistjc, and coordinated storm water run-

fg management strategy for the entjre County. Development of the SWRP is grant-funded

and being led by the County of Madera in coordinatjon with a Technical Advisory Commituee, Stakeholder Group, and community members. THE PURPOSE OF THIS FORM IS TO COLLECT INFORMATION ABOUT PROJECTS FOR POTENTIAL INCLUSION IN THE SWRP. PROJECTS IN THE SWRP WILL be prioritjzed based on a common set of criteria and will BE ELIGIBLE FOR BOND MONIES, SUCH AS FROM PROP. 1 STARTING IN SPRING 2018

For more informatjon and project updates visit Please include any information that will help us understand the scope

f your project and don’t hesitate to attach extra pages.

The project must be located in Madera County to be considered for inclusion in the Madera SWRP. All the projects in the SWRP will be prioritized based on a common set of multi-benefit criteria, including the benefit a project can provide for water quality, water supply, flood management, the environment, and other community benefits. Your response to these questions will help us prioritize your project in the SWRP. Where possible, project benefits need to be quantified. For example, if a project reduces flood risk, we will need to know an estimate of the flood volume reduced. In addition to Proposition 1 grant funds, projects included in the SWRP will be eligible for other grant monies, such as from the Department of Water Resources and California Department of Fish and Wildlife.

Send us your completed forms this summer, until August 21. New Project Concept Development & Project Prioritization.

Dra t SWRP ready for public review and comment. Public & Stakeholder Meeting #2

Final SWRP

The Madera County Storm Water Resource Plan (SWRP) is a fjrst of its kind watershed based storm water plan that will establish an integrated, holistjc, and coordinated storm water run-

fg management strategy for the entjre County. Development of the SWRP is grant-funded

and being led by the County of Madera in coordinatjon with a Technical Advisory Commituee, Stakeholder Group, and community members.

THE PURPOSE OF THIS FORM IS TO COLLECT INFORMATION ABOUT PROJECTS FOR POTENTIAL INCLUSION IN THE SWRP.

PROJECTS IN THE SWRP WILL be prioritjzed based on a common set of criteria and will BE ELIGIBLE FOR BOND MONIES, SUCH AS FROM PROP. 1 STARTING IN SPRING 2018 Please direct any questions and provide this completed form to

Dario Dominguez at dario.dominguez@co.madera.ca.gov by August 21, 2017

For more informatjon and project updates visit www.maderacountywater.com Please include any information that will help us understand the scope

f your project and don’t hesitate to attach extra pages.

The project must be located in Madera County to be considered for inclusion in the Madera SWRP. All the projects in the SWRP will be prioritized based on a common set of multi-benefit criteria, including the benefit a project can provide for water quality, water supply, flood management, the environment, and other community benefits. Your response to these questions will help us prioritize your project in the SWRP. Where possible, project benefits need to be quantified. For example, if a project reduces flood risk, we will need to know an estimate of the flood volume reduced. In addition to Proposition 1 grant funds, projects included in the SWRP will be eligible for other grant monies, such as from the Department of Water Resources and California Department of Fish and Wildlife.

Send us your completed forms this summer, until August 21. New Project Concept Development & Project Prioritization.

Dra t SWRP ready for public review and comment. Public & Stakeholder Meeting #2

December 2017: Final SWRP

The Madera County Storm Water Resource Plan (SWRP) is a fjrst of its kind watershed based storm water plan that will establish an integrated, holistjc, and coordinated storm water run-

fg management strategy for the entjre County. Development of the SWRP is grant-funded

and being led by the County of Madera in coordinatjon with a Technical Advisory Commituee, Stakeholder Group, and community members.

PROJECTS IN THE SWRP WILL be prioritjzed based on a common set of criteria and will BE ELIGIBLE FOR BOND MONIES, SUCH AS FROM PROP. 1 STARTING IN SPRING 2018

SLIDE 12 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

II. SWRP PROCESS: SWRP Project Solicitation Form Introduction

1 of 5

Madera County Storm Water Resource Plan (SWRP) Project Solicitation Form

Please direct any questions and provide this completed form to Dario Dominguez at dario.dominguez@co.madera.ca.gov by August 21, 2017. Website: General Information Project Name: Project Sponsor: Project Sponsor Address: If Joint Project, Other Sponsors (List All): Project Contact Person: Telephone: Email: Project Description Project Description (Please attach additional pages as available or necessary to describe the project): If applicable, identify surface water bodies or groundwater basins associated with the proposed project: If available, please describe any potential project alternatives: Please check which of the following best applies. Does the project: Have a specific location and determined costs? Provide community resources and/or community engagement? Not yet have a finalized location or cost, and is currently a concept level project or program? (Note: Projects in this third category will not be ranked within the SWRP)

Project Solicitation Form

General Information

Project Name: Project Sponsor: Project Sponsor Address: community

Project Solicitation Form

Project Description

Project Description (Please attach additional pages as available or necessary to describe the project): community

Project Solicitation Form

Please check which of the following best applies. Does the project: Have a specific location and determined costs? Provide community resources and/or community engagement? Not yet have a finalized location or cost, and is currently a concept level project or program? (Note: Projects in this third category will not be ranked within the SWRP)

SLIDE 13 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1 2 of 5 Project Location Either the latitude/longitude or a location description is required. To determine the latitude/longitude, use the closest address or intersection. If the project is linear, use the furthest upstream latitude/longitude. Project Latitude: Project Longitude: Location Description: Project Water Quality Benefits Does the project support compliance with applicable permit and/or TMDL requirements? Yes No If yes, which ones: Does the project increase the filtration and/or treatment of runoff? Yes No If yes, what is the volume treated (acre-feet/year, AF/yr): Does the project provide non-point source pollution control? Yes No If yes, what is the pollutant and the estimated pollutant load reduction (pounds/year, lb/yr)? Does the project re-establish natural water drainage and treatment? Yes No If yes, what is the volume treated (AF/yr): Project Water Supply Benefits Does the project provide water supply reliability? Yes No If yes, what is the volume added or saved (AF/yr): What quantification method was used? Does the project conserve water? Yes No If yes, what is the volume added or saved (gallons/year, gal/yr): What quantification method was used? Does the project involve conjunctive use? Yes No If yes, what is the volume added or saved (AF/yr): What quantification method was used? Flood Management Benefits Does the project decrease flood risk by reducing runoff rate and/or volume? Yes No If yes, what is the rate and/or volume decreased (cubic-feet/second, cfs and/or AF/yr): Does the project reduce sanitary sewer overflows? Yes No If yes, what is the volume decreased (AF/yr): Environmental (Protection and Improvement) Benefits Does the project provide environmental and habitat protection improvements via: Wetland enhancement/creation? Yes No If yes, what is the size (acre): Riparian enhancement? Yes No If yes, what is the size (acre): Instream flow improvement? Yes No If yes, what is the size and/or rate (acre and/or cfs): Does the project reduce energy use, greenhouse gas emissions, or provide a carbon sink? Yes No If yes, what is the size (lbs/yr or tons/yr): Does the project reestablish pre-development runoff patterns? Yes No If yes, by what magnitude (%):

How does the project benefit:

Water Quality?
Water Supply?
Flood Management?
Environmental Protection &

Improvement?

Where possible, QUANTIFY these benefits

II. SWRP PROCESS: SWRP Project Solicitation Form Introduction

SLIDE 14 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1 3 of 5 Does the project increase urban green space? Yes No If yes, what is the size (ac): Does the project improve water temperature? Yes No If yes, by what magnitude (%): Does the project or program create or restore habitat, open space, parks, recreation, or green open space in communities with a high deficit of tree canopy, parks and open space Yes No If yes, please describe and include area (acre): Benefits to Disadvantaged Communities (DAC) Is the project located in, and/or directly benefit a DAC? (as identified by https://gis.water.ca.gov/app/dacs/) Yes No Unsure If yes, what is the community name and estimated population: If yes, is the DAC identified as: Disadvantaged Severely Disadvantaged If yes, please also identify the contact person, group, or organization and describe the DAC’s participation: Does the project address any known environmental justice issues? Yes No Unsure If yes, describe: Project Costs What is the estimated project capital cost? Please provide estimated cost, if known, OR check rough estimate: Total Project Cost: <$100K $100K-$1M $1M - $10M >$10M Estimated Amount of Match Contribution: $ Source of Match: Local Federal In-Kind Other Undetermined Certainty of Match: High Certainty Somewhat Certain Low Certainty Annual Operation & Maintenance (O&M) Cost: $ O&M Funding Sources: Annual Budget ( %) Grant ( %) Other ( %) Certainty of O&M Funding: High Certainty Somewhat Certain Low Certainty Community Benefits Will the project provide employment opportunities? Yes No If yes, how many jobs (#) and for what amount of time (months): Will the project generate community involvement? Yes No If yes, of what size (# of people) and for what amount of time (months): Will the project creae public education opportunities? Yes No If yes, of what size (# of people) and for what amount of time (months): Will the project enhance and/or create recreational and public use areas? Yes No If yes, of what size (acre):

How does the project benefit:

Disadvantaged Communities (DAC)?

https://gis.water.ca.gov/app/dacs/

Communities (e.g. employment)?

Where possible, QUANTIFY these benefits

What are the Project Costs?

II. SWRP PROCESS: SWRP Project Solicitation Form Introduction

SLIDE 15 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1 4 of 5 Project Development How was the project identified and developed? Was a metrics driven approach used to identify the need for this project? Yes No If yes, please describe: Project Readiness Project Status (e.g., new, ongoing, expansion, new phase): Conceptual In Design Ready for Construction CEQA Status: Not Started In progress Complete Estimated Year of Construction: Has the project been submitted to an IRWM Plan: Yes No Is the project ready to implement? Yes No If yes, please describe: Is the land currently owned by a public agency or does it need to be acquired? Yes No If yes, please describe: If no, describe ability to purchase land, obtain landowner agreement/easement, or if eminent domain is required: Is the environmental permitting process complete or not yet started? Yes No Please describe: Does the lead agency have funds available to satisfy the 50% local funding match? Yes No If yes or no, please describe the extent of funds available and contact information for the entities with permanent, local, or regional funding available: Please identify available documents containing information specific to the proposed project (e.g., conceptual plans, permits, drawings, or technical documents): Are any local or State board actions, code changes, or legislation needed to proceed with the project? Yes No If yes, please describe:

How was the project identified? What stage of development is the project in?

II. SWRP PROCESS: SWRP Project Solicitation Form Introduction

SLIDE 16 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1 Additional and Complementary Integrated Regional Water Management (IRWM) Project Criteria Please review the project against the Statewide Priorities, Program Preferences, and Water Plan Management Strategies and place a check in the box if the project meets the criteria: Statewide Priorities Long-term drought preparedness Use and reuse water more efficiently Climate change response actions (assess vulnerabilities, adapt to climate change, reduce greenhouse gas emissions, and reduce energy consumption Expand environmental stewardship Practice integrated flood management Protect surface water and groundwater quality Program Preferences Include regional projects or programs Effectively integrate water management programs and projects within a hydrologic region Effectively resolve significant water-related conflicts within or between regions Contribute to one or more of the objectives of the CALFED Bay-Delta Program Address Critical water supply or water quality needs of DACs within the region Effectively Integrate water management with land use planning Flood control or flood prevention projects that provide multiple benefits, including but not limited to: water quality improvements, ecosystem benefits, reduction of instream erosion and sedimentation, and groundwater recharge CA Water Management Plan – Resource Management Strategies Agricultural Lands Stewardship Agricultural Water Use Efficiency Conjunctive Management and Groundwater Storage Conveyance – Regional/Local Conveyance to Conveyance – Delta Desalination Drinking Water Treatment and Distribution Drought Planning Economic Incentives Ecosystem Restoration Flood Management Forest Management Groundwater/Aquifer Remediation Land Use Planning and Management Matching Water Quality to Water Use Outreach and Education Pollution Prevention Precipitation Enhancement Recharge Areas Protection Recycled Municipal Water Salt and Salinity Management Sediment Management Surface Storage - CALFED Surface Storage - Regional/Local System Reoperation Urban Runoff Management Urban Water Use Efficiency Water and Culture Water Transfers Water-Dependent Recreation Watershed Management Other Strategies

From IRWMP Project Request Form, how does the project align with:

Statewide Priorities
Program Preferences
CA Water Management Plan

Strategies

II. SWRP PROCESS: SWRP Project Solicitation Form Introduction

SLIDE 17 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

An objective method to rank projects relative to a set of stormwater multi-benefits with two components: Spatial Prioritization Analysis Identify areas of greatest stormwater & dry weather flow impacts & potential benefits. Project Multi-Benefits Assessment Combine multiple criteria for estimating overall value from stormwater projects.

SLIDE 18 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

Multi-benefits Criteria

Water quality Water supply

Metrics Water quality impacts Waters supply impacts Sectors of potential stormwater improvement Categories of potential project value

Quantification of criteria, weighted according to value/importance

SW volume reduction

Pol. load reductions

Spatial Prioritization

SLIDE 19 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

Multi-benefits Assessment Criteria

Water quality Water supply Flood management Environmental Community

Metrics Water quality Waters supply Flood management Environmental Community DAC Capital cost Development Readiness Sectors of potential stormwater improvement Ways to assess potential implementation value

Quantification of the criteria, weighted according to value/importance

Examples: Employment

pportunities

Aquatic habitat improvements

Project Multi-Benefits Assessment

SLIDE 20 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

Spatial Prioritization Analysis Two spatial units of analysis: Regional - USGS Sub-watersheds (HUC12, 10-40K ac) MS4 Areas - urban catchments (~100 ac)

SLIDE 21 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

Runofg & Pollutant Load Modeling

Probabilistic local rainfall

inputs

Publicly available spatial

inputs

USDA curve number for

runofg generation

Modified stormwater

modeling platform for runofg and pollutants

RUSLE + SDRM for erosion

SLIDE 22 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

SLIDE 23 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

± 0

10 20 Miles County of Madera Boundary HUC 12 Watershed Boundaries percent runoff 0.00 - 0.90 0.91 - 2.51 2.52 - 7.30 7.31 - 25.39 25.40 - 38.97

Relative % Runofg

SLIDE 24 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

Relative Particulate Pollutant Loading

± 0

10 20 Miles County of Madera Boundary HUC 12 Watershed Boundaries particulates (T/ac/yr) 0.00 - 0.39 0.40 - 1.02 1.03 - 1.95 1.96 - 50.69 50.70 - 127.63

SLIDE 25 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria

2 Water Supply Impacts

Is the project located in, and/or directly benefit a subwatershed with identified water supply impacts?

Yes/No 1 Spatial Prioritization Analysis Water Quality Impacts Is the project located in, and/or directly benefit a subwatershed with identified water quality impacts? Yes/No Criteria Number Project Task Criteria/Benefit Criteria Description Unit of Measurement

Spatial Prioritization Analysis

SLIDE 26 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria
a. Support compliance with applicable permit

and/or TMDL requirements Yes/No

b. Increase the filtration and/or treatment of

runoff Volume Treated

c. Provide nonpoint source pollution

Pollutant Load Reduction

d. Re-establish natural water drainage and

treatment Volume Treated

a. Water supply reliability
b. Water conservation
c. Conjunctive use
a. Decrease flood risk by reducing runoff

rate and/or volume

b. Reduce sanitary sewer

Criteria Number Project Task Criteria/Benefit Criteria Description Unit of Measurement Volume Added or Saved 5 Flood Management Volume Decreased 3 Watershed - Based Modeling Water Quality 4 Water Supply

Project Multi-Benefits Assessment

SLIDE 27 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

III. SWRP PROCESS: Prioritization Criteria
a. Provide environmental and habitat

protection improvement, via

i. Wetland enhancement/creation;
ii. Riparian enhancement; and/or
iii. Instream flow improvement
b. Reduce energy use, greenhouse gas

emissions, or provide carbon sink

c. Reestablish the natural hydrograph
d. Increase urban green space
e. Improve water temperature

7 Benefit to a Disadvantaged Community (DAC) Is the project located in, and/or directly benefit a DAC? Yes/No and Size 8 Project Capital Cost Compares the estimated capital cost for each project, with the most expensive alternatives ranking less favorably. Dollars

a. Employment opportunities
b. Community Involvement
c. Public education
d. Enhance and/or create recreational and

public use areas 10 Project Development Project Developed Using a Metrics Driven Approach? Yes/No and %

a. Is the project ready to implement?
b. Is the project cost well defined?
c. Is the land currently owned by a public

agency or does it need to be acquired?

d. Is the environmental permitting process

complete or not yet started?

e. Does the lead agency have funds

available to satisfy the 50% local funding match? Unit of Measurement Criteria Number Project Task 9 Community Benefits Size and/or # Criteria/Benefit Criteria Description 6 Project Solicitation Environmental (Protection and Improvement) Yes/No, Size and/or Rate 11 Project Readiness Yes/No and/or %

SLIDE 28 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

IX. SWRP PROCESS: Questions?

infiltration retention storage filtration infiltration evapotranspiration biodiversity treatment

How can we transform the roof? How can we transform the walls? How can we transform the ground?

building

LID

Overview

Buildings present ready opportunities for harvesting

stormwater runoff from roofs through small-scale embedded

technologies. LID facilities are one aspect of “smart building”

development that optimize feedback between environment and building to achieve net energy production, or regenerative development (versus sustainable development, which is carbon neutral). LID facilities are chosen according to the level of ecological service desired. The simplest service is groundwater recharge from roof stormwater runoff. Gutters and leaders that channel rainwater create concentrated discharges and are avoided in favor of devices that slow, spread, and soak rainwater throughout the site. A higher level of service involves vegetated or green roofs, which absorb and evaporate rainwater through a cultivated plant and soil community. Green roofs are superior building insulators, minimizing heating and cooling demands. Green walls minimize solar gain during the summer and wind loading during the winter. Rainwater harvesting offers three basic levels of service, involving storage cisterns with options for treatment. The simplest service is rainwater reuse for outdoor landscape

irrigation. A more complex harvesting service incorporates a

greywater building supply with additional treatment for non- potable water uses like toilet flushing and landscape irrigation. The highest level of service involves harvesting for potable (drinking) water which requires UV light disinfection for a private water system, and when combined with water from a public utility includes proper back-flow prevention. Placement of LID facilities on a building site should be carefully considered. Infiltration and treatment facilities can be used next to a building to capture roof runoff. Infiltration facilities, however, should be located at least 10 feet away from buildings, as they may cause the shrinking and swelling

f soils, which can negatively affect foundations.

SLIDE 29 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

IV. DISCUSSION: Share Your Feedback on the Selected Criteria

What are Madera’s most critical challenges?

https://answergarden.ch/505965

What criteria matter most in Madera County?

https://answergarden.ch/506626

The Facilities Menu organizes the LID facilities based on increasing level of treatment service (quality) as well as increasing level of volume reduction (quantity). Therefore, number one (1), flow control devices offer the least amount

f treatment services while number twenty-one (21),

constructed wetland offers the most. Most municipalities require drainage infrastructure to manage 100-year storm

events. Though one facility alone will likely not satisfy

performance requirements, facilities with varying levels of service in a treatment network will provide superior levels

f treatment and volume reduction.

8

rainwater harvesting

versized

pipes

1

flow control devices

2

detention pond

5 7

retention pond wet vault

6 increasing level of volume reduction 4

underground detention

LID facilities menu from mechanical

filter strip

9

tree box filter

16

dry swale

3

constructed wetland

21

bioswale

19

rain garden

17

infiltration trench

15

infiltration basin

20

riparian buffer

18

vegetated wall

12 11

surface sand filter underground sand filter

10

vegetated roof

13 to biological

flow control detention retention filtration infiltration treatment pervious paving

14

What are the LID facilities?

SLIDE 30 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

V. SWRP PROCESS: Prioritization of Example Projects

Scoring Projects Based on Weighted Criteria For each of the multi-benefit criteria: Step #1: Determine the Project Score Project Score is a measure of how well a project satisfies the criteria. Step #2: Project Score x Criteria Weight = Criteria Score Step #3: Sum of all Criteria Scores = Final Project Score Final Project Score is a measure of how well a project satisfies ALL the criteria Step #4: Compare Final Project Scores of all Projects and Rank Projects

SLIDE 31 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

V. SWRP PROCESS: Prioritization of Example Projects

Example Criteria Weighting

Located in Watershed with Water Quality Impacts Located in a Watershed with Water Supply Impacts Water Quality Benefits Water Supply Benefits Flood Management Benefits Environmental Benefits DAC Benefits Project Capital Cost Community Benefits Project Development Project Readiness

HIGH LOW

SLIDE 32 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

V. SWRP PROCESS: Prioritization of Example Projects

HYPOTHETICAL Example Project: Alview School Recharge Ponds Retrofit ~400 acres of land surrounding Alview School into groundwater recharge ponds to reduce flood risk & mitigate impacts of overdrafuing and land subsidence.

A S H S L O U G H EAST SIDE BYPASS SAN JOAQUIN RIVER

SLIDE 33 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

V. SWRP PROCESS: Prioritization of Example Projects

HYPOTHETICAL Example Project: Alview School Recharge Ponds

2 Water Supply Impacts

Is the project located in, and/or directly benefit a subwatershed with identified water supply impacts?

Yes/No 1 Spatial Prioritization Analysis Water Quality Impacts Is the project located in, and/or directly benefit a subwatershed with identified water quality impacts? Yes/No Criteria Number Project Task Criteria/Benefit Criteria Description Unit of Measurement Criteria Weight Proposed Critiera Score (Project Score x Criteria Weight) 15% 1.5/1.5 15% 1.5/1.5

SLIDE 34 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

V. SWRP PROCESS: Prioritization of Example Projects

HYPOTHETICAL Example Project: Alview School Recharge Ponds

a. Support compliance with applicable permit

and/or TMDL requirements Yes/No

b. Increase the filtration and/or treatment of

runoff Volume Treated

c. Provide nonpoint source pollution control

Pollutant Load Reduction

d. Re-establish natural water drainage and

treatment Volume Treated

a. Water supply reliability
b. Water conservation
c. Conjunctive use
a. Decrease flood risk by reducing runoff

rate and/or volume

b. Reduce sanitary sewer

Criteria Number Project Task Criteria/Benefit Criteria Description Unit of Measurement Volume Added or Saved 5 Flood Management Volume Decreased 3 Watershed - Based Modeling Water Quality 4 Water Supply Criteria Weight Proposed 0.6/1 10% 0.7/1 Critiera Score (Project Score x Criteria Weight) 10% 1/1 10%

SLIDE 35 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

V. SWRP PROCESS: Prioritization of Example Projects

HYPOTHETICAL Example Project: Alview School Recharge Ponds

a. Provide environmental and habitat

protection improvement, via

i. Wetland enhancement/creation;
ii. Riparian enhancement; and/or
iii. Instream flow improvement
b. Reduce energy use, greenhouse gas

emissions, or provide carbon sink

c. Reestablish the natural hydrograph
d. Increase urban green space
e. Improve water temperature

7 Benefit to a Disadvantaged Community (DAC) Is the project located in, and/or directly benefit a DAC? Yes/No and Size 8 Project Capital Cost Compares the estimated capital cost for each project, with the most expensive alternatives ranking less favorably. Dollars Project Solicitation Criteria Number Project Task Criteria/Benefit Criteria Description Unit of Measurement 6 Environmental (Protection and Improvement) Yes/No, Size and/or Rate Criteria Weight Proposed 8% 0.8/0.8 8% 0.48/0.8 Critiera Score (Project Score x Criteria Weight) 9% 0.45/0.9

SLIDE 36 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

V. SWRP PROCESS: Prioritization of Example Projects

HYPOTHETICAL Example Project: Alview School Recharge Ponds

a. Employment opportunities
b. Community Involvement
c. Public education
d. Enhance and/or create recreational and

public use areas 10 Project Development Project Developed Using a Metrics Driven Approach? Yes/No and %

a. Is the project ready to implement?
b. Is the project cost well defined?
c. Is the land currently owned by a public

agency or does it need to be acquired?

d. Is the environmental permitting process

complete or not yet started?

e. Does the lead agency have funds

available to satisfy the 50% local funding match? Project Solicitation Criteria Number Project Task Criteria/Benefit Criteria Description Unit of Measurement 9 Community Benefits Size and/or # 11 Project Readiness Yes/No and/or %

Sum of all Criteria Project Scores = 7.81/10

Criteria Weight Proposed 5% 0.25/0.5 Critiera Score (Project Score x Criteria Weight) 6% 0.33/0.6 4% 0.2/0.4

SLIDE 37 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

VI. DISCUSSION: Share Your Feedback on Criteria Weights

What are Madera’s most critical challenges?

https://answergarden.ch/505965

What criteria matter most in Madera County?

https://answergarden.ch/506626

The Facilities Menu organizes the LID facilities based on increasing level of treatment service (quality) as well as increasing level of volume reduction (quantity). Therefore, number one (1), flow control devices offer the least amount

f treatment services while number twenty-one (21),

constructed wetland offers the most. Most municipalities require drainage infrastructure to manage 100-year storm

events. Though one facility alone will likely not satisfy

performance requirements, facilities with varying levels of service in a treatment network will provide superior levels

f treatment and volume reduction.

8

rainwater harvesting

versized

pipes

1

flow control devices

2

detention pond

5 7

retention pond wet vault

6 increasing level of volume reduction 4

underground detention

LID facilities menu from mechanical

filter strip

9

tree box filter

16

dry swale

3

constructed wetland

21

bioswale

19

rain garden

17

infiltration trench

15

infiltration basin

20

riparian buffer

18

vegetated wall

12 11

surface sand filter underground sand filter

10

vegetated roof

13 to biological

flow control detention retention filtration infiltration treatment pervious paving

14

What are the LID facilities?

The Facilities Menu organizes the LID facilities based on increasing level of treatment service (quality) as well as increasing level of volume reduction (quantity). Therefore, number one (1), flow control devices offer the least amount

f treatment services while number twenty-one (21),

constructed wetland offers the most. Most municipalities require drainage infrastructure to manage 100-year storm

events. Though one facility alone will likely not satisfy

performance requirements, facilities with varying levels of service in a treatment network will provide superior levels

f treatment and volume reduction.

8

rainwater harvesting

versized

pipes

1

flow control devices

2

detention pond

5 7

retention pond wet vault

6 increasing level of volume reduction 4

underground detention

LID facilities menu from mechanical

filter strip

9

tree box filter

16

dry swale

3

constructed wetland

21

bioswale

19

rain garden

17

infiltration trench

15

infiltration basin

20

riparian buffer

18

vegetated wall

12 11

surface sand filter underground sand filter

10

vegetated roof

13 to biological

flow control detention retention filtration infiltration treatment pervious paving

14

What are the LID facilities?

The Facilities Menu organizes the LID facilities based on increasing level of treatment service (quality) as well as increasing level of volume reduction (quantity). Therefore, number one (1), flow control devices offer the least amount

f treatment services while number twenty-one (21),

constructed wetland offers the most. Most municipalities require drainage infrastructure to manage 100-year storm

events. Though one facility alone will likely not satisfy

performance requirements, facilities with varying levels of service in a treatment network will provide superior levels

f treatment and volume reduction.

8

rainwater harvesting

versized

pipes

1

flow control devices

2

detention pond

5 7

retention pond wet vault

6 increasing level of volume reduction 4

underground detention

LID facilities menu from mechanical

filter strip

9

tree box filter

16

dry swale

3

constructed wetland

21

bioswale

19

rain garden

17

infiltration trench

15

infiltration basin

20

riparian buffer

18

vegetated wall

12 11

surface sand filter underground sand filter

10

vegetated roof

13 to biological

flow control detention retention filtration infiltration treatment pervious paving

14

What are the LID facilities?

SLIDE 38 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

VII. SWRP PROCESS: Schedule

» July - Aug. 2017: Call for Projects! Send us your completed forms this summer, until August 21. » August - September 2017: New Project Concept Development & Project Prioritization. » October 2017: Drafu SWRP ready for public review and comment. » November 2017: Public & Stakeholder Meeting #2 » December 2017: Final SWRP

SLIDE 39 C o u n t y o f M a d e r a | F a l l C r e e k E n g i n e e r i n g | S i e r r a W a t e r s h e d P r o g r e s s i v e | 2 N D N A T U R E ( 2 N ) M a d e r a C o u n t y S W R P S t a k e h o l d e r M e e t i n g # 1

VIII. SWRP PROCESS: Next Steps

» Update Project Prioritization Criteria & Weights based on YOUR input today » SOLICIT project information from Stakeholders and Community Members via Project Solicitation Form VISIT: http://www.maderacountywater.com/storm-water-resource-plan-swrp/ Submit forms by August 21, 2017 » Identify and develop NEW project concepts for inclusion in the SWRP » Present project prioritization results and drafu SWRP October 2017

Please direct any questions about the SWRP to Dario Dominguez at dario.dominguez@co.madera.ca.gov
