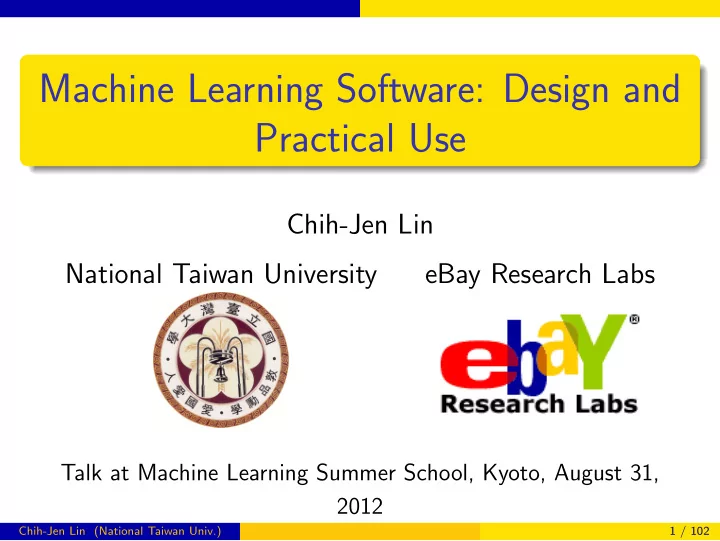

Machine Learning Software: Design and Practical Use Chih-Jen Lin - - PowerPoint PPT Presentation

Machine Learning Software: Design and Practical Use

Chih-Jen Lin National Taiwan University eBay Research Labs

Talk at Machine Learning Summer School, Kyoto, August 31, 2012

Chih-Jen Lin (National Taiwan Univ.) 1 / 102

Machine Learning Software

Most machine learning works focus on developing algorithms Researchers didn’t pay much attention to software Recently, some think software is important. For example, “The need for open source software in machine learning” by Sonnenburg et al. (2007) One reasons is for replicating and evaluating research results However, a good software package is beyond that

Chih-Jen Lin (National Taiwan Univ.) 2 / 102

Machine Learning Software (Cont’d)

In this talk, I will share our experiences in developing LIBSVM and LIBLINEAR. LIBSVM (Chang and Lin, 2011): One of the most popular SVM packages; cited more than 10, 000 times on Google Scholar LIBLINEAR (Fan et al., 2008): A library for large linear classification; popular in Internet companies for document classification and NLP applications

Chih-Jen Lin (National Taiwan Univ.) 3 / 102

Machine Learning Software (Cont’d)

This talk will contain two parts: First, we discuss practical use of SVM as an example to see how users apply a machine learning method Second, we discuss design considerations for a good machine learning package. The talk is biased toward SVM and logistic regression, but materials are useful for other machine learning methods.

Chih-Jen Lin (National Taiwan Univ.) 4 / 102

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 5 / 102

Practical use of SVM

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 6 / 102

Practical use of SVM SVM introduction

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 7 / 102

Practical use of SVM SVM introduction

Support Vector Classification

Training data (xi, yi), i = 1, . . . , l, xi ∈ Rn, yi = ±1 Maximizing the margin (Boser et al., 1992; Cortes and Vapnik, 1995) min

w,b

1 2wTw + C

l

• i=1

max(1 − yi(wTφ(xi) + b), 0) High dimensional ( maybe infinite ) feature space φ(x) = (φ1(x), φ2(x), . . .). w: maybe infinite variables

Chih-Jen Lin (National Taiwan Univ.) 8 / 102

Practical use of SVM SVM introduction

Support Vector Classification (Cont’d)

The dual problem (finite # variables) min

α

1 2αTQα − eTα subject to 0 ≤ αi ≤ C, i = 1, . . . , l yTα = 0, where Qij = yiyjφ(xi)Tφ(xj) and e = [1, . . . , 1]T At optimum w = l

i=1 αiyiφ(xi)

Kernel: K(xi, xj) ≡ φ(xi)Tφ(xj) ; closed form Example: Gaussian (RBF) kernel: e−γxi−xj2

Chih-Jen Lin (National Taiwan Univ.) 9 / 102

Practical use of SVM SVM introduction

Support Vector Classification (Cont’d)

Only xi of αi > 0 used ⇒ support vectors

• 0.2

0.2 0.4 0.6 0.8 1 1.2

• 1.5
• 1
• 0.5

0.5 1

Chih-Jen Lin (National Taiwan Univ.) 10 / 102

Practical use of SVM SVM introduction

Status of Support Vector Machines

SVM was introduced with kernels But ironically, the linear setting also helps SVM to become popular By linear we mean data are not mapped to a higher dimensional space There are many differences between using kernel or not Many people are confused about this; so I will clarify the differences in the next few slides

Chih-Jen Lin (National Taiwan Univ.) 11 / 102

Practical use of SVM SVM introduction

Linear and Kernel Classification

Methods such as SVM and logistic regression can used in two ways Kernel methods: data mapped to a higher dimensional space x ⇒ φ(x) φ(xi)Tφ(xj) easily calculated; little control on φ(·) Linear classification + feature engineering: We have x without mapping. Alternatively, we can say that φ(x) is our x; full control on x or φ(x) We refer to them as kernel and linear classifiers

Chih-Jen Lin (National Taiwan Univ.) 12 / 102

Practical use of SVM SVM introduction

Linear and Kernel Classification (Cont’d)

Let’s check the prediction cost wTx + b versus l

i=1 αiK(xi, x) + b

If K(xi, xj) takes O(n), then O(n) versus O(nl) Linear is much cheaper Deciding whether using kernel is cost-effective is still a big issue

Chih-Jen Lin (National Taiwan Univ.) 13 / 102

Practical use of SVM SVM introduction

Linear and Kernel Classification (Cont’d)

For certain problems, accuracy by linear is as good as nonlinear But training and testing are much faster Especially document classification Number of features (bag-of-words model) very large Recently linear classification is a popular research

• topic. Sample works in 2005-2008: Joachims

(2006); Shalev-Shwartz et al. (2007); Hsieh et al. (2008) They focus on large sparse data There are many other recent papers and software

Chih-Jen Lin (National Taiwan Univ.) 14 / 102

Practical use of SVM SVM introduction

Comparison Between Linear and Kernel (Training Time & Testing Accuracy)

Linear RBF Kernel Data set Time Accuracy Time Accuracy MNIST38 0.1 96.82 38.1 99.70 ijcnn1 1.6 91.81 26.8 98.69 covtype 1.4 76.37 46,695.8 96.11 news20 1.1 96.95 383.2 96.90 real-sim 0.3 97.44 938.3 97.82 yahoo-japan 3.1 92.63 20,955.2 93.31 webspam 25.7 93.35 15,681.8 99.26 Size reasonably large: e.g., yahoo-japan: 140k instances and 830k features

Chih-Jen Lin (National Taiwan Univ.) 15 / 102

Practical use of SVM SVM introduction

Comparison Between Linear and Kernel (Training Time & Testing Accuracy)

Linear RBF Kernel Data set Time Accuracy Time Accuracy MNIST38 0.1 96.82 38.1 99.70 ijcnn1 1.6 91.81 26.8 98.69 covtype 1.4 76.37 46,695.8 96.11 news20 1.1 96.95 383.2 96.90 real-sim 0.3 97.44 938.3 97.82 yahoo-japan 3.1 92.63 20,955.2 93.31 webspam 25.7 93.35 15,681.8 99.26 Size reasonably large: e.g., yahoo-japan: 140k instances and 830k features

Chih-Jen Lin (National Taiwan Univ.) 15 / 102

Practical use of SVM SVM introduction

Comparison Between Linear and Kernel (Training Time & Testing Accuracy)

Linear RBF Kernel Data set Time Accuracy Time Accuracy MNIST38 0.1 96.82 38.1 99.70 ijcnn1 1.6 91.81 26.8 98.69 covtype 1.4 76.37 46,695.8 96.11 news20 1.1 96.95 383.2 96.90 real-sim 0.3 97.44 938.3 97.82 yahoo-japan 3.1 92.63 20,955.2 93.31 webspam 25.7 93.35 15,681.8 99.26 Size reasonably large: e.g., yahoo-japan: 140k instances and 830k features

Chih-Jen Lin (National Taiwan Univ.) 15 / 102

Practical use of SVM SVM introduction

Summary: Support Vector Machines

The significant differences between linear and kernel motivated us to separately develop LIBSVM and LIBLINEAR For recent advances of linear classification, you may check a survey by Yuan et al. (2012) Today I will discuss only the situation of using kernels Another thing I didn’t mention is online and offline

• training. We consider only offline training here

Chih-Jen Lin (National Taiwan Univ.) 16 / 102

Practical use of SVM SVM introduction

Summary: Support Vector Machines (Cont’d)

So far I only gave a very brief introduction of support vector classification Today I am not giving a tutorial on SVM. For details of this method, you can check my other tutorial talks (e.g., the one at ACML 2010)

Chih-Jen Lin (National Taiwan Univ.) 17 / 102

Practical use of SVM A real example

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 18 / 102

Practical use of SVM A real example

How People Use SVM?

For most users, what they hope is

• 1. Prepare training and testing sets
• 2. Run a package and get good results

But things are not that simple Let’s start with a practical example from a user

Chih-Jen Lin (National Taiwan Univ.) 19 / 102

Practical use of SVM A real example

Let’s Try a Practical Example

A problem from astroparticle physics 1 2.61e+01 5.88e+01 -1.89e-01 1.25e+02 1 5.70e+01 2.21e+02 8.60e-02 1.22e+02 1 1.72e+01 1.73e+02 -1.29e-01 1.25e+02 0 2.39e+01 3.89e+01 4.70e-01 1.25e+02 0 2.23e+01 2.26e+01 2.11e-01 1.01e+02 0 1.64e+01 3.92e+01 -9.91e-02 3.24e+01 Training and testing sets available: 3,089 and 4,000 Data available at LIBSVM Data Sets

Chih-Jen Lin (National Taiwan Univ.) 20 / 102

Practical use of SVM A real example

The Story Behind this Data Set

User: I am using libsvm in a astroparticle physics application .. First, let me congratulate you to a really easy to use and nice package. Unfortunately, it gives me astonishingly bad results...

• OK. Please send us your data

I am able to get 97% test accuracy. Is that good enough for you ? User: You earned a copy of my PhD thesis

Chih-Jen Lin (National Taiwan Univ.) 21 / 102

Practical use of SVM A real example

The Story Behind this Data Set (Cont’d)

What we have seen over the years is that Users expect good results right after using a method If method A doesn’t work, they switch to B They may inappropriately use most methods they tried But isn’t it machine learning people’s responsibility to make their methods easily give reasonable results?

Chih-Jen Lin (National Taiwan Univ.) 22 / 102

Practical use of SVM A real example

The Story Behind this Data Set (Cont’d)

In my opinion Machine learning packages should provide some simple and automatic/semi-automatic settings for users These setting may not be the best, but easily give users some reasonable results If such settings are not enough, users many need to consult with machine learning experts. I will illustrate the first point by a procedure we developed for SVM beginners

Chih-Jen Lin (National Taiwan Univ.) 23 / 102

Practical use of SVM A real example

Training and Testing

Training the set svmguide1 to obtain svmguide1.model $./svm-train svmguide1 Testing the set svmguide1.t $./svm-predict svmguide1.t svmguide1.model out Accuracy = 66.925% (2677/4000) We see that training and testing accuracy are very

• different. Training accuracy is almost 100%

$./svm-predict svmguide1 svmguide1.model out Accuracy = 99.7734% (3082/3089)

Chih-Jen Lin (National Taiwan Univ.) 24 / 102

Practical use of SVM A real example

Why this Fails

Gaussian kernel is used here We see that most kernel elements have Kij = e−xi−xj2/4

• = 1

if i = j, → 0 if i = j. because some features in large numeric ranges For what kind of data, K ≈ I?

Chih-Jen Lin (National Taiwan Univ.) 25 / 102

Practical use of SVM A real example

Why this Fails (Cont’d)

If we have training data φ(x1) = [1, 0, . . . , 0]T . . . φ(xl) = [0, . . . , 0, 1]T then K = I Clearly such training data can be correctly separated, but how about testing data? So overfitting occurs

Chih-Jen Lin (National Taiwan Univ.) 26 / 102

Practical use of SVM A real example

Overfitting

See the illustration in the next slide In theory You can easily achieve 100% training accuracy This is useless When training and predicting a data, we should Avoid underfitting: small training error Avoid overfitting: small testing error

Chih-Jen Lin (National Taiwan Univ.) 27 / 102

Practical use of SVM A real example

• and ▲: training; and △: testing

Chih-Jen Lin (National Taiwan Univ.) 28 / 102

Practical use of SVM A real example

Data Scaling

Without scaling, the above overfitting situation may

• ccur

Also, features in greater numeric ranges may dominate A simple solution is to linearly scale each feature to [0, 1] by: feature value − min max − min , There are many other scaling methods Scaling generally helps, but not always

Chih-Jen Lin (National Taiwan Univ.) 29 / 102

Practical use of SVM A real example

Data Scaling: Same Factors

A common mistake $./svm-scale -l -1 -u 1 svmguide1 > svmguide1.scale $./svm-scale -l -1 -u 1 svmguide1.t > svmguide1.t.scale

• l -1 -u 1: scaling to [−1, 1]

We need to use same factors on training and testing $./svm-scale -s range1 svmguide1 > svmguide1.scale $./svm-scale -r range1 svmguide1.t > svmguide1.t.scale Later we will give a real example

Chih-Jen Lin (National Taiwan Univ.) 30 / 102

Practical use of SVM A real example

After Data Scaling

Train scaled data and then predict $./svm-train svmguide1.scale $./svm-predict svmguide1.t.scale svmguide1.scale.model svmguide1.t.predict Accuracy = 96.15% Training accuracy is now similar $./svm-predict svmguide1.scale svmguide1.scale.model Accuracy = 96.439% For this experiment, we use parameters C = 1, γ = 0.25, but sometimes performances are sensitive to parameters

Chih-Jen Lin (National Taiwan Univ.) 31 / 102

Practical use of SVM Parameter selection

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 32 / 102

Practical use of SVM Parameter selection

Parameters versus Performances

If we use C = 20, γ = 400 $./svm-train -c 20 -g 400 svmguide1.scale $./svm-predict svmguide1.scale svmguide1.sca Accuracy = 100% (3089/3089) 100% training accuracy but $./svm-predict svmguide1.t.scale svmguide1.s Accuracy = 82.7% (3308/4000) Very bad test accuracy Overfitting happens

Chih-Jen Lin (National Taiwan Univ.) 33 / 102

Practical use of SVM Parameter selection

Parameter Selection

For SVM, we may need to select suitable parameters They are C and kernel parameters Example: γ of e−γxi−xj2 a, b, d of (xT

i xj/a + b)d

How to select them so performance is better?

Chih-Jen Lin (National Taiwan Univ.) 34 / 102

Practical use of SVM Parameter selection

Performance Evaluation

Available data ⇒ training and validation Train the training; test the validation to estimate the performance A common way is k-fold cross validation (CV): Data randomly separated to k groups Each time k − 1 as training and one as testing Select parameters/kernels with best CV result There are many other methods to evaluate the performance

Chih-Jen Lin (National Taiwan Univ.) 35 / 102

Practical use of SVM Parameter selection

Contour of CV Accuracy

Chih-Jen Lin (National Taiwan Univ.) 36 / 102

Practical use of SVM Parameter selection

The good region of parameters is quite large SVM is sensitive to parameters, but not that sensitive Sometimes default parameters work but it’s good to select them if time is allowed

Chih-Jen Lin (National Taiwan Univ.) 37 / 102

Practical use of SVM Parameter selection

Example of Parameter Selection

Direct training and test $./svm-train svmguide3 $./svm-predict svmguide3.t svmguide3.model o → Accuracy = 2.43902% After data scaling, accuracy is still low $./svm-scale -s range3 svmguide3 > svmguide3.scale $./svm-scale -r range3 svmguide3.t > svmguide3.t.scale $./svm-train svmguide3.scale $./svm-predict svmguide3.t.scale svmguide3.scale.model → Accuracy = 12.1951%

Chih-Jen Lin (National Taiwan Univ.) 38 / 102

Practical use of SVM Parameter selection

Example of Parameter Selection (Cont’d)

Select parameters by trying a grid of (C, γ) values $ python grid.py svmguide3.scale · · · 128.0 0.125 84.8753 (Best C=128.0, γ=0.125 with five-fold cross-validation rate=84.8753%) Train and predict using the obtained parameters $ ./svm-train -c 128 -g 0.125 svmguide3.scale $ ./svm-predict svmguide3.t.scale svmguide3.scale.model → Accuracy = 87.8049%

Chih-Jen Lin (National Taiwan Univ.) 39 / 102

Practical use of SVM Parameter selection

Selecting Kernels

RBF, polynomial, or others? For beginners, use RBF first Linear kernel: special case of RBF Accuracy of linear the same as RBF under certain parameters (Keerthi and Lin, 2003) Polynomial kernel: (xT

i xj/a + b)d

Numerical difficulties: (< 1)d → 0, (> 1)d → ∞ More parameters than RBF

Chih-Jen Lin (National Taiwan Univ.) 40 / 102

Practical use of SVM Parameter selection

A Simple Procedure for Beginners

After helping many users, we came up with the following procedure

• 1. Conduct simple scaling on the data
• 2. Consider RBF kernel K(x, y) = e−γx−y2
• 3. Use cross-validation to find the best parameter C and

γ

• 4. Use the best C and γ to train the whole training set
• 5. Test

In LIBSVM, we have a python script easy.py implementing this procedure.

Chih-Jen Lin (National Taiwan Univ.) 41 / 102

Practical use of SVM Parameter selection

A Simple Procedure for Beginners (Cont’d)

We proposed this procedure in an “SVM guide” (Hsu et al., 2003) and implemented it in LIBSVM From research viewpoints, this procedure is not

• novel. We never thought about submiting our guide

somewhere But this procedure has been tremendously useful. Now almost the standard thing to do for SVM beginners

Chih-Jen Lin (National Taiwan Univ.) 42 / 102

Practical use of SVM Parameter selection

A Real Example of Wrong Scaling

Separately scale each feature of training and testing data to [0, 1] $ ../svm-scale -l 0 svmguide4 > svmguide4.scale $ ../svm-scale -l 0 svmguide4.t > svmguide4.t.scale $ python easy.py svmguide4.scale svmguide4.t.scale Accuracy = 69.2308% (216/312) (classification) The accuracy is low even after parameter selection $ ../svm-scale -l 0 -s range4 svmguide4 > svmguide4.scale $ ../svm-scale -r range4 svmguide4.t > svmguide4.t.scale $ python easy.py svmguide4.scale svmguide4.t.scale Accuracy = 89.4231% (279/312) (classification)

Chih-Jen Lin (National Taiwan Univ.) 43 / 102

Practical use of SVM Parameter selection

A Real Example of Wrong Scaling (Cont’d)

With the correct setting, the 10 features in the test data svmguide4.t.scale have the following maximal values: 0.7402, 0.4421, 0.6291, 0.8583, 0.5385, 0.7407, 0.3982, 1.0000, 0.8218, 0.9874 Scaling the test set to [0, 1] generated an erroneous set.

Chih-Jen Lin (National Taiwan Univ.) 44 / 102

Design of machine learning software

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 45 / 102

Design of machine learning software Users and their needs

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 46 / 102

Design of machine learning software Users and their needs

Users’ Machine Learning Knowledge

When we started developing LIBSVM, we didn’t know who our users are or whether we will get any Very soon we found that many users have zero machine learning knowledge It is unbelievable that many asked what the difference between training and testing is

Chih-Jen Lin (National Taiwan Univ.) 47 / 102

Design of machine learning software Users and their needs

Users’ Machine Learning Knowledge (Cont’d)

A sample mail From: To: cjlin@csie.ntu.edu.tw Subject: Doubt regarding SVM Date: Sun, 18 Jun 2006 10:04:01 Dear Sir, sir what is the difference between testing data and training data? Sometimes we cannot do much for such users.

Chih-Jen Lin (National Taiwan Univ.) 48 / 102

Design of machine learning software Users and their needs

Users’ Machine Learning Knowledge (Cont’d)

Fortunately, more people have taken machine learning courses (or attended MLSS) On the other hand, because users are not machine learning researchers, some automatic or semi-automatic settings are helpful The simple procedure discussed earlier is an example Also, your target users affect your design. For example, we assume LIBLINEAR users are more experienced.

Chih-Jen Lin (National Taiwan Univ.) 49 / 102

Design of machine learning software Users and their needs

We are Our Own Users

You may ask why we care non-machine learning users so much The reason is that we were among them before My background is in optimization. When we started working on SVM, we tried some UCI sets. We failed to obtain similar accuracy values in papers Through a painful process we learned that scaling may be needed

Chih-Jen Lin (National Taiwan Univ.) 50 / 102

Design of machine learning software Users and their needs

We are Our Own Users (Cont’d)

Machine learning researchers sometimes failed to see the difficulties of general users. As users of our own software, we constantly think about difficulties others may face

Chih-Jen Lin (National Taiwan Univ.) 51 / 102

Design of machine learning software Users and their needs

Users are Our Teachers

While we criticize users’ lack of machine learning knowledge, they help to point out many useful directions Example: LIBSVM supported only binary classification in the beginning. From many users’ requests, we knew the importance of multi-class classification There are many possible approaches for multi-class

• SVM. Assume data are in k classes

Chih-Jen Lin (National Taiwan Univ.) 52 / 102

Design of machine learning software Users and their needs

Users are Our Teachers (Cont’d)

• One-against-the rest: Train k binary SVMs:

1st class vs. (2, · · · , k)th class 2nd class vs. (1, 3, . . . , k)th class . . .

• One-against-one: train k(k − 1)/2 binary SVMs

(1, 2), (1, 3), . . . , (1, k), (2, 3), (2, 4), . . . , (k − 1, k) We finished a study in Hsu and Lin (2002), which is now well cited. Currently LIBSVM supports one-vs-one approach

Chih-Jen Lin (National Taiwan Univ.) 53 / 102

Design of machine learning software Users and their needs

Users are Our Teachers (Cont’d)

LIBSVM is among the first SVM software to handle multi-class data. This helps to attract many users. Users help to identify useful things for the software They even help to identify important research directions The paper (Hsu and Lin, 2002) was rejected by many places because it’s a detailed comparison without new algorithms But from users we knew its results are important. This paper is now one of my most cited papers

Chih-Jen Lin (National Taiwan Univ.) 54 / 102

Design of machine learning software Design considerations

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 55 / 102

Design of machine learning software Design considerations

One or Many Options

Sometimes we received the following requests

• 1. In addition to “one-vs-one,” could you include
• ther multi-class approaches such as “one-vs-the

rest?”

• 2. Could you extend LIBSVM to support other

kernels such as χ2 kernel? Two extremes in designing a software package

• 1. One option: reasonably good for most cases
• 2. Many options: users try options to get best

results

Chih-Jen Lin (National Taiwan Univ.) 56 / 102

Design of machine learning software Design considerations

One or Many Options (Cont’d)

From a research viewpoint, we should include everything, so users can play with them But more options ⇒ more powerful ⇒ more complicated Some users have no abilities to choose between

• ptions

Example: Some need χ2 kernel, but some have no idea what it is

Chih-Jen Lin (National Taiwan Univ.) 57 / 102

Design of machine learning software Design considerations

One or Many Options (Cont’d)

• Users often try all options even if that’s not needed
• Example: LIBLINEAR has the following solvers
• ptions:
• s type : set type of solver (default 1)

0 -- L2-regularized logistic regression (primal) ... 7 -- L2-regularized logistic regression (dual)

• Some users told me:

I have tried all solvers, but accuracy is similar

• But wait, doesn’t solvers 0 and 7 always give same

accuracy? No need to run both

Chih-Jen Lin (National Taiwan Univ.) 58 / 102

Design of machine learning software Design considerations

One or Many Options (Cont’d)

For LIBSVM, we basically took the “one option” approach We are very careful in adding things to LIBSVM However, users do have different needs. For example, some need precision/recall rather than accuracy We end up with developing another web site “LIBSVM Tools” to serve users’ special needs

Chih-Jen Lin (National Taiwan Univ.) 59 / 102

Design of machine learning software Design considerations

One or Many Options (Cont’d)

Sample code in LIBSVM tools

• Cross Validation with Different Criteria (AUC,

F-score, etc.)

• ROC Curve for Binary SVM
• LIBSVM for string data

Not sure if this is the best way, but seems ok so far Another advantage is we can maintain high quality for the core package. Things in LIBSVM Tools are less well maintained.

Chih-Jen Lin (National Taiwan Univ.) 60 / 102

Design of machine learning software Design considerations

Simplicity versus Better Performance

This issue is related to “one or many options” discussed before Example: Before, our cross validation (CV) procedure is not stratified

• Results less stable because data of each class not

evenly distributed to folds

• We now support stratified CV, but code becomes

more complicated In general, we avoid changes for just marginal improvements

Chih-Jen Lin (National Taiwan Univ.) 61 / 102

Design of machine learning software Design considerations

Simplicity versus Better Performance (Cont’d)

A recent Google research blog “Lessons learned developing a practical large scale machine learning system” by Simon Tong From the blog, “It is perhaps less academically interesting to design an algorithm that is slightly worse in accuracy, but that has greater ease of use and system reliability. However, in our experience, it is very valuable in practice.” That is, a complicated method with a slightly higher accuracy may not be useful in practice

Chih-Jen Lin (National Taiwan Univ.) 62 / 102

Design of machine learning software Design considerations

Simplicity versus Better Performance (Cont’d)

Example: LIBSVM uses a grid search to find two parameters C and γ. We may think this is simple and naive

Chih-Jen Lin (National Taiwan Univ.) 63 / 102

Design of machine learning software Design considerations

Simplicity versus Better Performance (Cont’d)

Indeed, we studied loo bound in detail. That is, a function of parameters f (C, γ) is derived to satisfy leave-one-out error ≤ f (C, γ) Then we solve min

C,γ f (C, γ)

Results not very stable because f (C, γ) is only an

• approximation. Implementation is quite complicated.

For only two parameters, a simple grid search may be a suitable choice

Chih-Jen Lin (National Taiwan Univ.) 64 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods

Many classification methods involve numerical and

• ptimization procedures

A key point is that we need to take machine learning properties into the design of your implementation An example in Lieven’s talk yesterday: L1-regularized least-square regression I will discuss some SVM examples

Chih-Jen Lin (National Taiwan Univ.) 65 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods (Cont’d)

Let’s consider SVM dual min

α

1 2αTQα − eTα subject to 0 ≤ αi ≤ C, i = 1, . . . , l yTα = 0 Qij = 0, Q : an l by l fully dense matrix 50,000 training points: 50,000 variables: (50, 0002 × 8/2) bytes = 10GB RAM to store Q Traditional optimization methods: Newton or gradient cannot be directly applied

Chih-Jen Lin (National Taiwan Univ.) 66 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods (Cont’d)

One workaround is to work on some variables each time (e.g., Osuna et al., 1997; Joachims, 1998; Platt, 1998) Working set B , N = {1, . . . , l}\B fixed Sub-problem at the kth iteration: min

αB

1 2

• αT

B

(αk

N)T

QBB QBN QNB QNN αB αk

N

• −
• eT

B

(ek

N)T αB

αk

N

• subject to

0 ≤ αt ≤ C, t ∈ B, yT

B αB = −yT Nαk N

Chih-Jen Lin (National Taiwan Univ.) 67 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods (Cont’d)

The new objective function 1 2αT

BQBBαB + (−eB + QBNαk N)TαB + constant

Only B columns of Q needed (|B| ≥ 2) Calculated when used Trade time for space But is such an approach practical?

Chih-Jen Lin (National Taiwan Univ.) 68 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods (Cont’d)

Convergence not very fast But, no need to have very accurate α decision function: l

i=1 αiK(xi, x) + b

Prediction may still be correct with a rough α Further, in some situations, # support vectors ≪ # training points Initial α1 = 0, some instances never used So special properties of SVM did contribute to the viability of this method

Chih-Jen Lin (National Taiwan Univ.) 69 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods (Cont’d)

An example of training 50,000 instances using LIBSVM $svm-train -c 16 -g 4 -m 400 22features Total nSV = 3370 Time 79.524s On a Xeon 2.0G machine Calculating the whole Q takes more time #SVs = 3,370 ≪ 50,000 A good case where some remain at zero all the time

Chih-Jen Lin (National Taiwan Univ.) 70 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods (Cont’d)

Another example: training kernel and linear SVM should be done by different methods What’s the difference between kernel and linear? for linear, K can be written as XX T where X =   xT

1

. . . xT

l

  ∈ Rl×n is the training matrix Note that n: # features, l: # data

Chih-Jen Lin (National Taiwan Univ.) 71 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods (Cont’d)

Recall in the kernel case, we need (Qα)i − 1, i ∈ B The cost is O(nl) l

j=1 yiyjK(xi, xj)αj − 1

Chih-Jen Lin (National Taiwan Univ.) 72 / 102

Design of machine learning software Design considerations

Numerical and Optimization Methods (Cont’d)

For linear, if we have w ≡ l

j=1 yjαjxj

then l

j=1 yiyjxT i xjαj − 1 = yiwTxi − 1

costs only O(n). Details of maintaining w are not discussed here; the cost is also O(n) Again, the key is that properties of machine learning problems should be considered

Chih-Jen Lin (National Taiwan Univ.) 73 / 102

Design of machine learning software Design considerations

Numerical Stability

Quality of the numerical programs is important for a machine learning package Numerical analysts have a high standard on their code, but unfortunately we machine learning people do not This situation is expected: If we put efforts on implementing method A and

• ne day method B gives higher accuracy ⇒ Efforts

are wasted

Chih-Jen Lin (National Taiwan Univ.) 74 / 102

Design of machine learning software Design considerations

Numerical Stability (Cont’d)

We will give an example to discuss how to improve numerical stability in your implementation In LIBSVM’s probability outputs, we calculate − (ti log(pi) + (1 − ti) log(1 − pi)) , where pi ≡ 1 1 + exp(∆) When ∆ is small, pi ≈ 1 Then 1 − pi is a catastrophic cancellation

Chih-Jen Lin (National Taiwan Univ.) 75 / 102

Design of machine learning software Design considerations

Numerical Stability (Cont’d)

Catastrophic cancellation (Goldberg, 1991): when subtracting two nearby numbers, the relative error can be large so most digits are meaningless. In a simple C++ program with double precision, ∆ = −64 ⇒ 1 − 1 1 + exp(∆) returns zero but exp(∆) 1 + exp(∆) gives more accurate result

Chih-Jen Lin (National Taiwan Univ.) 76 / 102

Design of machine learning software Design considerations

Numerical Stability (Cont’d)

Catastrophic cancellation may be resolved by reformulation Another issue is that log and exp could easily cause an overflow If ∆ is large ⇒ exp(∆) → ∞ Then pi = 1 1 + exp(∆) ≈ 0 ⇒ log(pi) → −∞

Chih-Jen Lin (National Taiwan Univ.) 77 / 102

Design of machine learning software Design considerations

We can use the following reformulation log(1 + exp(∆)) = log(exp(∆) · (exp(−∆) + 1)) = ∆ + log(1 + exp(−∆)) When ∆ is large exp(−∆) ≈ 0 and log(1 + exp(∆)) ≈ ∆ Less like to get overflow because of no exp(∆)

Chih-Jen Lin (National Taiwan Univ.) 78 / 102

Design of machine learning software Design considerations

Numerical Stability (Cont’d)

In summary, − (ti log pi + (1 − ti) log(1 − pi)) (1) = (ti − 1)∆ + log (1 + exp(∆)) (2) = ti(∆) + log (1 + exp(−∆)) (3) We implement (1) with the following rule: If ∆ ≥ 0 then use (3); Else use (2). This handles both issues of overflow and catastrophic cancellation

Chih-Jen Lin (National Taiwan Univ.) 79 / 102

Design of machine learning software Design considerations

Legacy Issues

The compatibility between earlier and later versions is an issue Such legacy issues restrict developers to conduct certain changes. We face a similar situation. For example, we chose “one-vs-one” as the multi-class strategy. This decision affects subsequent buildups. Example: in LIBSVM, multi-class probability

• utputs must follow the one-vs-one structure. For

classes i and j, we obtain P(x in class i | x in class i or j),

Chih-Jen Lin (National Taiwan Univ.) 80 / 102

Design of machine learning software Design considerations

Legacy Issues (Cont’d)

Then we need to couple all k

2

• results (k: the

number of classes) and obtain P(x in class i), i = 1, . . . , k. If we further develop multi-label methods, we are restricted to extend from one-versus-one multi-class strategy What if one day we would like to use a different multi-class method?

Chih-Jen Lin (National Taiwan Univ.) 81 / 102

Design of machine learning software Design considerations

Legacy Issues (Cont’d)

In LIBSVM, we understand this legacy issue in the beginning Example: we did not make the trained model a public structure Encapsulation in object-oriented programming Here is the C code to train and test #include <svm.h> ... model = svm_train(...); ... predict_label = svm_predict(model,x); svm.h includes all public functions and structures

Chih-Jen Lin (National Taiwan Univ.) 82 / 102

Design of machine learning software Design considerations

Legacy Issues (Cont’d)

We decided not to put model structure in svm.h Instead we put it in svm.cpp User can call model = svm_train(...); but cannot directly access a model’s contents int y1 = model.label[1]; We provide functions so users can get some model information svm_get_svm_type(model); svm_get_nr_class(model); svm_get_labels(model, ...);

Chih-Jen Lin (National Taiwan Univ.) 83 / 102

Design of machine learning software Design considerations

Documentation and Support

Any software needs good documents and support I cannot count how many mails my students and I

• replied. Maybe 20,000 or more.

How to write good documents is an interesting issue Users may not understand what you wrote

Chih-Jen Lin (National Taiwan Univ.) 84 / 102

Design of machine learning software Design considerations

Documentation and Support (Cont’d)

Here is an example: some users asked if LIBSVM supported multi-class classification I thought it’s well documented in README Finally I realized that users may not read the whole README. Instead, some of them check only the “usage”

Chih-Jen Lin (National Taiwan Univ.) 85 / 102

Design of machine learning software Design considerations

Documentation and Support (Cont’d)

They didn’t see “multi-class” in the usage $ svm-train Usage: svm-train [options] training_set_file

• ptions:
• s svm_type : set type of SVM (default 0)

0 -- C-SVC 1 -- nu-SVC 2 -- one-class SVM 3 -- epsilon-SVR 4 -- nu-SVR ...

Chih-Jen Lin (National Taiwan Univ.) 86 / 102

Design of machine learning software Design considerations

Documentation and Support (Cont’d)

In the next version we will change the usage to

• s svm_type : set type of SVM (default 0)

0 -- C-SVC (multi-class classification) 1 -- nu-SVC (multi-class classification) 2 -- one-class SVM 3 -- epsilon-SV (regression) 4 -- nu-SVR (regression) I am going to see how many asked “why LIBSVM doesn’t support two-class SVM”

Chih-Jen Lin (National Taiwan Univ.) 87 / 102

Discussion and conclusions

Outline

1

Practical use of SVM SVM introduction A real example Parameter selection

2

Design of machine learning software Users and their needs Design considerations

3

Discussion and conclusions

Chih-Jen Lin (National Taiwan Univ.) 88 / 102

Discussion and conclusions

Software versus Experiment Code

Many researchers now release experiment code used for their papers Reason: experiments can be reproduced This is important, but experiment code is different from software Experiment code often includes messy scripts for various settings in the paper – useful for reviewers Example: to check an implementation trick in a proposed algorithm, need to run with/without the trick

Chih-Jen Lin (National Taiwan Univ.) 89 / 102

Discussion and conclusions

Software versus Experiment Code (Cont’d)

Software: for general users One or a few reasonable settings with a suitable interface are enough Many are now willing to release their experimental code Basically you clean up the code after finishing a paper But working on and maintaining high-quality software take much more work

Chih-Jen Lin (National Taiwan Univ.) 90 / 102

Discussion and conclusions

Software versus Experiment Code (Cont’d)

Reproducibility different from replicability (Drummond, 2009) Replicability: make sure things work on the sets used in the paper Reproducibility: ensure that things work in general In my group, we release experiment code for every paper ⇒ for replicability And carefully select and modify some results to our software ⇒ (hopefully) for reproducibility

Chih-Jen Lin (National Taiwan Univ.) 91 / 102

Discussion and conclusions

Software versus Experiment Code (Cont’d)

The community now lacks incentives for researchers to work on high quality software JMLR recently started “open source software” section (4-page description of the software) This is a positive direction How to properly evaluate such papers is an issue Some software are very specific on a small problem, but some are more general

Chih-Jen Lin (National Taiwan Univ.) 92 / 102

Discussion and conclusions

Research versus Software Development

Shouldn’t software be developed by companies? Two issues

1

Business models of machine learning software

2

Research problems in developing software

Chih-Jen Lin (National Taiwan Univ.) 93 / 102

Discussion and conclusions

Research versus Software Development (Cont’d)

Business model It is unclear to me what a good model should be Machine learning software are basically “research” software They are often called by some bigger packages For example, LIBSVM and LIBLINEAR are called by Weka and Rapidminer through interfaces These data mining packages are open sourced and their business is mainly on consulting Should we on the machine learning side use a similar way?

Chih-Jen Lin (National Taiwan Univ.) 94 / 102

Discussion and conclusions

Research versus Software Development (Cont’d)

Research issues A good machine learning package involves more than the core machine learning algorithms There are many other research issues

• Numerical algorithms and their stability
• Parameter tuning, feature generation, and user

interfaces

• Serious comparisons and system issues

These issues need researchers rather than engineers Currently we lack a system to encourage machine learning researchers to study these issues.

Chih-Jen Lin (National Taiwan Univ.) 95 / 102

Discussion and conclusions

Machine Learning and Its Practical Use

I just mentioned that a machine learning package involves more than algorithms Here is an interesting conversation between me and a friend Me: Your company has system A for large-scale training and now also has system B. What are their differences? My friend: A uses ... algorithms and B uses ... Me: But these algorithms are related My friend: Yes, but you know sometimes algorithms are the least important thing

Chih-Jen Lin (National Taiwan Univ.) 96 / 102

Discussion and conclusions

Machine Learning and Its Practical Use (Cont’d)

As machine learning researchers, of course we think algorithms are important But we must realize that in industry machine learning is often only part of a big project Moreover, it rarely is the most important component We academic machine learning people must try to know where machine learning is useful. Then we can develop better algorithms and software

Chih-Jen Lin (National Taiwan Univ.) 97 / 102

Discussion and conclusions

Conclusions

From my experience, developing machine learning software is very interesting. In particular, you get to know how your research work is used Through software, we have seen different application areas of machine learning We should encourage more researchers to develop high quality machine learning software

Chih-Jen Lin (National Taiwan Univ.) 98 / 102

Discussion and conclusions

Acknowledgments

All users have greatly helped us to make improvements Without them we cannot get this far We also thank all our past group members

Chih-Jen Lin (National Taiwan Univ.) 99 / 102

Discussion and conclusions

References I

• B. E. Boser, I. Guyon, and V. Vapnik. A training algorithm for optimal margin classifiers. In

Proceedings of the Fifth Annual Workshop on Computational Learning Theory, pages 144–152. ACM Press, 1992. C.-C. Chang and C.-J. Lin. LIBSVM: A library for support vector machines. ACM Transactions on Intelligent Systems and Technology, 2:27:1–27:27, 2011. Software available at http://www.csie.ntu.edu.tw/~cjlin/libsvm.

• C. Cortes and V. Vapnik. Support-vector network. Machine Learning, 20:273–297, 1995.
• C. Drummond. Replicability is not reproducibility: Nor is it good science. In Proceedings of

the Evaluation Methods for Machine Learning Workshop at the 26th ICML, 2009. R.-E. Fan, K.-W. Chang, C.-J. Hsieh, X.-R. Wang, and C.-J. Lin. LIBLINEAR: A library for large linear classification. Journal of Machine Learning Research, 9:1871–1874, 2008. URL http://www.csie.ntu.edu.tw/~cjlin/papers/liblinear.pdf.

• D. Goldberg. What every computer scientist should know about floating-point arithmetic.

ACM Computing Surveys, 23(1):5–48, 1991. C.-J. Hsieh, K.-W. Chang, C.-J. Lin, S. S. Keerthi, and S. Sundararajan. A dual coordinate descent method for large-scale linear SVM. In Proceedings of the Twenty Fifth International Conference on Machine Learning (ICML), 2008. URL http://www.csie.ntu.edu.tw/~cjlin/papers/cddual.pdf.

Chih-Jen Lin (National Taiwan Univ.) 100 / 102

Discussion and conclusions

References II

C.-W. Hsu and C.-J. Lin. A comparison of methods for multi-class support vector machines. IEEE Transactions on Neural Networks, 13(2):415–425, 2002. C.-W. Hsu, C.-C. Chang, and C.-J. Lin. A practical guide to support vector classification. Technical report, Department of Computer Science, National Taiwan University, 2003. URL http://www.csie.ntu.edu.tw/~cjlin/papers/guide/guide.pdf.

• T. Joachims. Making large-scale SVM learning practical. In B. Sch¨
• lkopf, C. J. C. Burges, and
• A. J. Smola, editors, Advances in Kernel Methods – Support Vector Learning, pages

169–184, Cambridge, MA, 1998. MIT Press.

• T. Joachims. Training linear SVMs in linear time. In Proceedings of the Twelfth ACM

SIGKDD International Conference on Knowledge Discovery and Data Mining, 2006.

• S. S. Keerthi and C.-J. Lin. Asymptotic behaviors of support vector machines with Gaussian
• kernel. Neural Computation, 15(7):1667–1689, 2003.
• E. Osuna, R. Freund, and F. Girosi. Training support vector machines: An application to face
• detection. In Proceedings of IEEE Computer Society Conference on Computer Vision and

Pattern Recognition (CVPR), pages 130–136, 1997.

• J. C. Platt. Fast training of support vector machines using sequential minimal optimization. In
• B. Sch¨
• lkopf, C. J. C. Burges, and A. J. Smola, editors, Advances in Kernel Methods -

Support Vector Learning, Cambridge, MA, 1998. MIT Press.

Chih-Jen Lin (National Taiwan Univ.) 101 / 102

Discussion and conclusions

References III

• S. Shalev-Shwartz, Y. Singer, and N. Srebro. Pegasos: primal estimated sub-gradient solver

for SVM. In Proceedings of the Twenty Fourth International Conference on Machine Learning (ICML), 2007.

• S. Sonnenburg, M. Braun, C. Ong, S. Bengio, L. Bottou, G. Holmes, Y. LeCun, K. M¨

uller,

• F. Pereira, C. Rasmussen, et al. The need for open source software in machine learning.

Journal of Machine Learning Research, 8:2443–2466, 2007. G.-X. Yuan, C.-H. Ho, and C.-J. Lin. Recent advances of large-scale linear classification. Proceedings of IEEE, 2012. URL http://www.csie.ntu.edu.tw/~cjlin/papers/survey-linear.pdf. To appear.

Chih-Jen Lin (National Taiwan Univ.) 102 / 102
